InTemp® CX405 RTD Dry Ice Logger Manual
InTemp CX405 RTD Dry Ice
Logger
Included Items:
• Two AAA 1.5 V alkaline
batteries
• Battery door and screw
• NIST Certificate of Calibration
Required Items:
• InTemp app
• Device with iOS or Android™
and Bluetooth
25469-D

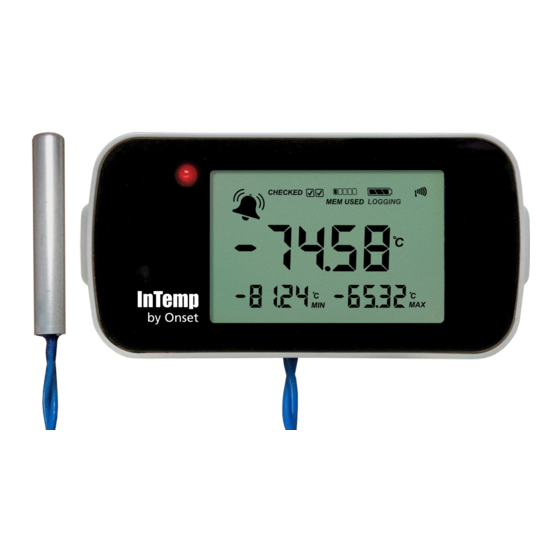

The InTemp CX405 RTD dry ice logger is designed for Cold Chain monitoring and has a built-in
external probe that can measure temperatures as low as -95°C (-139°F). This Bluetooth® Low Energy-
enabled logger is designed for wireless communication with a mobile device. Using the InTemp app,
you can easily configure the logger, perform daily logger checks, download reports, and monitor
tripped alarms. Or, you can use InTempConnect® to configure and download CX series loggers via the
CX5000 Gateway. The InTempVerify™ app is also available to easily download loggers and
automatically upload reports to InTempConnect. (Note: InTempVerify is for downloading and
continuing loggers only. It cannot configure, start, or restart the loggers.) Use the LCD screen on the
logger to check the current temperature, logging status, battery usage, and more. Once data is
uploaded to InTempConnect, you can track logger configurations and automatically upload logger
data to build custom reports for further analysis.
Specifications
External Temperature Probe
Range -95° to 50°C (-139° to 122°F)
Accuracy ±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
Resolution 0.05°C at 25°C (0.09°F at 77°F)
Drift <0.1°C (0.18°F) per year
NIST Calibration Two-point NIST calibration, probe only
Cable Length 1.5 m (4.92 ft)
Probe Dimensions Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches)
long, 4.78 mm (0.188 inches) diameter
Ambient Temperature Sensor
Range -30° to 70°C (-22° to 158°F)
Accuracy ±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
Resolution 0.024°C at 25°C (0.04°F at 77°F)
Drift <0.1°C (0.18°F) per year
Logger
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
Logging Rate 1 second to 18 hours
Time Accuracy ±1 minute per month at 25°C (77°F)
Battery Type Two AAA 1.5 V alkaline or lithium batteries, user replaceable
Battery Life 1 year, typical with logging interval of 1 minute. Faster logging intervals,
remaining connected with the app, excessive report generation,
numerous audible alarms, and paging all impact battery life.
Memory 128 KB (75,245 total measurements or 37,622 probe & internal paired
measurements)
Full Memory Download Approximately 60 seconds; may take longer the farther the device is
Time from the logger
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or
go blank in temperatures outside this range
Dimensions 9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
Weight 90.2 g (3.18 oz)
Environmental Rating IP54
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
See last page
Passed RTCA DO160G, part 21H
