HOBO® MX CO Logger (MX1102) Manual
2
HOBO MX CO Logger
2
MX1102
Included Items:
• Four AA 1.5 V alkaline
batteries
Required Items:
• HOBOmobile app and
device with iOS 8.3–9.0 or
Android™ 4.4, 5.0, or 5.1
and Bluetooth 4.0
OR
• HOBOware 3.7.3 or later
and USB cable
Accessories:
• Mounting kit with
mounting brackets, screws,
tie wraps, and Command™
strip
19198-E
Shop for Data Logging products online at:

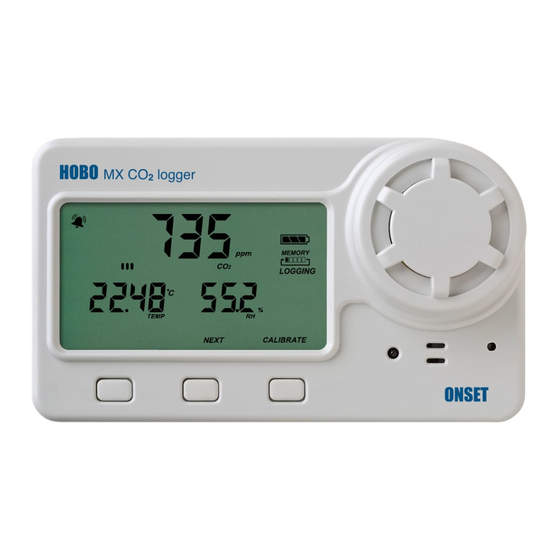

The HOBO MX CO data logger records carbon dioxide, temperature, and relative humidity (RH)
2
data in indoor environments using non-dispersive infrared (NDIR) self-calibrating CO
technology and integrated temperature and RH sensors. This Bluetooth® Low Energy-enabled
logger is designed for wireless communication with a mobile device and also supports a USB
connection. Using the HOBOmobile® app on your phone or tablet or HOBOware software on your
computer, you can easily configure the logger, read it out, and view plotted data. The logger can
calculate minimum, maximum, average, and standard deviation statistics and can be configured to
trip audible or visual alarms at thresholds you specify. In addition, it supports burst logging in
which data is logged at a different interval when sensor readings are above or below certain
limits. This logger also has a built-in LCD screen to display the current CO
logging status, battery use, memory consumption, and more.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Drift
RH Sensor*
Range
Accuracy
Hysteresis
Resolution
Drift
CO Sensor
2
Range
Accuracy
Warm-up Time
Calibration
Non-linearity
Pressure Dependence
Operating Pressure Range
Compensated Pressure
Range
Sensing Method
Response Time
Temperature
RH
CO
2
Logger
Radio Power
Transmission Range
Wireless Data Standard
Logger Operating Range
*Per RH sensor manufacturer data sheet
Note: The HOBO U-Shuttle (U-DT-1) is not compatible with this logger.
DataLoggerStore
www.
0° to 50°C (32° to 122°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F), see Plot A
<0.1°C (0.18°F) per year
1% to 70% RH when CO sensor is enabled (non-condensing)
2
1% to 90% RH when CO sensor is disabled (non-condensing)
2
±2% from 20% to 80% typical at 25°C (77°F), see Plot B
±2% RH
0.01% at 25°C (77°F)
<1% per year typical
0 to 5,000 ppm
±50 ppm ±5% of reading at 25°C (77°F), less than 70% RH and 1,013
mbar
15 seconds
Auto or manual to 400 ppm
<1% of FS
0.13% of reading per mm Hg (corrected via user input for
elevation/altitude)
950 to 1,050 mbar (use Altitude Compensation for outside of this
range)
-305 to 5,486 m (-1,000 to 18,000 ft)
Non-dispersive infrared (NDIR) absorption
12 minutes to 90% in airflow of 1 m/s (2.2 mph)
1 minute to 90% in airflow of 1 m/s (2.2 mph)
1 minute to 90% in airflow of 1 m/s (2.2 mph)
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
0° to 50°C (32° to 122°F); 0 to 95% RH (non-condensing)
.com
sensor
2
level, temperature, RH,
2
