    POWXB10060 APPLICATION ................3 DESCRIPTION (FIG. A) ..............3 PACKAGE CONTENT LIST ............3 SYMBOLS ..................3 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ..................... 4 Personal safety ...................... 4 Power tool use and care ..................5 Battery tool use and care ..................
  • Page 2 POWXB10060 9.5.1 Switch lock (Fig 4) ....................9 9.5.2 Direction of rotation (Fig 5)..................9 9.5.2.1 Clockwise rotation: ....................9 9.5.2.2 Anticlockwise rotation: ..................9 9.5.3 Variable speed ......................9 Adjusting the torque .................... 10 Function mode selector ..................10 Speed selector (Fig 6) ..................

  • Page 3: Application

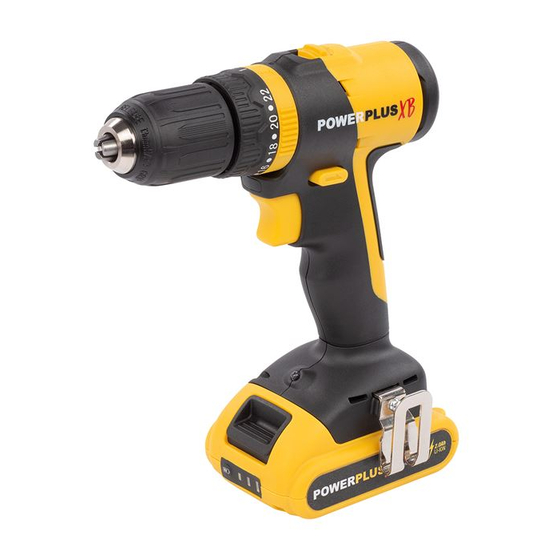

    POWXB10060 IMPACT DRILL 20V POWXB10060 1 APPLICATION The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

  • Page 4: General Power Tool Safety Warnings

    POWXB10060 Use battery and charger only Do not incinerate battery pack in closed rooms or charger 5 GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference.

  • Page 5: Power Tool Use And Care

    POWXB10060 ▪ If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards. Power tool use and care ▪ Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do.

  • Page 6: Additional Safety Instructions For Batteries And Chargers

    POWXB10060 ▪ Let bit cool before touching, changing or adjusting it. Bits heat up dramatically while in use, and can burn you. ▪ Avoid unintentional starting. Prepare to begin work before turning on the tool. ▪ Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the tool out of your control.

  • Page 7: Chargers

    POWXB10060 ✓ Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar. ✓ In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

  • Page 8: Operation

    POWXB10060 9 OPERATION Charging the battery pack The battery pack for this tool is supplied in a low charge condition to prevent possible problems, therefore, you have to charge the battery before first use. Note: Batteries will not reach full charge the first time they are charged.

  • Page 9: Battery Capacity Indicator (Fig. 1A)

    POWXB10060 Battery capacity indicator (Fig. 1a) There are battery capacity indicators on the battery pack, you can check the capacity status of the battery if you squeeze the button (10). Before using the machine, please press switch trigger to check if the battery is full enough for properly working.

  • Page 10: Adjusting The Torque

    POWXB10060 Adjusting the torque The torque is adjusted by rotating the torque setting ring; the torque is greater when the torque setting is set on a higher position. The torque is less when the torque setting ring is set on a low position“1”denote lowest and “22”...

  • Page 11: Drilling

    POWXB10060 10 DRILLING 10.1 Drilling Before use for drilling, the function mode selector should be set on drill position “ ”. When drilling hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the drill or bit into the work piece, applying only enough pressure to keep the bit cutting.

  • Page 12: Cleaning And Maintenance

    POWXB10060 11 CLEANING AND MAINTENANCE 11.1 Cleaning ▪ Keep the ventilation slots of the machine clean to prevent overheating of the engine. ▪ Regularly clean the machine housing with a soft cloth, preferably after each use. ▪ Keep the ventilation slots free from dust and dirt.

  • Page 13: Warranty

    We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90.

  • Page 14: Declaration Of Conformity

    POWXB10060 16 DECLARATION OF CONFORMITY VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, Product: Impact drill 20V - Battery Operated Trade mark: PowerPlus Model: POWXB10060 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmoniz195ed standards.
