POWX1197 APPLICATION .................. 3 DESCRIPTION(FIG.1) ..............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Work area ........................ 4 Electrical safety ....................... 4 Personal safety ....................... 4 Power tool use and care ..................5 Service ........................ - Page 2 POWX1197 STORAGE ..................10 WARRANTY ................... 10 ENVIRONMENT ................10 DECLARATION OF CONFORMITY ..........11 Copyright © 2022 VARO NV www.varo.com P a g e...
-
Page 3: Application

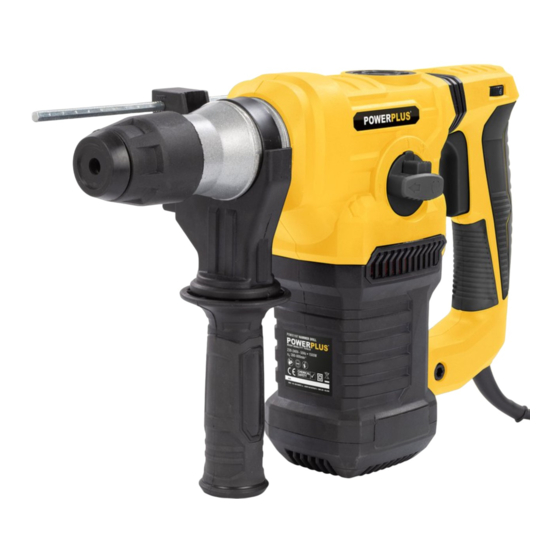

POWX1197 HAMMER DRILL 1500W POWX1197 1 APPLICATION The machine is intended for hammer drilling in concrete, brick and stone, as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. -
Page 4: Symbols
POWX1197 4 SYMBOLS In this manual and/or on the machine the following symbols are used: In accordance with essential Read manual before use requirements of the European directive(s) Wear gloves Wear noise protection Class II - The machine is double insulated; Earthing wire Always wear safety goggles is therefore not necessary. -
Page 5: Power Tool Use And Care
POWX1197 ▪ Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries. ▪ Avoid accidental starting. Ensure the switch is in the off position before plugging in. -
Page 6: Before Using The Tool For The First Time
POWX1197 ▪ Wear goggles and use a dust mask on jobs generating dust. ▪ Do not use in areas where there are vapours or flammable liquids. ▪ Always pull the plug out of the socket before cleaning or making changes to the machine. -
Page 7: Switching On/Off
POWX1197 Switching ON/OFF ▪ Switching on: Press the trigger switch (8). ▪ Switching off: Release the trigger switch (8) Speed adjustment This hammer drill is equipped with a speed dial, the rotation speed can be adjusted from 1 – 6, simply rotate the dial (9) to adjust according the application. -
Page 8: How To Use The Demolition Hammer
POWX1197 ▪ The following function modes are available: Drill mode Hammer drilling mode III. Chiselling mode Hammering mode Important! When hammer drilling you will require a low pressure. Too much pressure will place unnecessary load on the motor. Check the drill bits regularly. -
Page 9: Cleaning And Maintenance
POWX1197 10 CLEANING AND MAINTENANCE Attention !Before performing any work on the equipment, pull the power plug. 10.1 Cleaning ▪ Keep the ventilation slots of the machine clean to prevent overheating of the engine. ▪ Regularly clean the machine housing with a soft cloth, preferably after each use. - Page 10 We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90.
