ipf electronic OTQ80576 Manual

OTQ80576
Optical sensors

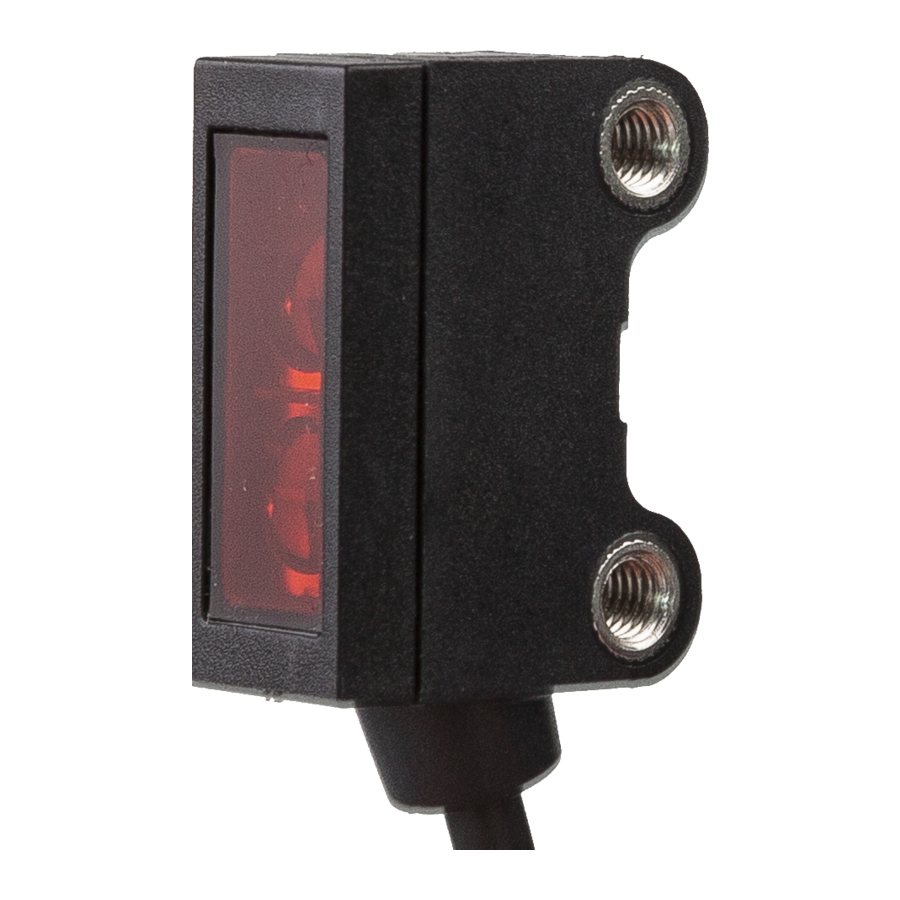

Diffuse reflection sensor with background suppression
I
plastic housing
I
setting via teach-in
I
status LED as alignment aid
I
M8-connecor 4-pin
small light spot thanks to PIN-Point-LED
IO-Link interface
TECHNICAL DATA
function
sensing range
sensing distance
voltage supply +Vs
current consumption (w/o load)
voltage drop (max. load)
output current (max. load)
output signal
short-circuit protection
reverse polarity protection
response / delay time (high-speed-mode)
sampling frequency (high-speed-mode)
transmitting element (pulsed)
wave length
display (operation)
display (signal / alignment)
switchpoint setting
suppression of reciprocal influence
housing material
front screen material
degree of protection (EN 60529)
operating temperature
connection
connection accessories
accessories (universal-holder)
Connection
• Rosmarter Allee 14 • 58762 Altena
ipf electronic gmbh
diffuse reflection sensor, background suppression
3 ... 132mm
20 ... 120mm
10 ... 30V DC
40mA
2V
50mA
Push-pull, no/nc
+
+
≥ 0.25ms
≤ 2kHz
LED, red light, punctiform
644nm
LED green
LED yellow
teach-in and IO-Link
+
plastic (ASA, PMMA)
PMMA
IP 67
-25 ... +60°C
M8 cable connector, 4-pin, L=200mm
e.g. VK200375
AY000116
Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: November 2019
Dimensional drawing
info@ipf-electronic.com • www.ipf-electronic.com
│
1
