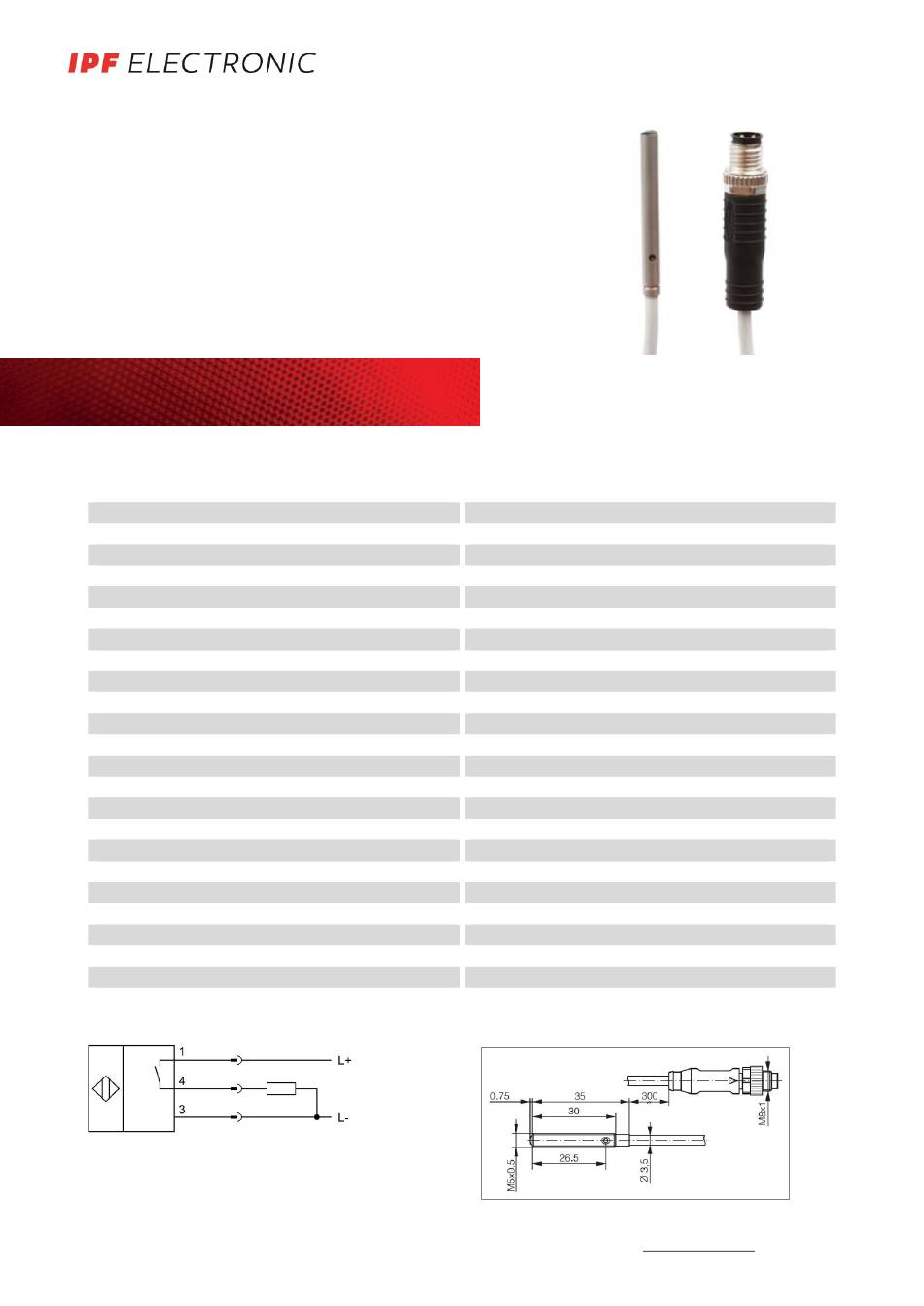

ipf electronic OTR49174 Manual

OTR49174
optical sensors
diffuse reflection sensors
I
stainless steel sleeve
I
high degree of protection IP67
I
LED display for status and functional reserve
I
connection with M8-pigtail
subminiature devices
visible red light
TECHNICAL DATA
sensing range max.
operating range
transmitting element
wave length
operating voltage U
B
residual ripple
power consumption (no load)
output signal
output current (max. load)
voltage drop (max. load)
Sampling frequency
indicator LED, green
indicator LED, yellow
short circuit protection
reverse polarity protection
housing material
optics material
degree of protection (EN 60529)
design
length
operating temperature
connection
connection accessories
mounting accessories (clip)
connection
Colors: 1 = BN (brown), 3 = BU (blue), 4 = BK (black)
Functions: 1 = L+, 3 = L-, 4 = PNP NO
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
12mm
0 ... 10mm
LED, red light
630nm
10 ... 30V DC
≤ 10%
≤ 12mA
pnp, no
≤ 100mA
≤ 2V DC
≤ 1kHz
excess gain
sensing state
+
+
stainless steel V2A
PBT / PMMA
IP 67
Ø 4mm
35.75mm
-25 ... +65°C
300mm PUR-Cable / M8-Connector, 3-pin
e.g. VK200075
AY000044
dimensional drawing
│ Tel +49 2351 9365-0 • Fax +49 2351 9365-19
MANUAL • Subject to alteration! Version: July 2019
(object with 90% reflectivity)
(object with 90% reflectivity)
│ info@ipf-electronic.com • www.ipf-electronic.com 1
