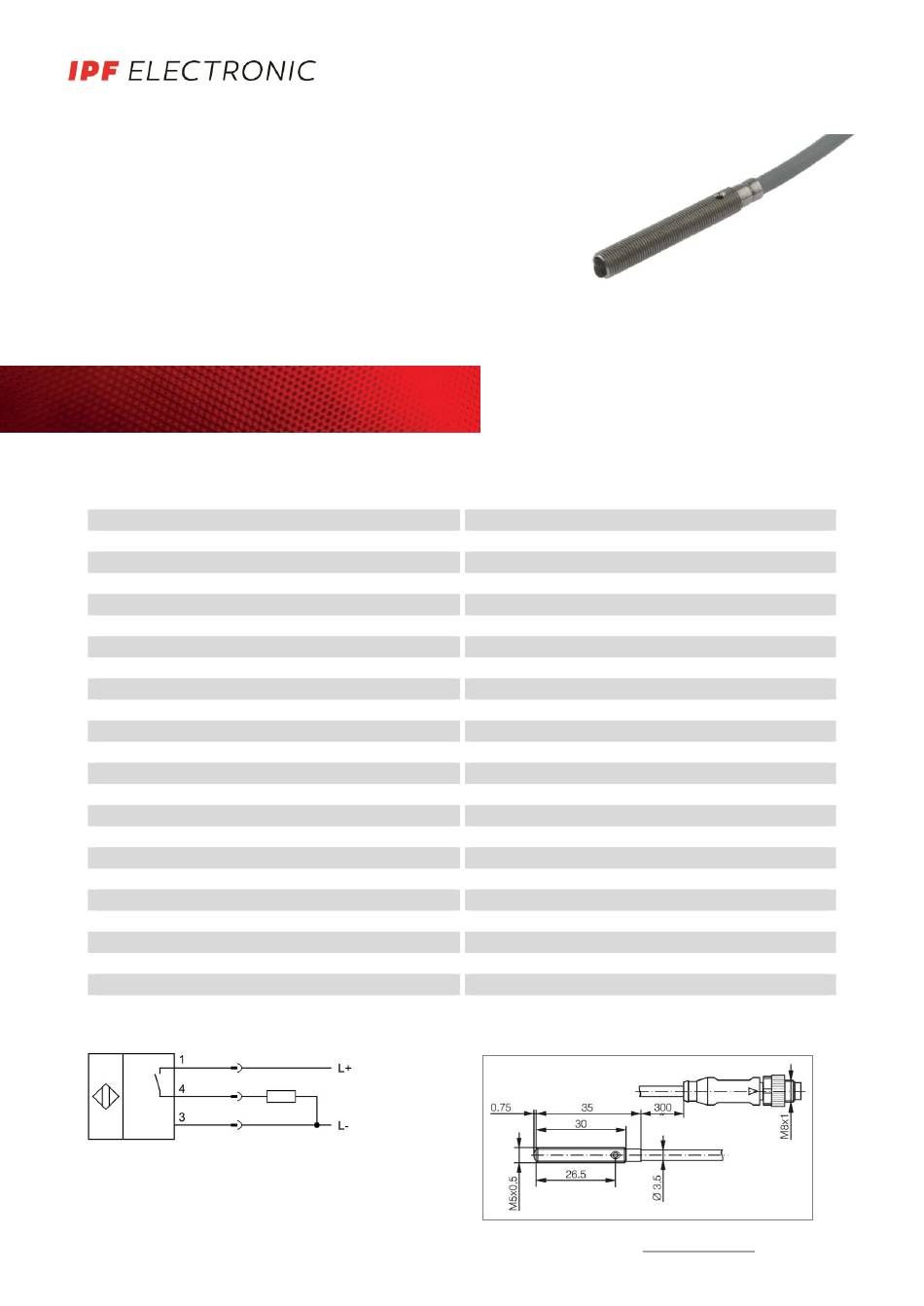

ipf electronic OT059170 Manual

OT059170

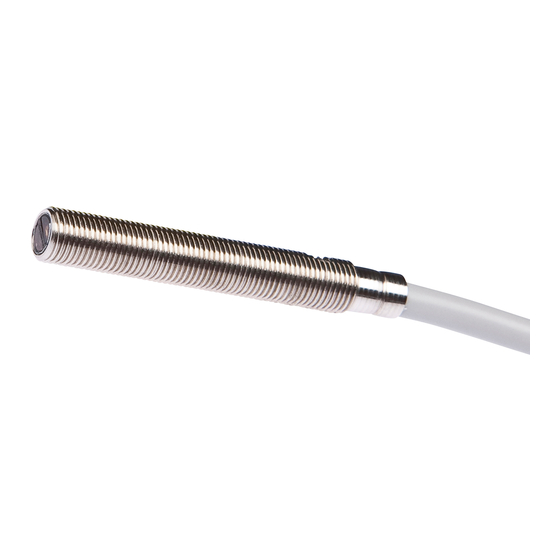

optical sensors
diffuse reflection sensors
I
stainless steel sleeve
I
high degree of protection IP67
I
LED display for status and functional reserve
I
connection with M8-pigtail
subminiature devices
visible red light
TECHNICAL DATA
sensing range max.
operating range
transmitting element
wave length
operating voltage U
B
residual ripple
power consumption (no load)
output signal
output current (max. load)
voltage drop (max. load)
Sampling frequency
indicator LED, green
indicator LED, yellow
short circuit protection
reverse polarity protection
housing material
optics material
degree of protection (EN 60529)
design
length (thread / complete)
operating temperature
connection
connection accessories
mounting accessories (mounting holder)
connection
Colors: 1 = BN (brown), 3 = BU (blue), 4 = BK (black)
Functions: 1 = L+, 3 = L-, 4 = PNP NO
• Rosmarter Allee 14 • 58762 Altena
ipf electronic gmbh
60mm
0 ... 50mm
LED, red light
630nm
10 ... 30V DC
≤ 10%
≤ 12mA
pnp, no
≤ 100mA
≤ 2V DC
≤ 1kHz
excess gain
sensing state
+
+
stainless steel V2A
PBT / PMMA
IP 67
M5 x 0.5
30mm / 35.75mm
-20 ... +65°C
300mm PUR-Cable / M8-Connector, 3-pin
e.g. VK200075
AY000115
dimensional drawing
Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: July 2019
(object with 90% reflectivity)
(object with 90% reflectivity)
