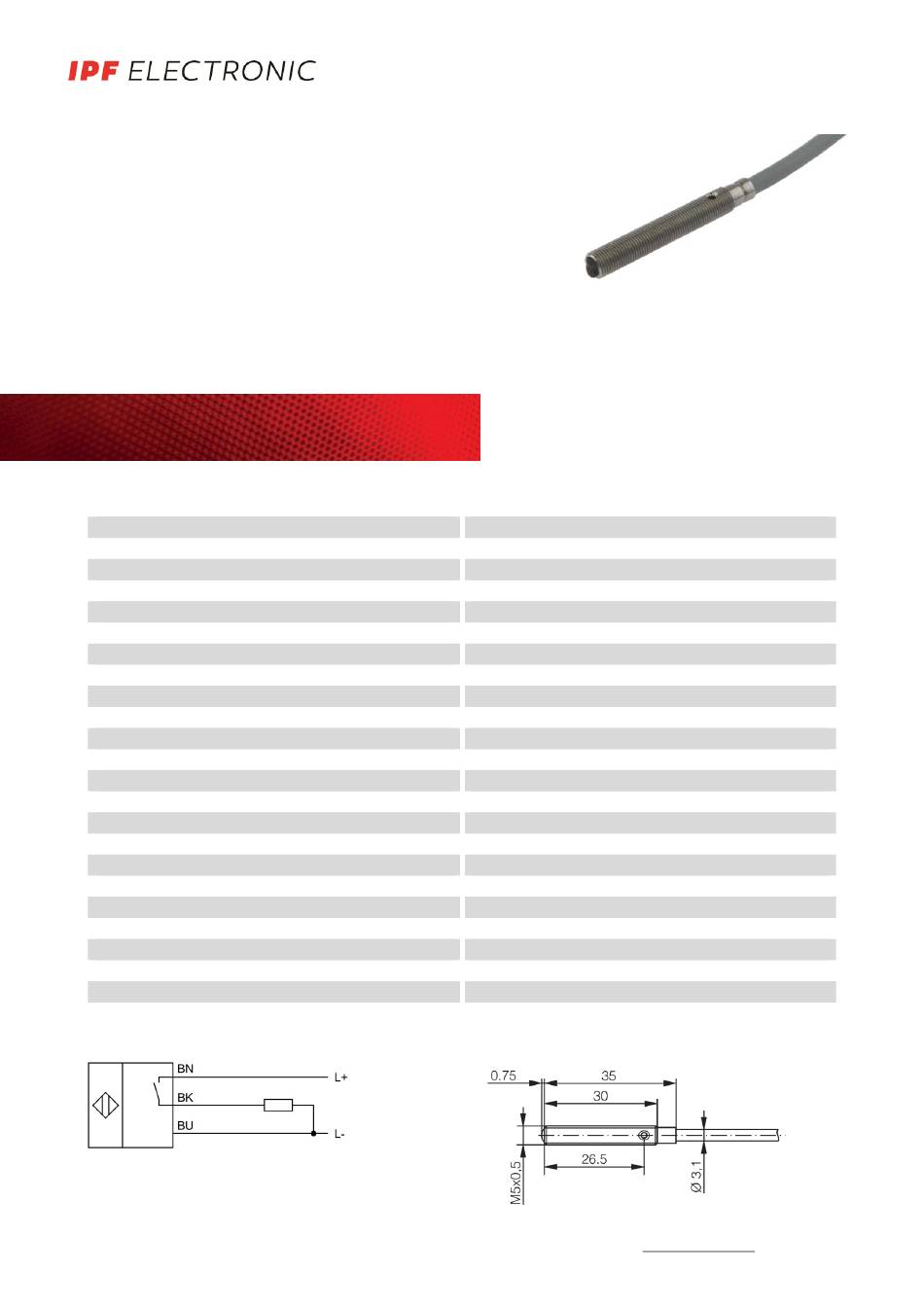

ipf electronic OT05E244 Manual

OT05E244
optical sensors
energetic diffuse reflection sensors (intensity differentiation)
I
stainless steel housing
I
high degree of protection IP67
I
status LED for switching output and functional reserve
I
connection via M8-connector
subminiature devices
infrared light

TECHNICAL DATA

Sensing Range max.
operating range
transmitting element
wave length
operating voltage U
B
residual ripple
power consumption (w/o load)
output signal
output current (max. load)
voltage drop (max. load)
sampling frequency
status LED (functional reserve)
status LED (switching state)
short-circuit protection
reverse polarity protection
housing material
optics material
degree of protection (EN 60529)
dimensions
length (thread / complete)
operating temperature
connection
mounting accessories
connection
colors: BN (brown), BU (blue), BK (black)
functions: BN = L+, BU = L-, BK = PNP NO
• Rosmarter Allee 14 • 58762 Altena
ipf electronic gmbh
35mm (object with 90% reflectivity)
0 ... 30mm (object with 90% reflectivity)
LED, IR light
880nm
10 ... 30V DC
≤ 10%
≤ 12mA
pnp, no
≤ 100mA
≤ 2V DC
≤ 1kHz
LED green
LED yellow
+
+
stainless steel 1.4301
PBT / PMMA
IP 67
M5 x 0.5
30mm / 35.75mm
-20 ... +65°C
2m PUR-cable
AY000115
dimensional drawing
Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: July 2019
