ASSEMBLY INSTRUCTIONS

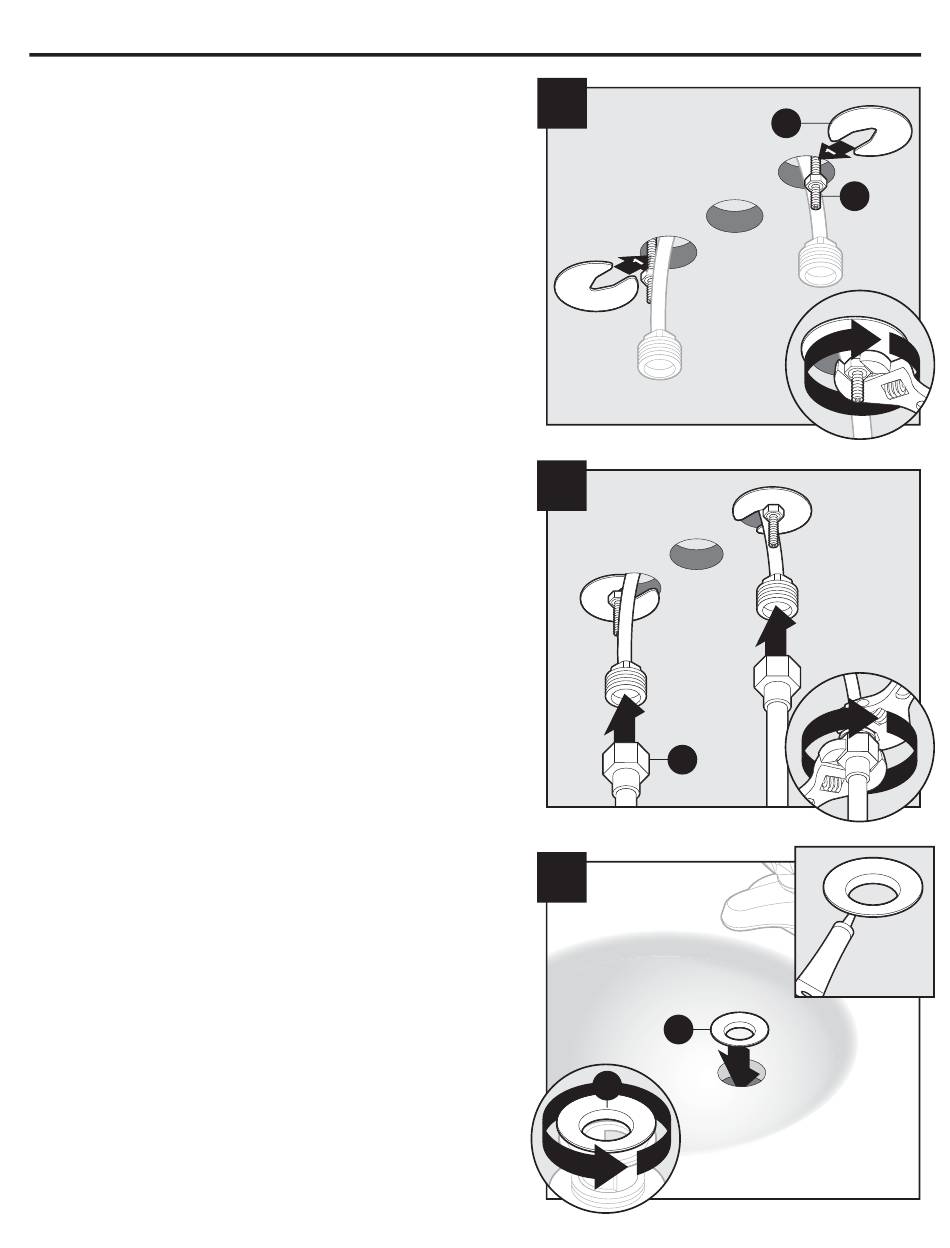

4. Install guide washers (CC) onto screw bolts
(BB) and tighten nuts preassembled on
bolts (BB).
5. Install coupling nuts (DD) to supply lines
(not included). Screw coupling nuts (DD) and
supply lines onto inlet ports of faucet (A).
Note: Hold faucet's copper supply fi tting with
a wrench while tightening water supply line in
place to avoid twisting the copper line.
6. Remove fl ange (F) from the preassembled
drain assembly. Apply a bead of clear
silicone sealant under the fl ange (F) and
place into sink.
Note: From below, remove ball nut (M) from
drain body (E).
