ASSEMBLY INSTRUCTIONS

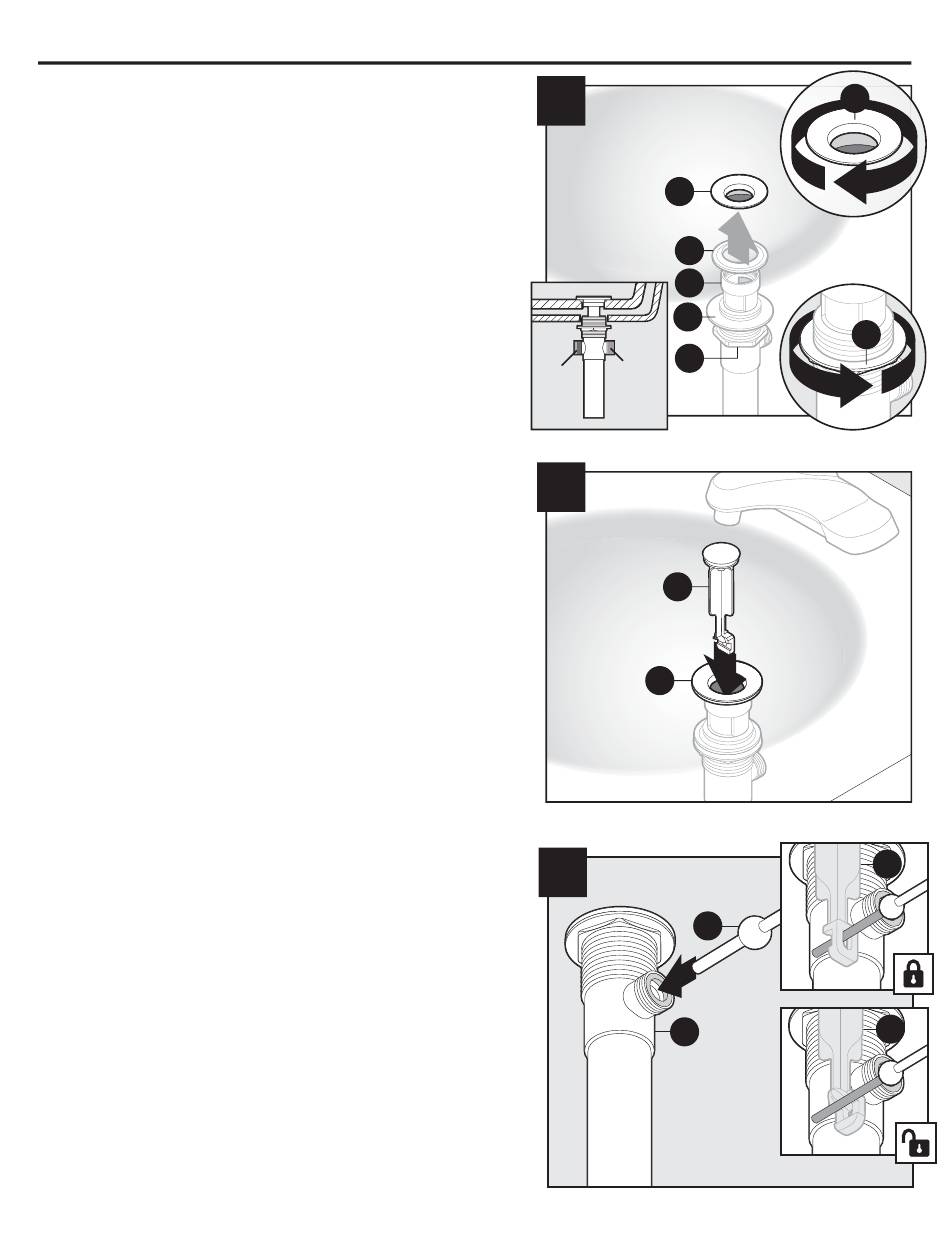

7. From below, reattach drain assembly to fl ange
(F). Secure into place by tightening lock nut (I).
Caution: Sink damage can occur from
overtightening.
NOTE: Opening for ball rod must
face toward rear of sink.
8. Insert plunger (C) into fl ange (F).
9. From below, insert ball rod (N) into drain
body (E).
Note: Plunger (C) can be installed either in a
locked position, which prevents the plunger
(C) from being removed, or unlocked position,
which allows the plunger (C) to be removed
for cleaning.
