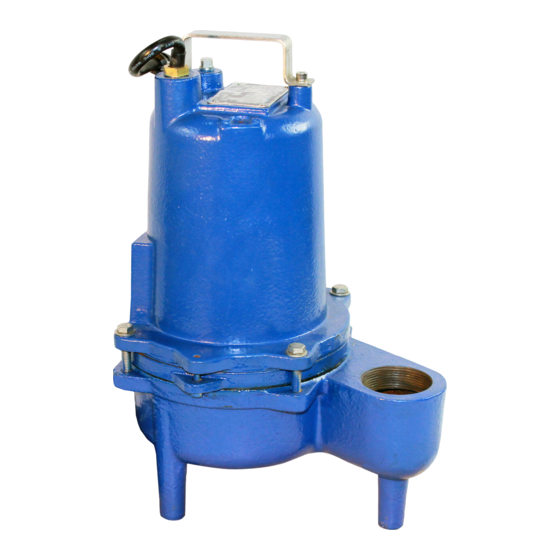

- Page 1 INSTALLATION, SERVICE & PARTS MANUAL Series: PFS411HTCE 0.4 HP • 1750 RPM • 60 Hz Submersible Effluent, Sump & Sewage Pump High Temperature 877-24PUMPS • www.powerflopumps.com ISP No: PFS411HTCE - 1/2021...
-
Page 2: General Safety Information
® Power-Flo is a registered trademark of Power-Flo Technologies Inc. Other brand and product names are trademarks or registered trademarks of their respective holders. Alteration Rights Reserved. 7/2007, 4/09, 6/09, 11/09, 2/10, 4/10, 7/11, 5/12, 9/2020, 1/2021... -
Page 3: High Temperature
Full Load Locked NEMA Start Winding Resistance Cord Cord Cord MODEL Amps Rotor Amps Code MAIN -- START Type Size O.D. PFS411HTCE 4/10 115/1 1750 10.0 24.5 1.6 -- 18.5 SJOOW 16/3 0.325 Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 4 PFS411HTCE Submersible Effluent, Sump & Sewage Pumps Dimensions & Performance - High Temp Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 5: Receiving And Installation
9” for HTCE a dirt bottom. The legs will sink into the dirt and the suction will become plugged. Bottom of Feet Figure 1 Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... -
Page 6: Installation & Service
Oil level as an inherent overheating protector should be just above the motor when and operates on the combined effect of pump is in vertical position. temperature and current. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 7 For sealed areas below oil level, leeks will a hazard. Overfilling oil voids 9. Remove screws (4) and lift motor seep oil. warranty. housing (21) and stator from seal plate (29). Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 8 (17D), ring (17F), Kellum clean before reassembly. grip (17C) and gland nut (17B) into Handle seal parts with extreme care. DO NOT damage lapped housing (21) and tighten gland nut to surfaces. 17.5 ft/lbs. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 9: Repair Parts
Submersible Effluent, Sump & Sewage Pumps For Repair Part Please supply: Model Number and MFG Date as shown on Repair Parts Name Plate, and Part Description and Part Number as shown on Parts List. Figure 5 Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 10 Kit includes: gasket (2), square ring (3), bearing (5), capacitor PFS411HT-OHK (11), bearing (18), seal (22), v-ring (25), spacer seal (26) = Aquire standard hardware locally. = Overhaul Kit = Supplied as individual items Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 11: Troubleshooting Chart
NOTE: Power-Flo Pumps & Systems assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other than at Power-Flo Pumps & Systems or its authorized service centers, automatically voids warranty. -
Page 12: Limited Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
