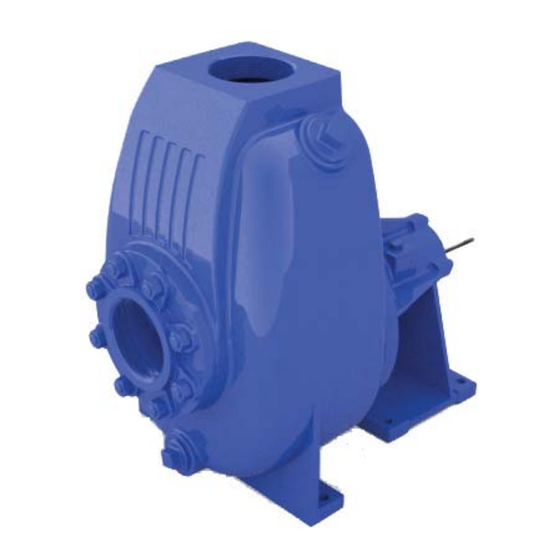

- Page 1 INSTALLATION, SERVICE & PARTS MANUAL Series: PF30MU PF40MU Self-Priming Frame Mounted Pumps 877-24PUMPS • www.powerflopumps.com ISP No: PF30-40MU - 1/2021...
-
Page 2: General Safety Information
® Power-Flo is a registered trademark of Power-Flo Technologies Inc. Other brand and product names are trademarks or registered trademarks of their respective holders. Alteration Rights Reserved. 1/09, 8/09, 9/09, 3/11, 8/11, 6/13, 1/14, 7/14, 9/2020, 1/2021... -
Page 3: Specifications
Single Row, Ball, Oil Lubricated DRIVE END BEARING Double Row, Ball, Oil Lubricated Neoprene Flap type valve, with cast iron CHECK VALVE weight Series: PF30MU STAINER Steel PF40MU 4” x 4” Universal Drive/Frame Mtd Trash/Solids Handling Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 4 PF30MU & PF40MU Self-Priming Frame Mounted Pumps Dimensions Model Weight PF30MU 330 lbs PF40MU 330 lbs Not for pumping flammable liquids or hazardous materials that is not compatible with pump materials. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 5 PF30MU Self-Priming Frame Mounted Pumps Performance Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 6 PF40MU Self-Priming Frame Mounted Pumps Performance Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 7 (30) is at the TOP and the LARGE weight is Be sure the electrical specification of Driver on the pump side of gasket. the control selected properly match the Refere to Engine or Motor Manufacture’s electrical specifications of the pump. Instructions. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 8: Installation & Service
Driving lugs in retainer should mate into rotating member. Replace spring and spring holder (23) and reassemble remainder of Figure 1 pump. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... -
Page 9: Repair Parts
Self-Priming Frame Mounted Pumps For Repair Part Please supply: Model Number and MFG Date as shown on Repair Parts Name Plate, and Part Description and Part Number as shown on Parts List. Figure 2 Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 10 Suction Check Valve #1486 PF92010214 PF92010214 Square Head Plug 2” Square Head Plug 1-1/2” Square Head Plug 1/4” Bayonet PF30400851 PF30400851 () = Aquire standard hardware locally. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 11: Troubleshooting Chart
2. Follow service instructions for installing seal NOTE: Power-Flo Pumps & Systems assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other than at Power-Flo Pumps & Systems or its authorized service centers, automatically voids warranty. -
Page 12: Limited Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
