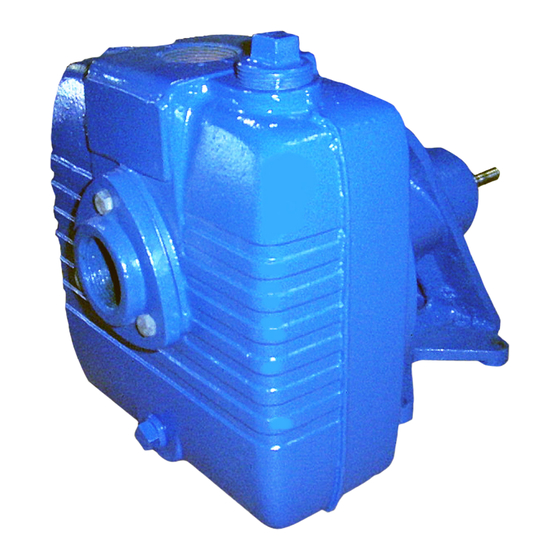

- Page 1 INSTALLATION, SERVICE & PARTS MANUAL Series: PF15ICU, PF20ICU, PF25ICU 3” x 3” Universal Drive /Frame Mtd Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com ISP No: PF15_20_25ICU - 9/2020...
-
Page 2: General Safety Information
® Power-Flo is a registered trademark of Power-Flo Technologies Inc. Other brand and product names are trademarks or registered trademarks of their respective holders. Alteration Rights Reserved. 7/08, 7/09, 1/2010, 3/10, 2/11, 1/12, 1/13, 5/13, 12/19, 9/2020... -
Page 3: Specifications
BEARING-PUMP END Single Row, Ball, Grease Lubricated Series: PF15ICU, PF20ICU Neoprene Flap type valve, with steel CHECK VALVE weight PF25ICU OPTIONAL (-BF) Bronze Volute and Impeller 3” x 3” Universal Drive /Frame Mtd Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 4 Dimensions Model Weight PF15ICU 224 lbs PF20ICU 224 lbs PF25ICU 236 lbs Not for pumping flammable liquids or hazardous materials that is not compatible with pump materials. Add -BF for Bronze Fitted. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 5 PF15ICU Self-Priming Universal Pumps Performance Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 6 PF20ICU Self-Priming Universal Pumps Performance Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 7 PF25ICU Self-Priming Universal Pumps Performance Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 8 (23) in the right hand direction. Take note or equal. the control selected properly match the of the size and quantity of shims (10) & electrical specifications of the pump. Fill Coupling head with 80-90W gear oil. (29) used. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 9 (36), o-ring (40), lip seal (39) and retaining ring (35). Remove shaft, slinger Handle all seal parts with care. and bearing assembly. To replace bearing Do Not damage lapped faces. (38) remove retaining ring (35) and slinger (2). Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 10: Repair Parts
Self-Priming Universal Pumps For Repair Part Please supply: Model Number and MFG Date as shown on Repair Parts Name Plate, and Part Description and Part Number as shown on Parts List. Figure 2 Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com... - Page 11 ◊ Shim, Stainless, .031 PF001348 PF001348 PF001348 = Aquire standard hardware locally. ◊ = Seal/Gasket Kit = Check Valve Assembly = Pedestal Kit = Supplied as individual items Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 12 Pedestal Kit - Includes Items; 26, 27, 37, 38, 39, 40, 41, 42, 43 PF15ICUPED-KIT = Aquire standard hardware locally. ◊ = Seal/Gasket Kit = Check Valve Assembly = Pedestal Kit = Supplied as individual items Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 13 PF15ICU, PF20ICU, PF25ICU Self-Priming Universal Pumps Notes: Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
- Page 14 PF15ICU, PF20ICU, PF25ICU Self-Priming Universal Pumps Notes: Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
-
Page 15: Troubleshooting Chart
2. Follow service instructions for installing seal NOTE: Power-Flo Pumps & Systems assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other than at Power-Flo Pumps & Systems or its authorized service centers, automatically voids warranty. -
Page 16: Limited Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Power-Flo Pumps & Systems • 877-24PUMPS • www.powerflopumps.com...
