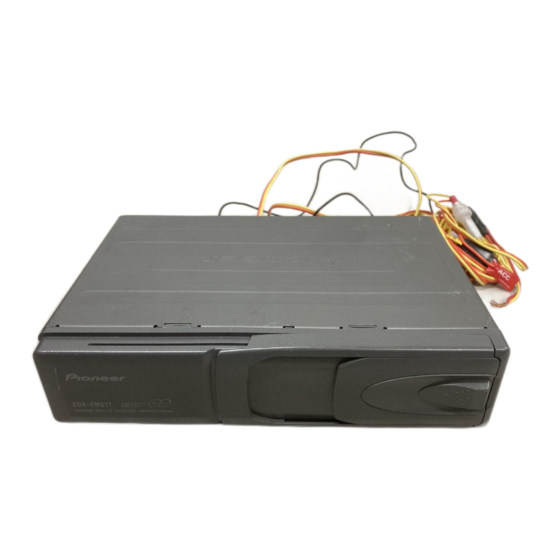

130FM677
UNIVERSAL
MULTI-CD SYSTEM
SYSTEME DE CD
MULTIPLE UNIVERSEL
Operation Manual
CDX-FM677
Mode d'emploi

Advertisement

Table of Contents
loading

Related Manuals for Pioneer CDX-FM677

Summary of Contents for Pioneer CDX-FM677

  • Page 1 130FM677 UNIVERSAL MULTI-CD SYSTEM SYSTEME DE CD MULTIPLE UNIVERSEL Operation Manual CDX-FM677 Mode d’emploi...

  • Page 2: Table Of Contents

    Contents/Table des matières English Français Dear Customer ..........3 Cher Client ..........27 Precautions ..........4 Précautions ..........28 Avant d’utiliser la télécommande ....29 Preparing to Use the Remote Controller Unit ..5 Précautions ..............29 ............Precautions Mise en place de la pile ..........29 ............

  • Page 3: Dear Customer

    English We Want You Listening For A Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise.

  • Page 4: Precautions

    CANADA CHANGES OR MODIFICATIONS TO na, there may be distortion if a station is THIS PRODUCT BY OTHER THAN AN Pioneer Electronics of Canada, Inc. broadcasting a strong signal on the fre- AUTHORIZED SERVICE FACILITY CUSTOMER SERVICE DEPARTMENT quency you’re using for the system. If...

  • Page 5: Preparing To Use The Remote Controller Unit

    Preparing to Use the Remote Controller Unit English Precautions • Keep the remote controller unit in an • Since the transmitter employs an • If the remote controller fails to operate area not exposed to long periods of infrared system, it may not operate unless it is brought close to the unit, it direct sunlight.

  • Page 6: Using The Compact Discs Magazine

    Using the Compact Discs Magazine Inserting discs [Page 6~7] Position the disc with the label upward. Slide out the disc tray Disc tray Disc 1 Hold down the magazine lock button and, pull the tray out. Disc 6 Changing disc trays Disc tray Gently pull the disc tray out.
  • Page 7 To load an fied position. Attaching the label in an 8-cm CD, you need a special 8-cm CD incorrect place or attaching more than tray (Part No. CXB5931). Ask your one label will cause malfunction. Pioneer service station about it. Label...

  • Page 8: Loading The Magazine

    Using the Compact Discs Magazine Loading the magazine • Do not put your fingers in the magazine tray as this may lead to incorrect opera- tion and damage to the player. • If the label on the magazine is coming off or wrinkled up, it may damage the eject mechanism, and in some cases, the magazine may not be ejected.

  • Page 9: Playing Compact Discs

    Playing Compact Discs English Start the CD player 1. Switch the radio on and tune to Modulating Frequencies. • The initial value is 89.1 MHz. (See Page 20 regarding switching CD player transmission frequency.) • If your radio does not have muting, there may be some noise before power switch of control unit is ON.

  • Page 10: Using Track Search/Fast Forward And Reverse

    Playing Compact Discs Using Track Search/Fast Forward and Reverse This product lets you select the track search function or fast for- ward/reverse function by changing the length of the time you press the button. Track Number Elapsed play time : decrease the number. : Fast Reverse : increase the number.

  • Page 11: Pausing

    English Pausing Press button to pause during disc playback. Press button again to release pause. MEMO You can select a track using the track search during pause. (“PAUSE” is off while a track is being searched.) When the track search ends, the found track is paused at its beginning.

  • Page 12: Random Play

    Playing Compact Discs Random Play Example: Disc Repeat (See Page 11.) 1. Select the desired repeat mode. Displayed during random play. 2. Hold down button for more than 2 second. Once the current track has been played, the microprocessor will randomly select the next and subsequent tracks.

  • Page 13: Its (Instant Track Selection)

    English ITS (Instant Track Selection) [Page 13~15] This function lets you program and play the tracks you want. You can listen to just your favorite tracks. Programming 1. Play the track you want to program. 2. Press button to program the track. It will be displayed for about 2 seconds to indicate memory storage.
  • Page 14 Playing Compact Discs ITS Play Example : Disc Repeat (See Page 11.) 1. Select the desired repeat mode. Displayed during ITS play. 2. Hold down button for more than 2 seconds. To cancel ITS play, hold down button for more than 2 seconds again. ITS play will be performed with- in the selected repeat mode.
  • Page 15 English Erasing the ITS Play To erase a single track program: During ITS play, select the track you wish to erase by using track search. Hold down button for more than 2 seconds to erase the program. (When there are no more memo- rized tracks, “EMPTY”...

  • Page 16: Disc Title

    Playing Compact Discs Disc Title [Page 16~19] You can enter a title for the disc in the CD player. The title stored for the disc can be dis- played. Entering Title 1. Select the disc for which you want to enter a title. 2.
  • Page 17 English 3. Press the side of but- ton to select the input position. The input position moves continuously when you hold down either side of the button. 4. Select characters using the side of button. When you hold down either side of the button, the character changes continu- ously.
  • Page 18 Playing Compact Discs Display Switching Normal Operation Each press of the button switches between display of track number (elapsed play time) and disc title Disc Title indications. • Normal Operation • Disc Title When playing a CD TEXT disc, • Disc Artist Name indications switch as shown on the left.
  • Page 19 English Disc Title List You can list all discs loaded in the magazine being played. This function is convenient for checking discs in the magazine being played. Each press of button displays the titles of the discs in magazine being played in ascending order of disc number.

  • Page 20: Setting Player To Play Discs Via Radio

    Playing Compact Discs Setting Player to Play Discs via Radio [Page 20~21] Modulating frequencies selector Pre-emphasis selector This system can change the frequency at Normally, set the pre-emphasis selector which the FM car radio receives the CD to “PRE-EMP 1”. (The initial setting is audio signals within the range of 87.9 to “PRE-EMP 1”.) 90.1 MHz in 0.2-MHz increments.
  • Page 21 English Item Button Display Frequency 2. Set the items while refer- ring to the chart on the Level left. Pre- emphasis The last adjustment is kept as final. 3. Press the button for 2 seconds or more to return to normal play.

  • Page 22: Display Shows This Message

    If it still doesn’t work. If it still doesn’t work to the chart below. Read “After-sales service after checking. for Pioneer products” and Check discs and magazine Press the CD player’s Clear request servicing. once more. button. (See Page 23.)

  • Page 23: Pressing The Clear Button

    Pressing the Clear Button English After connecting everything up, press the • If the clear button is pressed when the clear button with the tip of a pencil. If the player contains a magazine or the igni- power will not switch on, or if the CD tion switch is set to the ON or ACC posi- player does not operate, when the button tion, the CD title display and ITS memo-...

  • Page 24: Transportation Of Multi-Cd Player

    Transportation of multi-CD player Seal After removing the trans- port screw, cover the hole with the supplied seal. Transport screw Attach to the original position before transporting the set. A transport screw has been attached to the set in order to protect it during trans- portation.

  • Page 25: Specifications

    Specifications English CD Player unit Antenna Switching unit Remote Controller unit System ..Compact disc audio system Weight ........140 g (0.3 lbs) Power source Usable discs ......Compact Disc Dimensions ........Battery (CR2025) ..... 45 (W) × 25 (H) × 43 (D) mm Signal format Weight (including battery) [1-3/4 (W) ×...

  • Page 27: Cher Client

    300 Allstate Parkway, Markham, Ontario L3R OP2, Canada Published by Pioneer Corporation. TEL: (905) 479-4411 Copyright © 2000 by Pioneer Corporation. PIONEER ELECTRONICS DE MEXICO, S.A. de C.V. All rights reserved. San Lorenzo 1009 3er. Piso Desp. 302 Publication de Pioneer Corporation.

  • Page 28: Français

    INSTALLATION MANUAL CDX-FM677 MANUEL D’INSTALLATION Published by Pioneer Corporation. Copyright © 2000 by Pioneer Corporation. This product conforms to CEMA cord colors. All rights reserved. Le code de couleur des câbles utilisé pour ce Publication de Pioneer Corporation. produit est conforme à CEMA.

  • Page 29: Avant D'utiliser La Télécommande

    Installing the Display Unit/Installation de l’afficheur Removing the Display Unit/ Parts for display unit mounting/ Enlever de I’afficheur Pièces requises pour le montage de l’afficheur English Français Insert the G that comes with the unit as Insérer la pièce G fournie avec l’appareil ×...

  • Page 30: Utilisation Du Chargeur De Disque Compact

    Transportation of multi-CD Player/ Transport du lecteur de CD à chargeur Seal After removing the transport screw, cover the hole with the supplied seal. Cache Après avoir retiré la vis de transport, bouchez le trou au moyen du cache fourni. Transport screw Attach to the original position before transporting the set.
  • Page 31 φ 6.5 ~ 7 mm φ 4 ~ 4.5 mm The following steps are the same for horizontal or vertical installation. Les opérations suivantes sont les mêmes, que l’in- stallation de l’appareil soit horizontale ou verticale. Mounting angle/ Angle de montage English Français •...
