Pioneer CA-HM-UNI-EVO.008 Installation Manual

CA-HM-UNI-EVO.008
UNIVERSAL 2-DIN INSTALLATION KIT
Tools required (not included)
• Phillips Screwdriver
• 4 mm Allen Head Screwdriver
• Washer or Belt / Nut
Combination

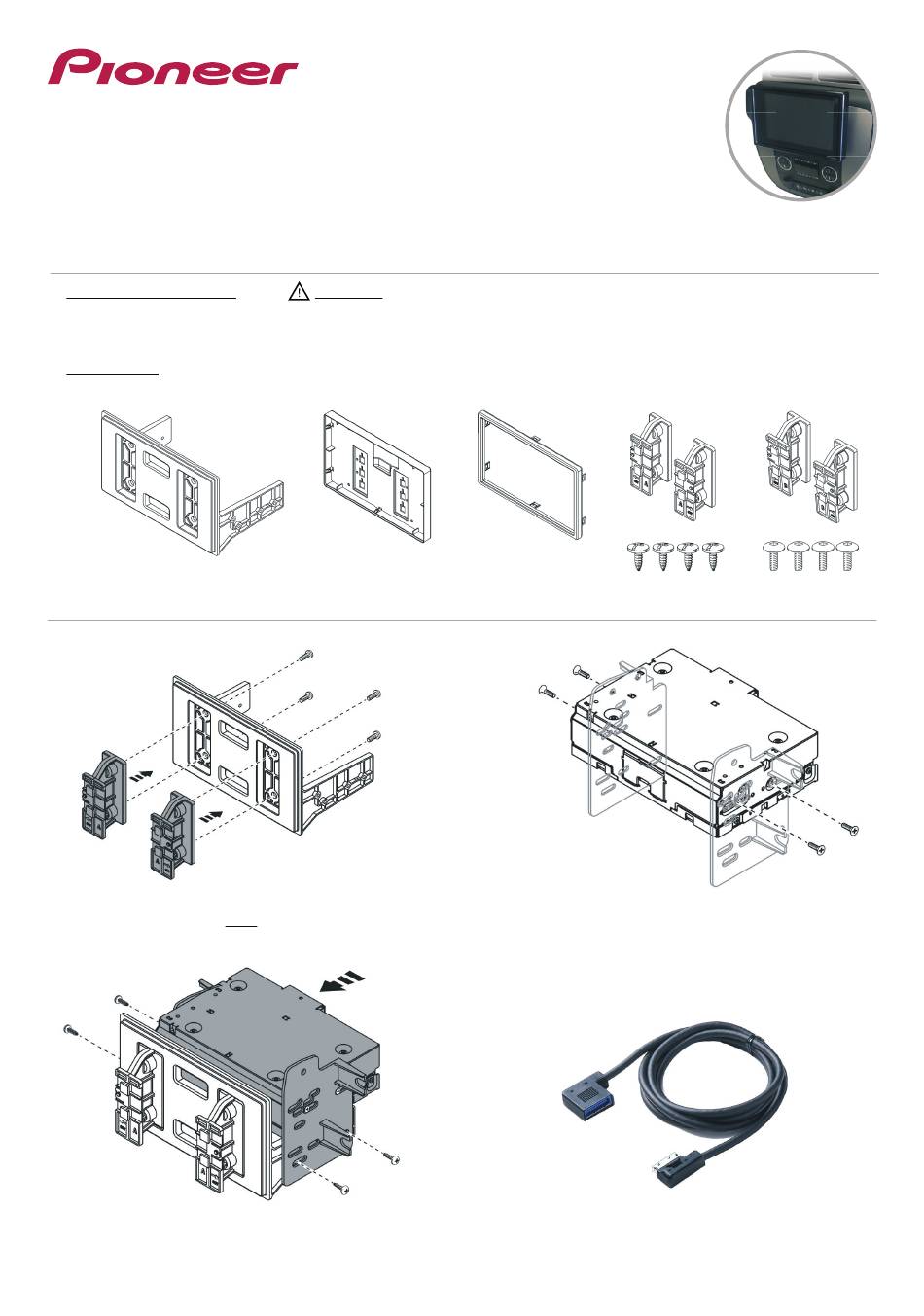

Kit components
a a
a. Assembly
Mount
Secure the display brackets to the assembly mount using (4)
Allen head screws provided. Note: The brackets have a locking
pin on them which must face outwards.
Secure the assembly mount to thebrackets of your 2-DIN kit
using (4) Phillips screwsprovided. Route the RGB display cable
from the radio chassis, through the opening in
the assembly mount.
Please note
For steps 2 and 6, reference to the installation manual provided with the radio for which hardware
to use. The display screen and radio chassis use two different types of screws.
b b c c
b. Display c. Display
Housing Trim Ring
1 1
3 3
Installation manual CA-HM-UNI-EVO.008 | Version 1.0
EN - Installation Manual
d d
d. Display
Brackets
f f
f. 4x #8 x 1/2"
Phillips Screws
Secure the radio chassis to the brackets
of your 2-DIN kit using (4) screws supplied
with the radio.
Optional extension cable CD-RGB150E available if required.
e e
e. 5° Angle
Display Brackets
g g
g. 4x 4mm
Allen Head Screws
2 2
