4.4.10 Printing model
This screen allows you to track the bioprinting process in the BIO X6. You can monitor the
activity of each printhead, of the printbed, of the photocrosslinking LEDs, and of the print
chamber while printing. In addition, you can change the printing parameters of any of the
printheads while the printing process is running. This includes pressure, speed, and
temperature.
Always pause the bioprinting process before opening the door. Do not remove
printheads before the bioprinting has stopped. Doing so risks aborting the
process and compromising your cells.

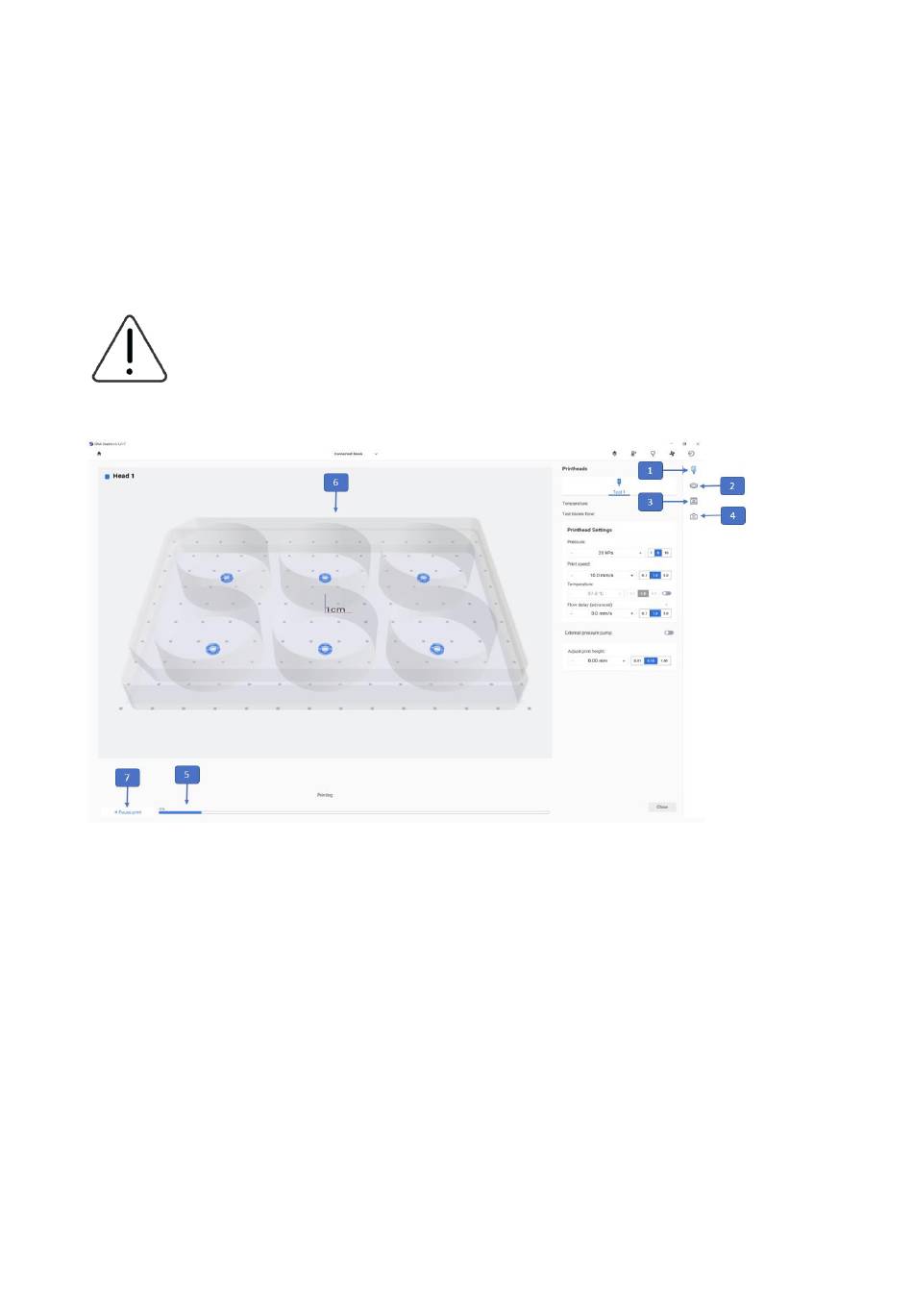

Figure 47 Overview of the Printing model screen
1. Printhead icon: Allows you to monitor and change the settings of the printheads
used in the bioprinting process.
2. Surface icon: Allows you to monitor the settings of the print surface.
3. Printer icon: Allows you to monitor and change the settings of the printer.
4. Camera icon: Allows you to review and edit the camera settings. This option is only
available when the Camera tool is connected to the BIO X6.
5. Progress indicator: Displays the progress of the bioprinting process as a percentage
value (%). This value is calculated by considering the total number of layers to be
printed and the layer currently being printed.
