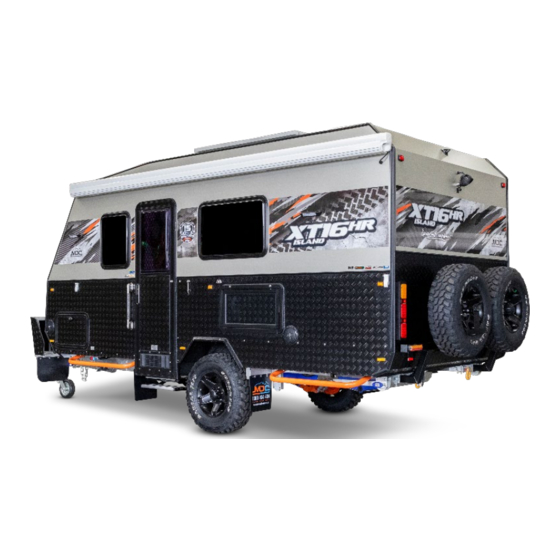

MDC XT16HR ISLAND 2022 Owner's Manual

Offroad caravan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XT16HR ISLAND
OFFROAD CARAVAN
OWNER'S MANUAL
EDITION: 2022 15yr Anniversary Model
www.marketdirect.com.au
Phone: 1300 494 494
I
www.marketdirect.com.au
Contents
I
Ph: 1300 494 494
Copyright © Market Direct Group Pty Ltd 2021 All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT16HR ISLAND 2022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MDC XT16HR ISLAND 2022

Summary of Contents for MDC XT16HR ISLAND 2022

  • Page 1 XT16HR ISLAND OFFROAD CARAVAN OWNER’S MANUAL EDITION: 2022 15yr Anniversary Model www.marketdirect.com.au Phone: 1300 494 494 www.marketdirect.com.au Contents Ph: 1300 494 494 Copyright © Market Direct Group Pty Ltd 2021 All Rights Reserved...

  • Page 2: Table Of Contents

    Vehicle Electrical Requirements ......12 Protection of Finishes ..........39 Brake Controller ............12 Paint ................... 39 Correct Vehicle Wiring for MDC Caravans ..12 Acrylic Windows ............39 Trailer Lights ..............13 Internal Finishes ............39 Charging Camper/Caravan While Driving... 13 Ensuite Finishes .............
  • Page 3 Main Circuit Breaker ............ 48 Charging from Tow Vehicle ........69 Mains Power ..............49 Charging from Mains Power ........70 RCD Safety Switch ............49 Control Panel & Accessories ........70 Charging from your Vehicle ........50 Fig. 1 .................. 71 Lithium Battery System ..........
  • Page 4 Copyright © Market Direct Group Pty Ltd 2021 All Rights Reserved All files and information contained in this Owner’s Manual are copyright by Market Direct Group Pty Ltd, and may not be duplicated, copied, modified, or adapted, in any way without our written permission. Our Owner’s Manual may contain our service marks or trademarks as well as those of our affiliates or other companies, in the form of words, graphics, and logos.
  • Page 5 ATM: TYRE SIZE: DEALER: DISCLAIMER: by receiving this handbook, you confirm there you have read and agree to all the terms and conditions and understood the use and maintenance care of MDC® www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 6: Introduction

    WELCOME TO MDC Off road caravanning is a rewarding way to travel and see our great country. Owning an MDC Caravan will afford you the opportunity to travel to remote places and stay in comfort. It is the intention of MDC for you to have the best possible owner experience and enjoy the great outdoors.

  • Page 7: Terminology & Abbreviations

    Toe can be measured in linear units, at the front or rear of the tyre, or as an angular deflection. In the case of MDC products, the “toe in” is measured in millimeters at the front of the tyre from the chassis rail.
  • Page 8 2.4GHz digital wireless rear view camera + 5" portable monitor DECAL DESIGN Special edition 15 year anniversary decal design ROCKSLIDERS MDC Orange special edition rocksliders COUPLING LOCK MDC LOK - coupling lock BATTERY LiFePRO+™ 12V 200Ah Lithium Iron Phosphate battery...
  • Page 9 WINDOWS/ BLINDS & SCREENS Double acrylic glazed windows and double cassette blind with flyscreen and block-out SKYLIGHT(S) AND ROOF HATCHES Ensuite 12V roof hatch with fan and LED lighting and skylight over the bed with 12V lighting and double cassette blind AIR CONDITIONER Truma Aventa comfort 2400W roof-mounted air conditioning system with integrated heat pump...

  • Page 10: Mdc Contact Details And Stores

    MDC Contact Details and Stores QUEENSLAND Brisbane Caboolture 3/711 Beaudesert Rd 4 Boeing Place Rocklea QLD 4107 Caboolture QLD 4510 NEW SOUTH WALES Sydney Newcastle 1/12 Avalli Rd Unit 1, 2364 Pacific Hwy Prestons NSW 2170 Heatherbrae NSW 2324 VICTORIA...

  • Page 11: Safety Information

    Caravan to sway and/or roll excessively left and right. The industry optimum ball weight on a caravan is between 9 and 11% of the total Caravan weight. MDC Caravans fit into this category and 10% should be used as the starting point. Modifications to The Product Gas Systems The installed gas system on this product is an approved and certified installation.

  • Page 12: Jacking Your Caravan Or Camper

    Jacking Your Caravan or Camper Your trailer is fitted with purpose built jacking points and from January 2021 supplied with a suitable jack. An appropriately rated bottle jack is an acceptable alternative, however when using the jacking point beneath the trailing arm ensure the jack is of a retracted height that will fit under the jacking point when the tyre is deflated.

  • Page 13: Electrical Safety

    Electrical Safety Warning Failure To Follow These Instructions May Result In Death Or Serious Injury! When working with electrical equipment or lithium batteries, have someone nearby in case of an emergency. Study and follow all the manufacturer’s specific precautions when using and servicing the battery and connected appliances.

  • Page 14: Vehicle Electrical Requirements

    Vehicle Electrical Requirements Brake Controller All MDC campers and caravans require an electric brake controller to be fitted to the tow vehicle by law. There is a wide range of controllers available that are suitable. Correct Vehicle Wiring for MDC Caravans To comply with national laws on breakaway systems, you must supply a maintenance charge to the battery/batteries that power the system should it be activated.

  • Page 15: Trailer Lights

    2. 50 amp fuse or circuit breaker at the battery Notes: The Projecta IDC25L DC to DC controller fitted in your MDC trailer is programmed to favour the solar panel input exclusively until it drops below a threshold voltage input. By providing accessory power to the number 12 pin, the trigger for the IDC25L will be set off to take power from both the Anderson plug and the solar panels.

  • Page 16: Trail-Assure Electronic Stability Control System

    Trail-Assure Electronic Stability Control System As an added safety feature, your 15-year anniversary model caravan is fitted with a Trail-Assure BG-5000 electronic stability control system. This is an asymmetric braking system that uses onboard measuring instruments to determine which wheel brakes to apply, and how often, to increase the stability of your caravan while driving.
  • Page 17 There is a status light indicator used to determine the functionality and modes of the unit. It is located on the drawbar for ease of access. When inactive the system will enter sleep mode to conserve power. To wake the system and check operation, connect the tow plug to your vehicle and turn on your vehicle.
  • Page 18 The BG-5000 is self-diagnosing and in the unlikely event that you need to troubleshoot your unit, identify this module, and determine the series of lights displayed. Refer to the below table to identify the status of the unit. LIGHT ACTION CONDITION CORRECTIVE ACTION Solid GREEN...
  • Page 19 Disclaimer: Electronic stability control systems are NOT substitutes for safe driving or towing practices. In no event shall MDC be liable for loss or damage caused by misuse, modifications, or unsafe driving/towing practices. www.marketdirect.com.au ©Copyright...

  • Page 20: Gas & Appliance Safety

    Gas & Appliance Safety Gas Certification Your Caravan has been supplied gas tested and certified. Any additions or alterations to the gas system must be performed by an authorized person and will require re-certification and testing. Also note any alterations may affect your warranty on both the system and appliances. General Safety •...

  • Page 21: Gas Appliance Safety

    Gas Appliance Safety • Gas appliances are certified and have a flame safeguard feature to stop gas flow in the event of the flame going out. Never interfere with this function or replace appliances with a non-certified type. • Slide-out kitchens with cookers should only be operated with an annex fully erected. Failing to do so may affect the safety and operation of the gas appliance.

  • Page 22: Diesel Heater Safety

    Diesel Heater Safety Important information before operating the diesel heater. The diesel heater is designed for use in your caravan. • The heater is designed to heat the main living area of your caravan. Attempting to warm the additional • annex area may be beyond the performance of the diesel heater unit.

  • Page 23: Using The Caravan

    Caravan to sway and/or roll excessively left and right. The industry optimum ball weight on a caravan is between 9 and 11% of the total Caravan weight. MDC Caravans fit into this category and 10% should be used as the starting point.

  • Page 24: Ball Weight

    Ball Weight When loading your camper, the generally accepted tow ball weight once loaded is around 10% of the total weight of the caravan. Use a ball weight scale to identify the ball weight and load the camper in a manner that achieves the desired weight.

  • Page 25: Pre-Trip Inspection

    Pre-Trip Inspection Tyres Before any trip check the following Correct tyre pressures • Tyres in good condition free from damage and uneven wear. • Tread is of legal and acceptable depth. • Wheel Nuts Ensure wheel nuts are tensioned to the correct torque using a torque wrench. •...

  • Page 26: Using Wheel Chocks And Ramps

    Using Wheel Chocks and Ramps WARNING! Always use wheel chocks to prevent the trailer from moving when unhitched. The stabiliser legs on your caravan are not designed for supporting the full weight of the trailer, they are there to stabilise it once it is level. Using your stabilisers as a lifting mechanism will void your warranty as will extending them with a “rattle gun”...

  • Page 27: Electric Awning

    Electric Awning When extending the awning always support to front as it extends. Do not allow the awning to carry the full extended weight as this may damage the hinges. Support the end manually by hand or by using the extendable legs.

  • Page 28: Kitchen

    Kitchen To extend the kitchen from the caravan, release pad bolt (fig1) and press down the blue slide tab (fig 2) and pull kitchen out. The kitchen will lock into place when extended. To put kitchen away, again press down the blue tabs and push back into place.

  • Page 29: Towing The Caravan

    Towing The Caravan Towing with Trucks If you intend to tow your caravan with a truck or heavy commercial vehicle you should fit a hitch system to minimise the lash effect of the commercial suspension and distance from the rear axle to the tow point. Truck suspension can be harsh, particularly in off road conditions.

  • Page 30: How To Hitch Your Coupling

    How to Hitch your coupling Here is a short guide on how to safely use your coupling to couple and uncouple the trailer from the towing vehicle. Make sure the handbrake is applied prior to coupling and uncoupling. www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...
  • Page 31 Make sure the dust cap is securely connected to the bump cover. This is done by locating the rear lip on the dust cap onto the groove of the bump cover and then pushing it in a downward motion until the dust cover is secure (there should be a slight click when it has been assembled correctly) Test if the dust cover is connected to the bump cover by applying a slight upward force to the dust cover, it shouldn’t separate.

  • Page 32: Coupling

    Coupling STEP 1 Push down the button (1) and push the locking mechanism back (2). When the locking mechanism (2) is all the way back, release the button (1) locking the plate in place STEP 2 Offer up the tow pin to the coupling making sure the tow pin cover is removed and there is no visible debris on it.
  • Page 33 STEP 3 Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking mechanism (see below). Press the button (1) to release the locking mechanism there will be an audible locking noise at which point the mechanism will return to the initial position as shown in step 1.

  • Page 34: Uncoupling

    Uncoupling STEP 1 Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the way back release the button while holding the mechanism to ensure it does not spring back to the locked position.

  • Page 35: Connecting The Breakaway

    Connecting the Breakaway The breakaway lanyard is connected to a simple switch on the drawbar. When connecting the lanyard to the tow vehicle it should be connected to a solid part of the vehicle. Do not incorporate its connection with the safety chains.

  • Page 36: Connecting The Safety Chains

    Connecting the Safety Chains Chains should be crossed over and connected with suitable rated shackles. Ensure they are connected in a way to prevent them dragging on the road but not too tight as to restrict the articulation of the vehicle and trailer combination.

  • Page 37: Wireless Rearview Camera

    This product has been added as an ADDITIONAL safety product and should never be used as a substitution for active supervision. MDC shall not be liable for any loss or damage from not following this and the details within the products instruction manual.

  • Page 38: Charging The Caravan

    Charging the Caravan Mains Power Your RV will charge from mains power via the Projecta 7 stage charger. Ensure the charger is plugged into its dedicated outlet in its bay and is switched on. The factory battery in your RV is Lithium Iron Phosphate (LiFePO4) Solar Power The roof mounted solar panels will charge automatically provided there is enough radiated energy from the sun.

  • Page 39: Storage & Care

    Storage & Care Long Term Storage To maximise the life of your caravan you should consider additional protection from the elements. UV light and moisture can have an adverse effect on materials when left unprotected outside. This section outlines some of the things you can do as an owner to protect your investment.
  • Page 40 Security The 15-year anniversary models are supplied with an MDC engineered coupling lock device. This device is designed and manufactured to deter the theft of your new caravan. How to attach your lock to your Coupling: Cruisemaster DO-35 coupling Make sure the dust cap is securely connected to the bump cover. This is done by locating the rear lip on the dust cap onto the groove of the bump cover and then pushing it in a downward motion until the dust cover is secure (there should be a slight click when it has been assembled correctly).

  • Page 41: Care And Maintenance Of The Caravan

    Care and Maintenance of the Caravan Protection of Finishes Paint The paint coatings on your caravan are no different to that of your car in that they need regular care and maintenance. Rubber seals and applied sealants on caravans can shed polymers and pigments that can stain paint finishes if your caravan isn’t washed regularly.

  • Page 42: Shade And Screen Care

    Shade and screen care Do not close blinds while window is open. Air pressure can dislodge the blind material from its guide • damaging it. Always open and close blinds and screens carefully and evenly with two hands ensuring screens and blind •...

  • Page 43: Winegard Sensar Iii Antenna (Optional Extra)

    Winegard Sensar III Antenna (optional Extra) Where fitted as an option the mechanism for your Winegard antenna should be lubricated according to the manufacturers specified schedule. www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...
  • Page 44 www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 45: Torque Settings

    Torque Settings Wheel Nuts Wheel nuts should be tightened to correct torque using a torque wrench. Never trust a “rattle gun” as these may over or under tighten. A quality torque wrench will ensure nuts are tightened correctly. It’s important to remember to check your wheel nuts at 50km, 500km and 1000km and periodically thereafter.

  • Page 46: Adjuster Automotive Type

    Adjuster Automotive Type Adjusting the automotive style handbrake on later models is done as follows. To adjust the left and right side simultaneously: 1. Loosen locknut A 2. Turn shaft 1 clockwise, shortening the length exposed until desired adjustment achieved. 3.

  • Page 47: Correct Use Of Your Electric Brakes

    Correct Use of Your Electric Brakes Your trailer brakes are designed to work in synchronisation with your tow vehicle brakes. Never use your tow vehicle or trailer brakes alone to stop the combined load. Your trailer and tow vehicle will seldom have the correct amperage flow to the brake magnets to give you comfortable, safe braking unless you make proper brake system adjustments.

  • Page 48: Magnets

    It is also recommended that the drum armature surface be refaced when replacing magnets. Magnets should also be replaced in pairs - both sides of the axle. Always use genuine MDC OEM parts. Shoes and Linings A simple visual inspection of your brake linings will tell if they are useable.

  • Page 49: Wheels And Tyres

    Wheels and Tyres Highway Your caravan is fitted with 16” wheels and 265/75 R16 Goodride Tyres. The tyres are a “Light Truck” tyre with a mud terrain tread and a maximum load rating on single axle of 1550kg at 80psi. Recommended highway pressure at tare weight of the caravan is 62psi Recommended highway pressure at ATM of 3000kg is 77psi Off Road...

  • Page 50: Electrical Systems

    Electrical Systems Control Panel *Voltmeter will indicate battery voltage when idle or charge voltage when charging * Amp meter will show current being used not charge current Main Circuit Breaker The main 12v circuit breaker is located beneath the dinette seat beside the Projecta battery charger. This 200A breaker is a resettable type.

  • Page 51: Mains Power

    Mains Power The Projecta charger in your caravan is connected via the 15A exterior socket. To use site power, you will require a 15A power lead connected to a 15A outlet. In the event a 15A outlet is unavailable you will need a conversion box that will step up from 10A to 15A with a safety switch.

  • Page 52: Charging From Your Vehicle

    Charging from your Vehicle A 12-pin trailer plug is also required. In addition to the standard wiring to pins 1 to 7, power must be supplied to the number 12 pin for the trigger wire for the DC-DC charger while the engine is running. The IDC25L is programmed to favour the solar power supply until the supply falls below the minimum •...

  • Page 53: Battery Care

    Battery Care Storage type batteries require periodical maintenance to perform at their peak and extend their service life. The following is an outline of how to gain the best performance and lifecycle from the battery fitted in your RV: Always use a quality charger that caters to the voltage requirements of a LiFePO4 battery. Never leave your battery stored at low voltage.

  • Page 54: 12 Volt Wiring Diagram Main Circuit

    12 Volt Wiring Diagram Main Circuit www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 55: Wiring Diagram Switch Panel

    Wiring Diagram Switch Panel www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 56: Gas & Water Systems

    Gas & Water Systems Truma Rapid Hot Water System Operating Instructions General Safety *Read the included Truma operation manual supplied with you trailer The use of upright gas cylinders from which gas is taken in the gas phase is mandatory for the operation of gas regulators, gas equipment and gas systems.

  • Page 57: Filling The Truma Ultrarapid With Water

    the installation and operating instructions will void the warranty and release Truma from any liability claims. It also becomes illegal to use the appliance, and in some countries, this even makes it illegal to use the vehicle. Any work involving connection or interconnecting wiring must be carried out by a licensed electrician. If •...

  • Page 58: Pressure And Temperature Relief Valve (P&T Safety Valve)

    – Open hot tap in bathroom or kitchen, with pre-selecting mixing taps or single-lever fittings set to “hot”. – Switch on power for water pump (main switch or pump switch). – Leave the tap open to let air escape while the water heater is filling. The heater is filled when water flows out of the tap.

  • Page 59: Draining The Water Heater

    Draining the Water Heater If the vehicle is not used during periods of frost, it is essential that the Truma UltraRapid be emptied. • Disconnect power for water pump (main switch or pump switch). • Allow the appliance to cool down. •...

  • Page 60: Switching Off Gas Operation

    Switching Off Gas Operation – Switch off the water heater to position (Fig. 3b - c). If the water heater is not to be used for a longer period, mount cowl cover (non-observance of this point can lead to the function of the appliance being impaired through water, dirt or insects), close stop cock valve in the gas supply line and close the gas cylinder.

  • Page 61: Circuit Breaker

    Circuit Breaker There is a circuit breaker allocated to the water heater circuit switch on the main electrical panel. To reset this breaker, push in. Water Heater Trouble Shooting Gas Operation Symptom Cause Remedy When switching on, the heater does not No 12 V DC supply Check the power supply (operation operate.

  • Page 62: Water Pumps

    Water Pumps The pump when switched on is activated by the release of pressure at the tap and will pump water continuously until the tap is turned off and pressure restored. Should the pumps activate while the taps is turned off this could indicate a leak and require investigation and rectification.

  • Page 63: Connecting The Gas

    Connecting the Gas Your caravan is fitted with plumbed gas with the regulator and gas bottle placement at the front of the trailer. Always ensure gas bottles are serviceable and within the 10-year service life. This information is stamped on the bottle base.

  • Page 64: Toilet Care And Maintenance

    Thetford toilet systems is Aqua Kem Blue or Aqua Kem Green Flush Water Tank: Only suitable for “Cassette Tank MDC models that have a toilet Cleaner” is the flush tank. recommended ***Do not add to main water product for this tanks! *** application.

  • Page 65: Diesel Heater

    Diesel Heater Important information before operating the diesel heater. The diesel heater is designed for use in an RV, caravan, or camper. • The heater is designed to heat the main living area of your caravan or camper. Attempting to warm the •...

  • Page 66: Mkii Diesel Heater

    MkII Diesel Heater Operation 1-Control Knob 2- Heating (power on) mode button 3-Heating (power on) indication light 4-Constant temperature indication light 5- Constant temperature mode button 6-Ventilation mode button 7 -Ventilation indicating light Heater Control Switch Power on Press the heating (2 power on) button, the heating (constant power) will flash for 0.3S. The heater will begin the start stage.

  • Page 67: Trouble Shooting

    Trouble Shooting When entering fault mode, the display will flash the LED lights to indicate the fault code. This will be indicated by: 2 long flashes of 2 seconds followed by a sequence of flashes with a 0.5 second interval. The number of quick flashes indicates the fault code on the table below.

  • Page 68: Useful Accessories

    Useful Accessories Levelling Blocks These are excellent for levelling your trailer on set up. Stabiliser legs are not meant for correcting the trailer angle, they are there to keep it stable when people are in it. Using levelling blocks will extend the service life of the stabiliser legs and make set up much safer and faster.
  • Page 69 Stone Protection There are proprietary devices available that assist in protecting your trailer from stones thrown up by the tow vehicle. Rock Tamer and Stone Stomper are two of the most commonly used. www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 70: Trouble Shooting

    Trouble Shooting 12 Volt Electrical PROBLEM POSSIBLE CAUSE REMEDY No power Main switch turned off Turn on main rotary switch Tripped main circuit breaker Reset CB1 circuit breaker located with batteries (See diagram 1) Flat Battery Battery needs reset: Charge battery on mains power and set charger to “Supply Mode”...

  • Page 71: Solar Charging

    Solar Charging Symptom Possible Cause Remedy No solar power DC to DC solar light Tripped circuit breaker Reset circuit breaker CB6 in Fig. 1 & not showing Fig. 3 DC to DC overloaded Reset DC to DC by disconnecting from battery and solar input. See Projector user guide.

  • Page 72: Charging From Mains Power

    Charging from Mains Power Symptom Possible Cause Remedy No power to charger Mains power not connected Connect mains power Charger not plugged in Plug in mains charger Charger not turned on Turn on charger RCD tripped Reset RCD Fig 1 No charge with charger on Tripped circuit breaker Reset circuit breaker CB3 Fig.1 &...
  • Page 73 Fig. 1 www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 74: Resetting Breakers

    Resetting Breakers There are primarily 3 types of breakers in MDC caravans and campers. The most obvious are the push to reset breakers on the control panel. These you simply push and if it resets you will hear a click.

  • Page 75: Water

    Water Problem Possible Cause Remedy No power from control panel Check circuit breaker Flat Battery Charge battery Replace pump, Contact dealer for Pump not working (no noise) Faulty pressure switch replacement Check connections with multimeter Bad electrical connection or test light Turn on tap and hold finger over nozzle for 5 seconds and release.

  • Page 76: Brakes

    Brakes Problem Possible Cause Remedy Open Circuits Find and correct Severe under adjustments Adjust brakes No Brakes Faulty controller Test and correct/replace Short circuits Find and correct Great or oil on linings or magnets Clean or replace Corroded connection Clean or replace connectors Worn lining or magnets Replace Scored or grooved brake drums...

  • Page 77: Handy Tips

    Handy Tips Driving Off Road Towing your caravan off road adds many dimensions to the driver’s responsibilities and factors to be considered. When travelling remote always carry enough spare parts and supplies to cater for a “worst case scenario.” Always perform preventative maintenance and daily checks. Minimum trailer spares would consist of: Wheel Bearings •...

  • Page 78: Trip Planning

    Creek and River Crossings These crossings can be extremely dangerous even in low water levels and should never be attempted in times of even mild flooding. Towing a camper or caravan greatly elevates the risk in this situation and should never be attempted unless you are completely assured it is safe to do so.

  • Page 79: Warranty Statement

    Warranty Statement These Warranty Terms form part of the contract between you and Market Direct Group Pty Ltd (ACN 115 038 483) (“we” or “us”) for the purchase of your new Off-road Caravan or Camper Trailer. Please read these Warranty Terms carefully.
  • Page 80 resellers unless we give an express written agreement to be bound by such a warranty, and such liability shall be strictly limited to the extent of that written agreement. Such unauthorised claims shall be the responsibility of the agent or reseller only. 2.
  • Page 81 From time to time, we may, at our discretion, offer items for auction, either independently or via a third party. Whilst every effort will be made to provide all relevant information regarding the item on auction, as per Australian law, goods bought at auction are not covered by this Warranty and are not covered by the majority of consumer guarantees under the Australian Consumer Law.

  • Page 82: Travel Record

    Travel Record Your caravan service record booklet and logbook will help you keep track of kilometres travels and service records. Trip Name Date Km Start Km Finish Cumulative www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...
  • Page 83 Trip Name Date Km Start Km Finish Cumulative www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 84: Mechanical Maintenance

    Mechanical Maintenance Maintenance is essential to keep your caravan in a safe and usable condition. Caravans are no different to any other motor vehicle and require servicing at regular intervals which may vary according to use and the environment in which it is used. The service schedule outlines the service intervals for safe travelling and your owner obligations under our warranty policy.

  • Page 85: Suspension

    Suspension Suspension maintenance should be done as per the schedule contained in this booklet. Regular lubrication and inspection are critical, and the grease points are indicated below. Regular checks of the torque on the trailing arm bolts indicated will prolong correct wheel alignment. Trailing arm suspension should not be reversed up gutters and obstructions in a heavy matter.

  • Page 86: Spare Part Numbers

    Spare Part Numbers Hub & Suspension Components Timken Bearing (inner & outer bearings) 25590 Bearing Cone (Inner and outer bearings) 25520 Bearing Seal 55 x 85 x 12mm 50 x 50mm square Poly Orange Bush YJJJ016 Steel Bush Insert 30 x 114mm YZCN002 Adjuster Cam YDS030...

  • Page 87: Hub Assembly

    Hub Assembly www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 88: Trailing Arm Bushes

    Trailing Arm Bushes www.marketdirect.com.au ©Copyright P a g e Ph: 1300 494 494...

  • Page 89: Service Schedule

    Service Schedule 500KM FIRST SERVICE CHECKED Check hitch bolts to 90Nm. • Hitch Lubricate with high temp bearing grease • Handbrake Inspect and adjust handbrake • Brakes & Inspect and adjust brakes. Check bearings are well greased and crown • Bearings nut is correctly tightened.
  • Page 90 Every 6 MONTHS / 5,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 91 12 MONTHS / 10,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 92 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...
  • Page 93 18 MONTHS / 15,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 94 24 MONTHS / 20,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 95 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...
  • Page 96 30 MONTHS / 25,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 97 36 MONTHS / 30,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 98 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...
  • Page 99 42 MONTHS / 35,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 100 48 MONTHS / 40,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 101 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...
  • Page 102 54 MONTHS / 45,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 103 60 MONTHS / 50,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 104 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...
  • Page 105 66 MONTHS / 55,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 106 72 MONTHS / 60,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 107 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...
  • Page 108 78 MONTHS / 65,000KM SERVICE CHECKED Hitch Check hitch bolts to 90Nm • Handbrake • Check cable and adjust if necessary Hand winch Check brake function and webbing • Lubricate and check bushes for excess movement. • Suspension Torque bolts to 190Nm •...
  • Page 109 84 MONTHS / 70,000KM SERVICE CHECKED Chassis and Suspension Hitch Inspect for damage and lubricate. Check bolt Torque to 90Nm • Jockey Wheel Inspect for condition and operation • Check for correct operation. • Breakaway Inspect lanyard and clip • Drawbar Inspect wiring grommets and general condition •...
  • Page 110 Fire • Inspect extinguisher is charged and within service date Extinguisher Test and inspect. • Smoke Alarm Replace battery • Window Blinds Inspect and adjust tension where necessary • Damp Check Inspect caravan for any dampness. • Plumbing Hot Water De-scale hot water service •...

  • Page 111: Supplier Contact Details

    Supplier Contact Details Dometic Thetford Australia https://www.dometic.com/en-au/au/contact-us Address: 41 Lara Way, Campbellfield VIC 3061 Phone: (03) 9358 0700 infoaus@thetford.com.au Email: Cruisemaster Leisure-Tec Australia Pty Ltd (Truma Hot Water) Address: 352B Bilsen Road, Geebung QLD 4034 50 Metrolink Circuit Campbellfield VIC 3061 Phone: (07) 3624 3800 Phone: 1300 072018 Email: sales@cruisemaster.com.au...
  • Page 112 Ph: (08) 9734 1624 Ph: (08) 9964 4655 Email: collie@statewidebearings.com.au Email: geraldton@statewidebearings.com.au Karratha Kalgoorlie 51 Orkney Road, Karratha WA 6714 5 Darcy Lane, Kalgoorlie WA 6430 Ph: (08) 9144 2333 Ph: (08) 9091 4111 Email: karratha@statewidebearings.com.au Email: kalgoorlie@statewidebearings.com.au Wangara Wingfield 70 Distinction Road, Wangara, WA 6065 Grand Jct Rd &...

  • Page 113: Guide To Video Tutorials

    Guide to Video Tutorials Handover Video View this video for an overall instruction on operating the product Scan the code or go to https://youtu.be/Mx5s15fPC4E Setup Tutorial View this video for correct setup procedure Scan the code or go to https://youtu.be/-L93Z0LDNNg External Ensuite Setup Tutorial View this video to set up external ensuite tent Scan the code or go to...
