Summary of Contents for TESmart HMA0808A30

  • Page 1 User 4x4 HDMI Matrix To Enjoy Smart Manual HMA0404A60 HMA0404A60 English...
  • Page 3 English...
  • Page 5 If you have any questions, comments or suggestions, you can contact us via the following email: support@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology, shall not be duplicated or translated by any person or organizations without written permission.
  • Page 6: Table Of Contents

    Contents 1. Safety Tips and Warnings··································01 10. Operation Method···········································13 2. Battery Description·········································02 10.1 Front Panel Button Switching Method 3. Warranty Information······································03 10.2 IR Remote Control 4. Preface························································04 10.3 RS232 Control 5. Features·······················································05 6. Packing List···················································06 7. Panel Description···········································07 8. Connection Description···································09 8.1 Connection Diagram 8.2 Connection Steps 9.
  • Page 7: Safety Tips And Warnings

    1. Safety Tips and Warnings Tips: Read the safety tips and warnings for HDMI Matrix comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water.
  • Page 8: Battery Description

    2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install CR2025 cell before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire.
  • Page 9: Warranty Information

    3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 10: Preface

    This product also supports Quad Multi-Viewer mode, can be applied to engineering, security, media and other scenarios. Tips: If you need to control more devices or conduct more complex and professional switching, you can also choose other products of our company. For more details, you can visit our official website: www.tesmart.com.
  • Page 11: Features

    5. Features With 4 HDMI inputs and 4 HDMI outputs Ÿ Each HDMI output can share same input or select standalone input Ÿ Support resolution up to 3840x2160@30Hz Ÿ HDCP1.4 compliant Ÿ Each HDMI output support Quad Multi-Viewer mode Ÿ Supports two different resolutions in Quad Multi-Viewer mode: 1280x720@60Hz or Ÿ...
  • Page 12: Packing List

    6. Packing List 1 * 4x4 HDMI Matrix Ÿ 1 * IR Remote Control Ÿ 1 * DC 12V Power Adapter Ÿ 1 * User Manual Ÿ Tips: After received the product, you should check the packing list carefully to make sure that no components have been lost and no damage to the product has been caused during transportation.
  • Page 13: Panel Description

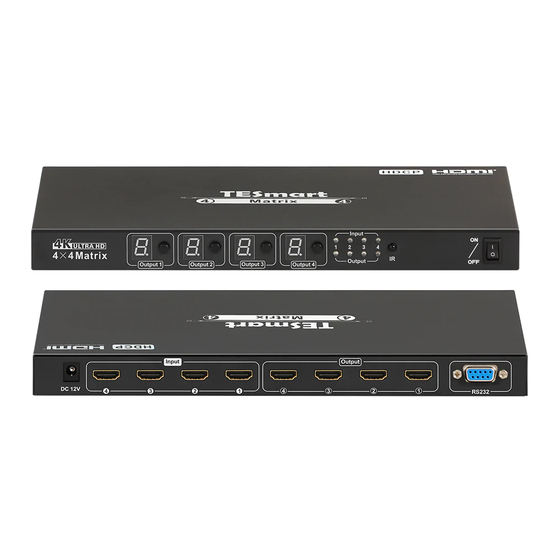

    7. Panel Description Name Description Name Description Display current selected input source number. Output Digital 1-4 indicates the corresponding input port LED will be lit if HDMI Output port connected to selection display number; HDMI display. status 0 indicates entering Quad Multi-Viewer mode. Input Select input port or enter Quad Multi-Viewer selection...
  • Page 14 Name Description DC 12V DC 12V power supply. HDMI input ports Connect HDMI source devices. HDMI output ports Connect to HDMI displays. Connect this port to control terminal. Use RS232 commands to select input RS232 port sources.
  • Page 15: Connection Description

    8. Connection Description 8.1 Connection Diagram Quad Multi-Viewer mode or Single Display mode UHD TV RS232 Tips: Please refer to Chapter 10.3 for how to use the RS232 port. Control Terminal...
  • Page 16: Connection Steps

    8.2 Connection Steps 1.Connect the input devices to the input ports using 4 HDMI cables. 2. Connect the output ports to the display devices using 4 HDMI cables. 3.Connect DC 12V power supply to the HDMI Matrix. 4.By now, the connection has been completed. Turn on the power supply and the HDMI Matrix will begin to work.
  • Page 17 9. Quad Multi-Viewer Mode Description Each HDMI output port on our HDMI Matrix supports Quad Multi-Viewer mode. So you can set the Quad Multi-Viewer mode or Single Display mode for each HDMI output port. UHD TV UHD TV UHD TV Mode 1 Mode 2 Mode 3...
  • Page 18 9.1 Select Display Resolution The HDMI Matrix will do some special handling in Quad Multi-Viewer mode. We offer two different resolutions in Quad Multi-Viewer mode: 1280x720@60Hz or 1920x1080@60Hz. You can choose the appropriate display resolution according to your requirements. Tips: The blue mark on the screen is to note the input channel number and the resolution of the current input source.
  • Page 19: Operation Method

    10. Operation Method 10.1 Front Panel Button Switching Method The digital display shows the input port number selected by the current output port, and the button beside every digital display is the input selection button. Select the output channel you want to control on the front panel (one of "Output 1~Output 4"), continuously press the input selection button beside its digital display, the digital display will cycle from 0 to 4, until the digital display of the output channel shows the input port number you want.
  • Page 20 10.2 IR Remote Control 1 to 1 switch: Step 1: Press any key in ② to select the output port. Step 2: Press any key in ④ to select the source which you want to be displayed on selected output . 1 to all switch: Step 1: Press the key ③...
  • Page 21 Quad Multi-Viewer mode switch: 1. Single display enter Quad Multi-Viewer mode: Step 1: Press any key in ② to select the output port. Step 2: Press the key ⑤ to enter Quad Multi-Viewer mode on the selected output. 2. All displays enter Quad Multi-Viewer mode: Step 1: Press the key ③...
  • Page 22 4. Switch audio on Quad Multi-Viewer mode: Continuously press the key in ① to switch the audio in the four segmented pictures. Audio switches synchronously when multiple output ports are in Quad Multi-Viewer mode. Switch to mirrored connection: Press the key ⑥, then the routing status will be changed to Input 1 - Output A, Input 2 - Output B, Input 3 - Output C, Input 4 - Output D.
  • Page 23 Preset routing for scenes: Save preset: Step 1: Press the key in ⑦. Step 2: Press any key in ⑦ to save current routing status to user preset memory 1/2/3/4. Load preset: Step 1: Press the key in ⑦. Step 2: Press any key in ⑦ to load routing status from user preset memory 1/2/3/4 and apply to current routing.
  • Page 24 10.3 RS232 Control A. Connect RS232 port Follow the diagram below to connect RS232 port on the HDMI Matrix to your Control Terminal. RS232 Control Terminal B. Communication protocol Baud rate: 9600 bps Stop bit: 1 bit Data length: 8 bits...
  • Page 25 The commends are as the following form: Index Commend strings Parameter description Remark Direction PC→ MT00SW0000NT Mirrored output 1→1, 2→2… Matrix PC→ MT00SW 00NT XX: input port number(01~04/+) 1 input to all outputs Matrix XX: input port number(01~04/+) PC→ MT00SW XXYY Connect input to output...
  • Page 26 Based on the communication protocol in Section C, we provide a controller on the Windows OS. you can visit our official website to download it: www.tesmart.com. You can also develop dedicated controllers for each platform by referring to the control protocol in Section C.
  • Page 27 Page 'Matrix Control' : This page is used for switching and simple system setup. You can conveniently match input and output devices according to your needs. 1-Switch control panel Tips: The LED display timeout part of the software has no practical function.
  • Page 28 D. RS232 port usage: Step 1: Use RS232 cable connect PC to HDMI Matrix. Step 2: Running the HDMI Matrix Controller. Select page 'General' and click 'Serial control' . Step 3: Select the serial communication port number which connected to the HDMI Matrix.
  • Page 29 31.00.0415-V008...
  • Page 30 To Enjoy Smart HMA0404A60 Tesla Elec Technology Co.,Ltd WEEK-Reg.-Nr. DE 66784279...
