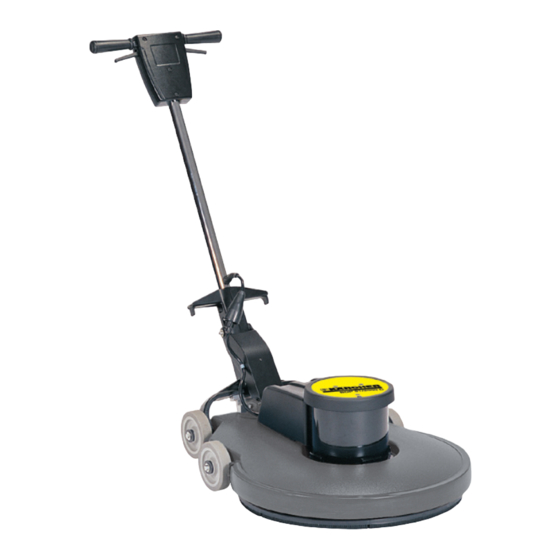

Kärcher 2000 Series Operating Instructions Manual

High speed burnisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

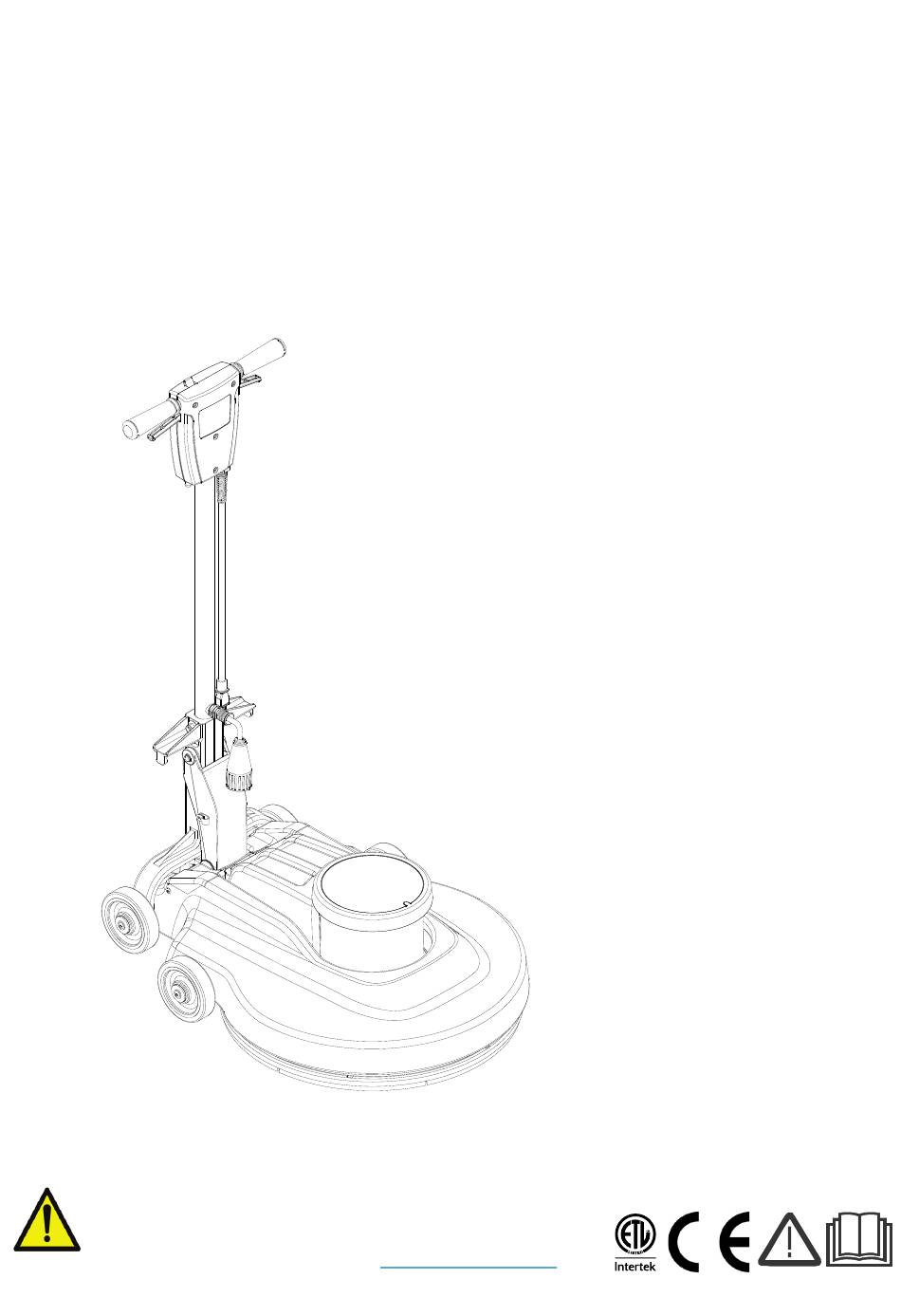

High Speed Burnisher
2000 Series
WARNING:
This product and accessories may contain a chemical
State of California to cause cancer and birth defects or other
reproductive harm
For more information about this regulation:
known
to the
www.P65Warnings.ca.gov
Operating Instructions (ENG)
MODELS:
BDP 51/2000 C 115V
86387310-C
Burnisher
1.009-099.0
BDP 51/2000 C
1.009-100.0
04/12/19

Advertisement

Table of Contents
loading

Related Manuals for Kärcher 2000 Series

Summary of Contents for Kärcher 2000 Series

  • Page 1 High Speed Burnisher 2000 Series Burnisher Operating Instructions (ENG) MODELS: BDP 51/2000 C 115V 1.009-099.0 BDP 51/2000 C 1.009-100.0 WARNING: This product and accessories may contain a chemical known to the State of California to cause cancer and birth defects or other...

  • Page 2: Machine Data Label

    Thank you for choosing our product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to: http://warranty.karcherna.com 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 3: Table Of Contents

    Service Schedule ......16 Suggested Spare Parts....17 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 4: How To Use This Manual

    NOTE: The manual part number is located on the Address: lower right corner of the front cover. Phone Number: Sales Representative: The model and serial number of your machine is located on the back of the machine. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 5: Safety

    Emplacement De L'étiquette De Sécurité NOTE: REMARQUE: Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 6: Important Safety Instructions

    This appliance has been designed for use with pads specified by the manufacturer. The fitting of other pads may affect its safety. This machine is for dry use only and shall not be used or stored outdoors in wet conditions. READ AND SAVE THESE INSTRUCTIONS 86387310 Operators Manual - High Speed Burnisher (2000 Series)
  • Page 7 Cette machine est faite pour un usage à sec seulement et ne doit pas être utilisée ou rangée à l'extérieur dans des conditions humides. LIRE ET CONSERVER CES INSTRUCTIONS 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 8: Hazard Intensity Level

    In areas with possible falling objects WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. 86387310 Operators Manual - High Speed Burnisher (2000 Series)
  • Page 9 Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homo- loguées. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 10: Grounding Instructions - 120V

    à la terre de votre prise murale. Ne modifiez pas la fiche fournie avec l'appareil: si elle ne correspond pas à la prise murale, faites installer une prise adéquate par un électricien qualifié. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 11: Grounding Instructions - 230V

    The plug must be électricien qualifié. inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 12: Operations

    32” [81.3 cm] X 23.9” [60.2 cm] X 48.4” [122.9 cm] Pad size (See note) 20” diameter x 1” thick NOTE: Always use a pad, which has been designed for electric ultra high speed burnishing of at least 2000 rpm. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 13: Handle Installation

    Tighten bolt (item 3) and nut (item 1) until the handle cannot twist in the mount bracket (45-50 foot pounds). 5. Check handle for movement up and down. 6. Plug cord into handle cord receptacle. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 14: Controls

    High starting torque. Hold machine firmly with both hands. Couple de démarrage élevé. Tenez la machine fermement à deux mains. 1. Ensure that the pad driver is in good shape. Install or change pad if necessary. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 15: Machine Troubleshooting

    Pad not centered Re-center pad. Damaged or unevenly worn Replace pad. Do not rest machine on Excessive vibration pad. pad when not in use. Damaged pad driver. Replace. 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 16: Service Schedule

    Check handles, switches, and knobs for damage Store with pad off the floor Check all bearings for noise Check skirt/bumpers for damage and replace as necessary Check overall performance of machine 86387310 Operators Manual - High Speed Burnisher (2000 Series)

  • Page 17: Suggested Spare Parts

    86224750 SPRING 86224740 SPRING 86388440 MOTOR 115V 86388450 MOTOR 230V 86001390 DUST BAG (10PK) 86388280 MOTOR BRUSH KIT 86216230 BRUSH STRIP (6PK) 86001820 BRUSH SET 86001720 BRUSH SET (4PK) 86222470 PAD DRIVER 86387310 Operators Manual - High Speed Burnisher (2000 Series)
