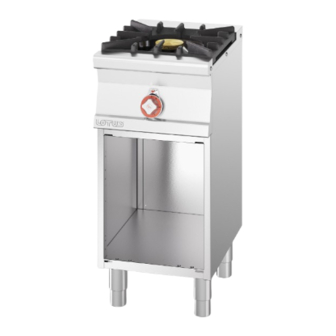

Kitchen with oven for professional use

Advertisement

Quick Links

Installation and operating instructions
KITCHEN WITH OVEN FOR
PROFESSIONAL USE
PC-554G PC-558G PC-114G PC-118G
CF4-118G CF4-118GE
Model LIBR.ISTR.PC CF110G GE
Code 5630512A0
Review 1
Edition date 06/06/2022
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-554G and is the answer not in the manual?

Questions and answers

Summary of Contents for Lotus PC-554G

  • Page 1 Installation and operating instructions KITCHEN WITH OVEN FOR PROFESSIONAL USE PC-554G PC-558G PC-114G PC-118G CF4-118G CF4-118GE Model LIBR.ISTR.PC CF110G GE Code 5630512A0 Review 1 Edition date 06/06/2022 Language English LOTUS S.p.A. Via Calmaor, 46 31020 San Vendemiano +39 0438 778020...
  • Page 2: Table Of Contents

    Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................Example installation of the appliance................... GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation .........................
  • Page 3: Introduction

    INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 PC-554G, PC-558G A Data Plate B Electrical connection C Gas connection   Translation of the original instructions...
  • Page 4 INTRODUCTION FIG. 2 PC-114G, PC-118G A Data Plate B Electrical connection C Gas connection FIG. 3 CF4-118G,CF4-118GE A Data Plate B Electrical connection C Gas connection Translation of the original instructions...
  • Page 5: Components

    INTRODUCTION Components FIG. B 1 Flame open by-pass 2 Oven by-pass   FIG.C (FLAMES) 1 Flame injector 2 Air adjustment 3 Pilot   Translation of the original instructions...
  • Page 6 INTRODUCTION FIG. D (Fire pilot) 1 Pilot bracket screw 2 Pilot bracket 3 Pilot air bushing 4 Pilot injector 5 Injector screw 6 Spring 7 Extends drainage   FIG. E 1 Oven injector 2 Oven air regulation   Translation of the original instructions...
  • Page 7 INTRODUCTION FIG. F (Oven pilot) 1 Pilot light nozzle 2 Ignition spark plug 3 Extends drainage 4 Pilot bracket   FIG. G Burner air adjustment   Translation of the original instructions...
  • Page 8 INTRODUCTION WIRING DIAGRAM OVEN (H) 1 Switch 2 Power supply terminal board 3 Heating element 4 White indicator light 5 Green indicator light 6 Thermostat 7 Safety thermostat   Translation of the original instructions...
  • Page 9: Example Installation Of The Appliance

    INTRODUCTION Example installation of the appliance Translation of the original instructions...
  • Page 10: General Information

    GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system.
  • Page 11: User Information, Raee Directive On Waste Electrical And Electronic Equipment

    Electric Elect. ISO 7-1 oven oven CF4-118G 80x110x90h R 3/4GM CF4-118GE 80x110x90h R 3/4GM 16,5 5 x 2,5 PC-114G 40x110x90h R 1/2GM PC-118G 80x110x90h R 3/4GM PC-554G 40x55x90h R 1/2GM PC-558G 80x55x90h R 1/2GM Translation of the original instructions...
  • Page 12: Installation

    INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following:   · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·...
  • Page 13 INSTALLATION Warning Installation operations, any conversion to other types of gas and start-up must only be   performed by qualified personnel, in accordance with current regulations.   Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
  • Page 14 INSTALLATION valve and fast-closing valve. Once installation is complete, make sure that there are no gas leaks from the fittings; to do this, do not use a naked flame but substances that do not cause corrosion, such as solutions of soapy water or leak detectors.
  • Page 15 INSTALLATION - "A" type devices (see data plate)   "A" type appliances must discharge combustion products into appropriate hoods, or similar devices, connected to an efficient fume stack or directly to the outside. (Natural evacuation) Fig. 1 If this is not possible, using an air suction device connected directly to the outside is permitted (Forced Evacuation) Fig.2, having a flow capacity not lower than the value defined in point 4.3 of the UNI-CIG 8723 standard.
  • Page 16 INSTALLATION 1 Windproof fume stack (fig.3) - Extractor hood (fig.4) 2 Servo system   "B11" type appliances are supplied on request with a hood or a hood and windproof fume stack to be assembled and delivered separately. Translation of the original instructions...
  • Page 17: Burners Technical Data Table (Itgb)

    BURNERS TECHNICAL DATA TABLE (ITGB) 4 BURNERS TECHNICAL DATA TABLE (ITGB) Burners technical data table Technical data table - Burners PC CF S110G 12.68 kWh/KG 12.87 kWh/KG 9.45 kWh/m3st.   BUTANE PROPANE METHANE H 30 mbar 37 mbar 20 mbar Burner max 7 kW-min 1.8 kW  ...
  • Page 18: Instructions For Use

    INSTRUCTIONS FOR USE 6 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails.
  • Page 19: Switching The Main Burner Off

    INSTRUCTIONS FOR USE Switching the main burner off · Turn the knob into position . The burner turns OFF and only the pilot flame remains ON   Turning the appliance off · Press and turn the gas cock knob to position "0". This control blocks the gas supply to both the main burner and the pilot burner  ...
  • Page 20 INSTRUCTIONS FOR USE · Also turn the knob of the selector, setting one of the three positions   Top + bottom heating element Bottom heating element Top heating element   Translation of the original instructions...
  • Page 21: Maintenance

    MAINTENANCE 7 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract.   Caution Maintenance must only be performed by specialist personnel in compliance with current  ...
  • Page 22: Substituting The Nozzle In The Oven Burner

    MAINTENANCE After conversion to another type of gas, update the technical data plate to indicate the type of   gas for which the appliance has been converted. Substituting the nozzle in the oven burner · Remove the base of the oven ·...
  • Page 23: Cleaning

    CLEANING 8 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden     To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply.
