Installation and operating instructions
KITCHEN WITH OVEN FOR
PROFESSIONAL USE

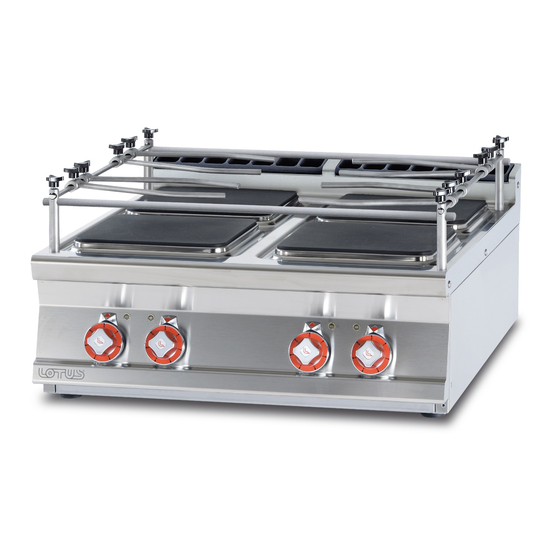

PC-94ETX , PCQ-94ETX , PCC-94ETX , PC-98ETX , PCQ-98ETX
PCC-98ETX , PC-912ETX , PCQ-912ETX , PC-916ETX , PCQ-916ETX
PCT-94ETX , PCQT-94ETX , PCCT-94ETX , PCT-98ETX , PCQT-98ETX
PCCT-98ETX , PCT-912ETX , PCQT-912ETX
CF4-98ETX , CFQ4-98ETX , CFC4-98ETX , CF6-912ETVX
CFQ6-912ETVX , CF8-916ETX , CFQ8-916ETX
CF6-912ETX , CFQ6-912ETX
Model LIBR.ISTR.PCX CFX 90E
Code 563016004
Review 1
Edition date 20/01/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Advertisement
Table of Contents
Related Manuals for Lotus PC-94ETX
Summary of Contents for Lotus PC-94ETX
- Page 1 Installation and operating instructions KITCHEN WITH OVEN FOR PROFESSIONAL USE PC-94ETX , PCQ-94ETX , PCC-94ETX , PC-98ETX , PCQ-98ETX PCC-98ETX , PC-912ETX , PCQ-912ETX , PC-916ETX , PCQ-916ETX PCT-94ETX , PCQT-94ETX , PCCT-94ETX , PCT-98ETX , PCQT-98ETX PCCT-98ETX , PCT-912ETX , PCQT-912ETX...
-
Page 2: Table Of Contents
Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................Fixing feet ............................ Example installation of the appliance................... GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ...................... -
Page 3: Introduction
INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 PC…, CF… A Data Plate B Electrical connection FIG. 2 PC...T A Data Plate B Electrical connection Translation of the original instructions... -
Page 4: Components
INTRODUCTION Components FIG. C Translation of the original instructions... - Page 5 INTRODUCTION FIG. D 1 Square electrical plates 2 Round electrical plates Radiant heating elements for glass-ceramic appliances Translation of the original instructions...
- Page 6 INTRODUCTION WIRING DIAGRAM (E) 1 Switch 2 Power supply terminal board 3 Electrical plate 4 White indicator light Translation of the original instructions...
- Page 7 INTRODUCTION WIRING DIAGRAM (F) 1 Switch 2 Power supply terminal board 3 Electrical plate 4 White indicator light Translation of the original instructions...
- Page 8 INTRODUCTION WIRING DIAGRAM (G) 1 Switch 2 Power supply terminal board 3 Electrical plate 4 White indicator light Translation of the original instructions...
- Page 9 INTRODUCTION WIRING DIAGRAM (H) 1 Switch 2 Power supply terminal board 3 Electrical plate 4 White indicator light Translation of the original instructions...
- Page 10 INTRODUCTION WIRING DIAGRAM (I) 1 Switch 2 Power supply terminal board 3 Electrical plate 4 Power regulator 5 Relay board 6 White indicator light 7 Residual heat indicator light 8 Transformer Translation of the original instructions...
- Page 11 INTRODUCTION WIRING DIAGRAM (L) 1 Switch 2 Power supply terminal board 3 Electrical plate 4 Power regulator 5 Relay board 6 White indicator light 7 Residual heat indicator light 8 Transformer Translation of the original instructions...
- Page 12 INTRODUCTION WIRING DIAGRAM OVEN GN 2/1 (M) 1-2 Switch 3 Power supply terminal board 4 Heating element 5 White indicator light 6 Green indicator light 7 Thermostat 8 Safety thermostat Translation of the original instructions...
- Page 13 INTRODUCTION WIRING DIAGRAM OVEN GN 3/1 (N) 1-2 Switch 3 Power supply terminal board 4 Heating element 5 White indicator light 6 Green indicator light 7 Thermostat 8 Safety thermostat Translation of the original instructions...
- Page 14 INTRODUCTION WIRING DIAGRAM VENTILATED OVEN (O) 1 Switch 2 Condenser 3 Power supply terminal board 4 Switching terminal board 5 Motor 6 Heating element 7 White indicator light 8 Green indicator light 9 Safety thermostat 10 Thermostat 11 Transformer Translation of the original instructions...
- Page 15 INTRODUCTION PREDISPOSITION 440V~3 (K) Electrical technical data table MODEL WIRING DIAGRAMS PC...-94ETX E + K PCQ...-94ETX E + K PCC...-94ETX I + K PC...-98ETX G + K PCQ...-98ETX G + K PCC...-98ETX PC...-912ETX H+ K PCQ...-912ETX H+ K PC-916ETX E + H + K PCQ-916ETX E + H + K ...
-
Page 16: Fixing Feet
INTRODUCTION Fixing feet Translation of the original instructions... -
Page 17: Example Installation Of The Appliance
INTRODUCTION Example installation of the appliance Translation of the original instructions... -
Page 18: General Information
GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system. -
Page 19: User Information, Raee Directive On Waste Electrical And Electronic Equipment
GENERAL INFORMATION User information, RAEE Directive on waste electrical and electronic equipment With regard to the regulatory framework of reference of the European Community, we remind the user of the following: · Used AAE (Electrical and Electronic Equipment) products must be collected separately ·... -
Page 20: Technical Data Table
Technical data table Technical data table PC S90EX MAXIMUM INPUT MAXIMUM Silicon POWER MODEL DIMENSIONS POWER SUPPLY POWER (kW) SUPPLY CABLE PC-94ETX 40x90x90h 400V~3 50/60 Hz 15,16 4 x 2,5 mm² PC-94ETX 40x90x90h 440V~3 50/60 Hz 13,78 4 x 2,5 mm²... - Page 21 GENERAL INFORMATION Technical data table CF S90EX MAXIMUM INPUT MAXIMUM Silicon POWER MODEL DIMENSIONS POWER SUPPLY POWER (kW) SUPPLY CABLE CF4-98ETX 80x90x90h 400V~3 50/60 Hz 20,7 4 x 4 mm² CF4-98ETX 80x90x90h 440V~3 50/60 Hz 29,1 20,7 4 x 4 mm² CFQ4-98ETX 80x90x90h 400V~3 50/60 Hz...
-
Page 22: Installation
INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·... - Page 23 INSTALLATION Warning Installation operations, any conversion to other types of gas and start-up must only be performed by qualified personnel, in accordance with current regulations. Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
-
Page 24: Instructions For Use
INSTRUCTIONS FOR USE 4 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails. -
Page 25: Glass-Ceramic Cooker Hob
INSTRUCTIONS FOR USE · Never operate the electrical plate without a pot · The pot must have a smooth bottom with a diameter suitable for the plate (never smaller) Glass-ceramic cooker hob On the front panel, a plate is indicated above the knob to which it corresponds, marked by the index ... -
Page 26: Turning On And Adjusting The Static Oven
INSTRUCTIONS FOR USE Note · It is recommended to use flat based receptacles, as those with a concave or rounded base increase the cooking time and energy use · Do not use pots or any receptacle with an aluminium or tin covered base ·... -
Page 27: Turning On And Adjusting The Fan Oven
INSTRUCTIONS FOR USE Turning on and adjusting the fan oven The hot air put in circulation by the fan is distributed in the entire oven chamber, ensuring even cooking. The uniform heating of the chamber makes it possible to cook different foods at the same time on different levels. Turn the knob on the panel from “O”... -
Page 28: Cooking Table For The Fan Oven
INSTRUCTIONS FOR USE Cooking table for the fan oven Ventilated electrical oven cooking table Guide no. Temperature Min. cooking Type of food from the Quantity Kg °C time bottom Sweets With a beaten dough, in a mould With a beaten dough, without a mould 1-3-4 Shortcrust pastry, cake base 1-3-4... - Page 29 INSTRUCTIONS FOR USE Note · The indication of use of the levels shown in the table is recommended when cooking on multiple levels · The indicated times refer to cooking on only one level. Add 5-10’ when cooking on multiple levels ·...
-
Page 30: Maintenance
MAINTENANCE 5 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ... -
Page 31: Spare Parts
MAINTENANCE Spare parts It is possible to replace parts such as the valve, the piezoelectric or the ignition control unit (depending on the type of appliance) or the gas pipes easily and quickly. To replace such parts, proceed as follows: ... -
Page 32: Cleaning
CLEANING 6 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply. -
Page 33: Maintenance Suggestions
CLEANING SCHOTT CERAN® HOB This is an original SCHOTT product, the largest international glass ceramic manufactuer and consequently an assurance of the highest quality and durability. To ensure that your hob retains all its good looks over time, we are pleased to provide some important maintenance suggestions. ... -
Page 34: How To Achieve A Brilliant Result In Three Simple Steps
CLEANING How to achieve a brilliant result in three simple steps: To ensure thorough cleaning, first remove the worst encrustations and food remains using a special cleaning spatula or a special sponge for glass ceramic hobs. Then pour a few drops of a specific detergent on to the cold SCHOTT CERAN® hob and wipe with kitchen paper or a clean cloth. -
Page 35: How To Your Schott Ceran® Hob Bright And Shining For A Long Time
CLEANING How to your SCHOTT CERAN® hob bright and shining for a long time · The dimensions of the cooking pots must always be suitable for those of the cooking area · Use cooking pots with smooth bases to avoid damaging the surface ·...
