Installation and operating instructions

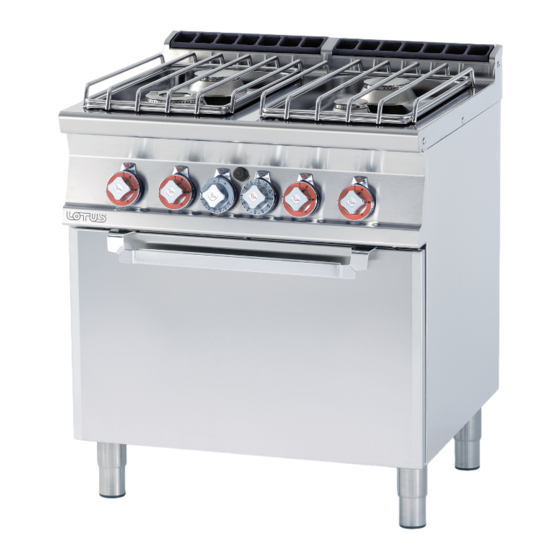

KITCHEN WITH OVEN FOR
PROFESSIONAL USE
PC-74GA PC-78GA PC-712GA PC-716GA PCT-74GA PCT-78GA
PCT-712GA PCT-716GA CF4-78GA CF6-712GAV CF6-712GA CF4-78GAE
CF6-712GAEV CF6-712GAE CFV4-78GAE CFV6-712GAEV
Model LIBR.ISTR.PC CF70GA GAE
Code 563042200
Review 1
Edition date 05/12/2018
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-74GA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lotus PC-74GA

  • Page 1 Installation and operating instructions KITCHEN WITH OVEN FOR PROFESSIONAL USE PC-74GA PC-78GA PC-712GA PC-716GA PCT-74GA PCT-78GA PCT-712GA PCT-716GA CF4-78GA CF6-712GAV CF6-712GA CF4-78GAE CF6-712GAEV CF6-712GAE CFV4-78GAE CFV6-712GAEV Model LIBR.ISTR.PC CF70GA GAE Code 563042200 Review 1 Edition date 05/12/2018 Language English LOTUS S.p.A.
  • Page 2: Table Of Contents

    Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................Example installation of the appliance................... GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation .........................
  • Page 3: Introduction

    INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 PC…, CF… A Data Plate B Electrical connection C Gas connection   FIG. 2 PC...T A Data Plate C Gas connection Translation of the original instructions...
  • Page 4: Components

    INTRODUCTION Components FIG. H Translation of the original instructions...
  • Page 5 INTRODUCTION FIG. B 1 Flame open by-pass 2 Oven by-pass   FIG.C (FLAMES) 1 Flame injector 2 Air adjustment 3 Pilot Translation of the original instructions...
  • Page 6 INTRODUCTION FIG. D (Fire pilot) 1 Pilot bracket screw 2 Pilot bracket 3 Pilot air bushing 4 Pilot injector 5 Injector screw 6 Spring 7 Extends drainage   FIG. E 1 Oven injector 2 Oven air regulation   Translation of the original instructions...
  • Page 7 INTRODUCTION FIG. F (Oven pilot) 1 Pilot light nozzle 2 Ignition spark plug 3 Extends drainage 4 Pilot bracket   FIG. G Burner air adjustment   Translation of the original instructions...
  • Page 8 INTRODUCTION TOP WIRING DIAGRAM 1 Power supply terminal board 2 Push-button starting burner 3-4 Burner ignition control unit   Translation of the original instructions...
  • Page 9 INTRODUCTION WIRING DIAGRAM OVEN GN 2/1 1 Switch 2 Power supply terminal board 3 Heating element 4 White indicator light 5 Green indicator light 6 Thermostat 7 Safety thermostat   Translation of the original instructions...
  • Page 10 INTRODUCTION WIRING DIAGRAM OVEN GN 3/1 1 Switch 2 Power supply terminal board 3 Heating element 4 White indicator light 5 Green indicator light 6 Thermostat 7 Safety thermostat   Translation of the original instructions...
  • Page 11 INTRODUCTION VENTILATED ELECTRICAL OVEN 1 Switch 2 Condenser 3 Power supply terminal board 4 Switching terminal board 5 Motor 6 Heating element 7 White indicator light 8 Green indicator light 9 Safety thermostat 10 Thermostat   Translation of the original instructions...
  • Page 12: Example Installation Of The Appliance

    INTRODUCTION Example installation of the appliance Translation of the original instructions...
  • Page 13: General Information

    GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system.
  • Page 14: User Information, Raee Directive On Waste Electrical And Electronic Equipment

    Equipment) are those provided for by the national transpositions of European Directives 2012/19/EU Technical data table Technical data table PCCF S70GAE RATED TOTAL RATED BURNER CAPACITY (kW) GAS FLOW (kW) MODEL DIMENSIONS FITTING ISO 7-1 Oven PC-74GA 40x70x90h R1/2GM PC-78GA 80x70x90h R3/4GM PC-712GA 120x70x90h R3/4GM PC-716GA 160x70x90h...
  • Page 15 Electrical technical data table PCCF S70GAE TOTAL MAXIMUM POWER SUPPLY MODEL DIMENSIONS POWER SUPPLY ELECTRICAL ABSORPTION CABLE POWER (kW) silicon type PC-74GA 40x70x90h 230V~ 50/60 Hz 0,01 0,04 5 x 1 mm² PC-78GA 80x70x90h 230V~ 50/60 Hz 0,01 0,04 5 x 1 mm²...
  • Page 16 GENERAL INFORMATION DESIGN ASSEMBLY/TRANSFORMATION ELECTRICAL LINKING TERMINAL BLOCK PERNIONS (see technical data table) · POWER SUPPLY CONNECTION   · HEATING ELEMENT CONNECTION   Translation of the original instructions...
  • Page 17: Installation

    INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following:   · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·...
  • Page 18 INSTALLATION Warning Installation operations, any conversion to other types of gas and start-up must only be   performed by qualified personnel, in accordance with current regulations.   Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
  • Page 19 INSTALLATION valve and fast-closing valve. Once installation is complete, make sure that there are no gas leaks from the fittings; to do this, do not use a naked flame but substances that do not cause corrosion, such as solutions of soapy water or leak detectors.
  • Page 20 INSTALLATION - "A" type devices (see data plate)   "A" type appliances must discharge combustion products into appropriate hoods, or similar devices, connected to an efficient fume stack or directly to the outside. (Natural evacuation) Fig. 1 If this is not possible, using an air suction device connected directly to the outside is permitted (Forced Evacuation) Fig.2, having a flow capacity not lower than the value defined in point 4.3 of the UNI-CIG 8723 standard.
  • Page 21 INSTALLATION 1 Windproof fume stack (fig.3) - Extractor hood (fig.4) 2 Servo system   "B11" type appliances are supplied on request with a hood or a hood and windproof fume stack to be assembled and delivered separately. Translation of the original instructions...
  • Page 22: Burners Technical Data Table (Itgb)

    BURNERS TECHNICAL DATA TABLE (ITGB) 4 BURNERS TECHNICAL DATA TABLE (ITGB) Burners technical data table Technical data table - Burners PCCF S70GAE 12.68 kWh/KG 12.87 kWh/KG 9.45 kWh/m3st.   BUTANE PROPANE METHANE H 30 mbar 37 mbar 20 mbar Burner max 3.5 kW-min 1.15 kW  ...
  • Page 23: Instructions For Use

    INSTRUCTIONS FOR USE 5 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails.
  • Page 24: Switching The Main Burner Off

    INSTRUCTIONS FOR USE Switching the main burner off · Turn the knob into position . The burner turns OFF and only the pilot flame remains ON   Turning the appliance off · Press and turn the gas cock knob to position "0". This control blocks the gas supply to both the main burner and the pilot burner  ...
  • Page 25: Turning On And Adjusting The Fan Oven

    INSTRUCTIONS FOR USE · Also turn the knob of the selector, setting one of the three positions   Top + bottom heating element Bottom heating element Top heating element   Turning on and adjusting the fan oven The hot air put in circulation by the fan is distributed in the entire oven chamber, ensuring even cooking. The uniform heating of the chamber makes it possible to cook different foods at the same time on different levels.
  • Page 26: Cooking Table For The Fan Oven

    INSTRUCTIONS FOR USE Cooking table for the fan oven Ventilated electrical oven cooking table Guide no. Temperature Min. cooking Type of food from the Quantity Kg °C time bottom Sweets With a beaten dough, in a mould With a beaten dough, without a mould 1-3-4 Shortcrust pastry, cake base 1-3-4...
  • Page 27 INSTRUCTIONS FOR USE Note · The indication of use of the levels shown in the table is recommended when cooking on multiple   levels · The indicated times refer to cooking on only one level. Add 5-10’ when cooking on multiple levels ·...
  • Page 28: Maintenance

    MAINTENANCE 6 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract.   Caution Maintenance must only be performed by specialist personnel in compliance with current  ...
  • Page 29: Substituting The Nozzle In The Oven Burner

    MAINTENANCE After conversion to another type of gas, update the technical data plate to indicate the type of   gas for which the appliance has been converted. Substituting the nozzle in the oven burner · Remove the base of the oven ·...
  • Page 30: Cleaning

    CLEANING 7 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden     To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply.
