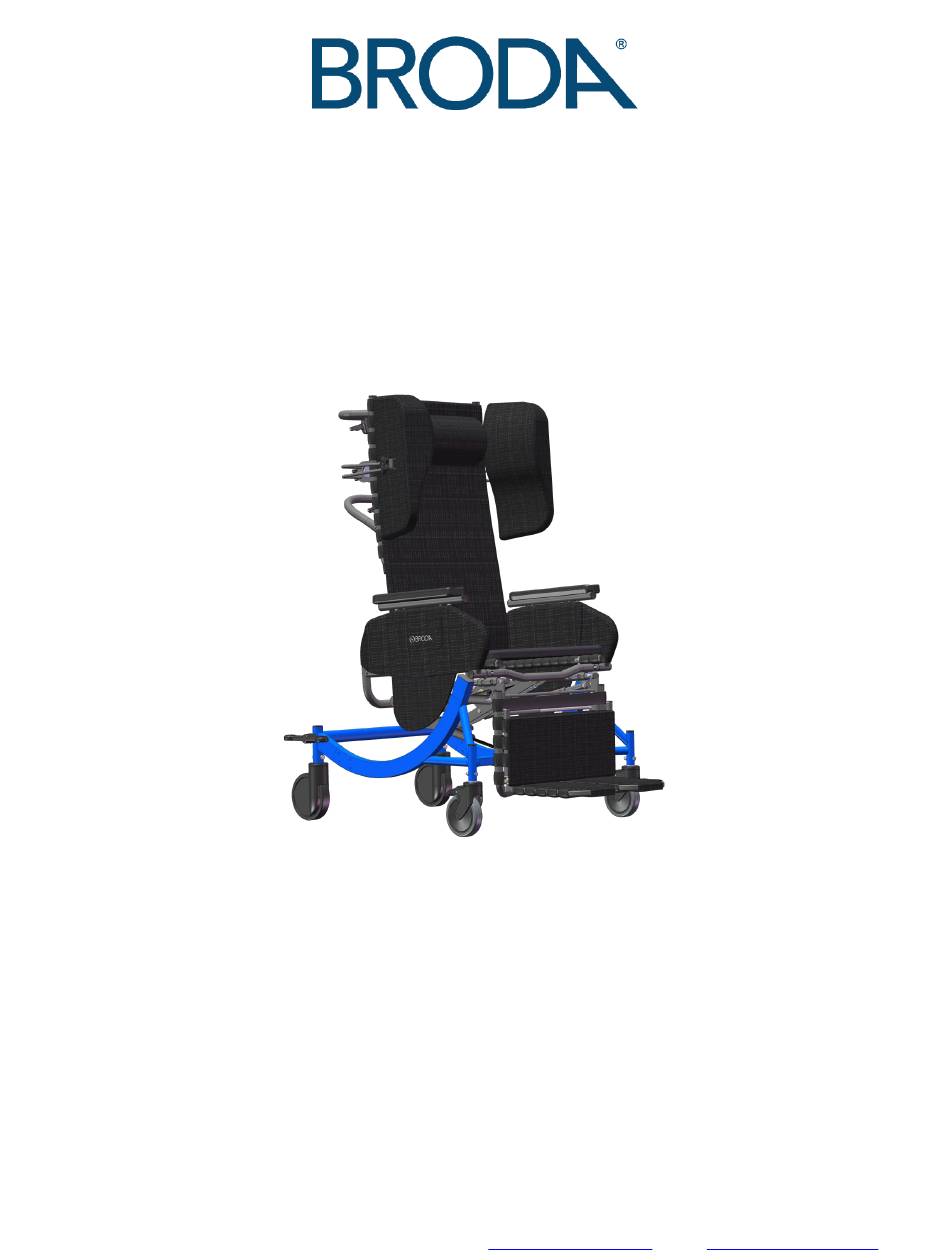

Operating Manual
Synthesis Tilt Recliner Model
(Including Synthesis Transport Chair Option
Model WC-19)
Distributor/Rep: This manual must
be given to the caregiver responsible
for this chair and its occupant.
Caregiver: Before using this chair,
read this manual thoroughly and save
for future reference.
Actual product may differ slightly from images in Operating Manual
Broda
15455 Conway Road Suite 200
Chesterfield, Missouri USA 63017
Phone: 1-844-552-7632 Fax: 844-442-7632
OM-V4-17.10.2018
www.brodaseating.com
Email:
sales@brodaseating.com
Advertisement
Table of Contents
Related Manuals for broda WC-19
Summary of Contents for broda WC-19
- Page 1 Operating Manual Synthesis Tilt Recliner Model (Including Synthesis Transport Chair Option Model WC-19) Distributor/Rep: This manual must be given to the caregiver responsible for this chair and its occupant. Caregiver: Before using this chair, read this manual thoroughly and save for future reference.
-
Page 2: Table Of Contents
Contents 0 B F OREWORD ................................. 1 1 B G ENERAL INFORMATION ............................2 2 B D EFINITIONS ..............................3 3 B S AFETY REQUIREMENTS ..........................4 8 B T raining ................................. 4 9 B A pplication ..............................4 1 0 B S hipping and Storage ............................. 4 1 1 B P re-Service Check ............................ -
Page 3: F Oreword
Broda. We are sure that after using your Broda chair, you will be convinced that your resident’s quality of life will be greatly enhanced. This manual will assist you in making the best use of the capabilities of your Broda chair and will ensure that you quickly become familiar with its operation. -
Page 4: G Eneral Information
Broda reserves the right to make changes to the specifications, dimensions, functions, or components of its products without notice. Product representations in this manual may vary from delivered products. Each Broda chair has a unique identifying serial number that must be maintained on the chair as well as with any equipment records. -
Page 5: D Efinitions
“Broda” means Broda Enterprises Inc. doing business as Broda Seating. “Broda chair” refers to chair model Synthesis Tilt Recliner Model or Synthesis Transport Chair Model WC-19. “Long-Term Care Institution” refers to a nursing home, hospital, or other healthcare facility that provides health and personal care to its residents on a long-term basis. -
Page 6: S Afety Requirements
1 0 B Broda chairs should be shipped and stored in an upright position and not stacked higher than 3 boxes. No other materials should be shipped or stored on top of a Broda box. Broda boxes should not be placed on pallets. -
Page 7: 1 B P Re-Service Check
Broda chairs should be kept in a clean, dry environment. Do not leave Broda chairs outdoors as it may cause the paint to peel. Upon receipt, the shipping carton must be immediately examined for damage. Any damage should be noted on the delivery receipt and a request for inspection by the transportation company should be made. -
Page 8: 9 B R E-Positioning Of Resident - "Danger Of Clamping
If after being fully dressed, a resident’s bare arms, legs, or body could still come into direct contact with the vinyl straps or vinyl pads, we recommend the use of a covering, such the Broda terry cloth covered seat and/or back pad or a folded cloth bed sheet to prevent direct contact. -
Page 9: 3 B I Mproper Use
The frame and components of the chair can be cleaned using the same procedure as the vinyl. The steps below are also located in the Cleaning Guide found on the back of the Broda chair Staining Agent Cleaning Procedure... -
Page 10: 5 B M Aintenance
1 5 B The maintenance on a Broda chair will vary with the amount of use and the condition of the resident using the chair. In regular use, after the initial inspection and functional testing, the chair should be inspected and tested bimonthly. - Page 11 Residents weighing over 220 lbs. A facility with irregular or sloped surfaces. Any unauthorized person. Do not use lubricants that contain solvents. Solvents may compromise any rubber components on the chair. If necessary, white food grade grease or lubricant can be used on any sliding components.
-
Page 12: 6 B R Esident Specific Instructions
Broda representatives are not professional caregivers and will not know the specific requirements of the individual using the chair. Broda relies on the knowledge, experience, and judgment of the resident’s professional caregiver to ensure the specific resident’s safety and comfort needs are satisfied while using the chair. -
Page 13: O Peration And Movement
O PERATION AND MOVEMENT Safety measures as described in Section 1 must be observed when operating the chair’s functions or moving the chair. Only authorized caregivers should attempt to operate or move a chair. The caregiver must use proper body mechanics when operating the chair, and be prepared to support the weight of the resident while operating the chair. -
Page 14: 0 B E Levating Leg Rest
E levating Leg Rest 2 0 B Gas cylinders allow the leg rest to be positioned infinitely from horizontal to vertical. The leg rest elevates and extends with recline on the Synthesis. It is also independently adjustable. To Adjust the Leg Rest: -Hold leg rest to assist movement and squeeze the leg rest handle. -
Page 15: 2 B R Emovable Wings
R emovable Wings 2 2 B Wings support the Shoulder Bolsters which provide upper body lateral support. The wings are width and height adjustable to accommodate various residents. To Remove the Wing: -Loosen the knob (1) and pull the wing from the receptacle. -
Page 16: 4 B S Wing Away/Removable Arms
S wing Away/Removable Arms 2 4 B The swing away removable arms allow for side access to Swing Away/Removable Arms facilitate safe and easy transfers. To Remove the Arms: - Push the button on the front of the seat, while pulling out the arm. -
Page 17: 6 B C Asters
A ccessories (Options) 2 7 B We recommend Broda accessories for use only on Broda chairs. The correct installation of the Broda accessory is very important. We recommend that the Broda chair is ordered with the required accessories already installed. Only authorized caregivers who thoroughly understand the accessory installation procedures should attempt to install their Broda accessories without assistance from their local Broda representative. - Page 18 Testing was conducted with: Synthesis (WC-19) 24” seat width, 13° seat tilt, 18.5” seat depth, mag wheel hole position # 2. Broda does not recommend the Synthesis be transported with an occupant in any position other than the tested configuration.
- Page 19 Instructions: 1) Attach footrest tether to legrest by wrapping long tether strap around legrest frame and buckling long tether strap to short tether strap on footrest. WARNING: Footrest tether must remain attached to footrest for vehicle transport. Do not reroute, do not remove, and do not adjust footrest tether.
- Page 20 9) Broda should be consulted in case of questions about using the chair for seating in a motor vehicle, 10) Alterations or substitutions should not be made to the chair structural and frame parts or components without consulting Broda, 11) Recommended clear zones are in front and behind the chair user, as shown in figure 10.
-
Page 21: I Nspection And Functional Testing
I NSPECTION AND FUNCTIONAL TESTING Safety measures as described in Section 1 must be observed when inspecting or testing a chair. Only authorized caregivers or maintenance staff should attempt to inspect or test a chair. I nspection 2 8 B We recommend regular visual inspection for signs of wear, damage, loose or missing fittings, and other safety concerns. -
Page 22: T Echnical Information
Up to 40º of seat tilt (infinitely adjustable) Frame: Powder coated steel Seat/Back Surface: Broda Comfort Tension Seating® Strapping is 1-1/2” wide, by 1/8” thick; contains fungicide, has shape memory retention, is fire retardant Arms: Seat mounted arms Swing away and removable... -
Page 23: 1 B B Roda Seating Synthesis Parts Schematics
B roda Seating Synthesis Parts Schematics 3 1 B 3 2 B... -
Page 39: 3 B T Roubleshooting For Gas Cylinders
3 3 B The use of gas charged springs (cylinders) on Broda products allows the caregiver to easily make adjustments to the tilt, recline, and leg rest with a minimal effort. The gas cylinders contain Nitrogen gas, it is not flammable nor is it toxic. -
Page 40: 4 B R Ear Casters
The rear caster function is The rear caster is no longer The rear caster must be replaced. controlled by one step on the rear functional. Contact Broda or your local pedal. representative. The rear caster is not engaging into Rear Pedal the correct position when using the rear pedal. -
Page 41: Warranty
This warranty does not cover damages that arise from improper handling, cleaning, maintenance, storage or negligent use. The warranty does not cover Broda’s wheelchairs and chairs used in any way, other than the manner in which it was designed and recommended.
