broda HSP Manual

Padding installation

Parts Required:

Step

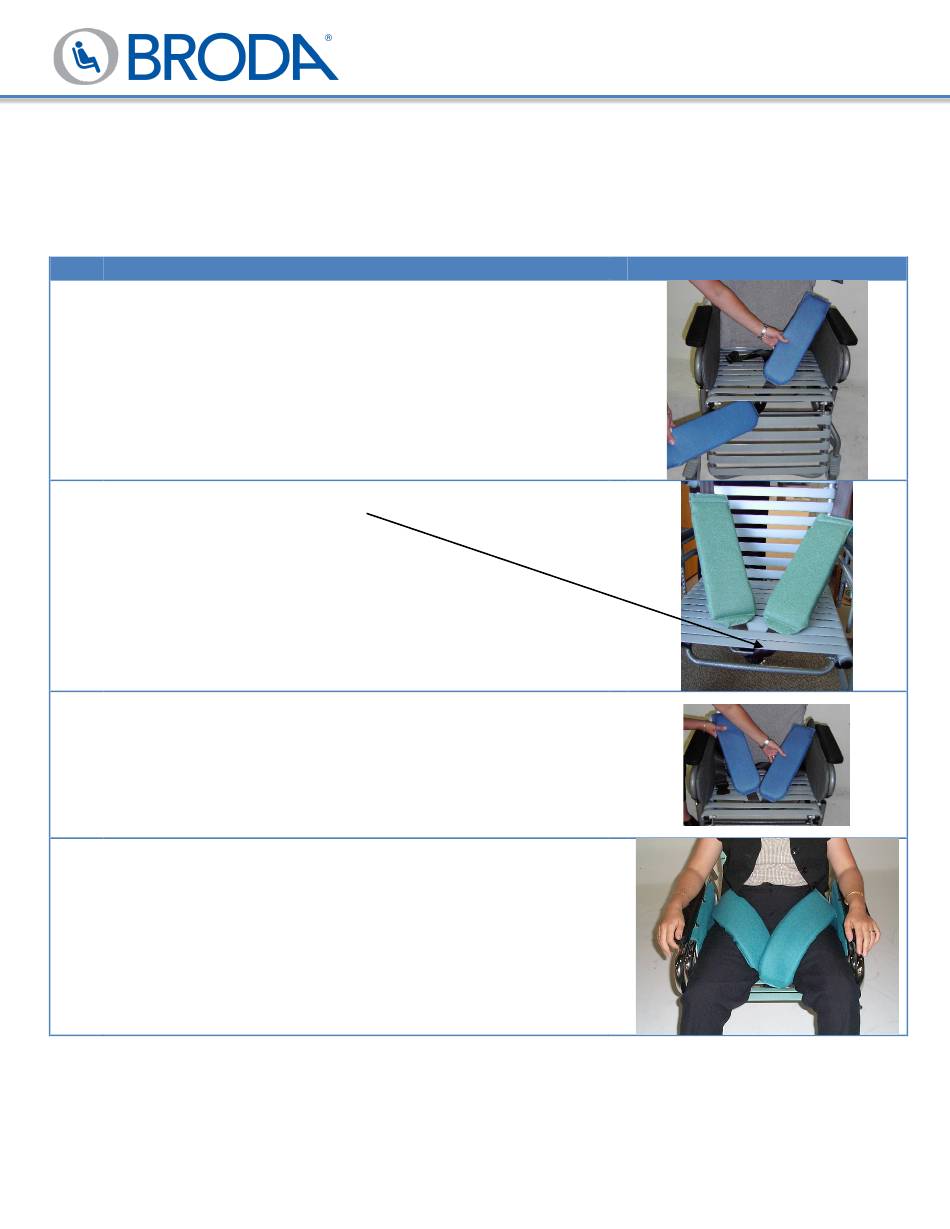

Locate the front cross piece of the seat frame. Starting from under the

chair seat, pass one end of the thigh belt between the second and

third strap from the front of the seat

For Pedal Rocker attachment, locate the front frame piece attached to

the seat frame (resembles a handle)

Pass the other end of the Thigh Belt though the same spot in the chair

seat. Ensure that the center strap of the Thigh Belt is looped around

the front cross piece of the seat frame

One padded section of the Thigh Belt passes over each thigh. Connect

the snap buckles behind the chair. Do not fasten around the cylinder

or cable behind the chair. Tighten the straps as necessary

Execution

Page 1 of 3

HSP Padding Installation

Figures

FORM-03DOC-xxx Rev. 0

Table of Contents

Do you have a question about the HSP and is the answer not in the manual?

Page 1 HSP Padding Installation Parts Required: Tools Used: Step Execution Figures Locate the front cross piece of the seat frame. Starting from under the chair seat, pass one end of the thigh belt between the second and third strap from the front of the seat...
Page 2 HSP Padding Installation Take the wing cover and slide it over top of the wing from the outside. It should slide on tightly, and will wrap around the strap and the flap will Velcro shut on the inside portion of the wing.
Page 3 Attach the straps around the wing cover and secure with the buckles provided. Use the strap and "D" ring to secure the lower extended portion of the bolster to the back cane For more information, please contact Broda Customer Care at 1-800-668-0637 Page 3 of 3 FORM-03DOC-xxx Rev. 0...
