broda ClearPath Operating Manual

2 in 1 mobility & positioning chair with tpu comfort technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
TPU Comfort Technology
with
™
ClearPath Mobility
ClearPath Positioning
Register your warranty online at
www.brodaseating.com
Distributor/Rep: This manual must
be given to the caregiver responsible
for this chair and its occupant.
Caregiver: Before using this chair,
read this manual thoroughly and save
for future reference.
BRODA Seating
560 Bingemans Centre Drive
Kitchener, Ontario Canada N2B 3X9
Phone: 1-800-668-0637 Fax: 519-746-8616
OM-930.7.30.2012
www.seatingisbelieving.com www.brodaseating.com
Email:
sales@brodaseating.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClearPath and is the answer not in the manual?

Questions and answers

Related Manuals for broda ClearPath

Summary of Contents for broda ClearPath

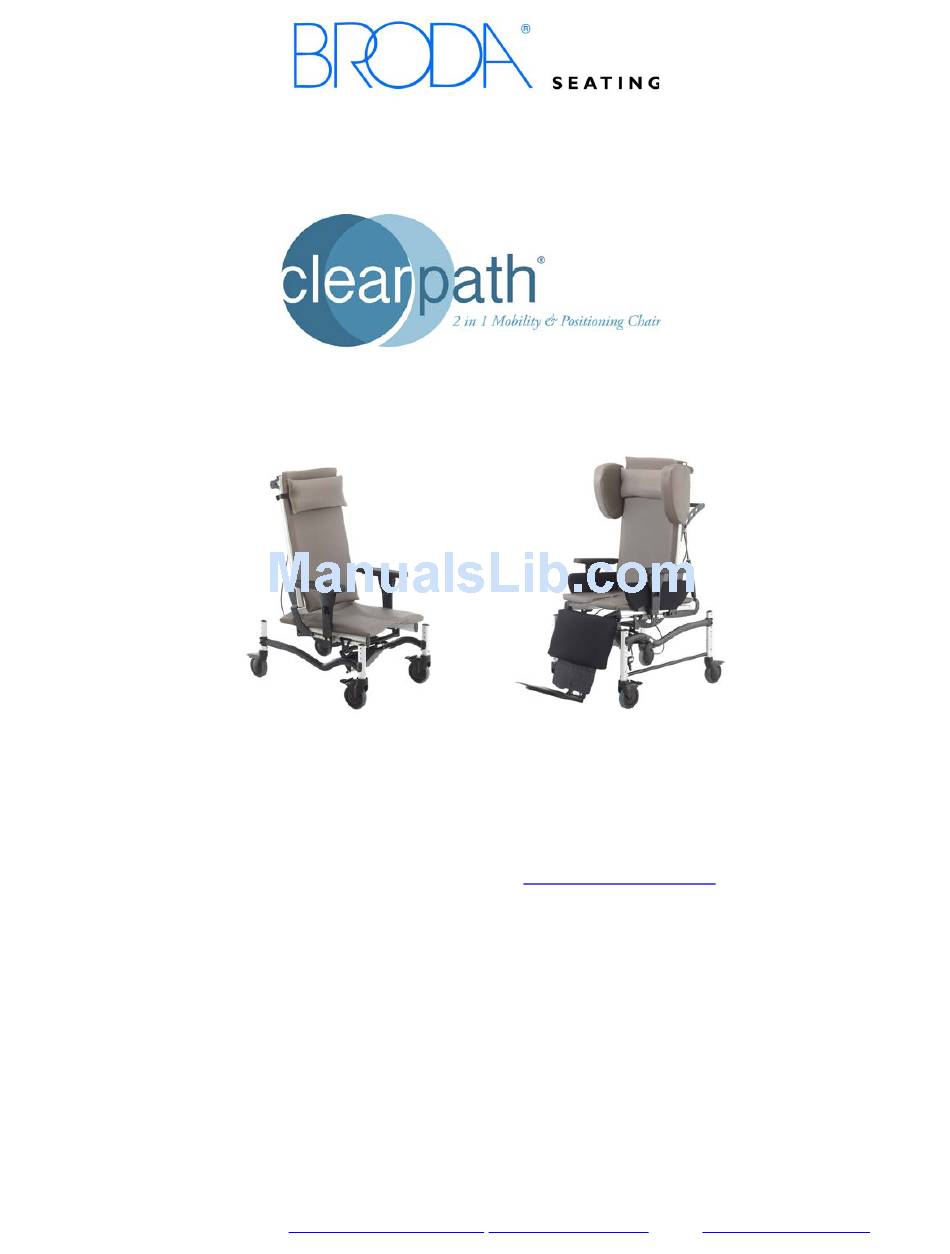

  • Page 1 Operating Manual TPU Comfort Technology with ™ ClearPath Mobility ClearPath Positioning Register your warranty online at www.brodaseating.com Distributor/Rep: This manual must be given to the caregiver responsible for this chair and its occupant. Caregiver: Before using this chair, read this manual thoroughly and save for future reference.

  • Page 2: Table Of Contents

    Contents FOREWORD ................................. 1 GENERAL INFORMATION ............................2 DEFINITIONS ..............................3 SAFETY REQUIREMENTS ..........................4 Training ................................ 4 Application ..............................4 Shipping and Storage ........................... 4 Pre-Service Check ............................5 Hazards ................................ 5 2.5.1 Position of Chair - “Danger of Falling” ....................5 2.5.2 Position of Seat Tilt - “Danger of Tipping”...

  • Page 3: Foreword

    BRODA. We are sure that after using your BRODA chair, you will be convinced that your resident’s quality of life will be greatly enhanced. This manual will assist you in making the best use of the capabilities of your BRODA chair and will ensure that you quickly become familiar with its operation.

  • Page 4: General Information

    BRODA reserves the right to make changes to the specifications, dimensions, functions, or components of its products without notice. Product representations in this manual may vary from delivered products. Each BRODA chair has a unique identifying serial number that must be maintained on the chair as well as with any equipment records.

  • Page 5: Definitions

    1 DEFINITIONS “BRODA” means BRODA Enterprises Inc. doing business as BRODA Seating. “BRODA chair” refers to ClearPath™ model. “Long-Term Care Institution” refers to a nursing home, hospital, or other healthcare facility that provides health and personal care to its residents on a long-term basis.

  • Page 6: Safety Requirements

    ClearPath is not to be used in the shower. The frame and components will rust, and will void the warranty. The chairs are not explosion resistant and must not be used where there are flammable gases or liquids present (e.g., anesthetics, volatile solvents and cleaners, etc.)

  • Page 7: Pre-Service Check

    BRODA chairs should be shipped and stored at temperatures between -20ºC and 40ºC. BRODA chairs should not be used until they are between 0ºC and 30ºC. BRODA chairs should be kept in a clean, dry environment. Do not leave BRODA chairs outdoors as it may cause the paint to peel.

  • Page 8: Re-Positioning Of Resident - "Danger Of Clamping

    TPU seating surface (Thermoplastic Polyurethane) or vinyl pads, we recommend the use of a covering, such the BRODA terry cloth covered seat and/or back pad or a folded cloth bed sheet to prevent direct contact. Direct contact of bare skin on the uncovered seat and back surface over a period of time could cause moisture on the resident, and/or cause the skin to stick to the surface.

  • Page 9: Improper Use

    The frame and components of the chair can be cleaned using the same procedure as the vinyl. The steps below are also located in the Cleaning Guide found on the back of the Broda chair Staining Agent Cleaning Procedure...
  • Page 10 Touch up paint is available for the powder coated frame. Please call Broda’s Customer Service Department if touch up paint is required. Do not leave BRODA chairs outdoors as the frame is not UV protected. Leaving the chairs outdoors could cause the paint to peel.

  • Page 11: Maintenance

    Maintenance The maintenance on a BRODA chair will vary with the amount of use and the condition of the resident using the chair. In regular use, after the initial inspection and functional testing, the chair should be inspected and tested bimonthly.

  • Page 12: Resident Specific Instructions

    BRODA representatives are not professional caregivers and will not know the specific requirements of the individual using the chair. BRODA relies on the knowledge, experience, and judgment of the resident’s professional caregiver to ensure the specific resident’s safety and comfort needs are satisfied while using the chair.

  • Page 13: Operation And Movement

    3 OPERATION AND MOVEMENT Safety measures as described in Section 1 must be observed when operating the chair’s functions or moving the chair. To reduce personal injury, only authorized caregivers should attempt to operate or move a chair. The caregiver must use proper body mechanics when operating the chair, and be prepared to support the weight of the resident while operating the chair.

  • Page 14: Elevating Leg Rest (Optional On Mobility, Standard On Positioning)

    -Raise or lower the leg rest to the desired angle. -Release handle. Leg Rest Length Adjustment The ClearPath leg rest is length adjustable from 17” to 24” (from top of seat) to accommodate various residents. To Adjust the Leg Rest Length -Squeeze the leg rest length adjustment handle.

  • Page 15: Armrest Height Adjustment

    -Remove wing To Attach the Wing: -Position the wing against the fastener plate on the back cane, lining up the bolt in the top of the key hole and the wing nut in the bottom cutout. -Raise or lower the wing to the desired position. -Tighten wing nut.

  • Page 16: Armrest Depth Adjustment

    Armrest Depth Adjustment The armrests are depth adjustable to accommodate various residents as well as accommodate changes in seat depth. To Adjust Armrest Depth: -Remove the 2 bolts from the armrest bracket -Move the armrest and mounting block along the seat frame to the desired position.

  • Page 17: Seat Height Adjustment

    Seat Height Adjustment The seat height is adjustable to accommodate various users. Height adjustment ranges from 13” -17” with short casters posts; 18” -21” with long caster posts. To Adjust Seat Height: -Turn chair on its side to remove caster posts and screws. -Re-position posts to desired height or install new posts (short or long) depending on desired seat height.

  • Page 18: Casters

    3.10 Casters ClearPath Positioning models feature three 5” total lock casters and one 5” directional locking caster (different colour pedal) ClearPath Mobility models feature two 5” total lock casters and two 5” fixed locking casters. The tracking and fixed casters allow for easy maneuverability.

  • Page 19: Elevating Legrest Installation And Removal

    -Ensure all bolts are tightened. 3.12 Elevating Legrest Installation and Removal An elevating legrest can be installed on the ClearPath to accommodate leg and foot positioning needs. In order to install the legrest, the seat height must be set at 19” or higher, for ground clearance.

  • Page 20: Swing Away Legrest Hanger Installation And Removal

    3.13 Swing Away Legrest Hanger Installation and Removal Swing away legrests can be installed for users who self propel, as the footrests can easily swing away for a foot on floor position. To Install Swing Away Legrest Hangers: -Remove end cap. -Slide in hanger assembly to T-slot.

  • Page 21: Accessories (Options)

    ATD was restrained by a three-point belt with a commercial wheelchair-anchored lap belt and surrogate shoulder belt. Testing was conducted with: ClearPath Positioning Model 930V2 P-500, 18” seat width, 21” seat depth, 20” seat height, rear brace, 20” rear mag wheels mounted second position from front, armrests mounted in high position, fully forward, 2 x 300N recline cylinders, 2 x 600N tilt cylinders.
  • Page 22 Vehicle Transport Option Components Front Securement Wheelchair anchored Rear Securement lap belt anchor Vehicle Restraint Seat Belt Front Crash Stabilizer...
  • Page 23 Instructions: 1) It is recommended users transfer to the vehicle seat and use the vehicle-installed restraint system. 2) The pelvic belt should be worn low across the front of the pelvis, so that the angle of the pelvic belt is within the preferred zone of 45°...
  • Page 24 9) Broda should be consulted in case of questions about using the chair for seating in a motor vehicle, 10) Alterations or substitutions should not be made to the chair structural and frame parts or components without consulting Broda, 11) Recommended clear zones are in front and behind the chair user, as shown in figure 10.

  • Page 25: Inspection And Functional Testing

    INSPECTION AND FUNCTIONAL TESTING Broda ClearPath Inspection/Maintenance Schedule* Part Initial Inspect/Adjust Inspect/Adjust Inspect/Adjust Inspect/Adjust Inspection Weekly Monthly Periodically Regularly Gas Cylinders: Check to ensure functions operated by cylinders are functioning properly: Tilt, recline, elevating legrest Cables and Handles: Cables connected to cylinders...

  • Page 26: Functional Testing

    Broda recommends that the chair be inspected as often as each use if there is any reason to be concerned about the possibility of increased wear or loose or missing fittings.

  • Page 27: Technical Information

    275 lbs (350 lbs with optional rear brace- rear brace standard on 22” & 24” seat widths) 13. Overall Weight: 89 lbs. All dimensions are ± 0.5”. ClearPath Mobility features can be upgraded to become ClearPath Positioning: (See ClearPath Positioning Specifications) *Easily add: Wings/Shoulder Bolsters Back Recline...
  • Page 28 Specifications Based on Standard 20” ClearPath Positioning 1. Seat Tilt: Up to 32º of seat tilt in all seat heights (infinitely adjustable) Frame: Aluminum and 16 gauge powder coated steel Seat/Back Surface: TPU Comfort Technology for pressure redistribution Arms: Height and depth adjustable Arms tilt with seat 5.

  • Page 29: Labels

    Labels BRODA uses certain labels to assist caregivers to identify items which permit the operation of the chair’s functions. Manufacturer’s Label (White) Serial Number Label (Grey) SEATING 1-800-668-0637 PRODUCT # MADE IN CANADA / FABRIQUE AU CANADA SERIAL # MADE IN CANADA 560 Bingemans Centre Drive, Kitchener, ON Canada, N2B 3X9 PHONE 1 –...

  • Page 30: Common Troubleshooting And Repair

    5 COMMON TROUBLESHOOTING AND REPAIR Please have the chair serial number ready when contacting BRODA or your local area representative for parts or assistance for your chair. The serial number can be found on a grey sticker on the rear of the chair.
  • Page 31 If the rod becomes scratched or marred it will damage the seal on the cylinder and the cylinder will fail. Damaging a cylinder in this fashion voids the manufacturer’s warranty. ClearPath Standard Gas Cylinders Chair Width Tilt Cylinder Configuration 16” 1200N = 1x 1200N...

  • Page 32: Warranty

    If the defective parts are not returned to BRODA on request, the owner will bear the cost of the replacement parts on invoice from BRODA.
