Model 30VT chair with 1/4" seat pivot bolts (Built before 2016-JAN-01) (width specific)
Parts Required:
Replacement base for 30VT with 5/16" seat pivot holes (width specific)
3/16" Allen Key
Tools Used:
#2 (Red) Robertson Screwdriver
7/16" Wrench (X2)
1/2" Wrench (X2)
5/16" Drill Bit
Drill
Step
1
30VT Base is width specific. See illustration for an example.
Contact your sales representative for configuration verification.
2
Remove original base from chair (keep fasteners for reuse).
3
Remove armrest adjustment set screws and armrests from base.
4
Remove legrest elevation handle from front left side of base.
30VT Base Replacement (5/16" Seat Pivot Bolt)
Execution
Page 1 of 2
Figures
Form-03DOC-003 Rev. 1
Advertisement
Table of Contents
Related Manuals for broda 30VT
Summary of Contents for broda 30VT

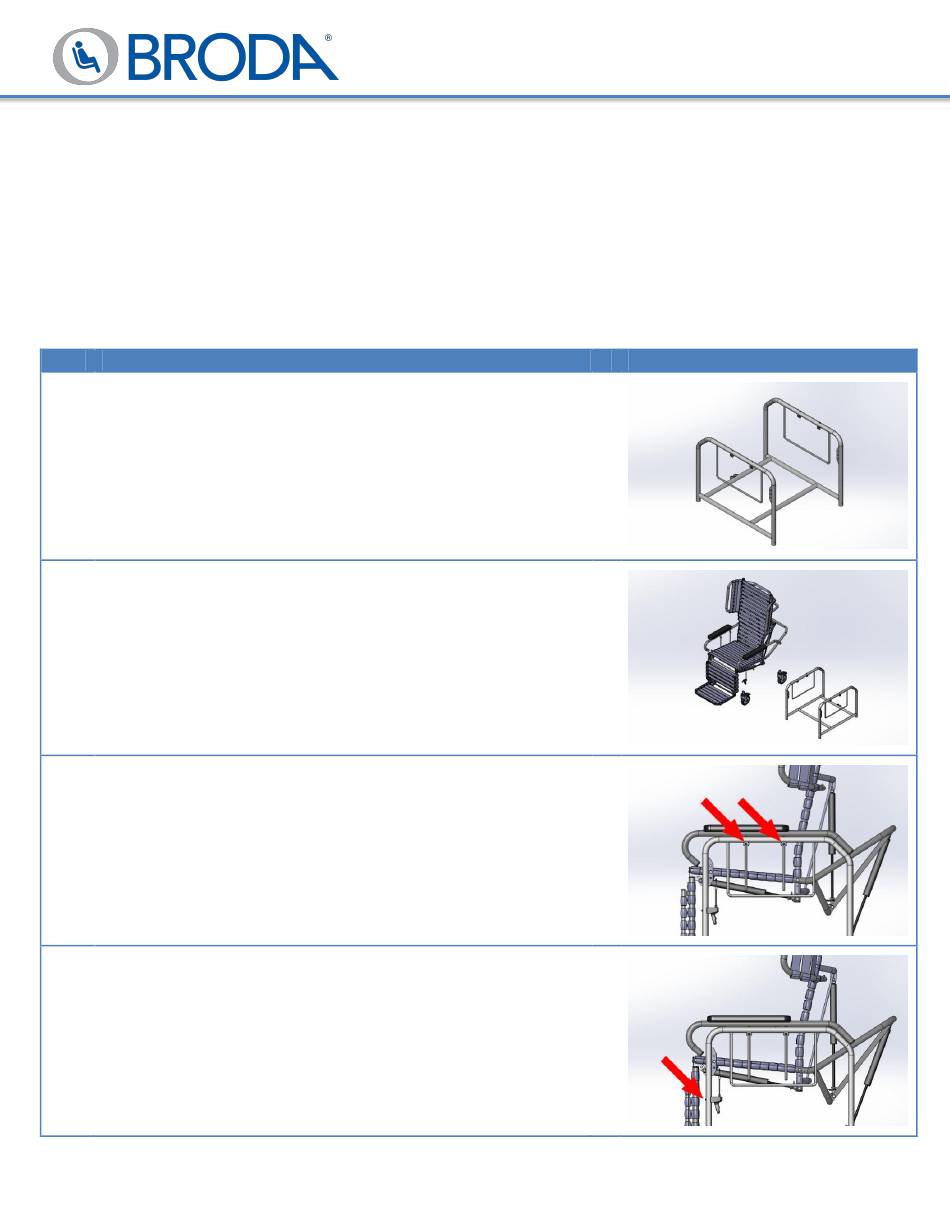

- Page 1 30VT Base Replacement (5/16” Seat Pivot Bolt) Model 30VT chair with 1/4" seat pivot bolts (Built before 2016-JAN-01) (width specific) Parts Required: Replacement base for 30VT with 5/16” seat pivot holes (width specific) 3/16” Allen Key Tools Used: #2 (Red) Robertson Screwdriver 7/16”...
- Page 2 Each side will receive a 5/16-18 hex head 2.5”L bolt, a 5/16” nyloc nut, a 3/8”THK spacer for a 5/16” bolt, and a 5/16”ID 1/2”THK Spacer for 5/16” bolt. For more information, please contact Broda Customer Care at 1-800-668-0637 Page 2 of 2 Form-03DOC-003 Rev. 1...
