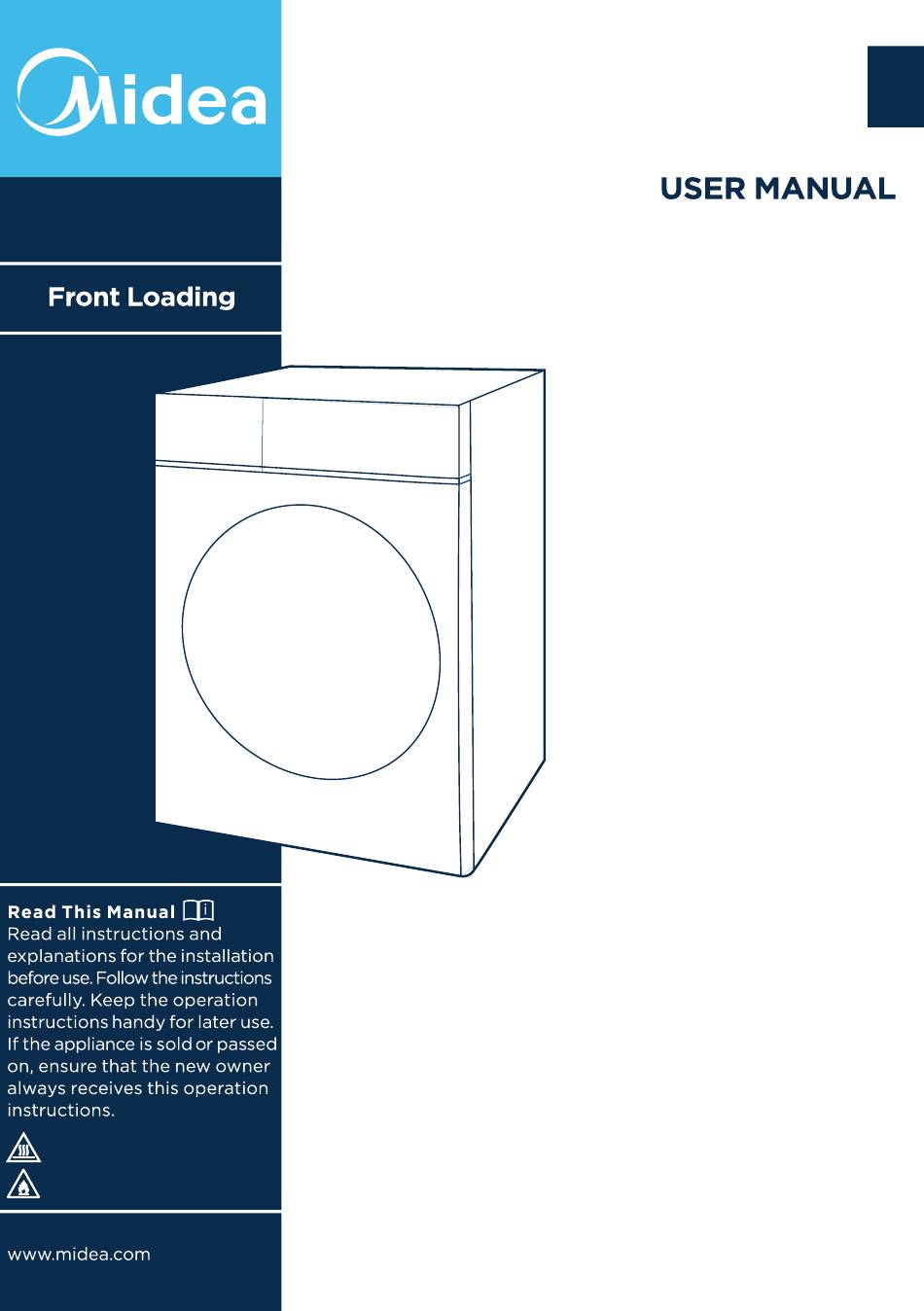

WASHER DRYER
Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
MODEL:
MF10ED80B
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF10ED80B and is the answer not in the manual?

Questions and answers

Related Manuals for Midea MF10ED80B

Summary of Contents for Midea MF10ED80B

  • Page 1 Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed on then ensure that the new owner always receives this MODEL: manual. MF10ED80B CAUTION: HOT SURFACE ! CAUTION: RISK OF FIRE !
  • Page 2 Therefore, we reserve the right to make changes to the design, features and accessories of all types and models without prior notice. On our website www.midea.com you can also download the user manual in digital form and discover other products. We hope you enjoy using your machine.

  • Page 3: Table Of Contents

    CONTENTS 1 SAFETY INSTRUCTIONS ....4 MAINTENANCE ........Safety Instructions ......4.1 Cleaning and Care ....... Cleaning the Cabinet......INSTALLATION ......... Cleaning the Drum ......Product Description ...... Cleaning the Door Seal and Glass.. Accessories ........Cleaning the Inlet Filter ..... 2.2 Installation ......

  • Page 4: Safety Instructions

    1 SAFETY INSTRUCTIONS INTENDED USE The product is intended only for home use and for textiles in household amounts suitable for washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions.
  • Page 5 1 SAFETY INSTRUCTIONS Warning! ELECTRIC SHOCK HAZARD • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  • Page 6 1 SAFETY INSTRUCTIONS INSTALLATION LOCATION AND SURROUNDING All washing and additional substances are to • be kept in a safe place out of the reach of children. • Do not install the machine on a carpet floor. • The obstruction of the openings by a carpet can damage the machine.
  • Page 7 1 SAFETY INSTRUCTIONS INSTALLATION • Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result. • This appliance is equipped with a single inlet valve and can be connected to the cold water supply only. •...
  • Page 8 1 SAFETY INSTRUCTIONS regulations. • Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer’s instructions and local safety regulations. Warning! • Don´t use multiple plugs or extension cords. • The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 9 1 SAFETY INSTRUCTIONS Do not remove the drain pump filter while there • is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water. OPERATION AND MAINTENANCE Warning! •...
  • Page 10 1 SAFETY INSTRUCTIONS backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine. • Fabric softeners or similar products should be used are recommended in their instructions. • Never try to open the door forcefully. •...
  • Page 11 1 SAFETY INSTRUCTIONS when lifting. The machine door can not be used as a handle. ENVIRONMENT Disposal of old appliances (Only for EU countries) This appliance is labelled in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The directive provides the framework for the EU-wide take-back and recycling of waste equipment.

  • Page 12: Installation

    2 INSTALLATION 2.1 Product Description Service flap Control panel Drain hose Door Power supply cord Detergent dispenser Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover 1 x Owner’s Acoustic sponge 1 x Supply hose (optional)

  • Page 13: Installation

    2 INSTALLATION 2.2 Installation Tools Needed If Installation By Yourself (not include) Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •...

  • Page 14: Unpacking The Machine

    2 INSTALLATION Unpacking the machine Warning! • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2.

  • Page 15: Levelling The Machine

    2 INSTALLATION Levelling the machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner.

  • Page 16: Acoustic Sponge

    2 INSTALLATION There are two ways to place the end of drain hose: Water trough 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. Acoustic Sponge Note! • Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

  • Page 17: Operation

    3 OPERATION 3.1 Quick Start Caution! • Before washing, please make sure the washer dryer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 18 3 OPERATION 1. Before Washing earth terminal Open tap Plug in Load Main wash Softener Prewash Close door Add detergent Note! • Detergent need to be added in compartment I if the pre-wash function is selected. • Do not put laundry beads into the detergent dispenser.
  • Page 19 3 OPERATION 2. Washing Power on Select programme Press Start/Pause to Select function or remain start the program default settings 3. After Washing Buzzer beep and “End” on display.

  • Page 20: Before Each Washing

    3 OPERATION 3.2 Before Each Washing • The ambient temperature of the washer dryer should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 21: Detergent Dispenser

    3 OPERATION 3.3 Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in compartment I ”after “ selecting pre-wash function. • Do not put laundry beads into the detergent dispenser. Programme Programme Cotton 20...

  • Page 22: Detergent Recommendation

    3 OPERATION Detergent Recommendation Recommended washing Type of laundry Washing Wash cycles detergent and textile temp. °C Heavy-duty detergent Cold/20 White laundry made Cotton,ECO 40-60, with bleaching agents from boil-proof /30 40 and optical brighteners cotton or linen Colour detergent without Coloured laundry Cold/20 Cotton,ECO40-60,...

  • Page 23: Control Panel

    3 OPERATION 3.4 Control Panel Product is switched Power. Start/Pause Press the button to start or pause the washing cycle. Option This allows you to select an additional function and will light when selected. Programmes Available according to the laundry type. Display The display shows the settings, estimated time remaining, options, and status messages for your washer dryer.

  • Page 24: Display

    3 OPERATION 3.5 Display Door Lock Pre-Wash Extra Rinse Display Wash Time Delay Time Speed Error Temp.

  • Page 25: Programmes

    3 OPERATION 3.6 Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made Cotton of cotton or linen. Steam Care is applicable for daily laundries like Steam Care cotton and synthetics. The steam can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting your health.
  • Page 26 3 OPERATION Cycle 15' Wash cold 0:15 0.030 cold 70%/800 Cotton 20℃ 3:49 0.183 65%/1000 Cotton 60℃ 3:54 1.515 65%/1000 Mix 30℃ 1:20 0.509 65%/1000 3:38 0.870 57.8 53.9%/1350 ECO40-60 2:48 0.505 46.6 53.9%/1350 2:48 0.222 38.4 53.9%/1350 8:00 4.000 3%/1350 Wash And Dry 7:00...
  • Page 27 3 OPERATION The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2. Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3. The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 28 3 OPERATION 3.7 Option 1400 Cotton 20 °C 1000 Cotton 40 °C 1000 Cotton 60 °C 1000 Steam Care 1000 Jeans 1000 Delicate ECO 40-60 – 1400 Spin only – 1000 Wash and Dry 8.0/ 5.0 – 1400 Dry Auto --/5.0 1200 Dry 90’...
  • Page 29 3 OPERATION Pre Wash The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once after you select it.
  • Page 30 3 OPERATION Child Lock This function is meant to keep children from misusing the controls. Press [Extra Rinse] and [Pre Wash] simultaneously Extra for 3 sec until the buzzer beep. The child lock Rinse Wash indicator switches on. Caution! When the Child Lock is activated, the display will alternately show “CL”...

  • Page 31: Maintenance

    4 MAINTENANCE 4.1 Cleaning and Care Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washer dryer can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.

  • Page 32: Cleaning The Inlet Filter

    4 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and 2. Clean the filter with remove the water a brush. supply hose from it. 3.

  • Page 33: Cleaning The Detergent Dispenser

    4 MAINTENANCE Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water.

  • Page 34: Cleaning The Drain Pump Filter

    4 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...

  • Page 35: Trouble Shooting

    4 MAINTENANCE 4.2 Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed Close the door properly not start properly.Clothes are...

  • Page 36: Customer Service

    4 MAINTENANCE 4.3 Customer Service Spare part for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements In case of questions, please contact our local customer service center. Warning! Risk of electric shock •...

  • Page 37: Technical Specification

    5 TECHNICAL SPECIFICATION Model MF10ED80B Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa 8.0kg Washing Capacity 5.0kg Drying Capacity Dimension 595mm 850mm 565mm Weight 74kg Rated Power 2000W Drying Power 1350W...

  • Page 38: Product Fiche

    6 PRODUCT FICHE MF10ED80B 59.8 81.9 0.544 3.254 Rated 53.9 1350 capacity 53.9 1350 Half 53.9 1350 Quarter...
  • Page 39 6 PRODUCT FICHE 8:00 7:00 free-standing Weblink to the supplier’s website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found (b): ( a) for the eco 40-60 programme. (b) for the wash and dry cycle (c) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
  • Page 40 (proof of purchase must be provided). Our General Terms and Conditions apply. Y our device / serial number Purchase date: Place of purchase: Do you have any questions ? We are happy to support you ! http://www.midea.com...
  • Page 41 16138100A33228 V1.0...
