VERSION # 19-07-29
1 / 10
MODEL #
CM-AC564
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-AC564
Summary of Contents for Furniture of America CM-AC564
- Page 1 MODEL # CM-AC564 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 10...

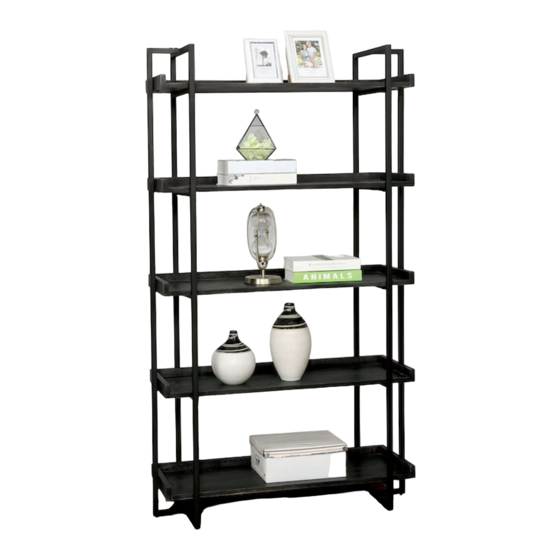

- Page 5 5 LAYER SHELF CM-AC564 #1 5pcs #2 2pcs #3 2pcs Side Frames Shelf Panels C Side Frames #B 2 4 pcs #A 10pcs #C 1pc Bolts Ø1/4" x 1/2" Bolts Ø1/4" x 1-1/8" Allen Wrench 4mm #D 2sets Anti- Tip Kits...
- Page 6 Exploded View 6 / 10...
- Page 7 ASSEMBLY INSTRUCTIONS Part #1 x2pcs Part #2 x2pcs Align shelf panels (#1) to the bottom and top of the side Hardware #B x8pcs frames (#2), then secure by using bolts (#B). Part #1 x3pcs Hardware #B x12pcs Align shelves (#1) to the side frames (#2), then secure by using bolts (#B).
- Page 8 ASSEMBLY INSTRUCTIONS Align C side frames (#3) to the side frames (#2), then secure by using bolts (#B). Part #3 x2pcs Hardware #B x4pcs Part x2pcs Hardware #A x10pcs Secure the shelves (#1) by using bolts (#A). 8 / 10...
- Page 9 ASSEMBLY INSTRUCTIONS Hardware #D x2sets WALL 9 / 10...
- Page 10 10 / 10...
