VERSION # 19-07-29
1 / 10
MODEL #
CM-AC563
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-AC563
Summary of Contents for Furniture of America CM-AC563

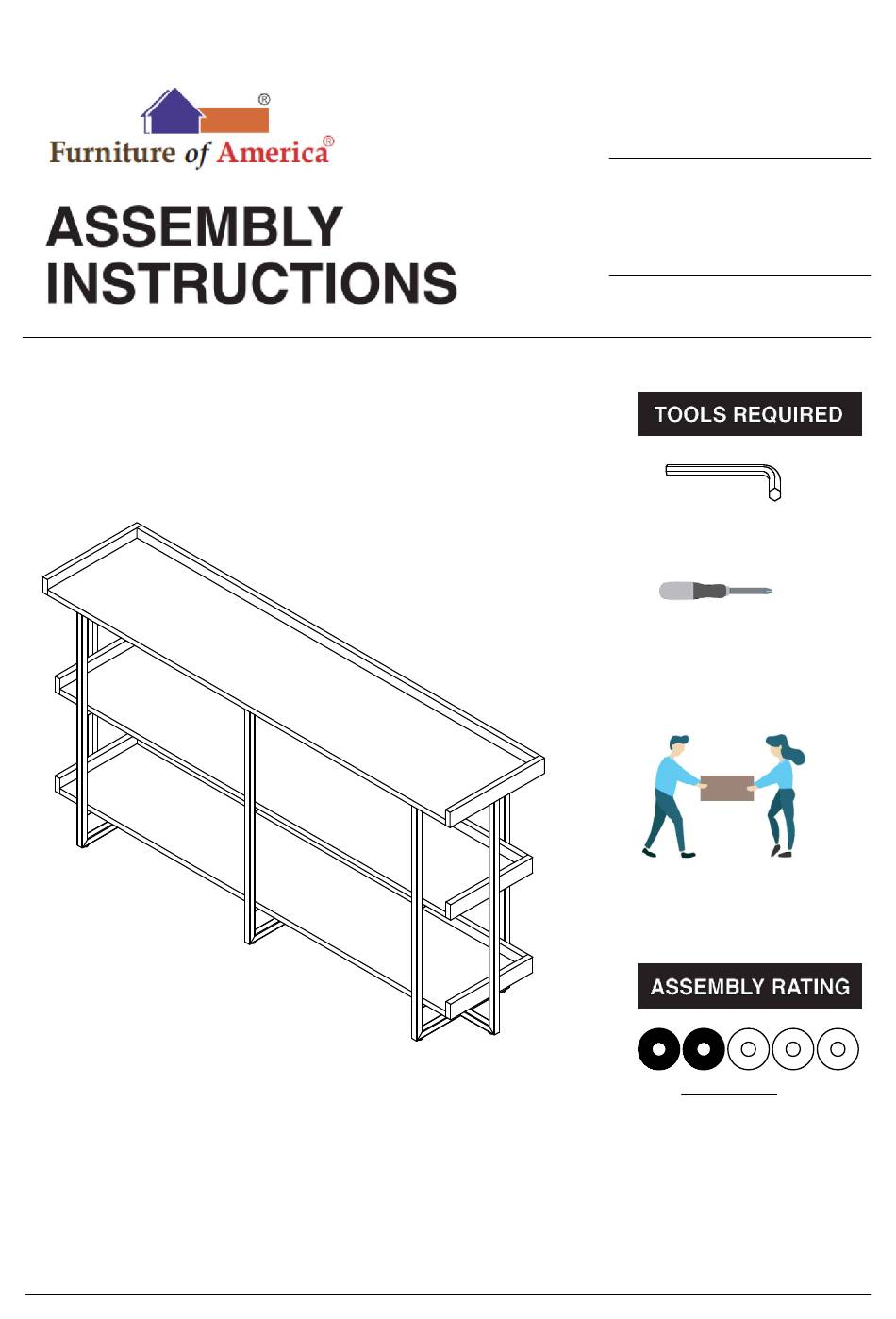

- Page 1 MODEL # CM-AC563 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 10...
- Page 5 3 LAYER SHELF CM-AC563 #1 1pc #2 2pcs #3 3pcs Top Panel Side Frames Shelf Panels #4 2pcs C Side Frames #B 2 4 pcs #A 4pcs #C 1pc Bolts Ø1/4" x 1-1/8" Allen Wrench 4mm Bolts Ø1/4" x 1/2"...
-
Page 6: Exploded View
Exploded View 6 / 10... - Page 7 ASSEMBLY INSTRUCTIONS Align side frames (#3) to the shelf panel (#2), then secure by using bolts (#B). Part #2 x1pc Part #3 x2pcs Hardware #B x4pcs Part #3 x1pc Hardware #B x2pcs Align last side frame (#3) to shelf panel (#2), then secure by using bolts (#B). 7 / 10...
- Page 8 ASSEMBLY INSTRUCTIONS Align last shelf panel (#2) to the side frames (#3), then secure by using bolts (#B). Part #2 x1pc Hardware #B x6pcs Part x2pcs Hardware #A x4pcs Align C side frames (#4) to the side frames (#3), Hardware #B x4pcs then secure by using bolts (#B).
- Page 9 ASSEMBLY INSTRUCTIONS Align top panel (#1) to the side frames (#3), then secure by using bolts (#B). Hardware #B x8pcs Hardware #D x2sets WALL 9 / 10...
- Page 10 10 / 10...
