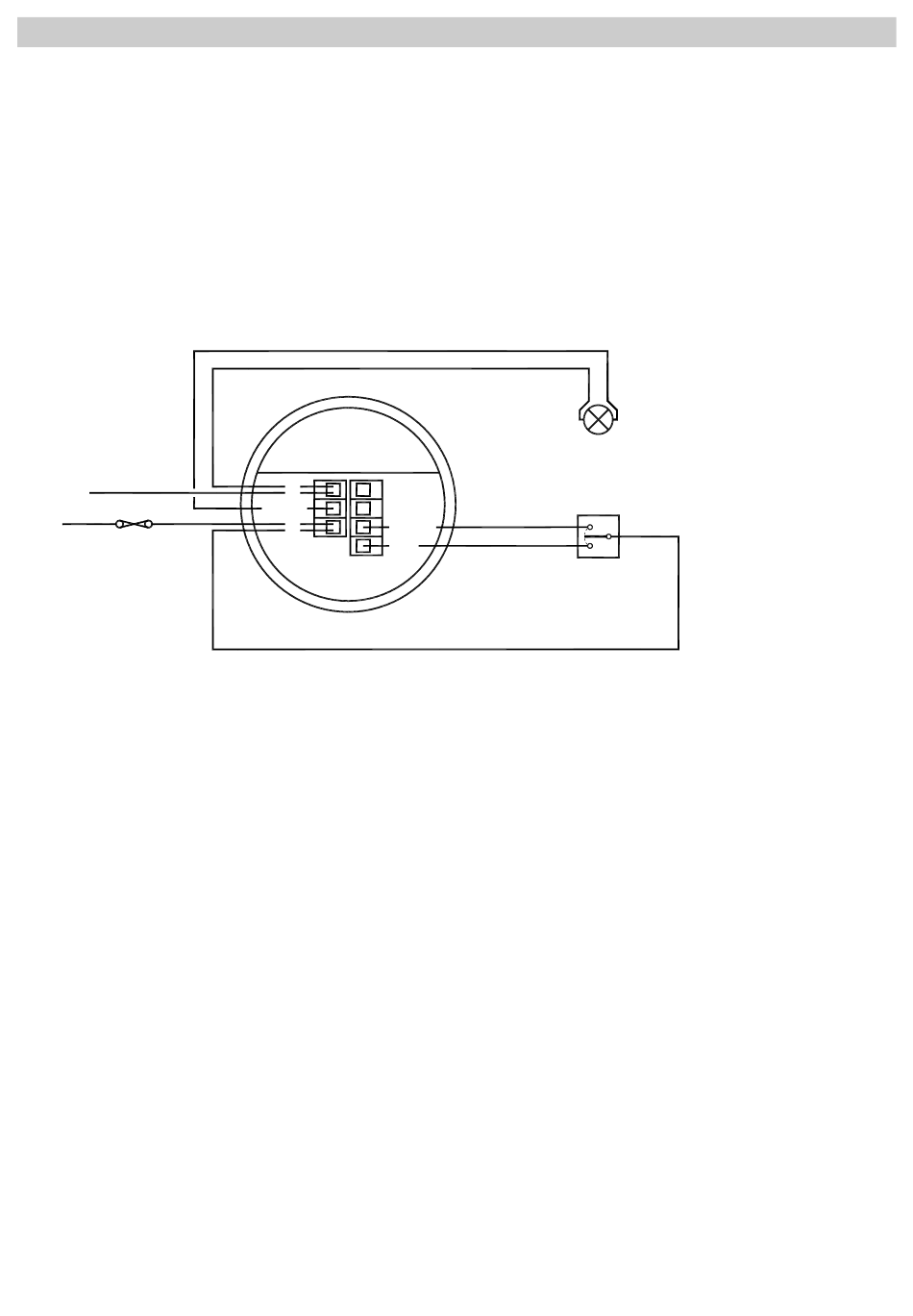

Single channel switching
Functions: Switches channel 1 only with occupancy, optional override switch. No dimming output.
NEUTRAL
Configured to presence detection: Turns on automatically with occupancy. Press and release down switch to turn off.
LIVE
Press and release up switch to turn back on. Turns off after occupancy.
CIRCUIT PROTECTION
(IF REQUIRED)
Configured to absence detection: Press and release up switch to turn on. Press and release down switch to turn off.
Turns off after occupancy.
Channel mode: Set to "Switch only"
Switch mode: Set to "2 position switch together". Note: a single position switch can be used instead to toggle the
output, set to "1 position switch separate".
NEUTRAL
LIVE
CIRCUIT PROTECTION
(IF REQUIRED)
6
-
N
+
L/OUT
L
SW1/UP
SW2
DOWN
-
N
+
L/OUT
L
SW1/UP
SW2
DOWN
DIMMING
BALLAST
DIMMING LUMINAIRE
(1-10V)
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
Optional for presence,
mandatory for absence detection
LUMINAIRE
(NON-DIMMING)
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
Optional for presence,
mandatory for absence detection
