- Page 1 INSTRUCTION MANUAL IM354_REV 1 PRINTED IN CHINA Sump and Effluent Pump...
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Introduction and Safety......................2 1.1 Introduction........................2 1.2 Safety..........................2 1.2.1 Safety terminology and symbols................2 1.2.2 User safety......................3 1.3 Protecting the environment....................4 2 Transportation and Storage....................5 2.1 Examine the delivery..................... 5 2.1.1 Examine the package..................... 5 2.1.2 Examine the unit..................... -
Page 4: Introduction And Safety
This includes any modification to the equipment or use of parts not provided by Xylem. If there is a question regarding the intended use of the equipment, please contact a Xylem representative before proceeding. -
Page 5: User Safety
1 Introduction and Safety Hazard level Indication A hazardous situation which, if not avoided, could WARNING: result in death or serious injury A hazardous situation which, if not avoided, could CAUTION: result in minor or moderate injury Notices are used when there is a risk of equipment NOTICE: damage or decreased performance, but not personal injury. -
Page 6: Protecting The Environment
• Clean-up of spills Exceptional sites CAUTION: Radiation Hazard Do NOT send the product to Xylem if it has been exposed to nuclear radiation, unless Xylem has been informed and appropriate actions have been agreed upon. Recycling guidelines Always follow local laws and regulations regarding recycling. -
Page 7: Transportation And Storage
2 Transportation and Storage 2 Transportation and Storage 2.1 Examine the delivery 2.1.1 Examine the package 1. Examine the package for damaged or missing items upon delivery. 2. Record any damaged or missing items on the receipt and freight bill. 3. -
Page 8: Product Description

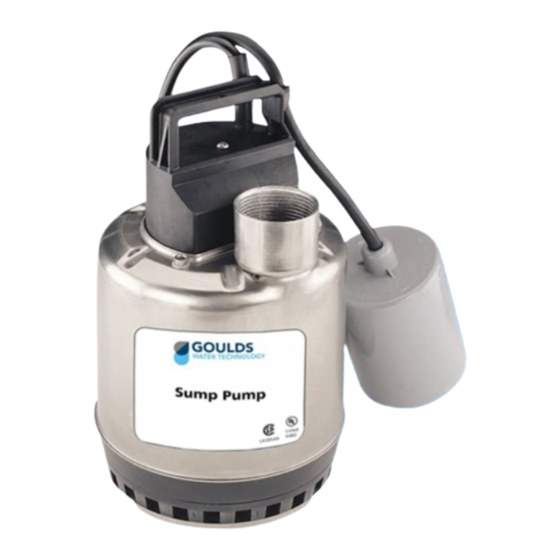

3 Product Description 3 Product Description 3.1 General description Description Sump pumps are designed to run intermittently and usually seasonally. Intended applications WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov. -
Page 9: Installation
4 Installation 4 Installation 4.1 Preinstallation WARNING: • Disconnect and lock out electrical power before installing or servicing the unit. • Do NOT install this pump in swimming pools or marine areas. • Risk of electric shock. This pump is supplied with a grounding conductor and grounding- type attachment plug. -
Page 10: Typical Installation
4 Installation 4.2 Typical installation Typical pump installation in sump; Tether float shown, float not needed on models with included float. One type of installation shown below. Note check valve can be installed before union also. 1. Pump electrical plug 2. -
Page 11: Install The Pump
4 Installation NOTICE: • Use only copper wire to the drive unit and the ground (earth). The ground (earth) wire must be at least as thick as the wire to the drive unit. • Conductors should have color codes to make the maintenance easier. 4.4 Install the pump DO NOT place the pump directly on earth, gravel or debris. -
Page 12: Operation
5 Operation 5 Operation 5.1 Start the pump 1. Turn the power On at the breaker panel and/or the disconnect switch. 2. Fill the basin with water and observe the level of water where the pump turns On and Off. The pump should go On well before the water overflows the top of the sump. -
Page 13: Maintenance
6 Maintenance 6 Maintenance 6.1 Maintenance guidelines • Check frequently for debris and/or build-up which can interfere with pump or float operation. • Test pump periodically throughout the seasons. 1. Fill sump with water. 2. Check for debris and proper switch operation. 3. -
Page 14: Troubleshooting
7 Troubleshooting 7 Troubleshooting 7.1 Operation troubleshooting Symptom Cause Remedy Motor not running Tripped thermal protector Check that all pump functions and components are operating correctly. Allow the unit to cool for 30 minutes. If the thermal protector does not reset and no other causation exists, replace the pump. - Page 15 7 Troubleshooting Symptom Cause Remedy Check valve leaking Remove check valve and examine for freedom of operation and proper installation. Incorrect size basin or wet-well Adjust system or replace basin with appropriate size. Inflow excessive for size of pump Purchase different pump appropriate for your system.
-
Page 16: Product Warranty
8 Product Warranty 8 Product Warranty Commercial warranty Warranty. For goods sold to commercial buyers, Seller warrants the goods sold to Buyer hereunder (with the exception of membranes, seals, gaskets, elastomer materials, coatings and other "wear parts" or consumables all of which are not warranted except as otherwise provided in the quotation or sales form) will be (i) be built in accordance with the specifications referred to in the quotation or sales form, if such specifications are expressly made a part of this Agreement, and (ii) free from defects in material and workmanship for a... - Page 17 8 Product Warranty materials, coatings and other "wear parts" or consumables all of which are not warranted except as otherwise provided in the quotation or sales form) will be free from defects in material and workmanship for a period of twenty-four (24) months from the date of installation or thirty (30) months from the product date code, whichever shall occur first, unless a longer period is provided by law or is specified in the product documentation (the “Warranty”).
- Page 20 For more information on how Xylem can help you, go to www.xylem.com Visit our Web site for the latest version of this document and more information The original instruction is in English.
