This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It's best to use the same computer that is connected to your modem for configuring
the DI-774 Tri-Mode Dualband Wireless Router. The DI-774 acts as a DHCP server
and will assign all the necessary IP address information on your network. See
Appendix at the end of this Quick Installation Guide or the Manual on the CD-
ROM for setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and

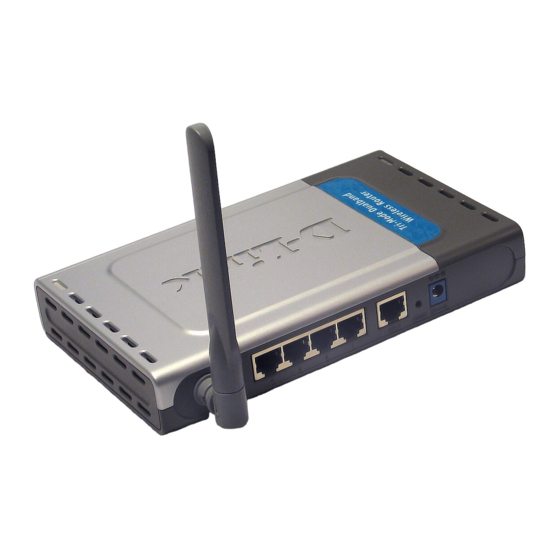

DI-774 Tri-Mode Dualband Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (Straight-Through) Cable
5V 3A DC Power Adapter
specifications subject to change without notice. DI-774. 10242003
1
DI-774
Tri-Mode Dualband
Wireless Router
Using a power supply
with a different voltage
rating will damage this
product and void the warranty
Advertisement
Table of Contents
Related Manuals for D-Link DI-774
Summary of Contents for D-Link DI-774
- Page 1 If any of the above items are missing, please contact your reseller. ©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DI-774. 10242003...
- Page 2 First, connect the power adapter to the receptor at the back panel of the DI-774 and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED lights up indicating proper operation.
-
Page 3: Restart Your Computer
Connecting Additional Computers To The DI-774 Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers to the remaining Ethernet LAN ports on the back panel of the DI-774. WAN LED – a LOCAL NETWORK 11a and 11g LEDs – a solid light indicates LEDs –... -
Page 4: Using The Setup Wizard
Using The Setup Wizard Open your Web browser and type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key. The logon pop-up screen will appear. Type “admin” for the username and leave the password field blank. Click Once you have logged in, the Home screen will appear. - Page 5 The Setup Wizard (continued) You will see the following screens Click Next Set up your new password. You have the option to establish a password. Click Next Choose your time zone from the drop down list. Click Next...
- Page 6 The Setup Wizard (continued) Select your Internet Connection. You will be prompted to select the type of Internet connection for your router. If you are unsure of which setting to select, please contact your Internet Service Provider. Click Next If you selected Dynamic IP Address, this screen will appear: (Used mainly...
- Page 7 Click Next If you wish to use encryption for your 802.11g network, the DI-774 is capable of three levels of wireless encryption: 64-bit, 128-bit, and 152- bit. By default the encryption is disabled. You can change the encryption settings for more secure wireless communication.
- Page 8 Click Next If you wish to use encryption for your 802.11a network, the DI-774 is capable of three levels of wireless encryption: 64-bit, 128-bit, and 152- bit. By default the encryption is disabled. You can change the encryption settings for more secure wireless communication.
-
Page 9: Test Internet Connection
Your Setup is Complete! Click Restart Click Close Test Internet Connection. You will be returned to the Home tab. Click to Exit Then relaunch your Web browser (i.e., Internet Explorer or Netscape Navigator), to link to your favorite Web site to test your Internet connection. - Page 10 To connect to the network, make sure the network adapter in your computer is configured properly. Here’s how to configure the network adapter to obtain an IP address automatically for the DI-774 Broadband Router. Microsoft Windows XP: Go to Start > right-click on My Network Places >...
- Page 11 Apple Macintosh OS X: Go to the Apple Menu Click System Preferences Click on Select Network Network Select Built-in Ethernet in the show pull down menu Select Using DHCP the Configure pull down menu Click on Apply Now The IP address information, the Subnet Mask, the Router’s IP address and the Ethernet adapter address will appear...
-
Page 12: Technical Support
Technical Support You can find software updates and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States and within Canada for the duration of the warranty period on this product. U.S. and Canadian customers can contact D-Link technical support through our website, or by phone.
