EU-292 User's manual

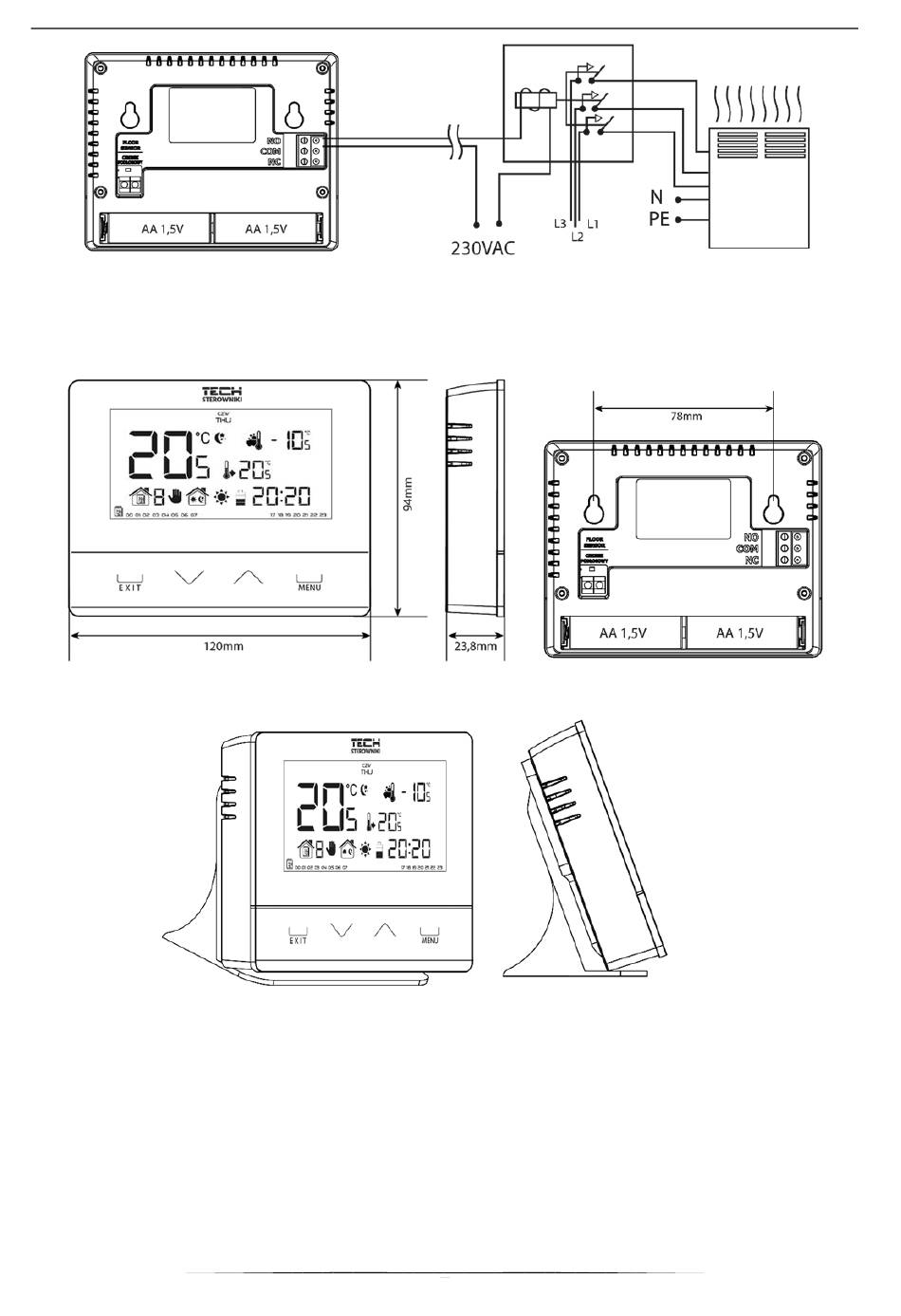

EU-292 controller may be installed as a panel mountable on the wall. You can use the stand and
place the regulator anywhere.
III.a) Connection diagrams (3 versions)
The room regulator should be connected to the heating device via a two-core cable. When
connecting devices with over 1A load, it is necessary to use a contactor. Optionally, it is possible
to connect an additional sensor to the floor sensor contact – additional functions will appear in the
controller menu.
7
