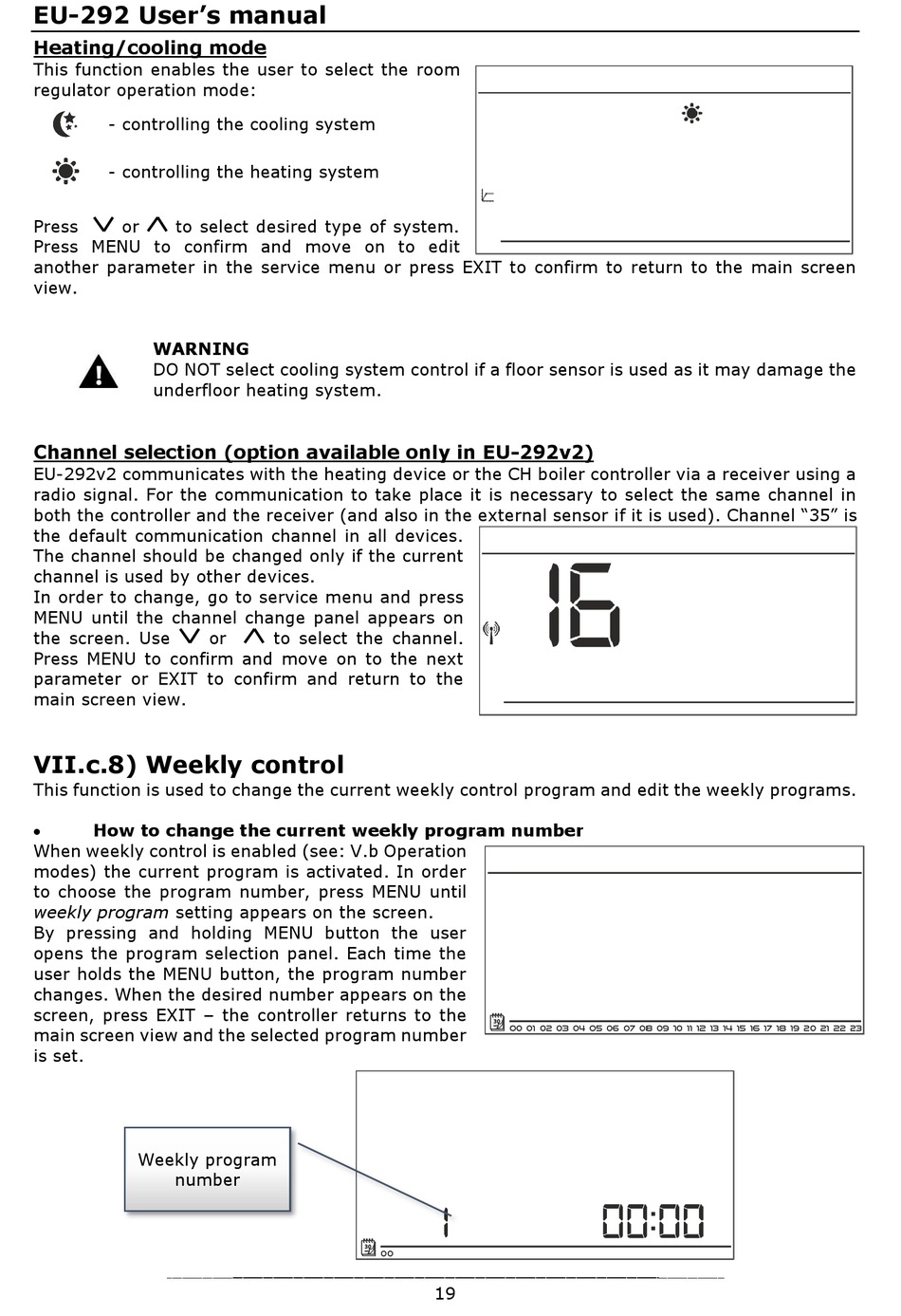

EU-292 User's manual
Heating/cooling mode
This function enables the user to select the room
regulator operation mode:
- controlling the cooling system
- controlling the heating system
Press or to select desired type of system.
Press MENU to confirm and move on to edit
another parameter in the service menu or press EXIT to confirm to return to the main screen
view.
WARNING
DO NOT select cooling system control if a floor sensor is used as it may damage the
underfloor heating system.
Channel selection (option available only in EU-292v2)
EU-292v2 communicates with the heating device or the CH boiler controller via a receiver using a
radio signal. For the communication to take place it is necessary to select the same channel in
both the controller and the receiver (and also in the external sensor if it is used). Channel "35" is
the default communication channel in all devices.
The channel should be changed only if the current
channel is used by other devices.
In order to change, go to service menu and press
MENU until the channel change panel appears on
the screen. Use
Press MENU to confirm and move on to the next
parameter or EXIT to confirm and return to the
main screen view.

VII.c.8) Weekly control

This function is used to change the current weekly control program and edit the weekly programs.
 How to change the current weekly program number
When weekly control is enabled (see: V.b Operation
modes) the current program is activated. In order
to choose the program number, press MENU until
weekly program setting appears on the screen.
By pressing and holding MENU button the user
opens the program selection panel. Each time the
user holds the MENU button, the program number
changes. When the desired number appears on the
screen, press EXIT – the controller returns to the
main screen view and the selected program number
is set.
Weekly program
number
or to select the channel.
19
