Schematics
www.ti.com

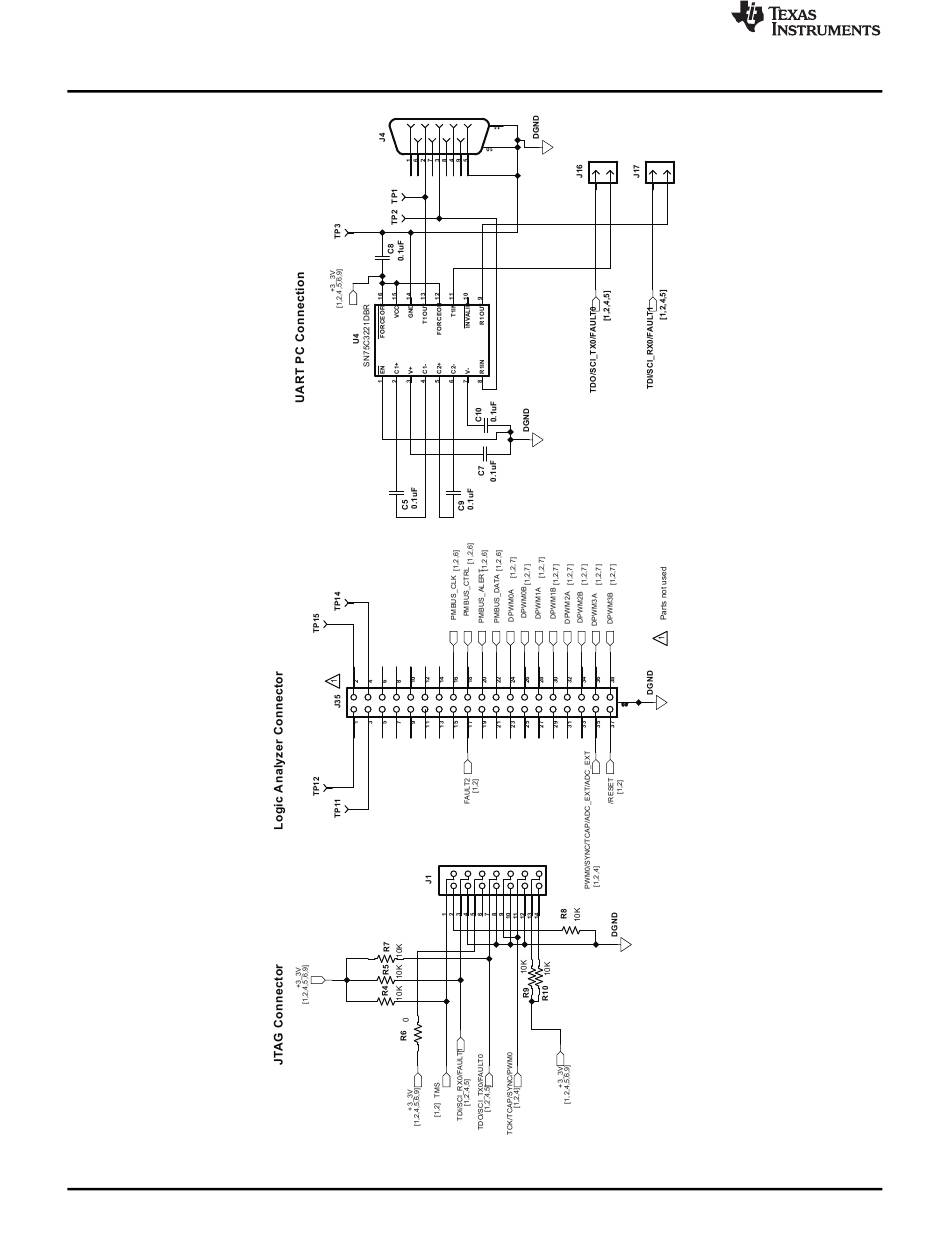

Figure 5. UCD3138OL40EVM-032 Schematics (UART and JTAG) 5 of 9
8
Using the UCD3138OL40EVM-032
SLUUA80 – January 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
