3.3 Digital Outputs
Module Output:
Voltage Range:
Max. Output Current:
Isolation:
External Voltage Input:
Fast Outputs PWM, PTO:
Fast Outputs Max. Frekans
12
Mosfet Output
0-40 VDC
2 A/point (@30V)
Optical
3.3-40 VDC
DQ1, DQ2, DQ3, DQ4
20 kHz

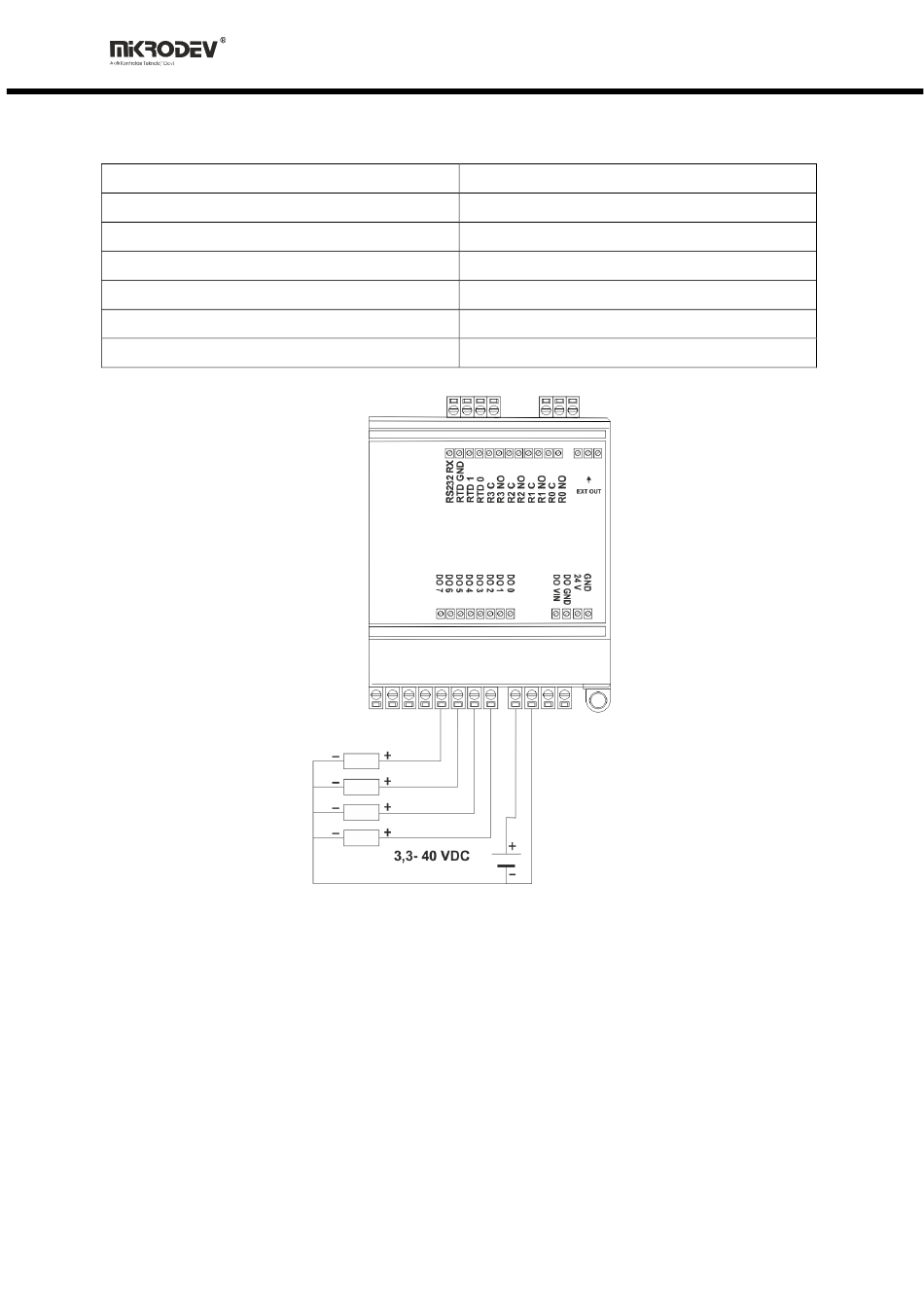

Figure 6 DOUT Connection Diagram
MP211 SERIES – HARDWARE MANUAL
