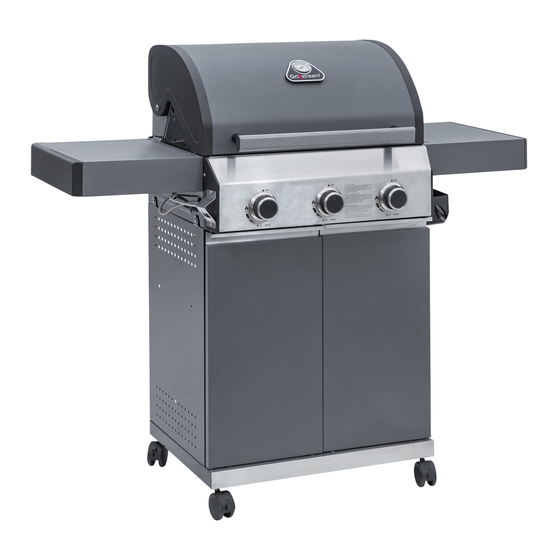

Classic 3 Burner Hybrid Barbecue
x 44
WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary
Tools
Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are
missing, please contact the retailer from whom you bought this product.
This product takes approximately 35 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.
GCH30MG
x 4
x 12
x 12
x 2
x 44
AA Battery (Not included)
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.
Scan me for step by
step video instructions
Advertisement
Table of Contents
Related Manuals for Grillstream GCH30MG
Summary of Contents for Grillstream GCH30MG
- Page 1 Classic 3 Burner Hybrid Barbecue GCH30MG x 44 x 12 x 44 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions.
-
Page 2: Table Of Contents
GCH30MG Contents Warning Information Page Location of your BBQ Page Connecting to the gas cylinder Page The hose and regulator assembly Page Testing for leaks Page Gas cylinder safety Page What is Propane Page Are all gas bottle gases the same... -
Page 3: Warning Information
GCH30MG CONNECTING THE GAS CYLINDER WARNING INFORMATION There are two different types of gas that can be used on your gas BBQ - Read this Operating Manual before use depending on where you live, that being either butane or propane gas. -
Page 4: Testing For Leaks
GCH30MG SECURING THE HOSE AND REGULATOR ASSEMBLY WHAT IS PROPANE Type A) Screw on hose connection (Fig. 4) It is a fuel gas compressed until it turns to liquid, then stored in a bottle - The BBQ’s manifold connection is 1/4” Male Thread BSP or cylinder under pressure for easy transport. -
Page 5: Lighting Your Bbq
• off position and wait five minutes for any accumulated gas to clear out of the BBQ before repeating procedure. Grillstream Grills fit directly on top of each other - do not offset them. LIGHTING YOUR BBQ (cont.) lo position is obtained by turning the knob fully anti-clockwise... -
Page 6: Hybrid System
DIRECTIONS FOR USE - GAS: Your charcoal should now be lit and making the tell-tale popping and The beauty of the Grillstream Hybrid System is that there is no cracking sounds that indicate this. You should now turn off the burners additional assembly or conversion process required, whether you want completely and close your Barbecue Hood. -
Page 7: Maintenance Of Your Bbq
To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ. -
Page 8: Troubleshooting
GCH30MG TROUBLESHOOTING A note on fire prevention: Most fires in outdoor BBQs are caused by a build up of greases and fat, IF BBQ FAILS TO OPERATE PROPERLY or gas connections which have not been secured properly. Remember - Stop, turn off gas at its source and turn all burner controls to • off to follow the manufacturer’s instructions on proper cleaning and... -
Page 9: Exploded Diagram
GCH30MG Page 9... -
Page 10: Parts List For Gch20Mg
Cabinet Side Panel - Left Fat Channel Cabinet Side Panel - Right Grilstream Fat Cup Cabinet Rear Panel Bottle Opener Corner Support Bracket Grill Lifter Front Support Bar Warming Rack Side Shelf Reversible Griddle Plate Cabinet Door Grillstream Grill - 190mm Page 10... -
Page 11: Fittings List
GCH30MG x 44 x 12 x 12 x 44 x 12 x 12 FITTINGS x 44 x 44 Part Part Part Part x 12 x 44 x 12 x 44 x 12 x 44 x 12 x 12 x 44... -
Page 12: Assembly Instructions
GCH30MG STEP 1 Push each of the Castors (5) into indicated holes in underside of Cabinet Base Panel (6) until you hear a click. Page 12... - Page 13 GCH30MG STEP 2 Part unscrew the bolts indicated from Cabinet Base Panel (6), slot the Cabinet Side Panels (7 & 8) into place and retighten bolts. Page 13...
- Page 14 GCH30MG STEP 3 Insert and part tighten bolts (B) into Cabinet Side Panels (7 & 8). Slot Cabinet Rear Panel (9) into place and secure to Cabinet Base Panel (6) with Bolts (B). Now fully tighten bolts into Cabinet Side Panels (7 & 8).
- Page 15 GCH30MG STEP 4 Part unscrew bolts indicated from Cabinet Side Panels (7 & 8) and Cabinet Base Panel (6). Slot Cabinet Corner Braces (10) in place and retighten bolts. Page 15...
- Page 16 GCH30MG STEP 5 Insert Front Support Bar (11), ensuring magnet is positioned towards bottom of support bar, and secure with Bolts (A). x 44 Part x 12 x 44 x 12 M4x12 Bolt Page 16...
- Page 17 GCH30MG STEP 6 Carefully lower cooking frame onto cabinet, ensuring fixing lugs are on the outside and that no wires or hoses are trapped between cooking frame and cabinet. Page 17...
- Page 18 GCH30MG STEP 7 Secure cooking frame to side panels (7 & 8) using Bolts (B). Part x 44 x 12 M6x12 Bolt 4 x B Page 18...
- Page 19 GCH30MG STEP 8 Part unscrew bolts indicated, slot Side Shelf (12) in place and re-tighten bolts to secure. Page 19...
- Page 20 GCH30MG STEP 9 Further secure Side Shelf (12) in place from inside the cooking frame using Bolts (B) and Washers (D). Note: Washers (D) are domed and bottom of dome should be facing the cooking frame. x 44 Part x 12...
- Page 21 GCH30MG STEP 10 Part unscrew bolts indicated, slot Side Shelf (12) in place and retighten bolts to secure. Page 21...
- Page 22 GCH30MG STEP 11 Further secure Side Shelf (12) in place from inside the cooking frame using Bolts (B) and Washers (D). Note: Washers (D) are domed and bottom of dome should be facing the cooking frame. 2 x B Part...
- Page 23 GCH30MG STEP 12 Attach Gas Connection Bracket to Side Panel (8) using Bolt (A). Part x 44 1 x A M4x12 Bolt Page 23...
- Page 24 GCH30MG STEP 13 Insert Door Spindles (C) into Cabinet Base Panel (6). Part x 44 Door Spindle 2 x C Page 24...
- Page 25 GCH30MG STEP 14 To fit Cabinet Doors (13) in place, first slide the hole on bottom of door over Door Spindle (C), depress spring-loaded catch on underside of Cooking Frame and position top of door until spring-loaded catch slides into top hole.
- Page 26 GCH30MG STEP 15 Attach Grease Cup Bracket (16) to underside of Grease Tray (15) using Bolts (A). Place Grease Cup (17) inside Grease Cup Bracket (16) and then slide underneath Cooking Frame ensuring it is level and on top of runners.
- Page 27 GCH30MG STEP 16 Insert 4 x AA Batteries (not supplied) into Battery Pack (14). Connect Battery Box to LED Light Wire. Peel off plastic backing from sticky pad on the rear of the Battery Box and affix to inside of Side Panel (8).
- Page 28 Tamers should sit directly above Tube Burners. Place Grillstream Grills (26) and Griddle (25) into Cooking Frame. Leg tabs from bottom Grillstream Grills and Griddle should rest on lip at back of Cooking Frame. Top Grillstream Grills should sit directly on top of the bottom Grill.
- Page 29 Attach Bottle Opener (22) to side of Control Panel using bolts supplied. Hook Grillstream Fat Cup (21) over holes in Side Panel (8). This should be located directly below the spout of Fat Channel (20) to catch fat and meat juices channelled from the Grillstream system.
- Page 30 GCH30MG STEP 19 Your Grillstream barbecue is now fully assembled and you are ready to connect the Gas Cylinder (see page 3 for more information). Please ensure you perform the gas leak check before operating. Page 30...
-
Page 31: Leak Test
GCH30MG TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks. - Page 32 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail:consumerservice@leisuregrow.com...
