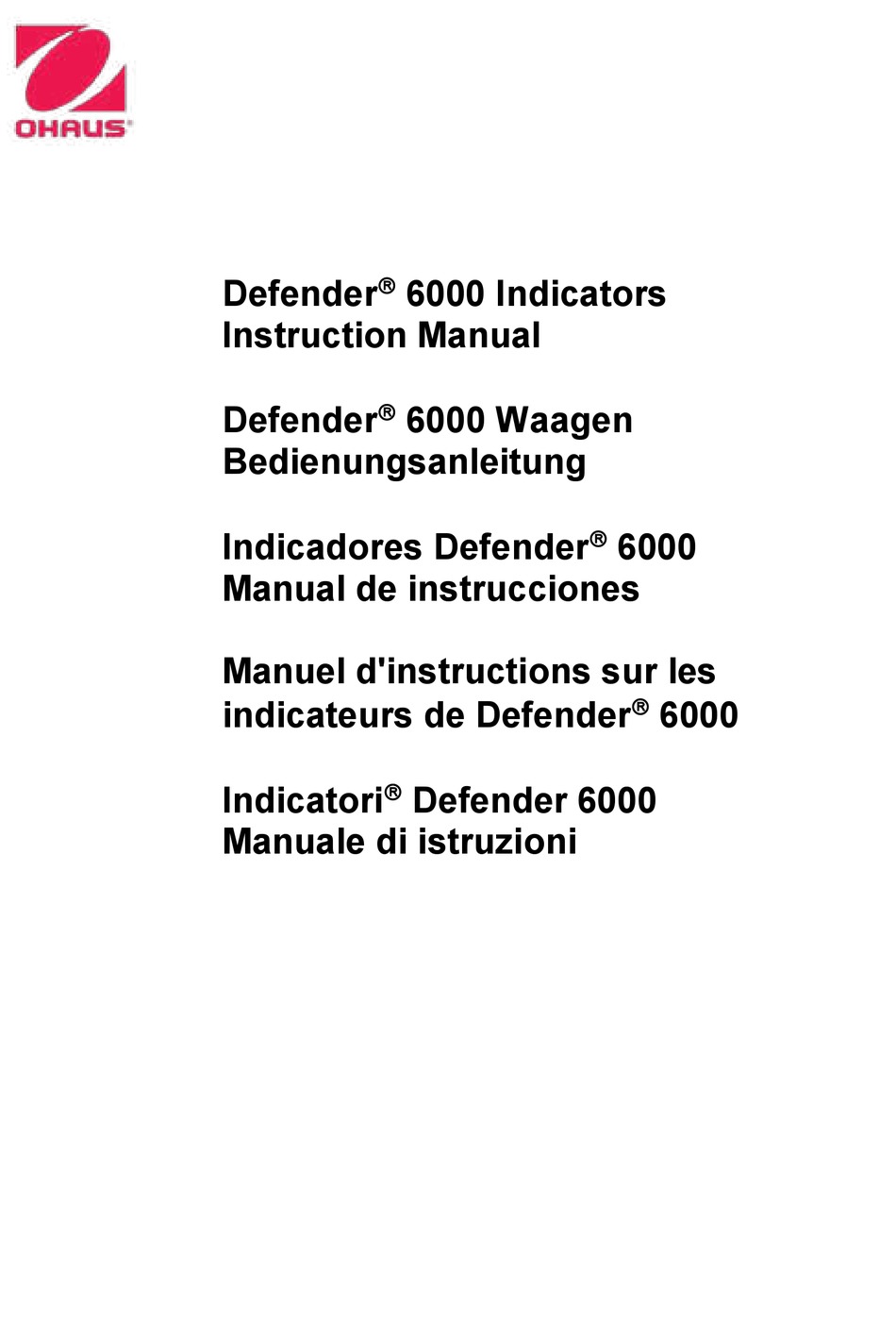

- Page 1 Defender 6000 Indicators Instruction Manual Defender 6000 Waagen Bedienungsanleitung Indicadores Defender 6000 Manual de instrucciones Manuel d'instructions sur les indicateurs de Defender 6000 Indicatori Defender 6000 Manuale di istruzioni...
-
Page 3: Table Of Contents
Defender 6000 Indicators EN-1 Table of Contents INTRODUCTION ..............................3 1.1..............................3 AFETY RECAUTIONS 1.2................................3 NTENDED 1.3..........................4 VERVIEW OF ARTS AND ONTROLS 1.4................................5 AINBOARD 1.5..............................6 ONTROL UNCTIONS INSTALLATION ..............................9 ................................9 NPACKING ............................... - Page 4 EN-2 Defender 6000 Indicators 4.2.7 End Cal [End] ..............................28 ................................29 ETUP ............................... 33 EADOUT ................................35 GLP/GMP M ..............................35 ..............................36 OMMUNICATION 4.7.1 RS232 Menu ..............................36 4.7.2 Print Menu ..............................37 4.7.3 RS485 Configuration ............................. 40 4.7.4...
-
Page 5: Introduction
Any other type of use and operation beyond the limits of technical specifications, without written consent from OHAUS, is considered as not intended. This instrument complies with current industry standards and the recognized safety regulations; however, it can constitute a hazard in use. -
Page 6: Overview Of Parts And Controls
EN-4 Defender 6000 Indicators 1.3. Overview of Parts and Controls Figure 1-1 i-DT61PW Indicator Item Description Control Panel Front Housing Screws (6) Adjusting Knobs (2) Mounting Bracket Load Cell Connector Rear Housing Figure 1-2 i-DT61XWE Indicator Item Description Control Panel... -
Page 7: Mainboard
Defender 6000 Indicators EN-5 Mainboard 1.4. .Figure 1-3 i-DT61PW Mainboard Item Description IR Communication connector (J6) Security Switch (SW1) Load Cell connector (J7) Load Cell Terminal Block (J8) Figure 1-4 i-DT61XWE Mainboard Item Description Item Description Alibi Memory Board connector (J19) -
Page 8: Control Functions
EN-6 Defender 6000 Indicators 1.5. Control Functions i-DT61PW Control Panel i-DT61XWE Control Panel Button Primary On/Zero Print Function Target Tare Function If the Sends the Initiates an Accumulates Sets Enters/clears (Short Press) terminal is current value application the weight or under/over a tare value;... - Page 9 Defender 6000 Indicators EN-7 Numeric keyboard (i-DT61XWE) Primary Function (Short Press) Enters numeric Enters decimal Enters numeric Clears the entered values. point (.). values 0. value. Clears an existing APW. When the accumulation data is displayed, press to clear them.
- Page 10 EN-8 Defender 6000 Indicators Figure 1-6 i-DT61XWE Display Item Description Item Description NET symbol Wi-Fi symbol Center of Zero symbol Lock symbol Negative symbol Dynamic (tilde) symbol Stable weight symbol Battery symbol (not use) Preset Tare, Tare symbols Pound, Ounce, Pound:Ounce symbols...
-
Page 11: Installation
2.2.1 Scale Base with EasyConnect Connector To connect the OHAUS scale base with EasyConnect connector to the terminal, plug the base's connector onto the external load cell connector located at the bottom of the terminal. Then rotate the base connector’s locking ring clockwise. - Page 12 EN-10 Defender 6000 Indicators Once all connections are made, re-attach the front housing. i-DT61XWE Remove the four hex head screws from the bottom housing. Open the housing by carefully pulling the bottom housing backward. Once all connections are made, re-attach the bottom housing.
-
Page 13: Scale Base Without Easyconnect Tm Connector
Defender 6000 Indicators EN-11 2.3.2 Scale Base without EasyConnect Connector For connecting bases (which do not have the EasyConnect connector) to an i-DT61PW or an i-DT61XWE, a load cell cable gland kit (P/N 30379716) is available as an accessory. Removing the pre-installed Load Cell connector and wiring harness. - Page 14 EN-12 Defender 6000 Indicators i-DT61XWE Place the terminal down, and unscrew the screws marked in the following graphic. Pull out the bottom of the terminal. Use a screw driver to unscrew the sealing cover.
- Page 15 Defender 6000 Indicators EN-13 Pull the protruding part of the sealing cover a little forward to release it. Remove the sealing cover and then unplug the white load cell connectors. Installing Load Cell Cable and Connectors In order to meet certain electrical noise emission limits and to protect i-DT61PW and i-DT61XWE from external influences, it is necessary to install a ferrite core on the load cell cable connected to the terminal.
-
Page 16: Communication Interface Cable To I-Dt61Pw
EN-14 Defender 6000 Indicators Main Board Wiring Connections Once the i-DT61PW and i-DT61XWE enclosure is opened, connections can be made to the terminal blocks on the main board as shown in Figure 2-2. i-DT61PW i-DT61XWE Load Cell Terminal Figure 2-2... -
Page 17: Rs232 Interface Cable To I-Dt61Xwe
Defender 6000 Indicators EN-15 2.3.4 RS232 Interface Cable to i-DT61XWE Pass the optional RS232 cable through the strain relief and attach it to the RS232 connector on the mainboard. Tighten the strain relief to maintain a watertight seal. Please refer to Figure 2-7 for the postion of the serial port connector RXD TXD and GND. -
Page 18: Operation
EN-16 Defender 6000 Indicators 3. OPERATION Turning the Scale On/Off To turn the scale on, press and hold the On/Zero Off button for 1 second. The scale performs a display test, momentarily displays the software version, and then enters the active weighing mode. -
Page 19: Check
Defender 6000 Indicators EN-17 Yes button to clear the stored data and return to current mode. Notes: The item must be removed from the pan before the next item can be accumulated. Only stable weights are stored. Changing modes will clear the stored accumulation data. -
Page 20: Application Settings
EN-18 Defender 6000 Indicators 3.2.3.5 Clear Check Limits Long press the Target button until the display shows the under and over values. Press the CLR button of i-DT61XWE indicator or the button of i-DT61PW indicator, the display shows Clr.CHk . Press the Yes button to clear both the under and over values. -
Page 21: Counting Mode
Defender 6000 Indicators EN-19 Counting Mode Use this application to count samples of uniform weight. 3.3.1 Enter the Mode To enter the mode: COUNt Press and hold the Mode button until is displayed. CLr.PwW When the Mode button is released, the display shows If you need to clear the stored APW of the last time, press the Yes button. -
Page 22: Percent Mode
EN-20 Defender 6000 Indicators Percent Mode Use this application to measure the weight of a sample displayed as a percentage of a pre-established reference weight. 3.4.1 Enter the Mode To enter the percent mode from any application mode: PErCNt Press and hold the Mode button until is displayed. -
Page 23: Dynamic Mode
Defender 6000 Indicators EN-21 Dynamic Mode Use this application to weigh an unstable load, such as a moving animal. 3.5.1 Enter the Mode To enter the Dynamic Weighing Mode from any application mode: dYNAmM Press and hold the Mode button until is displayed. -
Page 24: Filling Mode
EN-22 Defender 6000 Indicators Note: you cannot disable Dynamic if you are in the mode currently. Filling Mode Use this application to fill a container to a pre-determined target weight. Note: filling mode is only available for i-DT61XWE model. 3.6.1 Enter the Mode... -
Page 25: Application Settings
Defender 6000 Indicators EN-23 After that to fill the third time, if the total load is now more than or equal to SP2 while less than SP3, the first two columns display green, the third orange, and others red. To load the fourth time, if the total load is now more than or equal to SP3 while less than SP4, the first three columns display green, and the forth one orange. -
Page 26: Menu Settings
Defender 6000 Indicators EN-24 4. MENU SETTINGS The User Menu allows the customizing of scale settings. Note: Additional Sub-Menus may be available if Interface Options are installed. See Interface User Manual for the additional setting information. Menu Navigation 4.1.1 User Menu For i-DT61PW model C.A.L... -
Page 27: Button Navigation
Defender 6000 Indicators EN-25 Zero Range setting is locked at 2%. Stable Range setting is locked at 1d. Auto-Zero Tracking setting is locked at 0.5d. Filter and Units are locked at their current settings. Stable Only is locked to be On. -
Page 28: Calibration Menu
EN-26 Defender 6000 Indicators Calibration Menu Enter this menu to perform calibrations. 4.2.1 Initial Calibration When the scale is operated for the first time, a zero and span calibration are recommended to ensure accurate weighing results. Before performing the calibration, be sure to have the appropriate calibration weights as listed in table 4-1. -
Page 29: Linearity Calibration [ Lin ]
Defender 6000 Indicators EN-27 --C-- -DONE- The display shows , and then when the calibration is finished. Then the display shows . Press the Exit button to exit. Note: CAL E If calibration is failed, is displayed for 3 seconds and the previous calibration data is restored. -
Page 30: Calibration Test [ C.test ]
EN-28 Defender 6000 Indicators 4.2.6 Calibration Test C.test Calibration test procedures: C.A.L Long press the Menu button until you see . Press the Yes button. C.test Short press the No button several times to navigate until you see . Press the Yes button. -
Page 31: Setup Menu
Defender 6000 Indicators EN-29 Setup Menu Enter this menu S.E.t.U.P to set scale parameters. Default settings are in bold. For i-DT61PW model Sub-Menu (in Menu Sub-Menu Options Options (in segment) segment) Reset reset no, yes NO, yes Capacity Unit C.UNIt... - Page 32 EN-30 Defender 6000 Indicators reset Reset [ Reset the Setup menu to factory defaults. = do not reset = reset UNIt Capacity Unit [C. Select the unit used for calibration. t (Metric Tonne) Note: t and g are not available for i-DT61XWE model.
- Page 33 Defender 6000 Indicators EN-31 tArE] Auto Tare Set the automatic tare functionality. = automatic tare is disabled. = the first stable gross weight is tared. ACCept = stable gross weights within the acceptable limits are tared (in Check mode). ACCUmM Accumulation Set the accumulation functionality.
- Page 34 EN-32 Defender 6000 Indicators Ir.FUNC IR Function Define the operation for the Infrared Radiation Sensor. ZerO = the scale performs zero operation equal to pressing the Zero button. tare = the scale performs tare operation equal to pressing the button.
-
Page 35: Readout Menu
Defender 6000 Indicators EN-33 Readout Menu Enter this menu to set user preferences. Default settings are in bold. Sub-Menu Options ( in Menu Sub-Menu Options segment) segment) reset no, yes Reset NO, yes Stable Stability 0.5d, 1d, 2d, 5d 0.5d, 1d, 2d, 5d... - Page 36 EN-34 Defender 6000 Indicators LIGHt Bright Level Set the display bright level. LOwW = bright Level is low mMEd = bright Level is medium HIGH = bright Level is high Note: This setting is only avaliable for i-DT61XWE model. B.LIGHt Backlight Set the display backlight functionality.
-
Page 37: Unit Menu
Defender 6000 Indicators EN-35 Unit Menu U.N.I.t Enter this menu to activate the desired units. Reset Gram (g) Kilogram (kg) Pound (lb) Ounce (oz) Pound:Ounce (lb:oz) Tonne (t) （only available for i-DT61PW model） Note: Due to national laws, the indicator may not include some of the units listed. -
Page 38: Communication
EN-36 Defender 6000 Indicators P.ID Project ID Set the Project identification number. To set the number, short press the No button several times until the desired number appears. Short press the Yes button to accept the number and move to the next digit. Repeat the process until all the digits are correct. -
Page 39: Print Menu
Defender 6000 Indicators EN-37 PArItY Parity Set the data bits and parity. 7 EVEN = 7 data bits, even parity 7 ODD = 7 data bits, odd parity 7 NONE = 7 data bits, no parity 8 NONE = 8 data bits, no parity... - Page 40 EN-38 Defender 6000 Indicators reset Reset Reset the Print menu to factory defaults. = do not reset. = reset ASSIGN Assignment dEmMAN Demand If Demand is selected, the sub-menu Stable Only will display. Set the printing criteria. = values are printed immediately, regardless of stability.
- Page 41 Defender 6000 Indicators EN-39 tEmMp Template This sub-menu is used to define the format of the data output to a printer or computer. SImMp = only prints result and unit CUst1 = customized printout format. CUst2 = customized printout format.
-
Page 42: Rs485 Configuration
EN-40 Defender 6000 Indicators 5203 Scale ID 5204 User ID 5205 User Name 5206 Transaction ID 5300 Mode 5301 Information 5302 Target 5400 Alibi ID 5401 Input Status 5402 Output Status 5403 5900 NewLine 5901 Note: For ScaleMate's other functions, please contact an authorized dealer to obtain the software's instruction. -
Page 43: Alibi Memory (For I-Dt61Xwe Model)
Defender 6000 Indicators EN-41 To enable USB memory: C.A.L After you insert a USB flash drive, long press the Menu button until you see mM.e.mM.O Short press the No button several times to navigate until you see . Press the Yes button. - Page 44 EN-42 Defender 6000 Indicators Pull out the bottom of the terminal. Take out the Alibi memory board and prepare to install it in the circled place. Insert the Alibi memory board into the slot as shown below. Please make sure the pins are properly...
- Page 45 Defender 6000 Indicators EN-43 Use a screwdriver to tighten the screw and make sure the Alibi memory board is installed properly. Pull the bottom of the terminal in, and make sure all the screws marked in step 2 are tightened.
- Page 46 EN-44 Defender 6000 Indicators When you finish to install the Albi memory board, pass the button cable through the bottom of the meter. And pull it under the FPC socket. Push the button cable further under the FPC socket so that the cable is firmly attached.
- Page 47 Defender 6000 Indicators EN-45 Make sure the whole FPC socket are pushed in and the button cable is attached to it firmly. Repeat the previous step 7 to push in the bottom of the terminal and tighten all the screws.
-
Page 48: Discrete I/O (For I-Dt61Xwe Model)
EN-46 Defender 6000 Indicators Discrete I/O (for i-DT61XWE model) Discrete I/O menu allows the configuration of 3 inputs and 4 outputs. The Discrete Input0 is located at J16 on the mainboard (please refer to the Mainboard section for where it is located), while other Discrete Inputs &... -
Page 49: Input
Defender 6000 Indicators EN-47 4.9.2 Input The input I/O’s function is defined below. The input connection is disabled. The external input initiates a Zero function ZErO The external input initiates a Tare function tArE The external input initiates a Clear Tare function CLr.tAr... -
Page 50: Library (For I-Dt61Xwe Model)
EN-48 Defender 6000 Indicators 4.11 Library i-DT61XWE model) (for The library supports up to 400 records. The application modes share one library. The Library can be cloned through below methods: 1. Copy all files to a USB device. 2. Use ScaleMate software (version 2.3.0 or higher) to read all files in the Library. Please contact an authorized dealer to obtain the software. - Page 51 Defender 6000 Indicators EN-49 SAuE The display shows . Press the Yes button to save. EdIt The display shows the next menu . Press the Exit button to exit. Note: If you do not need to input values for some items from step 5 to 7, you can press the No button to skip to the next item.
-
Page 52: User ( For I -Dt61Xwe Model )
EN-50 Defender 6000 Indicators CLR.LIB Press the CLR button when you see the product number displayed. The display shows . Press the Yes button to clear. Press the No button to return to the active application mode. 4.12 User i-DT61XWE model) (for U.S.E.r... - Page 53 Defender 6000 Indicators EN-51 If you input more than one number of the ID, make sure they are consequent. For example, if you want to search a user ID 76543, you can input 76, 765, 54, 543 etc. Please avoid inputting inconsequent numbers, such as 74, 753 etc.
-
Page 54: Usb ( For I -Dt61Xwe Model )
Use an RFID reader to search PN (product number) / user ID to recall and use the related library item or user during weighing. Use an RFID reader to input numbers when in the input mode. Since there are many brands of RFID device in the market, OHAUS tested and confirmed that below one from RFIDeas (www.RFIDeas.com) is compatible: RDR-6081AKU-C06. -
Page 55: Wi-Fi/Bluetooth Dongle (Optional)
After inserting the dongle, the indicator will recognize it and add relevant items to the menu. The indicator will display the IP address, and you need to set other parameters through the OHAUS ScaleMate software. To get the software, please contact an OHAUS authorized dealer. - Page 56 EN-54 Defender 6000 Indicators Wireless setup Sub-Menu ( in Menu Sub-Menu Options Options ( in segment) segment) Reset No, Yes NO, YES rESEt Type wifi, bluetooth wWIFI, BLUEtH tYPE XXXXXX-XXXX IP Address[Wifi] IP.ADDr (169.254.1.1-6060) Device name[bt] XXXXXX D.NAmME Wireless Pincode[bt] XXXXXX wW.I.-B.t...
-
Page 57: Legal For Trade
Defender 6000 Indicators EN-55 If you need to check which COM (serial) ports your computer's Bluetooth is using, please follow the following steps: a) On the Bluetooth & other devices page, instead of clicking Add Bluetooth or other device, turn down the page and find More Bluetooth options under Related settings. - Page 58 Defender 6000 Indicators Figure 5-3. i-DT61PW Wire Sealing Figure 5-4. i-DT61XWE Paper Sealing When the i-DT61PW or i-DT61XWE indicator is connected to an OHAUS Defender 6000 series base boasting EasyConnect function It has a memory module on the load cell cable, and the connection cable is sealed by software pairing, so no hardware sealing of the cable is needed.
-
Page 59: Maintenance
Defender 6000 Indicators EN-57 6. MAINTENANCE CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE CLEANING. Cleaning WARNING: Electric Shock Hazard. Disconnect the equipment from the power supply before cleaning. Make sure that no liquid enters the interior of the instrument. -
Page 60: Troubleshooting
Service assistance in the United States, call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM Eastern Standard Time. An OHAUS Product Service Specialist will be available to assist you. Outside the USA, please visit our website www.ohaus.com to locate the OHAUS office nearest you. -
Page 61: Technical Data
Defender 6000 Indicators EN-59 7. TECHNICAL DATA Specifications Materials I-DT61XWE Housing: stainless-steel 316 I-DT61PW Housing: polycarbonate (PC) Display window: polycarbonate (PC) Keypad: polycarbonate (PC) Equipment Ratings: Indoor use only Altitude: 2,000m Operating temperature: -10°C to 40°C maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly Humidity: to 50% relative humidity at 40°C. - Page 62 EN-60 Defender 6000 Indicators Model i-DT61XWE Construction 316 Stainless steel housing, 316 stainless steel bracket Protection IP68/IP69k Maximum displayed resolution 1:75,000 Maximum approved resolution 1:10,000 (EC, OIML & NTEP) Class III Weighing Units Kilogram, Gram, Pound, Ounce, Pound: Ounce Basic weighing, Percent weighing, Check weighing/percent,...
-
Page 63: Table Of Geo Values
Defender 6000 Indicators EN-61 Table of Geo Values TABLE 7-1 GEO CODES Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460... -
Page 64: Compliance
This product complies with the EU Directive 2012/19/EU (WEEE) and 2006/66/EC (Batteries). Please dispose of this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. For disposal instructions in Europe, refer to www.ohaus.com/weee. EN 61326-1 UL Std. No. 61010-1 CAN/CSA-C22.2 No. - Page 65 Unintentional Radiator per 47CFR Part B Trade Name: OHAUS CORPORATION Model or Family identification: Defender6000 Issuing Party that Assembled the Product: Ohaus Instruments (Changzhou) Co., Ltd. 2F, 22 Block, 538 West Hehai Road, Xinbei District, Changzhou Jiangsu 213022 China Phone: +86 519 85287270 Responsible Party –...
-
Page 66: Appendices
Table 9-1. Non-significant weight data and tare data digits are transmitted as spaces. The continuous output mode provides compatibility with OHAUS products that require real-time weight data. the standard continuous output. Table 9-1 shows the format for the standard continuous output. - Page 67 Defender 6000 Indicators EN-65 Table 9-4: Status Byte C Bit Definitions Bits 2, 1, and 0 Weight Description lb or kg, selected by Status Byte B, bit 4 grams (g) metric tons (t) ounces (oz) not used not used tons (ton)
- Page 68 EN-66 Defender 6000 Indicators Appendix B MT-SICS Commands Command Function LEVEL 0 Reset the scale Inquiry of all available SICS commands Inquiry of SICS level and SICS versions Inquiry of scale data Inquiry of scale software version Inquiry of serial number...
- Page 69 Indicadores Defender 6000 ES-1 Tabla de contenidos INTRODUCCIÓN ..............................3 1.1............................3 RECAUCIONES DE SEGURIDAD 1.2................................3 SO PREVISTO 1.3..........................4 ISTA GENERAL DE PIEZAS Y CONTROLES 1.4................................. 5 LACA BASE 1.5..............................6 UNCIONES DE CONTROL INSTALACIÓN ..............................
- Page 70 ES-2 Indicadores Defender 6000 4.2.7 Fin de Cal. [End] ............................. 28 ............................29 ENÚ DE CONFIGURACIÓN ..............................33 ENÚ DE LECTURA ..............................35 ENÚ DE UNIDADES GLP/GMP ..............................35 ENÚ ................................ 36 OMUNICACIÓN 4.7.1 Menú RS232 ..............................36 4.7.2 Menú imprimir .............................. 38 4.7.3...
-
Page 71: Introducción
OHAUS, será considerado como no previsto. Este dispositivo cumple con los estándares industriales vigentes y con las normativas de seguridad aprobadas; sin embargo, su uso puede conllevar ciertos peligros, Si el dispositivo no se utiliza de acuerdo con estas instrucciones de funcionamiento, las medidas de seguridad con las que va equipado se verán afectadas. -
Page 72: Vista General De Piezas Y Controles
ES-4 Indicadores Defender 6000 1.3. Vista general de piezas y controles Imagen 1-1 Indicador i-DT61PW Elemento Descripción Panel de control Carcasa frontal Tornillos (6) Perillas de ajuste (2) Soporte de montaje Conector de células de carga Carcasa trasera Imagen 1-2 Indicador i-DT61XWE Elemento Descripción... -
Page 73: Placa Base
Indicadores Defender 6000 ES-5 Placa base 1.4. .Imagen 1-3 Placa base i-DT61PW Elemento Descripción Conector de comunicación IR (J6) Interruptor de seguridad (SW1) Conector de células de carga (J7) Bloque del terminal de células de carga (J8) Imagen 1-4 Placa base i-DT61XWE Elemento Descripción... -
Page 74: Funciones De Control
ES-6 Indicadores Defender 6000 1.5. Funciones de control Panel de control i-DT61PW Panel de control i-DT61XWE Botón Función On/Zero Print Function Target Tare primaria Si la terminal Envía el valor Inicia un Acumula el Establece un Introduce/borra (Pulsación está actual a los... - Page 75 Indicadores Defender 6000 ES-7 Teclado numérico (i-DT61XWE) Función primaria (Pulsación corta) Introduce Introduce un punto Introduce valores Borra el valor introducido. valores decimal (.) numéricos 0. Borra una APW existente. numéricos Cuando aparezcan los datos de acumulación, pulse para borrarlos.
- Page 76 ES-8 Indicadores Defender 6000 Imagen 1-6 Pantalla i-DT61XWE Elemento Descripción Elemento Descripción Símbolo NETO Símbolo Wi-Fi Símbolo del centro de cero Símbolo de bloqueo Símbolo negativo Símbolo dinámico (tilde) Símbolo de peso estable Símbolo de la batería (no se usa) Símbolos de tara, tara predefinida...
-
Page 77: Instalación
2.2.1 Base de báscula con conector EasyConnect Para conectar la base de la balanza OHAUS con el conector EasyConnect a la terminal, enchufe el conector de la base al conector de la célula de carga externa situado en la parte inferior del terminal. A continuación, gire el anillo de bloqueo del conector de la base en el sentido de las agujas del reloj. -
Page 78: Base De Báscula Sin Conector Easyconnect
ES-10 Indicadores Defender 6000 i-DT61PW Retire los seis tornillos de cabeza Phillips de la carcasa trasera. Retire la carcasa frontal. Tenga cuidado de no modificar las conexiones internas. Una vez que estén realizadas todas las conexiones, vuelva a colocar la carcasa frontal. - Page 79 Indicadores Defender 6000 ES-11 i-DT61PW 1. Retire los 6 tornillos de cabeza Phillips, y abra la carcasa trasera empujando hacia adelante con cuidado la carcasa frontal. 2. Desenchufe los conectores blancos de células de carga de la carcasa principal (dos círculos).
- Page 80 ES-12 Indicadores Defender 6000 i-DT61XWE Coloque el terminal boca abajo, y desenrosque los tornillos marcados en el siguiente gráfico. Extraiga la parte inferior del terminal. Use un destornillador para desatornillar la tapa de sellado.
- Page 81 Indicadores Defender 6000 ES-13 Tire de la parte que sobresale de la tapa de sellado un poco hacia adelante para liberarla. Extraiga la tapa de sellado y desconecte los conectores blancos de células de carga. Instalación del cable y los conectores de la célula de carga Para cumplir con ciertos límites de emisión de ruido eléctrico y para proteger los modelos i-DT61PW y el i-...
-
Page 82: Cable De Interfaz De Comunicación Con I-Dt61Pw
Indicadores Defender 6000 ES-14 Conexión de cableado de la placa principal Una vez abierta la zona eléctrica cerrada de los modelos i-DT61PW e i-DT61XWE se pueden realizar las conexiones a los bloques del terminal en la placa principal, tal y como se muestra en la imagen 2-2. -
Page 83: Cable De Interfaz Rs232 A I-Dt61Xwe
Indicadores Defender 6000 ES-15 2.3.4 Cable de interfaz RS232 a i-DT61XWE Pase el cable RS232 opcional a través del prensacable y conéctelo al conector RS232 de la placa principal. Apriete el prensacable para mantener el sello hermético. Por favor, consulte en la Imagen 2-7 la posición del conector del puerto en serie RXD TXD y GND. -
Page 84: Funcionamiento
ES-16 Indicadores Defender 6000 3. FUNCIONAMIENTO Apagado y encendido de la balanza Para encender la balanza, mantenga pulsado el botón On/Zero Off durante 1 segundo. La balanza realiza una prueba de pantalla, momentáneamente aparece la versión del software, y a continuación pasa al modo de pesaje activo. - Page 85 Indicadores Defender 6000 ES-17 Para borrar los datos de la acumulación, pulse el botón CLR del terminal i-DT61XWE o el botón del Clr.aCC terminal i-DT61PW mientras se muestra la información estadística. Cuando aparezca en la pantalla pulse el botón Yes para borrar los datos almacenados y volver al modo actual.
