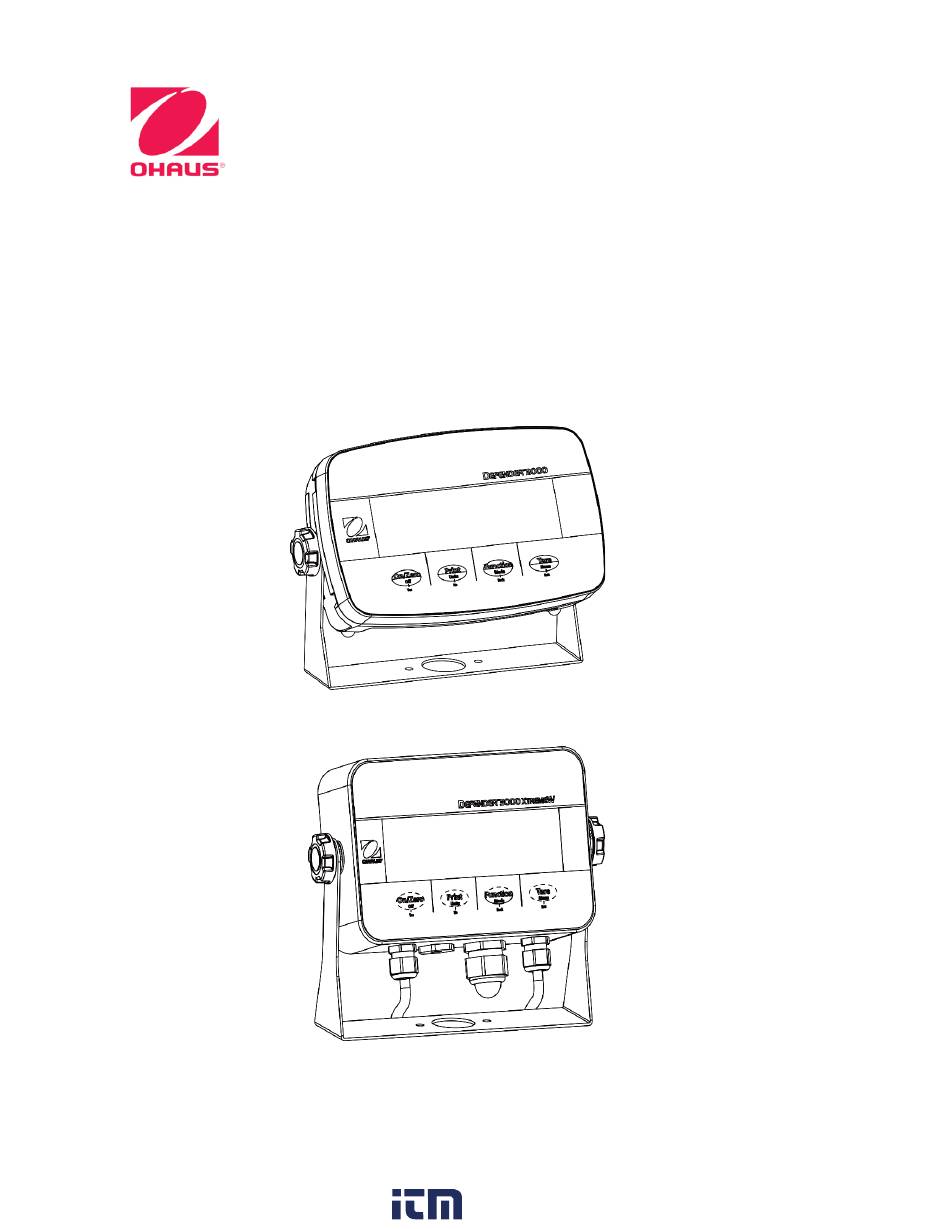

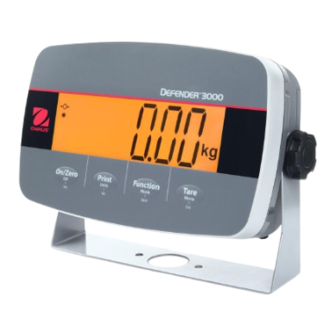

- Page 1 Defender™ 3000 Indicators Instruction Manual i-DT33P i-DT33XW 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Defender 3000 Indicators EN-1 Table of Contents INTRODUCTION ............................3 1.1. Safety Precautions ...........................3 1.2. Intended Use ............................3 1.3. Overview of Parts and Controls .......................4 1.4. Mainboard ..............................5 1.5. Control Functions .............................6 INSTALLATION ............................8 Unpacking ..............................8 External Connections ..........................8 2.2.1 Battery Power Supply ............................8 2.2.2... - Page 3 EN-2 Defender 3000 Indicators 4.6.3 USB Configuration ............................38 4.6.4 Ethernet Configuration ..........................38 Lock Button Configuration ........................39 LEGAL FOR TRADE ..........................40 Settings ..............................40 Verification ............................. 40 Sealing ..............................41 5.3.1 Sealing for Base without EasyConnect ....................41 5.3.2 Sealing for an EasyConnect Base with Memory Module ..............
-
Page 4: Introduction
Any other type of use and operation beyond the limits of technical specifications, without written consent from OHAUS, is considered as not intended. This instrument complies with current industry standards and the recognized safety regulations;... -
Page 5: Overview Of Parts And Controls
EN-4 Defender 3000 Indicators 1.3. Overview of Parts and Controls Figure 1-1 i-DT33P Indicator Item Description Item Description Front Housing Battery Cover Control Panel Mounting Bracket Rear Housing Power Cord Connector Screws (5) RS232 Connector Adjusting Knobs (2) Load Cell Connector... -
Page 6: Mainboard
Defender 3000 Indicators EN-5 Mainboard 1.4. Figure 1-3 i-DT33P Mainboard Item Description Item Description DC input (J1) Display board connector (J9) Load cell terminal block (J11) Dry cell input (J2) (for models not supporting EasyConnect Load cell connector (J12) Ethernet kit / USB device kit connector (J5) -
Page 7: Control Functions
EN-6 Defender 3000 Indicators 1.5. Control Functions Figure 1-5 i-DT33P Control Panel Figure 1-6 i-DT33XW Control Panel Button Primary Function On/Zero Print Function Tare (Short Press) If the terminal is Sends the current Initiates an Performs a tare off, press to power value to the RS232 application mode. - Page 8 Defender 3000 Indicators EN-7 Figure 1-7 Display Item Description Item Description NET symbol Pound, Ounce, Pound:Ounce symbols Center of Zero symbol Kilogram, Gram symbols Stable weight symbol Pieces symbol Negative symbol Percent symbol, Tonne symbol Preset tare symbol Battery symbol Totalization symbol 1.800.561.8187...
-
Page 9: Installation
Use 6 C size dry batteries (not included). In some regions, the i-DT33P model comes with one lead-acid battery installed by factory. Note: You can contact an authorized OHAUS dealer to buy the lead-acid battery as an option. i-DT33XW This model comes with one lead-acid battery installed by factory default. -
Page 10: Internal Connections
Defender 3000 Indicators EN-9 Internal Connections Some internal connections require to open the housing first. Therefore, please check the Open the Housing section below before making connections. CAUTION: ELECTRICAL SHOCK HAZARD. REMOVE ALL POWER CONNECTIONS TO THE INDICATOR BEFORE SERVICING OR MAKING INTERNAL CONNECTIONS. THE HOUSING SHOULD ONLY BE OPENED BY AUTHORIZED AND QUALIFIED PERSONNEL, SUCH AS AN ELECTRICAL TECHNICIAN. - Page 11 Note: If your indicator does not contain the lead-acid battery but you want to purchase it as an accessory, you can contact an authorized OHAUS dealer to obtain it. Remove the battery cover in the direction of the arrow.
- Page 12 Defender 3000 Indicators EN-11 Remove the two screws on the charging board (circled) and take it out. Remove the five screws (circled) from the rear housing. Open the rear housing. Close the rear housing, retighten the screws and re-install the lead-acid battery after finishing internal connections Note: The screws should be tightened to 1 N•m (8-9 in-lb) torque.
- Page 13 EN-12 Defender 3000 Indicators 2.3.1.3 i-DT33XW Turn the two knobs (circled) on each side of the indicator to disassemble the bracket. Remove the six hex head bolts from the rear housing of the indicator. Open the rear housing. Close the housing and re-install the bolts after finishing internal connections Note: The bolts should be tightened to 2.5 N•m (20-25 in-lb) torque to ensure a watertight seal.
-
Page 14: Easyconnect Tm Indicator
Figure 2-2 i-DT33XW Note: For connecting bases which do not support EasyConnect to an EasyConnect indicator, contact an authorized OHAUS dealer to obtain a load cell cable gland kit (P/N 30379716) as an accessory. 2.3.3 Non-EasyConnect Indicator To connect a non-EasyConnect... - Page 15 EN-14 Defender 3000 Indicators Connect all the cables on the load cell cable to the load cell terminal block on the mainboard (circled). Please refer to the Load Cell Terminal Block section for details of the connections. 2.3.3.2 i-DT33XW After opening the housing, unplug the battery connectors (circled) and take out the battery.
- Page 16 Defender 3000 Indicators EN-15 Unscrew the two screws on the sealing cover (circled), take out the cover, and then take out the first layer of the built-in housing. Release the load cell connector (circled) on the bottom of the indicator and then pass the load cell cable through it.
- Page 17 EN-16 Defender 3000 Indicators 2.3.3.3 Load Cell Terminal Block Proceed with the previous section, to connect the load cell terminal block, first locate it on the mainboard following the instruction in the previous two sections for the two models. After finding the load cell terminal block, check table 2-1 for the definition of each terminal screw connection and make connections based on it.
-
Page 18: I-Dt33P Rs232 Connection
Defender 3000 Indicators EN-17 2.3.4 i-DT33P RS232 Connection Connect the optional RS232 cable to the RS232 connector on the rear housing of the i-DT33P indicator. Please refer to table 2-2 for the definition of each pin if needed. Table 2-2 RS232 Pins... -
Page 19: Mounting Bracket
EN-18 Defender 3000 Indicators Mounting Bracket Attach the bracket to a wall or table using fasteners (not supplied) that are appropriate for the type of mounting surface. The bracket will accommodate up to 6 mm (1/4”) diameter screws. Locate the mounting holes as shown in Figure 2-7 and 2-8. -
Page 20: Operation
Defender 3000 Indicators EN-19 3. OPERATION Turning the Scale On/Off To turn the scale on, short press the On/Zero Off button. The scale performs a display test, momentarily displays the software version, the GEO value and then enters the last active weighing mode. -
Page 21: Counting Mode
EN-20 Defender 3000 Indicators Counting Mode Use this application to count the number of pieces on the pan based on an Average Piece Weight (APW). 3.3.1 Enter the Mode COUNt Press and hold the Mode button until is displayed. CLr.PwW... -
Page 22: Set Check Limits
Defender 3000 Indicators EN-21 3.4.1 Set Check Limits CHECK Press and hold the Mode button until is displayed. CLr.CHK When the Mode button is released, the display shows • If you want to use the stored under and over value of the last time, press the No button, and the scale enters check mode directly. -
Page 23: Totalization
EN-22 Defender 3000 Indicators Totalization Use this application to manually or automatically accumulate the multiple weights. Statistical data (the number of samples, the total weight, the average weight, the minimum weight, the maximum weight and the difference in weight) is stored in memory for review and printing. -
Page 24: Totalization Rules
Defender 3000 Indicators EN-23 3.5.5 Totalization Rules The totalization operation will fail when: The current weight is unstable. The load's net weight is smaller than 5d. The overall totalized number is larger than 999999.（The unit is according to what you set for the scale.）... -
Page 25: Application Settings
EN-24 Defender 3000 Indicators 3.5.7 Application Settings The application can be customized for user preferences. Please refer to Application Settings section in Weighing Mode for details about how to enter application settings. The Totalization Configurations are defined below (defaults in Bold). -
Page 26: Menu Settings
Defender 3000 Indicators EN-25 4. MENU SETTINGS The User Menu allows the customizing of scale settings. Note: Sub-menu for options (USB, Ethernet and Print2 in the table below) will be active only when the specific board is installed. See their separate option instruction manuals for additional setting information. -
Page 27: Button Navigation
EN-26 Defender 3000 Indicators 4.1.2 Button Navigation The Yes button： allows entry into the displayed menu. Accepts the displayed setting and advances to the next item. The No button： rejects entry into the displayed menu. Rejects the displayed menu and moves on to the next selection. -
Page 28: Calibration Menu
Defender 3000 Indicators EN-27 Calibration Menu C.A.L Enter the calibration menu to perform calibrations. Initial Calibration 4.2.1 When the scale is operated for the first time, a zero and span calibration are recommended to ensure accurate weighing results. Before performing the calibration, be sure to have the appropriate calibration weights as listed in table 4-1. -
Page 29: Linearity Calibration [ Lin ]
EN-28 Defender 3000 Indicators Repeat the process until all the digits are correct. Press the Yes button to accept calibration point. It is flashing on the display. Place a calibration mass of the specified weight on the pan and press the Yes button. -
Page 30: Calibration Test [ C.test ]
Defender 3000 Indicators EN-29 Short press the No button several times until the desired GEO number appears. Press the Yes button to accept. Note: Press the Back button can decrease the digit. C.test Then the display shows . Press the Exit button to exit. -
Page 31: Setup Menu
EN-30 Defender 3000 Indicators Setup Menu S.E.t.U.P Enter this menu to set scale parameters. Default settings are in bold. Sub-Menu (in Menu Sub-Menu Options Options (in segment) segment) Reset reset no, yes NO, yes Capacity Unit C.UNIt kg, lb Range... - Page 32 Defender 3000 Indicators EN-31 GrAd2 Grad2 Set the second readability of the scale. Note: • The value of graduation 2 must be larger than graduation 1, and it applies to capacity as well. The capacity and graduation value should be within the following range, or your setting will be •...
-
Page 33: Readout Menu
EN-32 Defender 3000 Indicators Readout Menu Enter this menu to set user preferences. Default settings are in bold. Sub-Menu (in Menu Sub-Menu Options Options ( in segment) segment) reset no, yes Reset NO, yes Stable 0.5d, 1d, 2d, 5d Stability 0.5d, 1d, 2d, 5d... - Page 34 Defender 3000 Indicators EN-33 = backlight is enabled and always on. AUtO = backlight is disabled after 20 seconds of no activity. b.COLOr] Backlight Color Set the display backlight color. AmMber = backlight color is amber. Green = backlight color is green.
-
Page 35: Unit Menu
EN-34 Defender 3000 Indicators Unit Menu U.N.I.t Enter this menu to activate the desired units. Reset Gram (g) Kilogram (kg) Pound (lb) Ounce (oz) Pound:Ounce (lb:oz) Metric Tonne (t) Note: • Available units vary by model. In addition, due to national laws, the indicator may not include some of the units listed. - Page 36 Defender 3000 Indicators EN-35 PArItY Parity Set the data bits and parity. 7 EVEN = 7 data bits, even parity 7 ODD = 7 data bits, odd parity 7 NONE = 7 data bits, no parity 8 NONE = 8 data bits, no parity...
-
Page 37: Print Menu
EN-36 Defender 3000 Indicators 4.6.2 Print Menu Enter this menu to set printing parameters. Default settings are bold. Sub- Options (in Menu Sub-Menu Menu (in Options segment) segment) Demand, Auto On Stable, ASSIGN DemMaN, ON.Stab, Auto On Accept, ON.ACep, INter,... - Page 38 Defender 3000 Indicators EN-37 mMt.Con MT-Continuous If MT-Continuous is selected, the print output will be in the MT-Continuous format. mMt.CON = printing occurs continuously. Note: Refer to Appendix A for MT-Continuous format. C.SUmM Off = disabled On = enabled OH.Con OH-Continuous If OH-Continuous is selected, the print output will be in the OH-Continuous format.
-
Page 39: Usb Configuration
EN-38 Defender 3000 Indicators Connect the indicator to OHAUS ScaleMate software on a PC via the RS232 (or USB or Ethernet optional ports). To customize print template, you need to go to the ScaleMate software, Select Print Template on the top bar, and then double click items in the left column to select which ones you want to put in your print template. -
Page 40: Lock Button Configuration
Defender 3000 Indicators EN-39 Lock Button Configuration L.O.C.k This menu is used to lock access to certain buttons. When you select ON for one selection, the associated button press will be ignored. If you select Lock All Keys, you will lose function of all buttons. -
Page 41: Legal For Trade
EN-40 Defender 3000 Indicators 5. LEGAL FOR TRADE When the indicator is used in trade or a legally controlled application, it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met. -
Page 42: Sealing
Connector), the scale can be sealed using Wire Sealing (figure 5-1 and 5-3) or Paper Sealing (figure 5-2 and 5- 5.3.2 Sealing for an EasyConnect Base with Memory Module When the i-DT61PW or i-DT61XWE indicator is connected to an OHAUS Defender 6000 series base boasting EasyConnect function and has a memory module (refer Figure 5-5) on the load cell cable, seal the scale using using Wire Sealing (figure 5-1 and 5-3) or Paper Sealing (figure 5-2 and 5-4). -
Page 43: Maintenance
EN-42 Defender 3000 Indicators 6. MAINTENANCE CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE CLEANING. Cleaning For i-DT33P, the housing may be cleaned with a cloth dampened with a mild detergent if necessary. For i-DT33XW, use approved cleaning solutions for the stainless-steel Indicator housing and rinse with water. -
Page 44: Service Information
Service assistance in the United States, call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM Eastern Standard Time. An OHAUS Product Service Specialist will be available to assist you. Outside the USA, please visit our to locate the OHAUS office nearest you. -
Page 45: Technical Data
EN-44 Defender 3000 Indicators 7. TECHNICAL DATA Specifications Equipment Ratings: Indoor use only Altitude: 2,000m Operating temperature: -10°C to 40°C Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly Humidity: to 50% relative humidity at 40°C. Electrical supply: 100 - 240V～, 0.5A, 50/60Hz... -
Page 46: Accessories And Options
Defender 3000 Indicators EN-45 Model i-DT33XW Construction 304 stainless steel housing, 304 stainless steel bracket Protection IP66 Maximum displayed resolution 1:30,000 1:10,000 or 2 × 3,000e Class III @ 1 µV/e (EC, OIML) Maximum approved resolution 1:6,000 (NTEP/Measurement Canada) Class III... -
Page 47: Table Of Geo Code Values
EN-46 Defender 3000 Indicators Table of Geo Code Values TABLE 7-1 GEO CODES Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400... -
Page 48: Compliance
Defender 3000 Indicators EN-47 8. COMPLIANCE Compliance to the following standards is indicated by the corresponding mark on the product. Mark Standard This product complies with the applicable harmonized standards of EU Directives 2011/65/EU (RoHS), 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/31/EU (NAWI). The... - Page 49 Unintentional Radiator per 47CFR Part B Trade Name: OHAUS CORPORATION Model or Family identification: Defender 3000 series FCC Compliance Statement: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 50: Appendices
Defender 3000 Series Base Instruction Manual English 1.800.561.8187 information@itm.com www. .com... - Page 51 Note: Not included with some models Wiring Connections When connecting the base to an OHAUS indicator equipped with the matching circular connector, push the base connector onto the indicator connector and turn the locking ring clockwise to lock it in place.
- Page 52 EN-2 Defender Series Base If your base does not support EasyConnect , please refer to the indicator's manual for how to connect load cell connector. TABLE 1. LOAD CELL CONNECTION Type1. For model i-DxxxB1R, i-DxxxB1L base FUNCTION WIRE COLOR + Excitation - Excitation Black + Signal...
- Page 53 For service assistance or technical support in the United States, call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the USA, please visit our web site to locate the OHAUS office nearest you.
- Page 54 EN-4 Defender Series Base TABLE 2.2 SPECIFICATIONS Model i-D15C1R i-D30C1R i-D60C1R i-D60C1L i-D150C1L i-D150C1X i-D300C1X Capacity 15 kg 30 kg 60 kg 60 kg 150 kg 150 kg 300 kg Approved Resolution OIML 3000e Safe Overload Capacity 150% of capacity Pan Dimensions 305 x 355 mm 420 x 550 mm...
- Page 55 Defender Series Base EN-5 Drawings Figure 1. Defender Base Dimension Drawing. TABLE 3. DIMENSIONS Height of Pan to Base Height of Pan Pan Depth Pan Width Surface of Table i-DxxxB1R 355 mm / 14.0 in 305 mm / 12.0 in 128 mm / 5.3 in 75mm / 3.0 in i-DxxxB1L...
-
Page 56: Limited Warranty
OHAUS products are warranted against defects in materials and workmanship from the date of delivery through the duration of the warranty period. During the warranty period OHAUS will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to OHAUS.
