User Manual

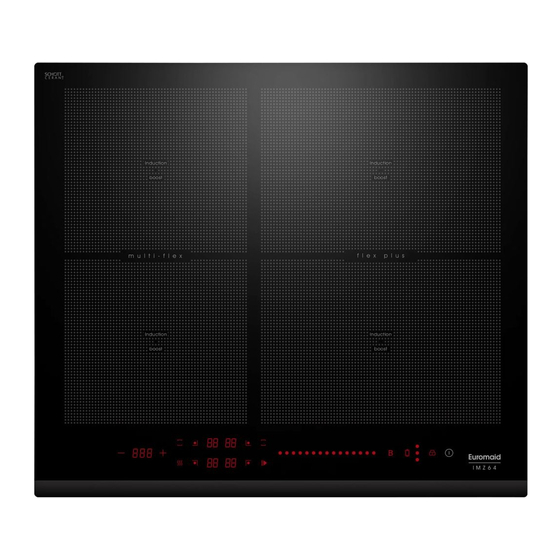

60cm Induction Cooktop
IMZ64

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMZ64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Euromaid IMZ64

Summary of Contents for Euromaid IMZ64

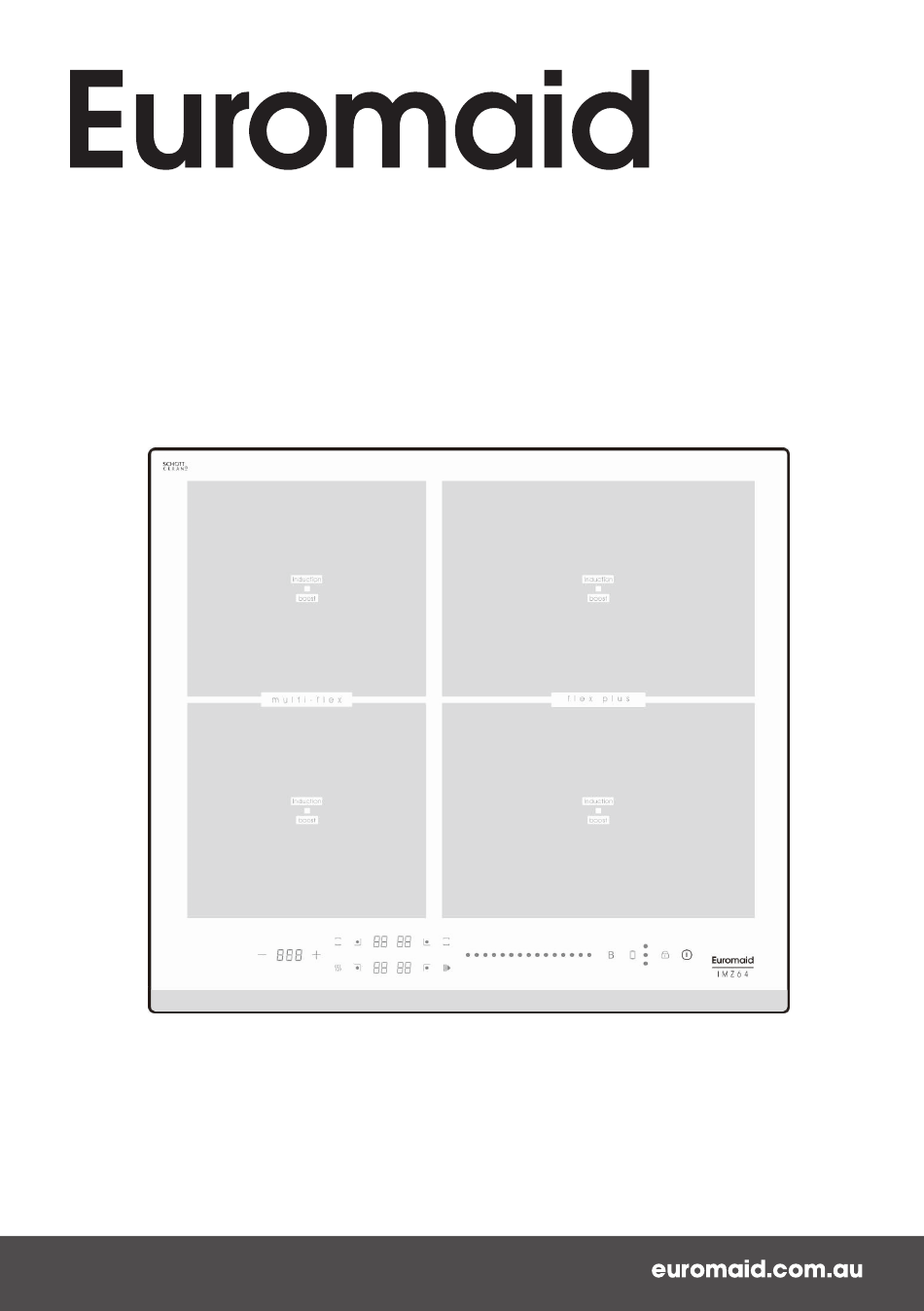

  • Page 1 User Manual 60cm Induction Cooktop IMZ64...

  • Page 2: Table Of Contents

    Contents For your safety ....................3 Product overview ....................8 The control panel ....................9 A word on induction cooking ................Using the touch controls ................... 10 Choosing the right cookware ................11 Using your hob ....................12 Using the boost function .................. 13 Using the keep warm function .................

  • Page 3: For Your Safety

    SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a properly earthed wiring system is essential and mandatory.
  • Page 4 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
  • Page 5 Hot Surface Hazard • WARNING: Accessible parts may become hot during use. Young children should be kept away • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. •...
  • Page 6 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
  • Page 7 • Care should be taken to avoid touching heating elements. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 8: Product Overview

    2000 / 3000 W zone 0 x 200 mm, max. 2000 / 3000 W zone 0 x 200 5. 220 x 400mm, max. 3000 / 3600 W zone 0 x 400mm, max. 3000 / 4000 W zone 7. Control panel IMZ64...

  • Page 9: The Control Panel

    The Control Panel IMZ64 1. ON/OFF key 6. Boost control key 2. Power level selection (slider control) 7. Keep warm key 3. Timer key 8. Pause / Start key 4. Child lock key 9. Tenpanyaki selection key 10. Flexi Zone selection key...

  • Page 10: A Word On Induction Cooking

    A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

  • Page 11: Choosing The Right Cookware

    Choosing the right Cookware • • • • Independent zone on left flexible side Independent zone on right flexible side Flexible zone Teppanyaki zone...

  • Page 12: Using Your Hob

    Using your Hob To start cooking • After powering on, the hob beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered standby mode. 1. Touch the ON/OFF key, all the indicators show “– “ 2.

  • Page 13: Using The Boost Function

    Beware of hot surfaces When “H” is displayed: the cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

  • Page 14: Using The Keep Warm Function

    Using the Keep Warm function * The keep warm function will work for 2 hours. Activating the Keep Warm function 1. Select the zone you wish to use (e.g. front left zone). 2. Touch the keep warm key, the zone indication will show “ ”...

  • Page 15: Using The Pause Function

    Using the Pause function Activating the Pause function 1. Touch the Start / Pause key , all the heating zones will stop working and all the zone indicators will show“ ” 2. Touch the Start / Pause key again, all the heating zones will revert to their original setting.

  • Page 16: Using The Flexible Zone Function

    Touch the “Slider” control to select the level you want to set for that zone. Turn the cooktop off using the On/ Off key. Using the Flexible zone function  This model is used as two flexible zones or four individual zones depending on the cooking needs in each situation.
  • Page 17 As a single zone. 1. To activate the flexible zone as a single large zone, simply press the key. 2. Adjust the heat setting by touching “slider” key. The Boost function for the flexible zone works the same as any other normal ...

  • Page 18: Locking The Controls

    Locking the Controls (Child lock) You can lock the controls to prevent unintended use (for example children • accidentally turning the cooking zones on). When the controls are locked, all the controls except the ON/OFF key are • disabled. To lock the controls key.
  • Page 19 Using the Timer as a Minute Minder 1. Make sure the hob is turned on, an d the heating zone selection key is not activated (Timer and power level indicators display “-“ ) Note: You can also set the minute minder whilst the cooking zone is on as long as the power level indicator is not blinking.
  • Page 20 2. Touch the timer + key, “0:00” will show in the timer display and will blink at the same time 3. Set the time by touching the “+” or “-” key of the timer.  Time will increase or decrease by 1 minute With each touch of the key.
  • Page 21 Canceling the timer 1. Touch the heating zone selection key that you wish to cancel the timer. Touching “+” “-”control together, the timer will be cancelled, and “-:--” will show in the minute display. Note: Turning off the heating zone or cooktop will also cancel the timer.

  • Page 22: Cooking Guidelines

    Cooking Guidelines ke care when frying as oil and fat heat up very quickly, particularly if you’re using the Boost setting. At extremely high temperatures oil and fat may ignite spontaneously which could present a serious fire risk. Cooking Tips When food comes to the boil, reduce the power setting.

  • Page 23: Heat Settings

    For stir-frying 1. Choose an Induction compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4.

  • Page 24: Care And Cleaning

    Care and Cleaning What? How? Important! • When the power to the cooktop is 1. Switch the power to the cooktop Everyday soiling on switched off, there will be no ‘hot off. glass (fingerprints, surface’ indication but the cooking 2. Apply a cooktop cleaner while the marks, stains left by zone may still be hot! Take extreme glass is still warm (but not hot!)
  • Page 25 Problem Possible causes What to do Make sure the cooktop is connected The cooktop cannot No power. to the power supply and that it is Be turned on. switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, contact Glen...

  • Page 26: Technical Specification

    WARNING: For you own safety, please do not disassemble the unit by yourself. Any repairs must be carried out by a suitably qualified technician. Technical Specification Induction Hob IMZ64 Cooking Zones 4 Zones Supply Voltage 220-240V~ 50 or 60Hz...

  • Page 27: Installation

    D(mm) A(mm) B(mm) X(mm) IMZ64 50 mini Ensure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good working order. Install Rangehoods and Exhaust Fans in accordance to the manufacturer’s instructions.
  • Page 28 A(mm) B(mm) C(mm) 600min 50 min 20 min Air intake Air exit 5mm Before you install the hob, make sure that The work surface is square and level, and no structural members interfere with • space requirements. The work surface is made of a suitable material. •...
  • Page 29 When you have installed the hob, make sure that The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of air from outside the cabinetry to the base of the hob. • If the hob is installed above a drawer or cupboard space, a thermal protection •...

  • Page 30: Electrical Connection

    Cautions • The hob must be installed by a suitably qualified person. Please never conduct the operation by yourself. • The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. • The hob shall be installed in a way that ensures correct ventilation and clearances. •...

  • Page 31: Disposal

    • If the cable is damaged or needs replacing, this must be done by the manufacturer or suitably qualified person. • The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. •...
  • Page 32 NOTES ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________  ...

  • Page 33: Warranty

    Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
  • Page 34 exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex; c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement;...
  • Page 35 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
  • Page 36 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
