User Manual
Ceramic Cooktop
ECCT64
ECCT74

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECCT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Euromaid ECCT Series

Summary of Contents for Euromaid ECCT Series

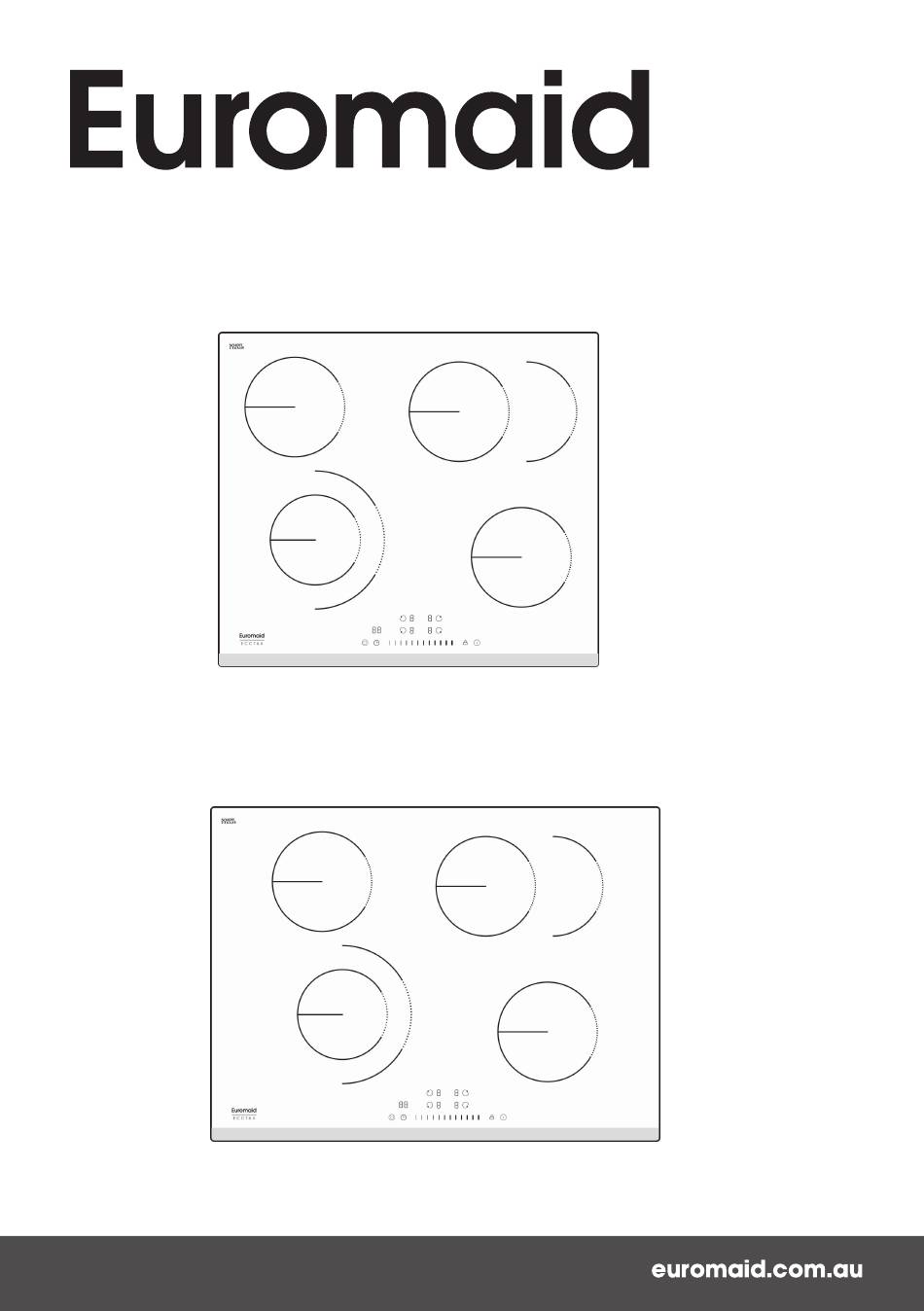

  • Page 1 User Manual Ceramic Cooktop ECCT64 ECCT74...

  • Page 2: Table Of Contents

    Contents For your safety ..................3 Product overview ..................8 The control panel ..................9 Using the touch controls ................9 Choosing the right cookware ..............10 Using your hob ..................11 Using the extendable zones ..............12 Locking the controls ................13 Using the timer ..................

  • Page 3: For Your Safety

    SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a properly earthed wiring system is essential and mandatory.
  • Page 4 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
  • Page 5 Hot Surface Hazard • WARNING: Accessible parts may become hot during use. Young children should be kept away • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. •...
  • Page 6 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
  • Page 7 • Care should be taken to avoid touching heating elements. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 8: Product Overview

    • Congratulations on the purchase of your new cooktop. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install and operate it correctly. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

  • Page 9: The Control Panel

    The Control Panel 1. ON/OFF key Timer key 2. Slide-touch control 5. Heating zone selection key Child lock key 6. Extendable zone selection key Before using your New Hob Read this guide, taking special note of the ‘Safety Warnings’ section. •...

  • Page 10: Choosing The Right Cookware

    Choosing the right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob –...

  • Page 11: Using Your Hob

    Using your Hob To start cooking 1. Touch the ON/OFF key, all the indicators show “– “ 2. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. 3.

  • Page 12: Using The Extendable Zones

    Using the Extendable Zone Function Where fitted, an extendable zone is indicated by the extended lines as per below. You can also refer to page 8 for details where a single zone will show a single power rating (e.g. ‘1200W’) and an extendable zone will show a dual rating (e.g. 1100 / 2200W) An extendable zone consists of 2 circuits - the center zone and the outer zone.

  • Page 13: Locking The Controls

    Locking the Controls (Child lock) You can lock the controls to prevent unintended use (for example children • accidentally turning the cooking zones on). When the controls are locked, all the controls except the ON/OFF key are disabled. • To lock the controls Touch the lock key.
  • Page 14 Using the Timer as a Minute Minder 1. Make sure the cooktop is turned on, and the heating zone selection key is not activated (Timer and power level indicators display “-“) Note: You can also set the minute minder whilst the cooking zone is on as long as the power level indicator is not blinking.
  • Page 15 Using the timer to switch off one or more cooking zones 1. Select the heating zone that you wish to set the timer for. 2. Touch the timer key, “00” will show in the timer display and the “0” will blink. 3.
  • Page 16 If the timer is set on more than one zone: 1. When you set the timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the remaining time. The dot for the corresponding zone blinks. Note: You can check the remaining time for the other zones by touching the corresponding heating zone selection key.

  • Page 17: Cooking Guidelines

    Cooking Guidelines ke care when frying as the oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this can present a serious fire risk. Cooking Tips When food comes to the boil, reduce the power setting. •...

  • Page 18: Heat Settings

    For stir-frying 1. Choose a ceramic compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4.

  • Page 19: Care And Cleaning

    Care and Cleaning What? How? Important! Everyday soiling on glass • When the power to the cooktop is 1. Switch the power to the cooktop (fingerprints, marks, switched off, there will be no ‘hot off. stains left by food or surface’...

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible causes What to do The cooktop cannot No power. Make sure the cooktop is connected Be turned on. to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, contact the Glen...

  • Page 21: Installation

    Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. •...
  • Page 22 A(mm) B(mm) C(mm) 00 min 50 min 20 min Air intake Air exit 5mm Before you install the hob, make sure that The work surface is square and level, and no structural members interfere with • space requirements. The work surface is made of a suitable material. •...
  • Page 23 When you have installed the hob, make sure that The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of air from outside the cabinetry to the base of the hob. • If the hob is installed above a drawer or cupboard space, a thermal protection •...

  • Page 24: Electrical Connection

    Cautions • The hob must be installed by a suitably qualified person. Please never conduct the operation by yourself. • The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. • The hob shall be installed in a way that ensures correct ventilation and clearances. •...

  • Page 25: Disposal

    Warning! • If the cable is damaged or needs replacing, this must be done by the manufacturer or suitably qualified person. The installer must ensure that the correct electrical connection has • been made and that it complies with safety regulations. The cable must not be bent or compressed.
  • Page 26 NOTES ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________  ...
  • Page 27 NOTES ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________  ...
  • Page 28 NOTES ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________   ______________________________________________________  ...

  • Page 29: Warranty

    Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
  • Page 30 c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement; d) You are unable to provide us with reasonable proof of purchase for the product; e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or f) the product was not purchased in Australia / New Zealand as a brand-new product.
  • Page 31 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
  • Page 32 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.

This manual is also suitable for:

Ecct64Ecct74
