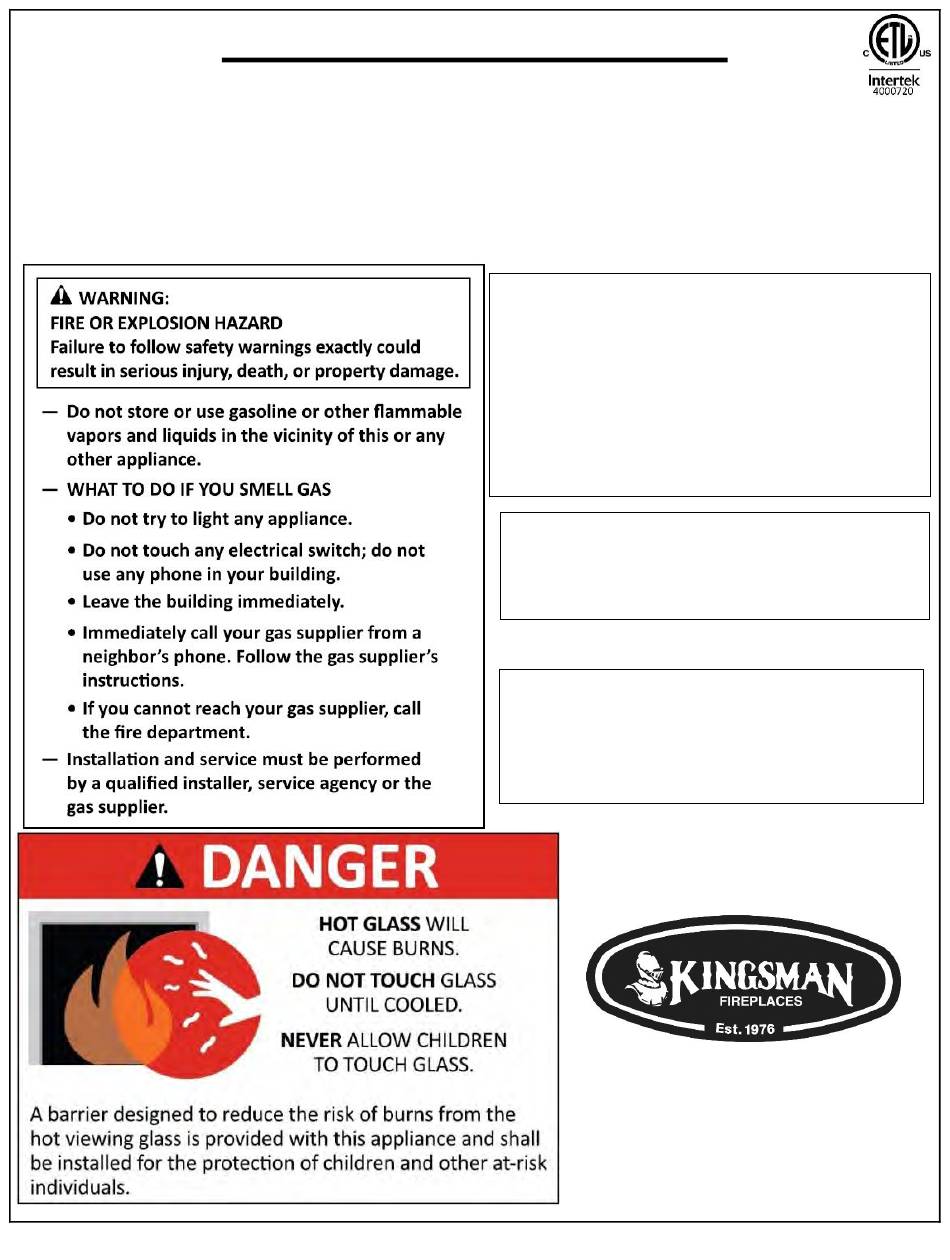

Installation Instructions
Model Number HBZDV4224, HBZDV4228, HBZDV4232
Stock #'s: HBZDV4224N, HBZDV4224LP are
Certified to: ANSI Z21.50-2014 • CSA 2.22-2014
ZERO CLEARANCE VENTED GAS FIREPLACE
Stock #'s: HBZDV4228N, HBZDV4228LP, HBZDV4232N and HBZDV4232LP are
Certified to: ANSI Z21.88-2014 • CSA 2.33-2014
ZERO CLEARANCE VENTED GAS FIREPLACE HEATER
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
For Propane Horizontal installations the
venting must be a minimum of one foot
vertical off the flue before going
horizontal.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada March 31, 2017
Part # 42HB-MAN14
