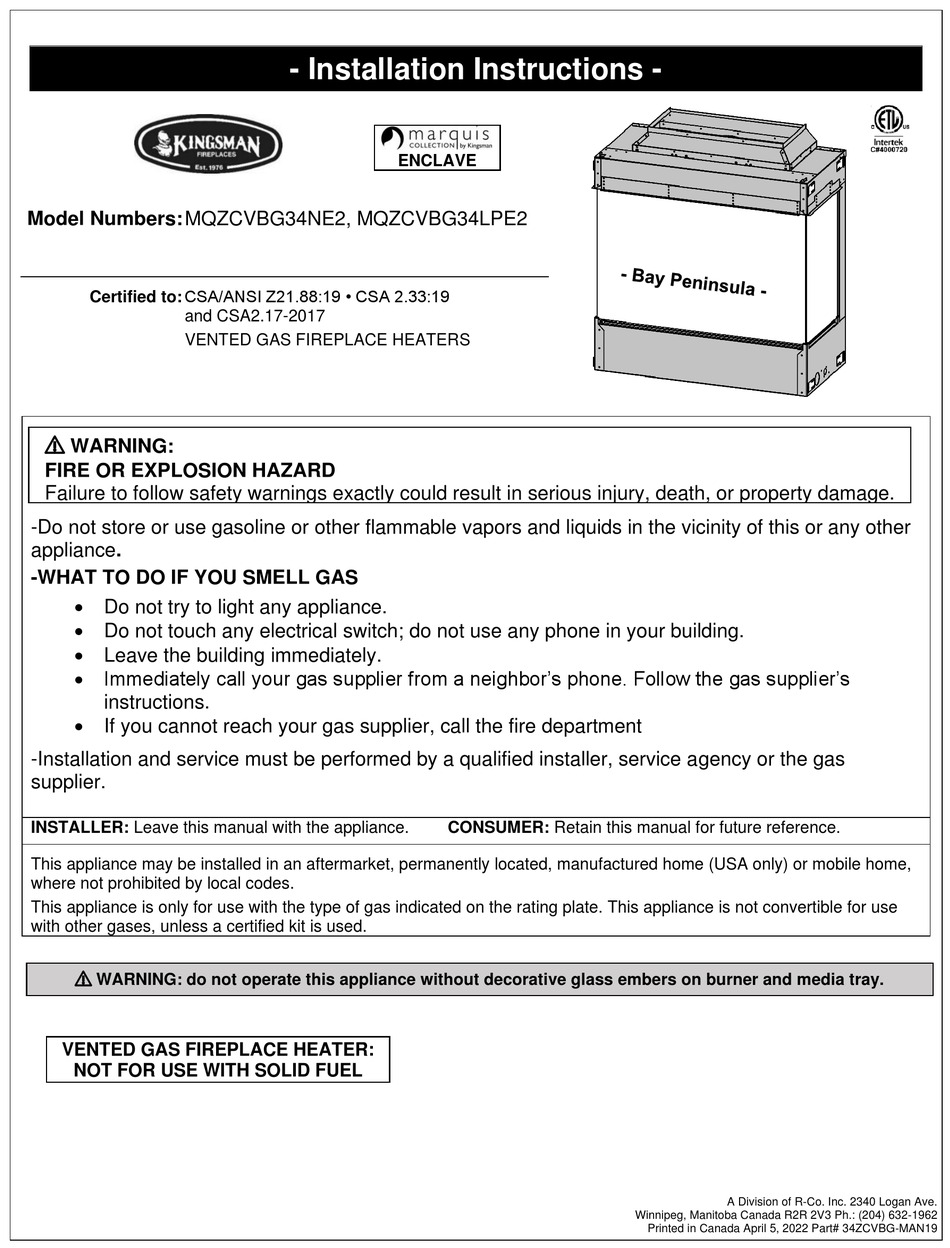

Model Numbers: MQZCVBG34NE2, MQZCVBG34LPE2
Certified to: CSA/ANSI Z21.88:19 • CSA 2.33:19
and CSA2.17-2017
VENTED GAS FIREPLACE HEATERS
⚠
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department
-Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
⚠
WARNING: do not operate this appliance without decorative glass embers on burner and media tray.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL
- Installation Instructions -
ENCLAVE
CONSUMER: Retain this manual for future reference.
A Division of R-Co. Inc. 2340 Logan Ave.
Winnipeg, Manitoba Canada R2R 2V3 Ph.: (204) 632-1962
Printed in Canada April 5, 2022 Part# 34ZCVBG-MAN19
Advertisement
Table of Contents
Related Manuals for Kingsman Fireplaces MQZCVBG34NE2
Summary of Contents for Kingsman Fireplaces MQZCVBG34NE2
- Page 1 - Installation Instructions - ENCLAVE Model Numbers: MQZCVBG34NE2, MQZCVBG34LPE2 Certified to: CSA/ANSI Z21.88:19 • CSA 2.33:19 and CSA2.17-2017 VENTED GAS FIREPLACE HEATERS ⚠ WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
-
Page 2: Hot Glass & Vent Termination Warnings
IT IS THE RESPONSIBILITY OF THE HOME OWNER TO ENSURE THAT NO ONE TOUCHES A HOT APPLIANCE. • If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. • Any safety screen, guard, or barrier removed for servicing the appliance, must be replaced prior to operating the appliance. -
Page 3: Table Of Contents
MQZCVBG34 Table of Contents Hot Glass & Vent Termination Warnings…………………………………………………………………………..... Table of Contents................................Warnings, Installations and Operations - Installation Regulations……………………………………………………………. Installation Requirements for the Commonwealth of Massachusetts................Carbon Monoxide (CO) Detector............................Pre-installation Questions and Answers........................... Operations and Maintenance Instructions........................Fireplace Installations in Covered Outdoor Locations...................... Mobile Home/Manufactured Housing Installation...................... - Page 4 MQRBRW Birch Log Set………………………………………………………………………………………………………….. MQ42D Driftwood Log Set………………………………………………………………………………………………………… MQLOGF34BW Birch Log Set…………………………………………………………………………………………………… MQLOGF34OAK Oak Log Set…………………………………………………………………………………………………… MQLOGF34BW & MQLOGF34OAK Setup Instructions……………………………………………………………………….. Gas Line Installation, Use, and Maintenance Gas Line Installation / Gas Specifications Chart....................... Annual Inspection List............................... Troubleshooting the Gas Control System......................... Burner System Maintenance............................
-
Page 5: Warnings, Installations And Operations - Installation Regulations
Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States. -
Page 6: Installation Requirements For The Commonwealth Of Massachusetts
Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below. -
Page 7: Pre-Installation Questions And Answers
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 8: Fireplace Installations In Covered Outdoor Locations
Fireplace Installations in Covered Outdoor Locations – FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS- CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The Intertek safety certification will not apply to this installation method. -
Page 9: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 10: Framing Your Gas Fireplace
Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance. -
Page 11: Nailing Tab Guide
MQZCVBG34 -Nailing Tab Guide- [Qty] 4 Nailing Tabs are located on each side of the front frame. These Nailing Tabs are used to attach the appliance to framing. These Nailing Tabs can be used in several ways: To attach to upper and lower framing: To attach to vertical studs with Corner Kit installed: RIGHT SIDE VIEW TOP VIEW - RIGHT SIDE... -
Page 12: Locating Your Appliance
MQZCVBG34 Bay Peninsula Locating Your Appliance LOCATION KEY: A. Corner Kit- Left Side B. Flat on Wall C. Corner Kit- Right Side D. Corner Kit- Left Side E. Corner Kit- Right Side F. 45° Corner G. As an Island* *Island installation with a top 20’... -
Page 13: Vented Chase Requirements
MQZCVBG34 -Vented Chase Requirements FIREPLACE CHASE MUST BE VENTED AT THE TOP OF THE ENCLOSURE. Chase Vent Openings LARGER than the • Minimum required minimums ARE allowed and will reduce 90 square inches free air opening for grills (V34EG & V34EGS). •... -
Page 14: Framing Dimensions- Full Chase With Front -Or- Side Grills
MQZCV34BG Framing Dimensions- Full Chase with Front -OR- Side Grills Grills MUST be located at top of chase. V34EG Front Grill -OR- V34EGS Side Grills may be used. If V34EGS Side Grills are used, both sides of chase must be vented. Optional Additional Rear Grill- Must be in NOTE: These structures are not load bearing. -
Page 15: Framing Dimensions- Full Chase With Open Top
MQZCV34BG Framing Dimensions- Full Chase with Open Top The top of the chase must have an opening of 2-1/4” on 3 sides. NOTE: These structures are not load bearing. 2-1/4” No loose Combustibles (wood, wiring, etc.) are allowed inside the open Chase area. Unit and Framing can be covered with a combustible... -
Page 16: Framing Dimensions- Recessed Front Chase With Front Grill
MQZCV34BG Framing Dimensions- Recessed Front Chase with Front Grill Grill MUST be located at top of chase. V34EG Front Grill must be used. No Side Grill Option as Chase is too small. NOTE: These structures are not load bearing. Optional Additional No loose Combustibles (wood, wiring, etc.) are allowed inside the Rear Grill- Must be in open Chase area. -
Page 17: Framing Dimensions- Recessed Front Chase With Open Top
MQZCV34BG Framing Dimensions- Recessed Front Chase with Open Top The top of the chase must have an opening of 2-1/4” on 3 sides. 2-1/4” NOTE: These structures are not load bearing. No loose Combustibles (wood, wiring, etc.) are allowed inside the open Chase area. Unit and Framing can be covered with a combustible... -
Page 18: Framing Dimensions- Recessed Front And Side Chase Open Top
MQZCV34BG Framing Dimensions- Recessed Front and Side Chase Open Top The top of the chase must have an opening of 2-1/4” on 3 sides. 2-1/4” Do not use combustible materials (i.e., wood framing) inside of Enclosure. Use metal mount brackets as shown below to secure the enclosure. NOTE: These structures are not load bearing. -
Page 19: Framing Dimensions- Corner Framing-Full Chase With Open Top
MQZCV34BG Corner Framing Dimensions- Full Chase with Open Top Corner Kit Required. Can be used on left or right side of unit. The top of the chase must have an opening of 3”. NOTE: These structures are not load bearing. No loose Combustibles (wood, wiring, etc.) are allowed inside the open Chase area. -
Page 20: Framing Dimensions- Corner Framing-Recessed Front Chase With Open Top
MQZCV34BG Corner Framing Dimensions -Recessed Front Chase- Open Top Corner Kit Required. Can be used on left or right side of unit. The top of the chase must have an opening of 3”. NOTE: These structures are not load bearing. No loose Combustibles (wood, wiring, etc.) are allowed inside the open Chase area. -
Page 21: Framing Dimensions- Corner Framing- Recessed Front And Side Chase- Open Top
MQZCV34BG Corner Framing Dimensions- Recessed Front and Side Chase- Open Top - Corner Kit Required. Can be used on left or right side of unit. The top of the chase must have an opening of 3”. Do not use combustible materials (i.e., wood framing) inside of Enclosure. Use metal mount brackets as shown below to secure the enclosure. -
Page 22: Mantel And Adjacent Wall Clearances
MQZCVBG34 -Mantel and Adjacent Wall Clearances A Combustible Mantel Right Side View 2-1/4” Opening can be placed immediately above the fireplace opening. A Combustible Hearth can be placed immediately below the fireplace opening. 72” Minimum Ceiling / An Adjacent Side Wall Enclosure Top may project directly from Combustible... -
Page 23: Clearance To Combustibles
MQZCVBG34 Clearance to Combustibles ⚠ 36” [92cm] NOTE Front (Furniture, etc. from glass) If using insulation in vented 8-1/2” [21.6cm] Side (Furniture, etc. from glass) chase (i.e. for outside wall), 0” [0cm] wall board / drywall is required Side (from Stand-offs of Unit or Corner Kit) to support all insulation. -
Page 24: V34Eg Grill Installation
V34EG Grill Installation for MQZCVBG34 -Option- ⚠ Grill openings must be flush with the enclosure top. This is to prevent excess heat from becoming trapped in the top of the chase. Minimum 72” Chase Required. See Framing section of manual. This Grill Meets Minimum Opening Air Free Requirements. -
Page 25: V34Egs Side Grill Installation
V34EGS Side Grill Installation for MQZCVBG34 -Option- ⚠ Grill openings must be flush with the enclosure top. This is to prevent excess heat from becoming trapped in the top of the chase. Minimum 72” Chase Required. See Framing section of manual. Grills must be installed on both sides of chase. -
Page 26: Facing Requirements
MQZCVBG34 -Facing Requirements Unit may be covered with combustible material (i.e. drywall) up to the fireplace opening. FIREPLACE CHASE MUST BE VENTED AT THE TOP OF THE ENCLOSURE. • Minimum 90 square inches free air opening for grills (V34EG & V34EGS). •... -
Page 27: Zcv34Bgck Corner Kit- Optional
ZCV34BGCK Corner Kit Option - MUST BE INSTALLED BEFORE ⚠ Warning: Failure to position the parts in accordance with UNIT IS INSTALLED INTO FRAMING. these diagrams or failure to use only parts specifically - CORNER KIT CAN BE INSTALLED approved with this appliance may result in property damage AT EITHER END OF FIREPLACE. - Page 28 STEP TWO: INSTALL FIREBOX COVER Seal Gasket D. Apply a 3/8” bead of 3/8” Bead Mill-Pac onto the of Mill-Pac Seal Gasket of the Firebox Cover. Do Front Glass not Apply Mill-Pac Gasket onto the Front Glass NO Mill-Pac Gasket. See Photo. E.
- Page 29 STEP THREE: INSTALL INNER LINER PANEL NOTE: Do not install this component if you are using optional fiber or reflective Use [Qty 12] DT glass liners. Screws to attach Fireplace Outer H. Install Inner Liner Cover Panel inside of Install Inner Firebox.
-
Page 30: Front Glass Installation And Removal
MQZCVBG34 - Front Glass Installation and Removal - SILICONE SILICONE ALIGNMENT ⚠ IMPORTANT: Each corner must have a dab of high-temp silicone placed between the ball of the gasket and the corner glass. This will fully seal the firebox corners. Front Glass is placed in front of corner glass edge. -
Page 31: Side Glass Removal And Installation
MQZCVBG34 – Side Glass Removal and Installation Remove Front Firebox Glass first. If the Side Glass ⚠ IMPORTANT: Front corners must have a dab of high- Panel or another component must be cleaned or replaced, remove the 4 Wing Nuts from the Side Glass temp silicone placed between the ball of the gasket and Door and remove Retainers, Glass Door Frame, and the glass. -
Page 32: Glass Door Information
MQZCVBG34 -Glass Door Information- Glass Cleaning It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass, and causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. It is therefore recommended that initially the glass be cleaned two or three times with a fireplace glass cleaner. -
Page 33: Glass Safety Barrier Installation / Removal
MQZCVBG34 – Glass Safety Barrier Installation / Removal SIDE GLASS PANELS FRONT GLASS PANEL [QTY 1] [QTY 2] Install side glass first. Repeat procedure for front glass. Insert top of glass into clips in top of fireplace • Bottom of glass will rest in Glass Supports. •... -
Page 34: Component Locations
MQZCVBG34 Component Locations Proflame 2 Module Battery Backup Component Box can be inserted & removed from beneath fireplace through access panel opening (Remove glass door first). Lamp Transformer Valve Component Receptacle Primary Air Adjustment Access Component Box Receptacle Valve Lamp Transformer... -
Page 35: 34Zcvbg-Tlk Tile Lip Kit
34ZCVBG-TLK Tile Lip Kit - Optional The TLK Kit may be used as a trim around the opening of the fireplace. Fasten with supplied self-tapping screws. ITEM PART QUANTITY DESCRIPTION NUMBER NUMBER Kit Consists of items 1-4 34ZCV-TLK1 Front Bottom Tile Lip 34-7/16” 34ZCV-TLK2 Side Horizontal Tile Lip 14-7/16”... -
Page 36: Halogen Lighting Kit Ulk5-2
MQZCVBG34 ULK5-2 Halogen Light Kit Option Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. Contents of Kit: • [2] 12V Halogen Lamps • Lamp Plate with Insulated Studs & wiring •... - Page 37 STEP 4: Install Lamp INSIDE TOP OF FIREBOX Assemblies in Firebox Top as shown. NOTE: Install One Lamp Assembly at a Lamp Lamp Assembly time to avoid Assembly confusion when connecting wires to Lamp Plate in Step 5. STEP 5: Take wires from rear bottom of firebox and CONNECT ONE TO EACH STUD ON LAMP PLATE.
-
Page 38: Glass Back Liner Installation
MQZCV34RGB Glass Back Liner Installation Option STEP ONE: Remove Liner CONTENTS: Clip and screws from inside [3] GLASS of firebox with a 1/4” hex BACK CLIP BACK LINERS (DISCARD) driver. Discard Back Clip but Keep Screws. NOTE: Install ⚠ Glass Back KEEP DT SCREWS CAUTION Liners Before... -
Page 39: Glass Side Liner Installation
MQZCV34RGE Glass Side Liner Installation Option ⚠ Contents of Kit: CAUTION – NOT TEMPERED GLASS- [1] Glass Side Liner EXTREMELY FRAGILE – HANDLE WITH CARE NOTE: Glass Back Liner must be installed first. NOTE: If using CORNER KIT and you are NOT installing a Glass Side Liner, install Inner Liner Panel from Corner Kit before Glass Back Liner. -
Page 40: Refractory Back Liner Installation
MQZCVBG34 Refractory Back Liner Installation Option CONTENTS: NOTE: Install Back STEP ONE: Liner Before installing CLIPS [1] BACK LINER Remove Brick Side Liner. Liner Clips and screws from inside CENTER of firebox with a CLIP 1/4” hex driver. KEEP DT SCREWS STEP TWO: Remove [Qty 4] Lower Liner Clips STEP THREE:... -
Page 41: Refractory Side Liner Installation
MQZCVBG34 Refractory Side Liner Installation Option NOTE: Back Liner must be installed first. Contents of Kit: NOTE: If using CORNER KIT and you are NOT installing a Side Liner, install [1] Side Liner Inner Liner Panel from Corner Kit before Back Liner. However, if you ARE installing a Side Liner, do not install Inner Liner Panel from the Corner Kit. -
Page 42: Crushed Glass And Media Options
MQZCVBG34 Crushed Glass and Media Options - MQ Dealers Only - MQZCVBG34 requires [Qty 1] 5LB bag of crushed glass. All glass is sold in 5 LB bags (Maximum 5LB of Glass). GLASS SKU DESCRIPTION • GLASS (MQG5W, MQG5A, MQG5B, MQG5ZG, MQG5C) Decorative Glass 1/2”... -
Page 43: Mqrock2, Mqrock3
MQROCK2, MQROCK3 • Lava Rock is supplied with Base Unit. Do not place directly onto Burner. • Place rocks randomly onto False Bottom and Burner. Do not place directly on burner ports. • Not all rocks will be used on some installations. •... -
Page 44: Rbcb1 Cannonballs
MQZCVBG34 RBCB1 Cannonballs -Option Assorted size and colors. Place randomly as desired inside fireplace. Can be used with MQ Glass, MQ Ember, and / or Lava Rock. Do not place Cannonballs directly on burner ports. If sooting occurs change position of or remove affected objects. •... -
Page 45: Mqlogf453 Driftwood Log Set
MQZCVBG34 MQLOGF453 – Driftwood Log Set Option ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: Lava Rock and 350 Embers supplied with fireplace. 3/4”... -
Page 46: Mqrbd3 Driftwood Log Set
MQZCVBG34 MQRBD3 -5 Piece Driftwood Log Set- Option Can be used with MQ Glass, MQ Rock, MQ Stone or MQ Ember. Follow instructions for these accessories. ⚠ NOTE LOG 1 • For best flame pattern it LOG 3 is essential to spread supplied Crushed Glass or MQEMBER directly LOG 4... -
Page 47: Mqrbrw Birch Log Set
MQZCVBG34 MQRBRW Option ⚠ NOTE • Pilot area must not be covered, as delayed ignition could occur • For best flame pattern it is essential to spread supplied Crushed Glass or MQEMBER directly onto burner tube. • If sooting occurs, one or more logs may be moved. -
Page 48: Mq42D Driftwood Log Set
MQZCVBG34 MQ42D Driftwood Logs Option *NOTE: THESE ITEMS ARE SUPPLIED WITH THE FIREPLACE: LOG 1 *Insulation Wool LOG 4 *Embers LOG 5 *Lava Rock LOG 2 LOG 3 LOG 6 LOG 6 can be replaced with LOG 2 if desired. However, one of these logs must be omitted from the setup. -
Page 49: Mqlogf34Bw Birch Log Set
MQLOGF34BW Birch Log Set Option ⚠ ⚠ NOTE: For best flame pattern it is essential to WARNING: Failure to position the parts in spread supplied Crushed Glass or MQEMBER accordance with these diagrams or failure to use directly onto burner tube. If sooting occurs, one only parts specifically approved with this appliance or more logs may be removed. -
Page 50: Mqlogf34Oak Oak Log Set
MQLOGF34OAK Oak Log Set Option ⚠ ⚠ NOTE: For best flame pattern it is essential to WARNING: Failure to position the parts in spread supplied Crushed Glass or MQEMBER accordance with these diagrams or failure to use directly onto burner tube. If sooting occurs, one only parts specifically approved with this appliance or more logs may be removed. -
Page 51: Mqlogf34Bw & Mqlogf34Oak Setup Instructions
MQLOGF34BW & MQLOGF34OAK Setup Instructions Pull up Log Tabs for Log 3 Set Log 3 onto Tabs on Burner Place Embers and Insulation Place Lava Rock Wool on Burner beside burner... -
Page 52: Gas Line Installation / Gas Specifications Chart
Massachusetts. This is in reference to the state Shutoff valves installed in tubing systems of Massachusetts state code CMR238. shall be rigidly and securely supported independently of the tubing. Gas Specifications MODELS MQZCVBG34NE2 MQZCVBG34LPE2 Fuel Natural Propane Gas Control INPUT... -
Page 53: Annual Inspection List
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., relief dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate. -
Page 54: Troubleshooting The Gas Control System
Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is... -
Page 55: Burner System Maintenance
MQZCVBG34 Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. ⚠ -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 56: Gas Conversion Part A
MQZCVBG34 -Gas Conversion Part A- Models: MQZCVBG34NE2, MQZCVBG34LPE2 Burner Orifice Kit Number Description Pilot Orifice Brass (1000-255) Brass Nipple Air Shutter Hi/Lo Regulator Propane Conversion 1001-P168SI 1002-P012SI 34BG-CKLPI2 1000-253 Close Fully Open -IPI- #35 (977.168) (907.012) NG Conversion 1001-P166SI 1002-P013SI... -
Page 57: Gas Conversion Part B - Top Convertible Sit Pilot
Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to PROPANE and from PROPANE to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions. -
Page 58: Gas Conversion Part C - Sit Valve And Modulator
Gas Conversion for Modulator – PART C... -
Page 59: Burner System Removal And Installation
MQZCVBG34 Burner Removal To remove Burner, remove Media Tray. Media Tray Remove the [4] DT Screws from Burner. Slide Burner slightly to the right to dislodge it from the Orifice and remove it from the fireplace. Pilot Shield -⚠ WARNING- Turn off Unit and allow to cool before cleaning. -
Page 60: Lighting Instructions- Ipi
- IPI Lighting Instructions - FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. • This appliance is equipped with an ignition device which If you cannot reach your gas supplier, call the fire automatically lights the pilot. -
Page 61: Parts List
Proflame 2 –NE2 / LPE2 -IPI System Parts List- IPI PROFLAME 2 - COMPONENT PARTS IPI - PF1 and PF2 Common Components PART NO. DESCRIPTION PART NO. DESCRIPTION 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper 13. 1002-P033SI TC - Pilot Burner IPI (Assembled) NG 199.033 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper 14. -
Page 62: Proflame 2 Ifc Module And Remote Control
IPI Proflame 2 IFC Module and Remote Control Batteries IFC Module Button remain on CPI (continuous pilot ignition) mode, all Pairing Remote Control: other functions of main burner, fan and lights will be • Install the 3 AAA type batteries in the battery bay, on the high setting. -
Page 63: Cold Climates - Cpi Setting
Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather. -
Page 64: Proflame 2 Remote Control
Proflame 2 Remote Control... - Page 65 Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. FAN OPTION NOT AVAILABLE (Halogen lights only) Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode.
-
Page 66: Proflame 2 Schematic
FAN OPTION AVAILABLE... -
Page 67: Vent Terminal Clearances
MQZCVBG34 Vent Terminal Clearances NOTE: A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE WHEN REQUIRED BY LOCAL CODES. Clearances are to the edge of the terminal plate. Add 6-3/4” to clearances to arrive at centerline. Local codes or regulations may require different clearances. -
Page 68: General Vent Installation
General Vent Installation Information This gas appliance is approved to be vented either through Place the spring spaces provided approximately every two the side wall or vertically through the roof. Only Kingsman feet to stabilize 5” flex in the center of 8” flex. When forming Flex (Z-Flex) Venting Kits and components specifically bends place spring in bend or before and after. -
Page 69: Installation Of Side Wall Venting
MQZCVBG34 Installation of Side Wall Venting To determine the minimum distance from the bottom of fireplace to center of vent see the Framing Your Gas Fireplace section. Cut a hole through the wall allowing for a 12” x 12” (inside diameter) in combustible walls for wall thimble or a 9” diameter hole in a non-combustible wall (See Figure 2). -
Page 70: Venting Routes And Components
MQZCVBG34 Venting Routes and Components Venting Routes and Components How to Use the Horizontal Vent Table Since it is very important that the vent system maintain its 1. Determine the height of the system and the number of balance between the combustion air intake and the flue gas bends required. -
Page 71: Flue Restrictor
MQZCVBG34 Flue Restrictor The Flue Restrictor is located in the top of the Firebox in front of the Flue Opening. For power vent and longer vertically vented installations it is necessary to use the Flue Restrictor. The Flue Restrictor is set fully open from the factory for short horizontal and vertical runs. INSIDE TOP OF FIREBOX FLUE RESTRICTOR FLUE... -
Page 72: Venting Straight Up Through Roof
Venting Straight Up Through Roof An Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. It is designed to keep insulation materials away from the chimney. When installing the Attic Insulation Shield where the chimney passes from a living space to an attic space, install the shield from below and nail in place using 1"... - Page 73 -Restrictor- Remove for Runs Under 15 Feet Clearances in horizontal venting. Z58VT Clearance to adjacent or perpendicular wall is 24 inches (60 cm). (Recommended to prevent re-circulation of exhaust products. For additional requirements check local codes.) 24” 18” MIN Clearance above highest point of exit on roof 18 inches (45cm)
-
Page 74: Venting - Cathedral Ceiling
MQZCVBG34 Venting - Cathedral Ceiling Just as with a normal ceiling, an Attic Insulation Shield must be WARNING: HEAT CANNOT BE DISCHARGED installed where the fireplace vent passes from a lower living space into INTO THE WALLS, FLOOR, OR CEILING. Heat must exit through the required 2-1/4”... -
Page 75: Co Linear Flex Kits
Fireplace Installations Using Co Linear Flex Kits WARNING CO-AXIAL TO CO-LINEAR VENTING CONFIGURATIONS MUST ONLY BE USED IN A NON-COMBUSTIBLE CHIMNEY OR ENCLOSURE. INSTALLATION IN A COMBUSTIBLE ENCLOSURE COULD RESULT IN A FIRE. MININMUM VENT HEIGHT IS 12 FEET. MAXIMUM VENT HEIGHT IS 43 FEET. IDVVT43 STANDARD VERTICAL CO-LINEAR... -
Page 76: Approved For Power Vent
Approved for Power Vent PVH58 / PVH58FM - This appliance is approved for use with Kingsman Horizontal Power Vents - A Horizontal Power Vent Termination is intended for use where standard venting configurations are not possible. Refer to Power Vent Manual for proper installation and use. •... -
Page 77: Power Vent Parts List
Power Vent Parts List – 5/8 Venting NUMBER DESCRIPTION PVH58 Horizontal Power Vent Starter Kit ‐ Exterior Mount PVH58FM Horizontal Power Vent Kit ‐ Flush Mount Note: Must use a one foot section of 5/8 DV hard pipe to connect to the Power Vent Termination (not supplied) CHOOSE CONTROL MODULE OR HARNESS DEPENDENT ON VALVE SYSTEM PVC58MV Power Vent Control Module ‐... -
Page 78: Parts Lists
MQZCVBG34 - Parts List - Part No. Description Fireplaces Decorative Ember Glass – Black MQG5B MQZCVBG34NE2 Heater Rated Fireplace, NG, MQG5ZG Decorative Glass- Zircon Glacier Ceramic Glass, Low E Tempered Ice 5LB Glass Safety Barrier, IPI System MQG5C Decorative Glass Bronze 5LB... - Page 79 Orifice Brass - (State Size) 1000-255 FP15GC Stainless Steel Gas Connector Kingsman Fireplace Venting Z58VT Vertical Vent Termination Z58HT Horizontal Vent Termination FDVHSCU Safety Cage for Horizontal Termination Z58AIS Attic Insulation Shield Z58AIS24 Attic Insulation Shield ZDVVOS Offset Support Z58FS Firestop Spacer Z58RS Roof Support...
-
Page 80: Limited Lifetime Warranty
This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
