Models: HBZDV3624N, HBZDV3624NE, HBZDV3624NE2, HBZDV3624LP, HBZDV3624LPE, HBZDV3624LPE2 are
Certified to: ANSI Z21.88-2017 • CSA 2.33:2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
Models: HBZDV3628N, HBZDV3628NE, HBZDV3628NE2, HBZDV3628LP, HBZDV3628LPE, HBZDV3628LPE2 are
Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017

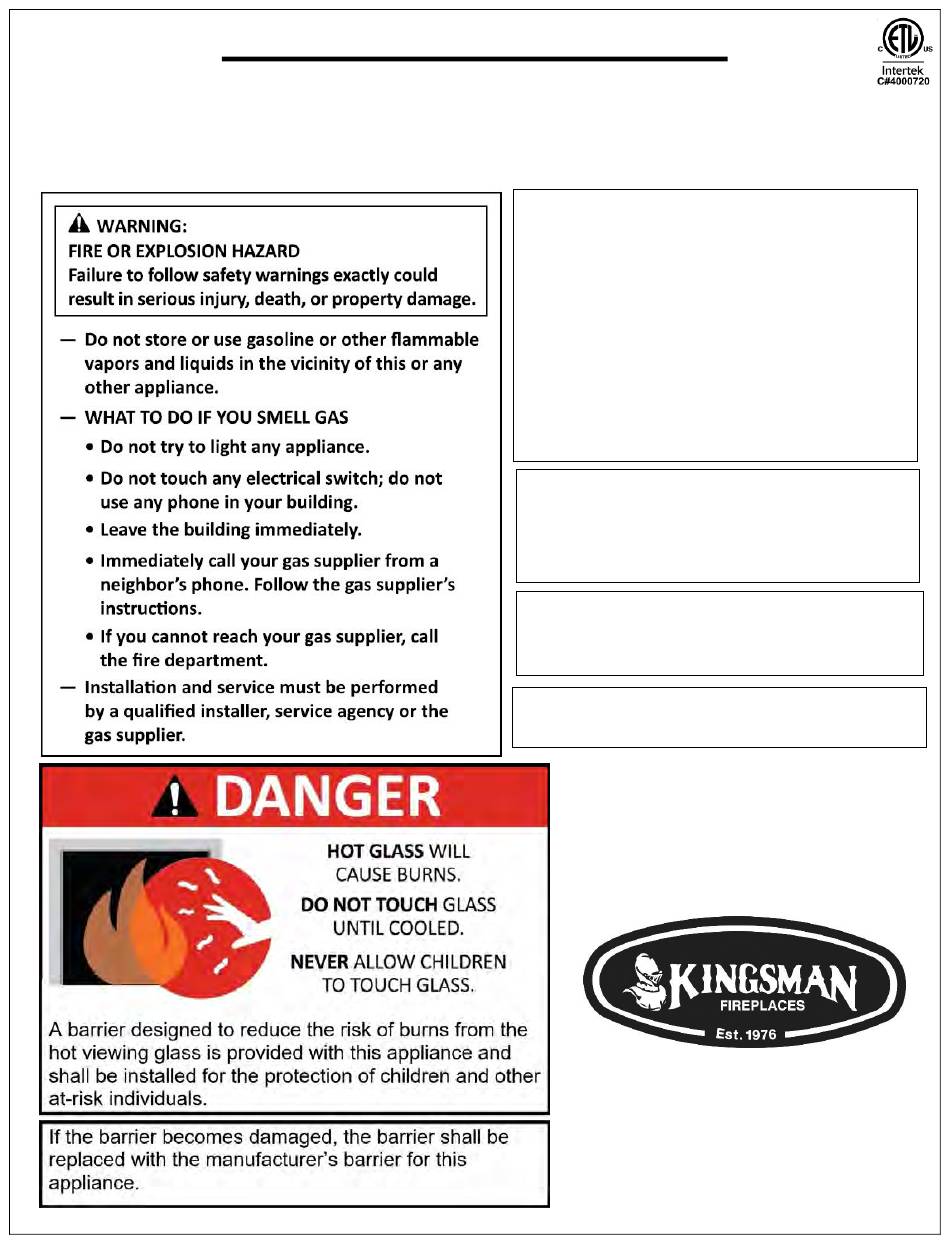

Installation Instructions
HBZDV3624, HBZDV3628
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local
codes.
This appliance is only for use with the
type of gas indicated on the rating
plate. This appliance is not convertible
for use with other gases, unless a
certified kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
For Propane Horizontal installations the
venting must be a minimum of one foot
vertical off the flue before going horizontal.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada August 28, 2019
Part # 36HB-MAN17
