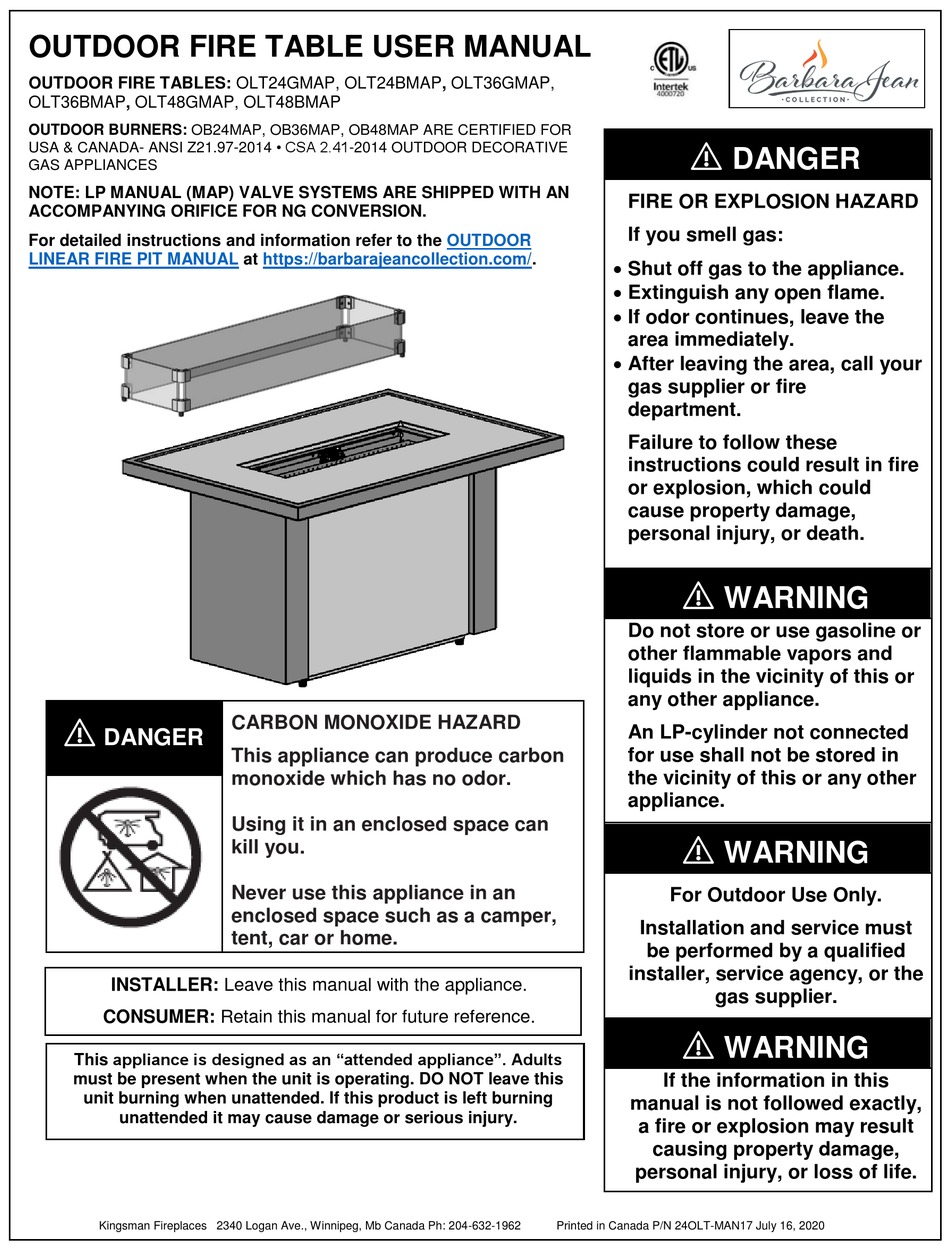

OUTDOOR FIRE TABLE USER MANUAL
OUTDOOR FIRE TABLES: OLT24GMAP, OLT24BMAP, OLT36GMAP,
OLT36BMAP, OLT48GMAP, OLT48BMAP
OUTDOOR BURNERS: OB24MAP, OB36MAP, OB48MAP ARE CERTIFIED FOR
USA & CANADA- ANSI Z21.97-2014 • CSA 2.41-2014 OUTDOOR DECORATIVE
GAS APPLIANCES
NOTE: LP MANUAL (MAP) VALVE SYSTEMS ARE SHIPPED WITH AN
ACCOMPANYING ORIFICE FOR NG CONVERSION.
For detailed instructions and information refer to the
LINEAR FIRE PIT MANUAL
⚠
DANGER
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance is designed as an "attended appliance". Adults
must be present when the unit is operating. DO NOT leave this
unit burning when unattended. If this product is left burning
unattended it may cause damage or serious injury.
Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962
at https://barbarajeancollection.com/.
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can
kill you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
OUTDOOR
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the
After leaving the area, call your
Printed in Canada P/N 24OLT-MAN17 July 16, 2020
⚠
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
area immediately.
gas supplier or fire
department.
Failure to follow these
instructions could result in fire
or explosion, which could
cause property damage,
personal injury, or death.
⚠
WARNING
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
⚠
WARNING
For Outdoor Use Only.
Installation and service must
be performed by a qualified
installer, service agency, or the
gas supplier.
⚠
WARNING
If the information in this
manual is not followed exactly,
a fire or explosion may result
causing property damage,
personal injury, or loss of life.
Advertisement
Table of Contents
Related Manuals for Kingsman Fireplaces OLT24GMAP
Summary of Contents for Kingsman Fireplaces OLT24GMAP
- Page 1 Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962 Printed in Canada P/N 24OLT-MAN17 July 16, 2020...
-
Page 2: Warnings
WARNING FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING: when an appliance is for connection to a fixed piping system, the installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 • NFPA 54; National Fuel Gas Code;... -
Page 3: Table Of Contents
- Table of Contents - Warnings................................ Important Information About Outdoor Fireplaces................... Table of Contents............................Locating Your Appliance..........................Fire Table Dimensions........................... Glass Media for Outdoor Burners........................Optional Media Accessories........................... Wind Guards..............................Burner Lids for OB Burners – Optional......................20lb Cylinder Installation..........................Safety Information and Manual Lighting Instructions.................. -
Page 4: Locating Your Appliance
Locating Your Appliance Note: Ventilation and air flow comes from openings in the walls and ceiling. Open floor space around the appliance must not be considered ventilation and air flow space. This unit requires combustion air and will produce exhaust gases. Install in an open-air situation with natural ... -
Page 5: Fire Table Dimensions
Fire Tables –Dimensions OLTW24MAP BURNER OPTIONS: OB24MAP (c/w #40 Orifice for NG) OLTW36MAP BURNER OPTIONS: OB36MAP (c/w #31 Orifice for NG) OLTW48MAP BURNER OPTIONS: OB48MAP (c/w #30 Orifice for NG) -
Page 6: Glass Media For Outdoor Burners
Glass Media for Outdoor Burners Choose Glass Media ‐ 5 lbs. per Foot of Burner (i.e.: 24" burner = 10lbs) Product Spread glass evenly in burner tray. Number Description Pilot Shield must not be covered, as a delayed ignition can occur (See photo below). MQG5ZG Glass Media ‐... - Page 7 MQRBD4 – Driftwood Log Set – 3 piece Place Logs Randomly as shown. Do not cover Pilot. MQROCK2 – Rock Set, Contemporary Collection – Natural MQROCK3 – Rock Set, Contemporary Collection – Multi- Colored MQSTONE – Decorative Stones – 80 Piece Set MQSTONE10 –...
-
Page 8: Wind Guards
Wind Guards Fire Tables A Wind Guard is Required for Outdoor Fire Tables. Parts List: [4] Bottom Feet, [8] Corner Brackets c/w neoprene tipped screws, [2] Glass End Panels, [2] Glass Side Panels Wind Guards: O24WG – 24” Fire Table O36WG –... -
Page 9: Burner Lids For Ob Burners - Optional
Burner Lids for OB Burners - Optional Parts List: [1] Burner Lid 24LT-LID – OB24 Burners 36LT-LID – OB36 Burners 48LT-LID – OB48 Burners - WARNING - PILOT KNOB MUST BE TURNED TO THE “OFF” POSITION BEFORE INSTALLING BURNER LID. SERIOUS DAMAGE CAN BE CAUSED TO THE APPLIANCE AND PROPERTY IF PILOT IS LEFT ON AND THE MAIN BURNER IS TURNED ON WHEN BURNER LID IS INSTALLED. -
Page 10: 20Lb Cylinder Installation
20lb Cylinder Installation - Fire Table - Tank Brace Foot Ring Installation of 20lb Cylinder Replace Tank Brace. Drops into into Fire Tables: Slide over Protective Round Remove Top Clamp. Collar of 20lb cylinder Hole Connect 20lb cylinder to ... -
Page 11: Safety Information And Manual Lighting Instructions
Safety Information and Manual Lighting Instructions FOR YOUR SAFETY READ BEFORE LIGHTING ⚠ WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance must be lit by hand. When lighting, C. -
Page 12: Burner System Maintenance
Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 13: General Maintenance Instructions
OB24 / OB36 / OB48 General Maintenance Instructions The appliance should be inspected before initial use and inspected and cleaned at least annually by a qualified field service person. Tampering is DANGEROUS and voids all warranties. Any component that is found to be faulty, must be replaced with an approved component. -
Page 14: Gas Conversion - Manual Systems
Gas Conversion – PART A - MANUAL SYSTEMS – NOTE: CONVERSION SHOULD BE COMPLETED BEFORE BURNER IS INSTALLED. Caution- the gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion. TO CONVERT PROPANE (MAP) SYSTEMS TO NATURAL GAS TO CONVERT NATURAL GAS (MAN) SYSTEMS TO PROPANE (MAN): (MAP):... -
Page 15: Gas Specifications, Gas Line Installation
- Gas Specifications - Manual Valve Systems Orifice Gas Supply Manifold Manifold Max / Min Air Shutter Models Fuel Size Inlet Pressure Pressure Pressure Control (Btu) Opening (0-4500ft) Size (Inches w.c.) High Dante Dante 5” Min OB24MAN Natural Gas 40,000 1/16”... -
Page 16: Troubleshooting
Outdoor Burners - Troubleshooting the Gas Control System NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the “ON” position. Problem Possible Causes Corrective Action Check for spark at electrode and pilot: if no spark and electrode wire is properly connected, replace igniter. -
Page 17: Plumbing Parts - Ob Burners 24 / 36 / 48
Outdoor Burners – Plumbing Parts – OB24 / 36 / 48 OB24MAP / OB36MAP / OB48MAP Part Description 8. 42MCV-P16FF 3/8” Stainless Steel Flex Connector -16” Long 1. 3632HB-P496C Brass Elbow, 3/8” Tube to 9. 1000-255 Brass Orifice, NG or LP (Specify 3/8”NPT size). -
Page 18: Outdoor Fire Tables - Parts Lists And Accessories
Decorative Stones ‐ 80 pc. Set Outdoor Fire Tables MQSTONE10 Decorative Stones ‐ 10 pc. Set OLT24GMAP Outdoor Fire Table-24”, Black with Gray End Cannonballs ‐ Assorted size and colors x Doors, c/w Linear Burner 24" - Manual Valve RBCB1... - Page 19 Optional Burner Lids 24LT-LID Burner Lid for 24" - Black 36LT-LID Burner Lid for 36" - Black 48LT-LID Burner Lid for 48" - Black Weather Covers OB24WWC Weather Cover - Wide - Black OB36WWC Weather Cover - Wide - Black OB48WWC Weather Cover - Wide - Black Replacement Glass And Brackets...
-
Page 20: Limited Warranty
LIMITED WARRANTY Save this certificate. It gives you specific legal rights, and you may also have other rights which may vary from one province or state to another. In the event your unit needs servicing contact your dealer or contractor who installed or services your unit. When requesting service, please have the model and serial number from each unit readily available.
