TPL5111EVM User 's Guide
User's Guide
Literature Number: SNAU183
July 2015

Advertisement

Table of Contents
loading

Related Manuals for Texas Instruments TPL5111EVM

Summary of Contents for Texas Instruments TPL5111EVM

  • Page 1 TPL5111EVM User 's Guide User's Guide Literature Number: SNAU183 July 2015...

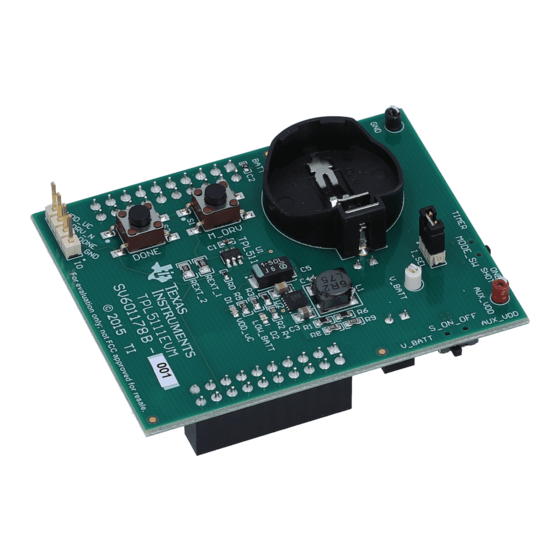

  • Page 2 The output of the TPS61029 drives a green LED, indicating when the output voltage is active. The TPL5111EVM may be connected to the MSP430F5529 Launchpad in order to test its watchdog and timer features in a microprocessor system. The output bus of the boost converter is connected to the Launchpad connector to provide gated power to the Launchpad.
  • Page 3 Name Layer Description J1/J3 Bottom 2 x 10 pin receptacle to plug the TPL5111EVM into MSP430F5529 Launchpad. J4/J2 Bottom 2 x 10 pin receptacle to plug the TPL5111EVM into MSP430F5529 Launchpad. Bottom 2 pin receptacle to plug the TPL5111EVM into MSP430F5529 Launchpad.

  • Page 4: Evm Configuration

    3. Place the S_ON_OFF switch in the AUX_VDD position. 2.1.3 EVM with Micro Controller 1. Disable power to the TPL5111EVM. 2. Connect a microcontroller system to the EVM using the IO header pins (VDD_uC, DRVn, DONE and GND). 3. Connect a voltage source as described in either Section 2.1.1...
  • Page 5 Setup www.ti.com 3. Connect a voltage source to the TPL5111EVM as described in either Section 2.1.1 Section 2.1.2. 4. Place the S_ON_OFF switch of the TPL5111EVM in the appropriate position WARNING Do NOT use the DONE switch in this configuration. The DONE signal should be supplied by the MSP430 on the Launchpad.

  • Page 6: Operation

    The DRVn pulse may be observed by attaching an oscilloscope probe to the DRV_N pin, as indicated in Figure Figure 3. Signal Monitoring Points TPL5111EVM User 's Guide SNAU183 – July 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 7 DRV_N signal, the output of the boost converter should turn on, with a delay of approximately 2.5 ms to 5 ms. The output level should be approximately 3.3V. Figure 5. Boost Converter Input (DRVn) and Output (VDD) SNAU183 – July 2015 TPL5111EVM User 's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 8: One Shot Mode

    4. Connect the EVM, a power supply and a digital multi-meter (DMM) as shown in Figure 6. The output of the power supply should be OFF. The DMM should support 6 digits of resolution. TPL5111EVM User 's Guide SNAU183 – July 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 9 6. Set the S_ON_OFF switch of the EVM to AUX_VDD. 7. The current measured by the DMM should be in the range of 20 nA to 50 nA. SNAU183 – July 2015 TPL5111EVM User 's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 10 7. Press and hold the M_DRV switch. 8. The current measured by the DMM should be in the range of 330 µA to 400 µA. TPL5111EVM User 's Guide SNAU183 – July 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 11: Board Layout

    Board Layout www.ti.com Board Layout Figure 7. Top Layer SNAU183 – July 2015 TPL5111EVM User 's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 12 Board Layout www.ti.com Figure 8. Layer 2, Ground Layer TPL5111EVM User 's Guide SNAU183 – July 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 13 Board Layout www.ti.com Figure 9. Layer 3, Power Supply Planes SNAU183 – July 2015 TPL5111EVM User 's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 14 Board Layout www.ti.com Figure 10. Bottom Layer TPL5111EVM User 's Guide SNAU183 – July 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
  • Page 15 Schematic www.ti.com Schematic Figure 11. TPL5111EVM Schematic SNAU183 – July 2015 TPL5111EVM User 's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...

  • Page 16: Bill Of Materials

    DDC0006A Adjustable, 1.8-A Switch, 96% Efficient Boost TPS61029DRCR Texas Instruments Converter with Down-Mode, DRC0010A V_BATT White Test Point, Miniature, White, TH 5002 Keystone TPL5111EVM User 's Guide SNAU183 – July 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
