VIVOTEK

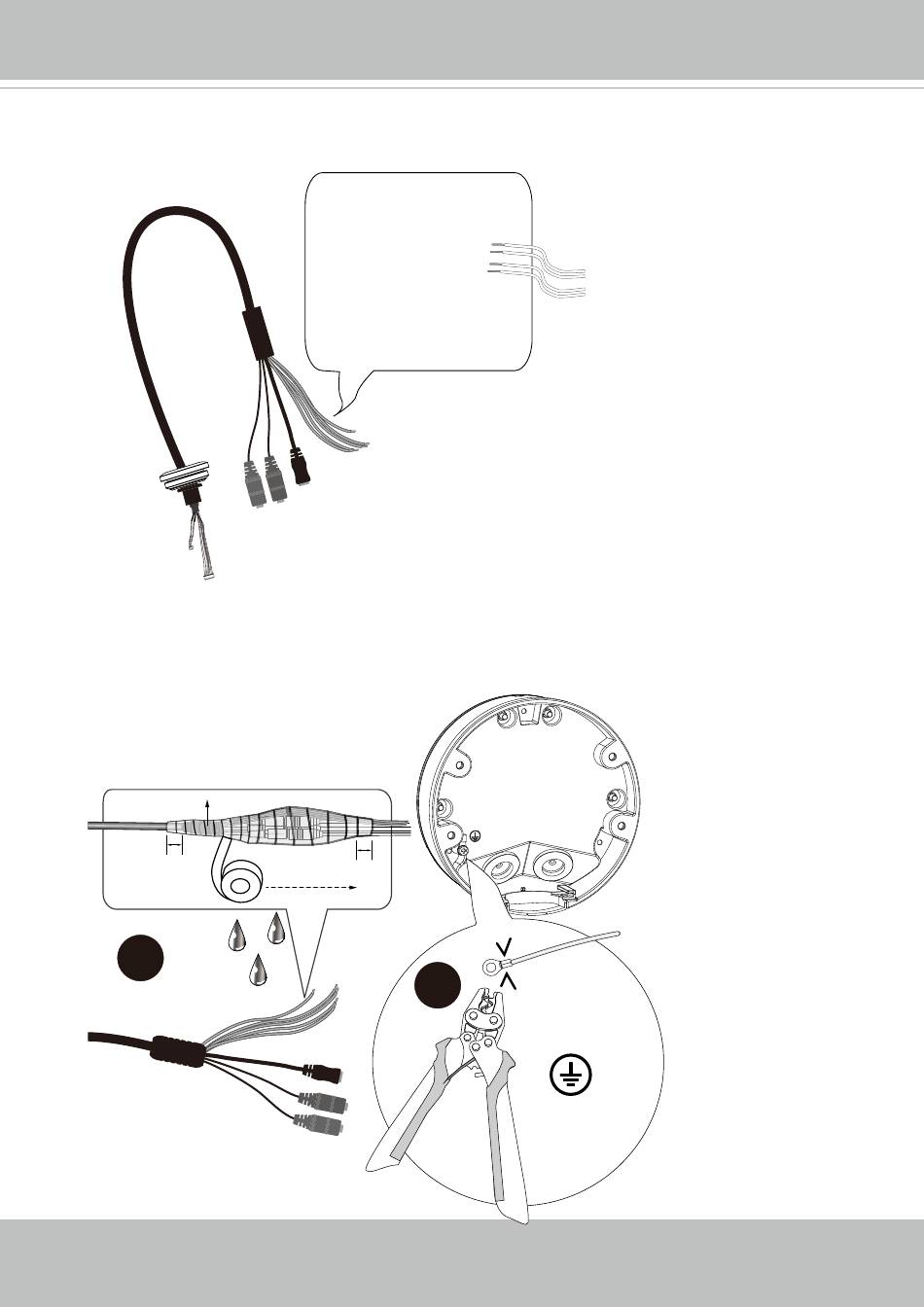

9. Below are the pinouts of the I/O combo cable. If you prefer more audio, DC, and I/
O connections, you can purchase and install an extension kit. Refer to the installation
option B section for more information.
10. All cabling joints on the outside of the camera must be properly sealed for
waterproofing.
Use a crimping plier to connect a grounding wire to the ground screw following the
instructions below.
1. Stretch the waterproof tape by twice its length and
wind around the cables.
2. The tape should overlap the cable joints by 20mm.
3. All connectors, whether they are used or not,
should be waterproof.
Cable molding
2cm
Layer - Self-fusing tape
or electric tape
1
12 - User's Manual
DI-: Yellow
icro icro
DI1+: Blue
DO1-: Orange
DO+(12V): Brown
2cm
2
icro
18 AWG min.
3.5mm screw mm.
Green & Yellow wires
Crimping plier
* Use knurled washers
