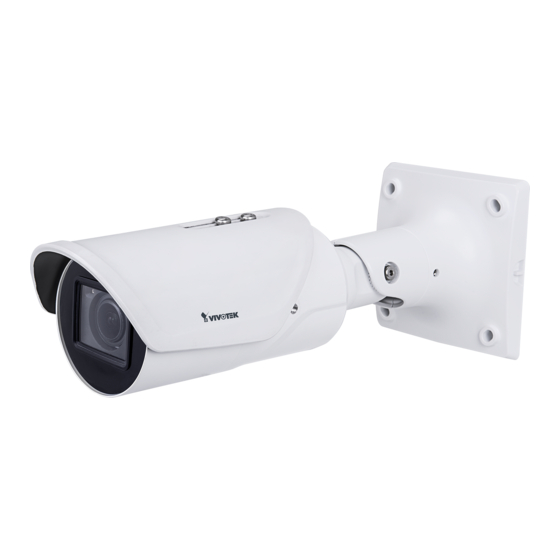

Vivotek IB9387 Series User Manual

Bullet network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IB9387-H, IB9387-EH, IB9387-HT, IB9387-EHT
IB9387-LPR
User 's Manual
5MP • Outdoor • IP66/IP67 • IK10 • Day & Night • Remote Focus (T)
WDR Pro II • Smart Stream III • SNV II • 30M Smart IR
Bullet Network Camera
Rev. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IB9387 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek IB9387 Series

Summary of Contents for Vivotek IB9387 Series

  • Page 1 IB9387-H, IB9387-EH, IB9387-HT, IB9387-EHT IB9387-LPR Bullet Network Camera User ’s Manual 5MP • Outdoor • IP66/IP67 • IK10 • Day & Night • Remote Focus (T) WDR Pro II • Smart Stream III • SNV II • 30M Smart IR Rev.

  • Page 2: Table Of Contents

    Applications > DI and DO ..........................138 Applications > Tampering detection ........................139 Applications > Audio detection ......................... 140 Applications > Shock detection ......................... 142 Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) ..... 143 2 - User's Manual...

  • Page 3: Overview

    Electromagnetic Compatibility (EMC) ....................... 374 Overview The IB9387 series is a camera line to comes embedded with the Smart Motion Detection feature. The Smart Motion detection, with Human detection and tunable time filter, can eliminate the defects of traditional motion detection and facilitate the configuration at a surveillance site.

  • Page 4: Revision History

    VIVOTEK Revision History ■ Rev. 1.0: Initial release. ■ Rev. 1.1: Added information for IB9387-LPR. Read Before Use The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system.

  • Page 5: Package Contents

    VIVOTEK Package Contents ■ IB9387 (w/o junction box) ■ L-wrench, desiccant bag, screws. ■ Sunshield and screws. ■ Quick Installation Guide & alignment sticker. ■ AM-719 Junction box (separately purchased). WARNING: 1. IR lights emit from ths product. 2. Use appropriate shielding or eye protection.

  • Page 6: Physical Description

    VIVOTEK Physical Description Outer View Sunshield IR LEDs Lens Inner View IB9387-HT, IB9387-EHT IB9387-H, IB9387-EH 6 - User's Manual...
  • Page 7 VIVOTEK NOTE: Some of the suffix syntax used in model naming are listed below: w/ heater for extreme weather Focal length w/ number w/ Remote focus lens w/ PoE repeater w/ High Dynamic Range functionality IMPORTANT: 802.3at 100~240V LAN/PoE GE LAN...

  • Page 8: Hardware Installation

    VIVOTEK Hardware Installation IMPORTANT: If you plan to use the Human Detection feature, make sure you measure the height of your camera. The height information is important for the accuracy of the video analytics results. Some of the other perspective information are automatically collected by the onboard S-sensor.
  • Page 9 VIVOTEK 1. Jot down the camera's MAC address for later reference. XXXXXX 0002D10766AD 2. Turn the front section of the camera counter-clockwise to remove the front section. 3. Install a MicroSD card. IB9387-HT, IB9387-EHT IB9387-H, IB9387-EH User's Manual - 9...
  • Page 10 VIVOTEK 4. Replace the desiccant bag on the side of the camera infrastructure. IB9387-HT, IB9387-H, IB9387-EH IB9387-EHT 5. Install the front section by turning it clock-wise until it is tightly fastened. 10 - User's Manual...
  • Page 11 VIVOTEK 6. Install the sunshield. 7. If used, connect the DI/DO, or audio wires to the terminal connectors. MIC P icro MIC N DO+ (5V) User's Manual - 11...
  • Page 12 VIVOTEK 8. Pass an Ethernet cable through the waterproof cable gland components, and through the rubber seal as shown below. Connect the Ethernet cable to the camera's RJ45 onnector. 9. Use the alignment sticker to drill mounting holes on the wall. If preferred, drill a routing hole.
  • Page 13 VIVOTEK 10. Use putties to seal the cable joints for water-proofing. Connect the ground wire to a grounded earth rod with a resistance smaller than 4Ω, with a section area larger than 25mm , to a ground rod 1.5 meters into the ground.
  • Page 14 VIVOTEK It is also very important to route cables to form a drip loop. Leakage or moisture can gather in condensation into water drops and run along the cable. A drip loop ensures no water gets to the camera. Drip loop...

  • Page 15: Software Installation

    Software Installation 12. Install the Shepherd utility, which helps you locate and configure your Network Camera in the local network. If your camera comes without the CD, go to VIVOTEK’s website, and locate the utility in the Downloads > Software page.
  • Page 16 12-2. The program will conduct an analysis of your network environment. 12-3. The program will search for all VIVOTEK network devices on the same LAN. 12-4. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label.
  • Page 17 VIVOTEK Forceful Password Configuration 13. The first time you log in to the camera, the firmware will prompt for a password configuration for security concerns. 13-1. Since your camera is used for the first time, there is no password. Enter “root” as the user name, and nothting for the password.
  • Page 18 VIVOTEK Some, but not all special ASCII characters are supported: !, $, %, -, ., @, ^, _, and ~. You can use them in the password combination. 13-3. Another prompt will request for the password you just configured. Enter the password and then you can start configure your camera and see the live view.
  • Page 19 VIVOTEK 14. Loosen, but not completely remove, the retention screws on the wall-mount bracket to adjust the camera’s shooting direction. You can pan, tilt, or rotate the camera. 15. According to the live view, adjust the shooting direction. User's Manual - 19...
  • Page 20 VIVOTEK 16. Tighten the retention screws when you are statisfied with the field of view. 17. From a web console, open the firmware configuration page. Enter the Configuration > Media > Image > Focus page. You will see a live stream on screen. If preferred, you can zoom in on the scene.
  • Page 21 VIVOTEK DI/DO Diagram 1. The DO+ pin provides a 5V output, and the max. load is 50mA. 2. The max. voltage for DO- pins is 30VDC (External power). In order to control AC devices, the following diagram can be taken into consideration.
  • Page 22 VIVOTEK Wet contact with external DC power source to supply a relay. Switch DC 0V External DC power External AC power with Protected Earth Relay External Device Dry contact and using camera’s DO+ to supply a relay. Switch External AC power...

  • Page 23: Installation Of Optional Accessories

    VIVOTEK Installation of Optional Accessories Use the included drill-hole template to drill mounting holes on a wall. Secure the conduit box to wall using the included screws. AM-719 Loosen and remove the plastic cap under the conduit box. User's Manual - 23...
  • Page 24 VIVOTEK Install a 3/4" conduit along with its connector to the conduit hole either at the center of at the bottom. Route cables through the conduit. 3/4” Secure the camera to the conduit box using the included pan head screws. Carefully arrange the cabling connections inside the conduit box.
  • Page 25 VIVOTEK LED Definitions Item LED status Description Steady Powered and system booting, or network failed LED off Power off Green LED off Network is disconnected Steady Green LED blinks every 1 Connected to network sec. Green LED blinks every 1 sec. and Upgrading firmware LED blinks consecutively every 0.15 sec.

  • Page 26: Network Deployment

    VIVOTEK Network Deployment General Connection (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a sin- gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE- enabled switch via Ethernet cable.

  • Page 27: Ready To Use

    VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras.
  • Page 28 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below. 1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
  • Page 29 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.

  • Page 30: Accessing The Network Camera

    3. Live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.
  • Page 31 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 104.
  • Page 32 VIVOTEK IMPORTANT: • Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser. • If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\ SysWOW64.

  • Page 33: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC media player VLC media player 1. Launch the RTSP player. mpegable Player 2.

  • Page 34: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.

  • Page 35: Using Vivotek Recording Software

    Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com. Tips: 1. If you encounter problems with displaying live view or the onscreen plug-in control, you may try to remove the plug-ins that might have been installed on your computer.

  • Page 36: Main Page

    VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window. Resize Buttons VIVOTEK INC. Host Name...
  • Page 37 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 41. Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
  • Page 38 VIVOTEK PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming a smaller view frame within a large view frame. Please refer to PTZ settiings on page 119 for detailed information. Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream).
  • Page 39 VIVOTEK Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.
  • Page 40 VIVOTEK Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button after clicking the Mute button. Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal mode.

  • Page 41: Client Settings

    VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.265/H.264 Media Options Select to stream video or audio data or both.
  • Page 42 VIVOTEK Two way audio Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera. Full duplex: Audio is transmitted in both directions simultaneously. MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page.
  • Page 43 VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software.
  • Page 44 VIVOTEK Buttons Configuration In the Button Configuration window, the left column shows the actions you can assign, and the right column shows the functional buttons and assigned actions. The number of buttons may differ from different joysticks. Please follow the steps below to configure your joystick buttons: 1.
  • Page 45 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons: 1. Select a button number from the Button # pull-down menu. Tips: If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.

  • Page 46: Configuration

    Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item.

  • Page 47: System > General Settings

    VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.
  • Page 48 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off.

  • Page 49: System > Homepage Layout

    Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo that is placed at the top of your homepage.
  • Page 50 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
  • Page 51 VIVOTEK ■ Follow the steps below to set up the customized homepage: 1. Click Custom on the left column. 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.

  • Page 52: System > Logs

    VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to a remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
  • Page 53 You can install the included VAST recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the VAST User Manual. VIVOTEK Network Cameras Internet 3G Cell phone HTTP...

  • Page 54: System > Parameters

    VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.

  • Page 55: System > Maintenance

    Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and locate the firmware file.
  • Page 56 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 86). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
  • Page 57 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
  • Page 58 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.

  • Page 59: Media > Image

    VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following columns: General settings, IR control, Image settings, Exposure, Focus, and Privacy mask. The Focus window is available only for models that come with motorized lens.
  • Page 60 VIVOTEK Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will be cleared after flip/mirror setting.
  • Page 61 VIVOTEK IR cut filter With a removable IR-cut filter, this Network Camera can automatically remove the filter to let Infrared light pass into the sensor during low light conditions. ■ Auto mode (The Day/Night Exposure Profile will not be available if Auto mode is selected) The Network Camera automatically removes the filter by judging the level of ambient light.
  • Page 62 VIVOTEK IR control Turn on built-in IR illuminator in night mode Select this to turn on the camera’s onboard IR illuminator when the camera detects low light condition and enters the night mode. Turn on external IR illuminator in night mode Select this to turn on the external IR illuminator when the camera detects low light condition and enters the night mode.
  • Page 63 VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment. Sensor Setting 2: For special situations Sensor Setting 1: For normal situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature.
  • Page 64 VIVOTEK Highlight mask ■ Strong light sources will be masked from the scene, and the image contrast will be strengthened. This function is useful to prevent the spot-light effects in a high dynamic scene. False color may be observed around the edges of strong light sources.
  • Page 65 VIVOTEK Exposure On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/schedule mode.
  • Page 66 VIVOTEK The inclusive window refers to the “weighted window“; the exclusive window refers to “ignored window“. It adopts the weighted averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
  • Page 67 VIVOTEK Exposure control: ■ Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to bright). You can click and drag the semi-circular pointers on the Exposure time and Gain control slide bars to specify a range of shutter time and Gain control values within which the camera can automatically tune to an optimal imaging result.
  • Page 68 VIVOTEK You can click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the settings. If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
  • Page 69 VIVOTEK Focus Focus here refers to the Remote Focus, applicable to Network Cameras that are equipped with a stepping motor lens. The automated focus adjustment function eliminates the needs to physically adjust camera focus. In an outdoor deployment consisting of a large number of cameras, the auto focus function can be very helpful when these cameras become out of focus after days or weeks of operation.
  • Page 70 VIVOTEK 5. Wait for the scan to complete. After a short while, the clearest image obtained should be displayed and the optimal focus range achieved. Use the arrow marks on the sides to fine-tune the focus if you are not satisfied with the results. You may still need to use the arrow marks to fine-tune the focus depending on the live image on your screen.
  • Page 71 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. ■ To configure privacy mask windows, 1. Click New to add a new window. 2. You can use 4 mouse clicks to create a new masking window, which is recommended to be at least twice the size of the object (height and width) you want to cover.

  • Page 72: Media > Video

    VIVOTEK Media > Video Mode The applicable video modes include: ■ 5MP (max. 30fps): This is the full resolution at 5 megapixels in a 4:3 screen aspect ratio. ■ 4MP (16:9) (max. 30fps): At the 16:9 aspect ratio, the usable resolution is slightly reduced to 4MP.

  • Page 73: Media > Video

    VIVOTEK Media > Video Stream settings This Network Camera supports multiple streams with frame sizes ranging from 480 x 352 to 2560 x 1920 pixels The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Size"...

  • Page 74: Media > Video

    VIVOTEK Please follow the steps below to set up those settings for a stream: 1. Select a stream for which you want to set up the viewing region. 2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Gloabl View window on the home page, will resize accordingly.
  • Page 75 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections. This Network Camera provides real-time H.265, H.264 and MJPEG compression standards (Triple Codec) for real-time viewing. If the H.265...
  • Page 76 VIVOTEK The frame rate will decrease if you select a higher resolution. ■ Intra frame period Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
  • Page 77 VIVOTEK With the H.265 codec in an optimal scenario and when Dynamic Intra frame is combined with the Smart Stream function, an 80% of bandwidth saving can be achieved compared with using H.264 without enabling these bandwidth-saving features. ■ Smart FPS In a static scene, the algorithm puts old frames in queue when no motions occur in scene.
  • Page 78 VIVOTEK • Smart codec: Smart codec effectively reduces the quality of the whole or the non- interested areas on a screen and therefore reduces the bandwidth consumed. You can manually specify the video quality for the foreground and the background areas.
  • Page 79 VIVOTEK As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.
  • Page 80 VIVOTEK Bit rate control ■ Constrained bit rate: A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. The bandwidth utilization is configurable to match a selected level, resulting in mutable video quality performance. The bit rates...
  • Page 81 VIVOTEK Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent.
  • Page 82 VIVOTEK If the JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.

  • Page 83: Media > Audio

    VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
  • Page 84 VIVOTEK Audio clips ■ Output gain: Use the slide bar to change the audio output gains value. ■ Audio clip: When the camera's audio input is connected to a microphone, you can record a short period of audio recordings (1 to 10 seconds). You can also use the camera's embedded microphone to record an audio clip, if available.

  • Page 85: Network > General Settings

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 15 for details.
  • Page 86 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
  • Page 87 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
  • Page 88 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
  • Page 89 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support ® IPv6. The browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
  • Page 90 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
  • Page 91 VIVOTEK User's Manual - 91...

  • Page 92: Network > Streaming Protocols

    VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 104 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
  • Page 93 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, 3> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter.
  • Page 94 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be digest potential risks of it being intercepted.
  • Page 95 Unrestricted in scope IMPORTANT: The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results, PTZ stream, textual data, and event messages between the camera and the client side running and observing the video analysis. If your client side computer is located outside the local network, you may need to open the associated TCP port on routers and firewall.
  • Page 96 VIVOTEK SIP is short for Session Initiation Protocol. If necessary, you can change the default port number, 5060, to one between 1025 and 65535. Two way audio port: The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously.
  • Page 97 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address.
  • Page 98 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
  • Page 99 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
  • Page 100 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
  • Page 101 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.

  • Page 102: Network > Snmp (Simple Network Management Protocol)

    VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

  • Page 103: Network > Ftp

    FTP function. You can disable the FTP server function when it is not in use. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Shepherd utility to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It can also be assigned to another port number between 1025 and 65535.

  • Page 104: Security > User Accounts

    VIVOTEK Security > User accounts This section explains how to enable password protection and create multiple accounts. Account management The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Account management window, please apply the password for the “root”...
  • Page 105 VIVOTEK Privilege management Digital Output & PTZ control: You can modify the management privilege as operators or viewers. Select or de-select the checkboxes, and then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page.

  • Page 106: Security > Https (Hypertext Transfer Protocol Over Ssl)

    VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 107 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
  • Page 108 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
  • Page 109 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
  • Page 110 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
  • Page 111 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. User's Manual - 111...
  • Page 112 VIVOTEK Note that 11. When the certifice file is successfully loaded, its status will be stated as Active. a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.

  • Page 113: Security > Access List

    VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
  • Page 114 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).
  • Page 115 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.
  • Page 116 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
  • Page 117 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
  • Page 118 VIVOTEK Security > Miscellaneous The embedded TrendMicro utitlity provides the protection against Cross-Site Request Forgery. Cross-site request forgery is also known as one-click attack or session riding and is abbreviated as CSRF. CSRF is a type of malicious exploit of a website, in this case, the camera.

  • Page 119: Ptz > Ptz Settings

    VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. Digital: Control the e-PTZ operation. Within a field of view,it allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera.
  • Page 120 VIVOTEK Home page in the E-PTZ Mode ■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected position. ■ If you have set up different preset positions for different streams, you can select one of the video streams to display its separate preset positions.
  • Page 121 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol. Please follow the steps below to set up a patrol schedule: 1. Select the preset locations on the list, and click 2. The selected preset locations will be displayed on the Patrol locations list.
  • Page 122 VIVOTEK NOTE: • The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and the Network Camera will move to the selected preset position. • Click Patrol: The Network Camera will patrol along the selected positions repeatedly.

  • Page 123: Event > Event Settings

    VIVOTEK Event > Event settings This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
  • Page 124 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this checkbox to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
  • Page 125 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
  • Page 126 VIVOTEK Once the triggers are configured, they will be listed under the VADP option. 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.
  • Page 127 VIVOTEK Add server It is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click server to open the server setting window.
  • Page 128 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings. Note that after you configure the first event server, the new event server will automatically display on the Server list.
  • Page 129 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
  • Page 130 VIVOTEK Network storage: Select to send the media files to a networked storage when a trigger is activated. Please refer to NAS server on page 149 for details. Note that only one NAS server can be configured. Click Save server to enable the settings.
  • Page 131 VIVOTEK Click 20180120 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2018/01/20 2018/01/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
  • Page 132 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
  • Page 133 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20180513_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings.
  • Page 134 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. Some users may need to stitch the video clips together when searching and packing up forensic evidence. ■ File name prefix Enter the text that will be appended to the front of the file name.
  • Page 135 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action. When completed, click the Save event button to enable the settings and click Close to exit Event Settings page.
  • Page 136 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. 20180213...

  • Page 137: Applications > Motion Detection

    VIVOTEK Applications > Motion detection The camera comes with a Smart Motion Detection utility as its pre-loaded VCA package. Please refer to its User Guide for more information: http://download.vivotek.com/downloadfile/solutions/vadp/smart-motion-detection-manual_ en.pdf. Click on Configuration > Applications > Motion detection. The Smart Motion utility will be automatically started.

  • Page 138: Applications > Di And Do

    VIVOTEK Applications > DI and DO Digital input: Select High or Low as the Normal status for the digital input connection. Connect the digital input pin of the Network Camera to an external device to detect the current connection status.

  • Page 139: Applications > Tampering Detection

    VIVOTEK Applications > Tampering detection This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint. Please follow the steps below to set up the camera tamper detection function: 1.

  • Page 140: Applications > Audio Detection

    VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
  • Page 141 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.

  • Page 142: Applications > Shock Detection

    VIVOTEK Applications > Shock detection The camera comes with a shock accelerometer. The shock sensor can detect impacts to the camera. For example, when a person deliberately tries to destroy the camera, the camera can report the event to the administrator.

  • Page 143: Applications > Package Management - A.k.a., Vadp (Vivotek Application Development Platform)

    Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's flash memory or SD card. These software modules can apply in video analysis for intelligent video applications such as license plate recognition, object counting, or as an agent for edge recording, etc.
  • Page 144 VIVOTEK To utilize a software module, acquire the software package and click Browse and Upload buttons. The screen message for a successful upload is shown below: To start a module, select the checkcircle in front, and click the Start button.
  • Page 145 VIVOTEK On the License page, register and activate the license for using VIVOTEK's VADP modules. You should acquire the license key elsewhere, and manually upload to the network camera. Follow the onscreen instruction on VIVOTEK's website for the registration procedure.

  • Page 146: Recording > Recording Settings

    VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card via the camera’s web console (in the Local storage .
  • Page 147 VIVOTEK If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively saves bandwidths and storage space.
  • Page 148 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. If you have not configured a NAS server, see details in the following. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1.
  • Page 149 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
  • Page 150 VIVOTEK Event f you want to enable recording notification, please click to configure event triggering settings. Please refer to Event > Event settings on page 123 for more details. When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page.

  • Page 151: Local Storage > Sd Card Management

    VIVOTEK Local storage > SD card management NOTE: • It is recommended to turn OFF the recording activity before you remove an SD card from the camera. • The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary.

  • Page 152: Local Storage > Content Management

    VIVOTEK SD card control ■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest file will be overwritten by the latest one. ■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file.
  • Page 153 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Numbers of entries displayed on one page Click to open a live view ■...
  • Page 154 VIVOTEK ■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example:...

  • Page 155: Appendix

    VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
  • Page 156 VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
  • Page 157 VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
  • Page 158 VIVOTEK Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n 6. Set Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>...
  • Page 159 VIVOTEK : <length>\r\n ir> where<parameter pair> is <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n...
  • Page 160 VIVOTEK Disable]. <value1>, Enumeration. Only given values are valid. <value2>, <value3>, … blank A blank string. everything inside <> A description integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server.
  • Page 161 VIVOTEK 7.1system Group: system NAME VALUE SECURITY DESCRIPTION (get/set) hostname string[64] Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/DD>, Current date of system. Set to ‘keep’ to keep keep, date unchanged.
  • Page 162 VIVOTEK Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS. 0: GMT Casablanca, Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris...
  • Page 163 VIVOTEK Melbourne, Sydney, Guam, Vladivostok 440: GMT 11:00 Magadan, Solomon Is., New Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automaticdaylight saving time in time zone. daylight_dstactualmode <positive integer> Check if current time is under daylight saving time.
  • Page 164 VIVOTEK parameters will be restored to default values except for a union of combined results. restoreexceptlang Restore the system parameters to default <positive integer> values except the custom language file the user has uploaded. This command can cooperate with other “restoreexceptXYZ”...
  • Page 165 VIVOTEK field will be equal to “modelname” serialnumber <mac address> 12 characters MAC address (without hyphens). firmwareversion string[40] Firmware version, including model, company, and version number in the format:<MODEL-BRAND-VERSION> language_count <positive integer> Number of webpage languages available on the server.
  • Page 166 VIVOTEK <product dependent> 1 => Active, triggered (capability.ndi > 0) do_i<0~(capability_ndo-1)> <boolean> 0 => Inactive, normal <product dependent> 1 => Active, triggered (capability.ndo > 0) onlinenum_rtsp 0,<positive Current number of RTSP connections. integer> onlinenum_httppush 0,<positive Current number of HTTP push server integer>...
  • Page 167 VIVOTEK 7.4digital output behavior define Group: do_i<0~(n-1)> for n is the value of "capability_ndo" (capability.ndo > 0) NAME VALUE SECURITY DESCRIPTION (get/set) normalstate open, Indicate open circuit or closed circuit (inactive grounded status) 7.5security Group: security NAME VALUE SECURITY DESCRIPTION...
  • Page 168 VIVOTEK 7.6network Group: network NAME VALUE SECURITY DESCRIPTION (get/set) preprocess <positive integer> An 32-bit integer, each bit can be set separately as follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
  • Page 169 VIVOTEK dns2 <ip address> Secondary DNS server. wins1 <ip address> Primary WINS server. wins2 <ip address> Secondary WINS server. 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable IEEE 802.1x eapmethod eap-peap, eap-tls...
  • Page 170 VIVOTEK 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS <product dependent> (capability.naudioin > 0)
  • Page 171 VIVOTEK 7.6.4 FTP Subgroup of network: ftp NAME VALUE SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. enable <boolean> Enable ftp. 7.6.5 HTTP Subgroup of network: http NAME VALUE SECURITY DESCRIPTION (get/set) port 80, 1025 ~ 65535 HTTP port.
  • Page 172 VIVOTEK 7.6.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE SECURITY DESCRIPTION (get/set) port 554, 1025 ~ 65535 RTSP port. (capability.protocol.rtsp=1) anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, RTSP authentication mode. basic, (capability.protocol.rtsp=1) digest s<0~(capability_nmediast string[32] RTSP access name for stream N, N= 1~ ream-1)>_accessname...
  • Page 173 VIVOTEK number (httpversion) is equal or greater than 0304a. audioipaddress <ip address> Multicast audio IP address. <product dependent> * We support this parameter when the version number (httpversion) is equal or greater than 0304a. * Only available when capability_naudioin > 0 metadataipaddress <ip address>...
  • Page 174 VIVOTEK pass password[64] PPPoE account password. 7.7IP Filter Group: ipfilter NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable access list filtering. admin_enable <boolean> Enable administrator IP address. admin_ip string[43] Administrator IP address. maxconnection 1~10 Maximum number of concurrent streaming connection(s).
  • Page 175 VIVOTEK 7.8Video input Group: videoin NAME VALUE SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. * Only available when capability_videoin_type is 2. whitebalance auto, Modes of white balance. "auto": Auto white balance <product dependent> panorama, manual, "panorama": indicates that camera would try...
  • Page 176 VIVOTEK 3: EV -1.0 4: EV -0.7 5: EV -0.3 6: EV 0 7: EV +0.3 8: EV +0.7 9: EV +1.0 10: EV +1.3 11: EV +1.7 12: EV +2.0 * Only available when "capability_image_c<0~(n-1)>_exposure_m ode" !=0 irismode fixed, indoor, Control DC-Iris mode.
  • Page 177 VIVOTEK capability_videoin_c<0~(n-1)>_rotation"=1 ptzstatus 0,<positive A 32-bit integer, each bit can be set separately <Not support anymore> integer> as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 =>Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 =>...
  • Page 178 VIVOTEK * Available value is listed in * This parameter may also restrict image "capability_image_c frame rate from sensor due to sensor <0~(n-1)>_exposu generates a frame per exposure time. Ex: If re_maxrange" this is set to 1/5s ~ 1/8000s and camera takes 1/5s on the night, then sensor only outputs 5 frame/s.
  • Page 179 VIVOTEK indoor, white balance manually. sodiumauto, "manual": 2 cases: a. if "rbgain" is not supported, this means keep current white balance (Available values are listed in status. "capability_image_c<0~(n-1)>_wbm b. if "rbgain" is supported, "rgain" ode") and "bgain" are updated to the current values which is got from white balance module.
  • Page 180 "irispriority": Manually adjust with "capability_image_c<0~(n-1)>_expo sure_modetype") variable Iris, and keep adjusting Gain and Shutter speed automatically. "qualitypriority": Automatically adjust the Iris, Gain and Shutter Speed by VIVOTEK quality algorithm. "manual": Manually adjust with variable Shutter, Iris and Gain. 180 - User's Manual...
  • Page 181 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0302a. * Only available when "capability_image_c<0~(n-1)>_expo sure_mode" !=0 irismode fixed, indoor, outdoor Control DC-Iris mode. <product dependent> "outdoor": Auto-setting DC-Iris to get best quality, but easy to meet rolling or flicker effect in indoor environment.
  • Page 182 VIVOTEK "capability_image_c<0~(n-1)>_iristy pe"=piris enableblc <boolean> Enable backlight compensation <Not support * Not support this parameter anymore anymore> when the version number (httpversion) is equal or greater than 0301a. * It's recommanded to use "exposurewin_c<0~(n-1)>_mode" to switch on/off BLC. maxgain 0~100 Maximum gain value.
  • Page 183 VIVOTEK "capability_image_c<0~(n-1)>_agc_ maxgain" != "-" and "capability_image_c<0~(n-1)>_expo sure_rangetype" is "onevalue". * Normalized range. * We support this parameter when the version number (httpversion) is equal or greater than 0302a. color 0, 1 0 =>monochrome 1 => color * Only available when "...
  • Page 184 VIVOTEK textonvideo_siz 20~40 Text on video font size textonvideo_fon /usr/share/font/Default.ttf, Choose camera default font file tpath /mnt/flash2/upload.ttf (/usr/share/font/Default.ttf) or user uploaded font file(/mnt/flash2/upload.ttf). textonvideo_upl Depends on the font file name Show the uploaded font file name. oadfilename uploaded by user minexposure <1~32000>,...
  • Page 185 VIVOTEK "capability_image_c<0~(n-1)>_expo sure_maxrange" != "-" * Only valid when "piris_mode"=manual or "irismode"=fixed * Only available when "capability_image_c<0~(n-1)>_expo sure_rangetype" is "twovalues". shuttervalue <1~32000>, Exposure time <product <5~32000>, 1~32000 => 1s ~ 1/32000s dependent> <1~8000>, 5~32000 => 1/5s ~ 1/32000s <5~8000>, 1~8000 => 1s ~ 1/8000s etc.
  • Page 186 VIVOTEK the weight of dark area. * Available value is listed in "hlc": The metering method can "capability_image_c<0~(n-1)>_expo detect strong light and make affected sure_meteringmode" area clear. * We support this parameter when the version number (httpversion) is equal or greater than 0311a.
  • Page 187 VIVOTEK or greater than 0310a. s<0~(m-1)>_e <boolean> Indicate whether stream supprts eptz nableeptz or not s<0~(m-1)>_c Listed at "capability_videoin_codec" Codec type for this stream odectype Possible values are: mjpeg, h264,h265 <product dependent> s<0~(m-1)>_re Available options are list in Video resolution in pixels.
  • Page 188 VIVOTEK 2: Standard 3: Good 4: Detailed 5: Excellent 100: Use the quality level in "qpercent" 99: Use the quality level in "qvalue" * Only valid when "ratecontrolmode"= vbr. s<0~(m-1)>_h 0~51 Manual video quality level input. The Q 264_qvalue value which is used by encoded library directly.
  • Page 189 VIVOTEK * Only available when "ratecontrolmode"= cbr. * Only available when "capability_smartstream_version" >=   "2.0" s<0~(m-1)>_h 1~100 Select customized quality in a 264_cbr_qperce normalized full range. 1: Worst quality 100: Best quality * Only valid when "ratecontrolmode"= cbr and "quant"= 100.
  • Page 190 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0309a. s<0~(m-1)>_h <boolean> Enable "Dynamic intra frame period". 265_dintraperio * Only available when d_enable "capability_videoin_c<0~(n-1)>_dint raperiod_support" is 1 and h265 is listed in "capability_videoin_codec".
  • Page 191 VIVOTEK * Only available when h265 is listed in "capability_videoin_codec". * Only valid when "ratecontrolmode"= vbr and s<0~(m-1)>_h265_quant = s<0~(m-1)>_h 1~100 Select customized quality in a 265_qpercent normalized full range. 1: Worst quality 100: Best quality * Only available when h265 is listed in "capability_videoin_codec".
  • Page 192 VIVOTEK s<0~(m-1)>_h 1~100 Select customized quality in a 265_cbr_qperce normalized full range. 1: Worst quality 100: Best quality * Only available when h265 is listed in "capability_videoin_codec". * Only valid when "ratecontrolmode"= cbr and "quant"= 100. * Only available when "capability_smartstream_version"...
  • Page 193 VIVOTEK able "capability_videoin_codec". * Only available when "capability_videoin_c<0~(n-1)>_sma rtq_support" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0309a. cbr: Constant bit rate mode. s<0~(m-1)>_m cbr, vbr jpeg_ratecontro vbr: Fixed quality mode, all frames are lmode encoded in the same quality.
  • Page 194 VIVOTEK 100. s<0~(m-1)>_m 20000~"capability_videoin_c<0~(n-1 The maximum allowed bit rate in fixed jpeg_maxvbrbit )>_mjpeg_maxbitrate" quality mode. rate When the bit rate exceeds this value, frames will be dropped to restrict the bit rate. * Only valid when "ratecontrolmode"= s<0~(m-1)>_m 1~5, 100...
  • Page 195 VIVOTEK s<0~(m-1)>_m 1~"capability_videoin_c<0~(n-1)>_ The maximum frame rates of a mjpeg jpeg_maxframe mjpeg_maxframerate" stream at different resolutions("capability_videoin_c<0~ (n-1)>_resolution") are recorded in "capability_videoin_c<0~(n-1)>_mjp eg_maxframerate" s<0~(m-1)>_ra <boolean> Change resolution to fit 4:3 ratio. tiocorrect For PAL: D1/4CIF(720/704x576) -> (768x576) CIF(352x288)->(384x288) For NTSC: D1/4CIF(720/704x480) -> (640x480) CIF(352x240)->(320x240)
  • Page 196 VIVOTEK   <product 0: off dependent> 1: on * Only available when "capability_image_c<0~(n-1)>_aesp eed" is 1 aespeed_speedl 1~100 The speed level of AE converge speed.   evel 1~20: level 1 <product 21~40: level 2 dependent> 41~60: level 3 61~80: level 4...
  • Page 197 VIVOTEK "capability_videoin_c<0~(n-1)>_mou nttype" != "-".   enablewatermar 0, 1 0: Not to add watermarks on images 1: Add watermarks on images <product dependent> * Only available when "capability_fisheye" > 0   s<0~(m-2)>_fi ‘1O, 1P, 2P, 1R, 4R’ for ceiling/floor Local dewarp mode.
  • Page 198 VIVOTEK d" is 1. qualitypriority -5,-4,-3,-2,-1,1,2,3,4,5 The differential value of Q between the regions of interest (ROI) and the areas of non-interest (non-ROI) of the display image. If the value is a positive number, the video quality of ROI is better than the non-ROI areas.
  • Page 199 VIVOTEK 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime). Group: videoin_c<0~(n-1)>_profile_i<0~(m-1)> for n channel profucts and m profile n denotes the value of "capability_nvideoin"...
  • Page 200 VIVOTEK * Available value is listed in * This parameter may also restrict image "capability_image_c frame rate from sensor due to sensor <0~(n-1)>_exposu generates a frame per exposure time. Ex: If re_maxrange" this is set to 1/5s ~ 1/8000s and camera takes 1/5s on the night, then sensor only outputs 5 frame/s.
  • Page 201 Iris, and keep adjusting Gain and Shutter "capability_image_c speed automatically. <0~(n-1)>_exposu "qualitypriority": Automatically adjust the re_modetype") Iris, Gain and Shutter Speed by VIVOTEK quality algorithm. "manual": Manually adjust with variable Shutter, Iris and Gain. User's Manual - 201...
  • Page 202 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0302a. *Only available when "capability_image_c0_exposure_mode" != 0 whitebalance auto, Modes of white balance. <product dependent> panorama, "auto": Auto white balance "panorama": indicates that camera would try...
  • Page 203 VIVOTEK * Only available when "rbgain" is listed in "capability_image_c<0~(n-1)>_wbmode". * Only valid when "videoin_c<0~(n-1)>_whitebalance" != auto * Normalized range. maxgain 0~100 Maximum gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_maxgain " != "-" * Only valid when "piris_mode"=manual or "irismode"=fixed...
  • Page 204 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0302a. meteringmode auto, "auto": The algorithm chooses the best blc, metering strategy. "blc": This metering method increases the weight of dark area. * Available value is "hlc": The metering method can detect strong...
  • Page 205 VIVOTEK "fixed": Open the iris to maximum. * Only available when "capability_image_c<0~(n-1)>_iristype"=dci wdrpro_mode <boolean> Enable WDR pro <product dependent> * Only available when "capability_image_c<0~(n-1)>_wdrpro_mod e" > 0 wdrpro_strength 1~100 The strength of WDR Pro. <product dependent> The bigger value means the stronger strength of WDR Pro.
  • Page 206 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_aespeed" is 1   aespeed_sensitivity 1~100 The sensitivity of AE converge speed. <product dependent> 1~20: level 1 21~40: level 2 41~60: level 3 61~80: level 4 81~100: level 5 Level 1~4(low ~ high) The higher sensitivity level meas that it is easy to be trigger while scene changed.
  • Page 207 VIVOTEK 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile> 0 and capability_daynight_c<0~(n-1)>_support > 0) n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) mode auto, Set IR cut control mode day, night, schedule…etc * Available values are listed in "capability_daynight...
  • Page 208 VIVOTEK is 1. bwmode <boolean> Switch to B/W in night mode if enabled. * Only available when "capability_daynight_c<0~(n-1)>_ blackwhitemode" is 1. sensitivity low,normal,high,1~ Sensitivity of day/night control. There are two value format: "low,normal,high": if capability_daynight_c<0~(n-1)>_ircutsensiti vity_type=options "1~100": if capability_daynight_c<0~(n-1)>_ircutsensiti vity_type=normalize * Only available when "capability_daynight_c<0~(n-1)>...
  • Page 209 VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel profucts and m profile n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile" NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5,100 -5: Darker <-> 5: Bright <Not recommended to use this>...
  • Page 210 VIVOTEK "saturationpercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. sharpness -3~3,100 -3: Softer <-> 3: Sharper <Not recommended to use this> 100: Use " image_c<0~(n-1)>_sharpnesspercent" * Only available when bit 3 of "capability_image_c<0~(n-1)>_basicsetting"...
  • Page 211 VIVOTEK is 1 gammacurve 0~100 0: Fine-turned gamma curve by Vivotek. <product dependent> 1: Gamma value = 0.01 2: Gamma value = 0.02 3: Gamma value = 0.03 100: Gamma value = 1 * Note: Although we set gamma value to 100 level, but not all gamma values are valid.
  • Page 212 VIVOTEK is 1 eis_mode <boolean> Electronic image stabilizer <product dependent> 0:disable 1:enable * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". eis_strength 1~100 Strength of electronic image stabilizer <product dependent> * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". dis_mode <boolean>...
  • Page 213 VIVOTEK deinterlacing techniques: Spatical mode provides the best image quality, while Blend mode provides better image quality (than not using the deinterlace function at all). * Only available when "capability_image_c<0~(n-1)>_deinterlace_s upport" is 1. xoffset 0~100 Adjusting the image to proper position horizontally.
  • Page 214 VIVOTEK version number (httpversion) is equal or greater than 0301a. profile_i<0~(m-1)>_begintime hh:mm Begin time of schedule mode. profile_i<0~(m-1)>_endtime hh:mm End time of schedule mode. profile_i<0~(m-1)>_brightness -5~5,100 -5: Darker <-> 5: Bright <Not recommended to use this> 100: Use " image_c<0~(n-1)>_brightnesspercent"...
  • Page 215 VIVOTEK * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. profile_i<0~(m-1)>_sharpness -3~3,100 -5: Less saturation <-> 5: More saturation <Not recommended to use this> 100: Use " image_c<0~(n-1)>_saturationpercent" * Only available when bit 2 of "capability_image_c<0~(n-1)>_basicsetting"...
  • Page 216 VIVOTEK profile_i<0~(m-1)>_gammacur 0~100 0: Fine-turned gamma curve by Vivotek. 1: Gamma value = 0.01 2: Gamma value = 0.02 3: Gamma value = 0.03 100: Gamma value = 1 * Note: Although we set gamma value to 100 level, but not all gamma values are valid.
  • Page 217 VIVOTEK profile_i<0~(m-1)>_eis_mode <boolean> Electronic image stabilizer <product dependent> 0:disable 1:enable * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". profile_i<0~(m-1)>_eis_streng 1~100 Strength of electronic image stabilizer * Only available when 'eis' is listed in <product dependent> "capability_image_c<0~(n-1)>_is_mode". profile_i<0~(m-1)>_dis_mode <boolean> Digital image stabilizer <product dependent>...
  • Page 218 VIVOTEK 7.12 Exposure window setting per channel Group: exposurewin_c<0~(n-1)> for n channel profucts n denotes the value of "capability_nvideoin" (Only available when "capability_image_c<0~(n-1)>_exposure_mode"=1) NAME VALUE SECURITY DESCRIPTION (get/set) mode auto, custom,blc,hlc,center "auto": Use full image view as the only exposure window.
  • Page 219 VIVOTEK size <0~320x0~240> Width and height of the window. * Only available when qvga is listed in "capability_image_c<0~(n-1)>_exposure_wi ndomain". homepx <0~W,0~H> Left-top corner coordinate of the window. W: 0~ The current image width -1 * Only available when px is listed in H: 0~ The current image height -1 "capability_image_c<0~(n-1)>_exposure_wi...
  • Page 220 VIVOTEK "hlc": Use HLC (High Light Compensation), and to perform the masking of bright light area. "center": Use Center window as metering area and give the necessary light compensation. Group: exposurewin_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product, n denotes the value of "capability_nvideoin", m denotes the value of "capability_nvideoinprofile", k denotes the value of "capability_image_c<0~(n-1)>_exposure_winnum".
  • Page 221 VIVOTEK H: 0~ The current image height -1 "capability_image_c<0~(n-1)>_exposure_wi ndomain". homestd <0~9999,0~9999> Left-top corner coordinate of the window. * Only available when std is listed in "capability_image_c<0~(n-1)>_exposure_wi ndomain". sizestd <0~9999x0~9999> Width and height of the window. * Only available when std is listed in "capability_image_c<0~(n-1)>_exposure_wi...
  • Page 222 VIVOTEK 0: Minimum 100: Maximum * Only available when the channel supports internal microphone (The related bit of "capability_audio_intmic" is equal to 1). volume_external 0~100 Volume when take external microphone as input source. 0: Minimum 100: Maximum * Only available when the channel supports external microphone (The related bit of "capability_audio_extmic"...
  • Page 223 VIVOTEK (Available codec are gamr: Adaptive Multi-Rate (AMR) listed in g711: G.711 "capability_audioin_ g726: G.726 codec") s0_aac4_bitrate 16000, Set AAC4 bitrate in bps. 32000, 48000, * Only available if AAC is supported. 64000, 96000, 128000 s0_gamr_bitrate 4750, AMR encoded bitrate in bps.
  • Page 224 VIVOTEK * Only available when "capability_audio_aecmode" is "manual". * We support this parameter when the version number (httpversion) is equal or greater than 0306b. alarm_enable <boolean> Enable audio detection alarm_level 1~100 Audio detection alarm level profile_i0_enable <boolean> Enable/disable this profile setting...
  • Page 225 VIVOTEK 7.16 Motion detection settings Group: motion_c<0~(n-1)> for n channel products n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable motion detection. win_sensitivity 0 ~ 100 Sensitivity of all motion detection windows. * The value "0" is reserved for compatibility and will not be used after the version number (httpversion) is equal or greater than 0400a.
  • Page 226 VIVOTEK H: 0~ The current * Only available when px is listed in image height -1 "capability_motion_windomain". * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a.
  • Page 227 VIVOTEK greater than 0400a. width 0 ~ 320 Width of motion detection window. <Not recommended to use * Only available when   this> "capability_motion_wintype" = rectangle. * Only available when qvga is listed in "capability_motion_windomain". * It's recommended to use polygonsd...
  • Page 228 VIVOTEK and will not be used after the version number (httpversion) is equal or greater than 0400a.   Group: motion_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product, n denotes the value of "capability_nvideoin", m denotes the vaule of "capability_nmotionprofile", k denotes the value of "capability_nmotion".
  • Page 229 VIVOTEK   <Not recommended to use ~ 320,0 ~ 240, 0 ~ (4 points: x0,y0,x1,y1,x2,y2,x3,y3) this> 320,0 ~ 240, 0 ~ * Only available when 320,0 ~ 240 "capability_motion_wintype" = polygon. * Only available when qvga is listed in "capability_motion_windomain".
  • Page 230 VIVOTEK * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. height 0 ~ 240 Height of motion detection window. <Not recommended to use * Only available when  ...
  • Page 231 VIVOTEK second(s), then image too bright detection is triggered. blurry_enable <boolean> Enable or disable image too blurry detection blurry_threshold 0~100 Threshold of image too blurry detection blurry_duration 1~10 If image too blurry value exceeds the "threshold" for more than "duration"...
  • Page 232 VIVOTEK string[64] The url user define to link to camera 7.20 UPnP presentation Group: upnppresentation NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP presentation service. 7.21 UPnP port forwarding Group: upnpportforwarding NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean>...
  • Page 233 VIVOTEK 7: LOG_DEBUG setparamlevel Show log of parameter setting. 0: disable 1: Show log of parameter setting set from external. 2. Show log of parameter setting set from external and internal. 7.23 SNMP Group: snmp (capability.protocol.snmp > 0) NAME VALUE...
  • Page 234 1 => Default logo logo_link string[128] Hyperlink of the logo http://www.vivotek. logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrig <boolean> Show or hide manual trigger (VI) button in ger_show homepage 0 ->...
  • Page 235 VIVOTEK 7.25 Privacy mask Group: privacymask_c<0~(n-1)> for n channel products and m privacy mask window. n denotes the value of "capability_nvideoin" and m denotes the value of "capability_videoin_c<0~(n-1)>_nprivacymask" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable privacy mask. win_i<0~(m-1)>_enable <boolean>...
  • Page 236 VIVOTEK 0 ~ W,0 ~ H "capability_image_c<0~(n-1)>_privacymask W: 0~ The current _wintype" = polygon. image width -1 H: 0~ The current * Only available when px is listed in image height -1 "capability_image_c<0~(n-1)>_privacymask _windomain". win_i<0~(m-1)>_polygo 0 ~ 9999,0 ~ 9999, Coordinate of polygon window position.
  • Page 237 NAME VALUE SECURITY DESCRIPTION (get/set) api_httpversion <string> The version of VIVOTEK WebAPI with 4 This number start integers plus 1 alphabet, There are composed with 0301a. by "major version", "minor version", "revision","_platform". ex: 0301a_1 Major version Increase the major version when change,...
  • Page 238 VIVOTEK EX: 0302b_1 => Major version = 03, minor version = 02, revision = b, platform = 1 The 4 integer numbers are WebAPI version, we use short name: [httpversion] for it in this document. The 5th character is model-based version for API bug-fix and it's default to "a".
  • Page 239 VIVOTEK naudiosetting <positive integer> Number of audio settings per channel. <Not support anymore> * Not support this parameter anymore when the version number (httpversion) is equal or greater than 0301a. * We replace "naudiosetting" with "naudioin". More details, please refer the parameter description of "volume_internal"...
  • Page 240 VIVOTEK (only available when RS-485 interface is supported or SD/PZ/PT/PD/video server series) Bit 6 => (only available when bit0 is 1) Reserved bit; always 0. Bit 7 => (only available when bit0 is 1) External or built-in PT; 0(built-in), 1(external) windowless <boolean>...
  • Page 241 VIVOTEK 0307a. eptz 0, <positive For "nvideoin" = 1, the definition is as integer> following: A 32-bits integer, each bit can be set separately as follows: Bit 0 => 1st stream supports ePTZ or not. Bit 1 => 2nd stream supports ePTZ or not, and so on.
  • Page 242 VIVOTEK iris <boolean> Indicate whether to support iris control. supportsd <boolean> Indicate whether to support local storage. fisheye <boolean> The parameter is used to determine whether the product is fisheye or not. tampering <boolean> Indicate whether to support tampering detection.
  • Page 243 VIVOTEK simultaneous connections. protocol_maxgenconnecti <positive integer> The maximum general streaming connections . protocol_rtp_multicast_sc <boolean> Indicate whether to support scalable multicast. alable protocol_rtp_multicast_ba <boolean> Indicate whether to support backchannel ckchannel multicast. protocol_rtp_tcp <boolean> Indicate whether to support RTP over TCP. protocol_rtp_http <boolean>...
  • Page 244 VIVOTEK * This is kept for compatibility. videoin_h264_maxframer A list of <Integer> This equals and "-" "capability_videoin_c0_h264_maxframerate". * This is kept for compatibility. videoin_codec mjpeg, h264, h265 Available codec of a device, split by comma. <product The sequence is not limited.
  • Page 245 VIVOTEK 0306b. acoustic echo cancellation function audio_aecaffect When maxframerate:fixed enabled, some features may become malfunction or be forced to a given value. The <product affected functions are list here. dependent> The format is "Affect API name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it.
  • Page 246 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0306b. audio_mic <boolean> Indicate whether to support built-in <Not support anymore> microphone input. * Not support this parameter anymore when the version number (httpversion) is equal or greater than 0301a.
  • Page 247 VIVOTEK   * We support this parameter when the version number (httpversion) is equal or greater than 0309a. audioin_codec aac4, gamr, g711, Available audio codec. We take comma to split g726, - codec without any space. <product "aac4": Advanced Audio Coding (AAC) dependent>...
  • Page 248 VIVOTEK pixels. "std": A normalized 0~9999 range. "-": Not supported. * Only available when "capability_smartstream_support" is 1 smartstream_mode_autot <boolean> Indicate whether autotracking smart stream is racking supported. * Only available when "capability_smartstream_support" is 1 smartstream_mode_man <boolean> Indicate whether manual smart stream is supported.
  • Page 249 VIVOTEK Bit 5 => Support license registration Bit 6 => Support shared memory API Bit 7 => Support digital signature of package Bit 8 => Support snapshot vadp_npackage <positive integer> Indicate the maximum number of VADP package that can be uploaded to the device.
  • Page 250 VIVOTEK * Only available when "capability_network_wireless" is "1". * We support this parameter when the version number (httpversion) is equal or greater than 0305a. wireless_s802dot11b <boolean> Indicate whether to support wireless 802.11b+. wireless_s802dot11g <boolean> Indicate whether to support wireless 802.11g.
  • Page 251 VIVOTEK version_onviftesttool <string> Indicate ONVIF test tool version media_totalspace <positive integer> Available memory space (KB) for media. media_snapshot_maxpre <positive integer> Maximum snapshot number before event event occurred. media_snapshot_maxpost <positive integer> Maximum snapshot number after event event occurred. media_snapshot_maxsize <positive integer>...
  • Page 252 VIVOTEK localstorage_modnum The maximum MOD connection numbers. <positive integer> * Only available when "capability_supportsd" is 1 or "capability_storage_dbenabled" is 1. localstorage_modversion <string> Indicate MOD daemon version. * Only available when "capability_supportsd" is 1 or "capability_storage_dbenabled" is 1. localstorage_stormgrversi <string> Indicate storage manager daemon version.
  • Page 253 VIVOTEK <product dependent> stream. The LSB indicates stream 0. Ex: “3” means stream 0 and stream 1 support local dewarp. * Only available when "capability_fisheye" > 0 shockalarm_support <boolean> Indicate whether to support the shock detection. * We support this parameter when the version number (httpversion) is equal or greater than 0306e.
  • Page 254 VIVOTEK zoommodule <boolean> Indicate whether to support zoom lens. In our product, only SD series and IZ series use the zoom lens. * Both varifocal and zoom lenses are built with movable elements that permit changing the effective focal length. And the key difference...
  • Page 255 VIVOTEK minpan 0, <positive integer> 0/7 The lower limit for pan position. *Only available when bit0 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" maxpan 0, <positive integer> 0/7 The upper limit for pan position. *Only available when bit0 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" minpanangle <integer>...
  • Page 256 VIVOTEK minzoom 0, <positive integer> 0/7 The lower limit for zoom position. *Only available when the value of "capability_camctrl_c<0~(n-1)>_zoommodule" is "1" maxzoom 0, <positive integer> 0/7 The upper limit for zoom position. *Only available when the value of "capability_camctrl_c<0~(n-1)>_zoommodule" is "1"...
  • Page 257 VIVOTEK optimizedir <boolean> Indicate whether to support optimized IR control technology. * We support this parameter when the version number (httpversion) is equal or greater than 0307b. smartir <boolean> Indicate whether to support smart IR. ircutfilter <boolean> Indicate whether to support IR cut.
  • Page 258 VIVOTEK extled_interface do,irring The device interface of external IR led: <product dependent> "do": digital output "irring":   IR ring * Only available when "capability_daynight_c<0~(n-1)>_externalir" is * We support this parameter when the version number (httpversion) is equal or greater than 0304a.
  • Page 259 VIVOTEK mode auto,daynight,di,di2,d Indicate the day / night switch mode. i3,di4,schedule,- "auto": The Camera automatically judges the <product dependent> current operation mode by the level of ambient light detected. "daynight": support day mode and night mode. In day mode, the camera streams color video.
  • Page 260 VIVOTEK Group: capability_videoin_c<0~(n-1)> n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) The lens type of this channel.  lens_type fisheye, fixed, fisheye : Fisheye lens  varifocal, changeable, " " fixed : Build‐in fixed‐focus lens.  motor, ics,- " " varifocal : Build‐in varifocal lens.  <product dependent> " " changeable : changeable lens. Like box‐type  " "...
  • Page 261 VIVOTEK rotationaffect When rotation is enabled, some features may <product dependent> become malfunction or be forced to a given value. The affected functions are list here. The format is "Affect API name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select - (unchanged) : UI keeps the status as before and user can't change it.
  • Page 262 VIVOTEK rotationangle <string> The different angles which camera supports for rotation. *  Only avaliable when " " capability_videoin_c<0~(n-1)>_rotation is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0309b. orientation flip,mirror,rotation Indicates the camera supports flip, mirror or <product dependent>...
  • Page 263 VIVOTEK minresolution A list of <Integer> Represent supported minimum resolution of each stream in current video mode. * The element number is defined as "capability_nmediastream". * We support this parameter when the version number (httpversion) is equal or greater than 0304b.
  • Page 264 VIVOTEK mjpeg_maxbitrate <positive integer>, - 0/7 Maximum bitrates of MJPEG. The unit is bps. "-" means MJPEG does not support bit rate control. * Only available when 'mjpeg' is listed in "capability_videoin_codec". h264_maxframerate A list of <Positive Maximum fps that the device can encoded with Integer>...
  • Page 265 VIVOTEK h265_maxframerate A list of <Positive Maximum fps that the device can encoded with Integer> and "-" H.265 on resolutions in current video mode. "-" means not support. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
  • Page 266 VIVOTEK mounttype ceiling, wall, floor,- Indicate the supported mount type. <product dependent> "-": not support * We support this parameter when the version number (httpversion) is equal or greater than 0309c. dintraperiod_support <boolean> 0: Non-support "Dynamic intra frame period" 1: Support "Dynamic intra frame period"...
  • Page 267 VIVOTEK smartq_support <boolean> Indicate whether to support Smart Q function.   * We support this parameter when the version number (httpversion) is equal or greater than 0309a. Group: capability_videoin_c<0~(n-1)>_localdewarp (capability_fisheyelocaldewarp_c<0~(capability_nvideoin)-1> > 0) n denotes the value of "capability_nvideoin" PARAMETER VALUE...
  • Page 268 VIVOTEK eptz 0, <positive integer> 0/7 Indicate this mode whether support eptz. For "nvideoin" = 1, the definition is as following: A 32-bits integer, each bit can be set separately as follows: Bit 0 => 1st stream supports ePTZ or not.
  • Page 269 VIVOTEK effectivepixel <WxH> The visible area of full scene in this video mode. The unit is pixel in source. * If "effectivepixel"<"capability_videoin_c<0~(n-1) >_maxsize", then the visible area is located at the center of full scene. outputsize <WxH> The output size of source, equal to the captured size by device, in this video mode.
  • Page 270 VIVOTEK minresolution A list of <Integer> Represent supported minimum resolution of each stream in current video mode. * The element number is defined as "capability_nmediastream". * We support this parameter when the version number (httpversion) is equal or greater than 0304b.
  • Page 271 VIVOTEK maxfps_h264 A list of <Positive Maximum fps which the device can encoded with Integer> and "-" H.264 on resolutions in this video mode. "-" means not support. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
  • Page 272 VIVOTEK   to proper position vertically or not. <boolean> Hightlight Mask:  The function will strengthen the image contrast and mask the specified zone of image if any strong spot-light exists. * We support this parameter when the version number (httpversion) is equal or greater than 0311a.
  • Page 273 VIVOTEK <x>, can't select it. exposuremode:fixed:auto - (unchanged) : UI keeps the status as before and user can't change it. <x>: nonnegative integer - (hidden) : UI is hidden. <product dependent> - (fixed) : UI is fixed to one selection or value.
  • Page 274 VIVOTEK be forced to a given value. The exposurewin.mode.blc:disab affected functions are list here. led:, aespeed:disabled:, The format is "Affect API exposurelevel:hidden:, name":"Policy":"Description" exposurelevel:fixed:<x>, exposurelevel:fixed:<x>/<x "Policy" can be categorized into >, following groups: exposurelevel:ranged:<x>- - (disabled) : UI turns grey and users <x>,...
  • Page 275 VIVOTEK       0: Non-support 3D digital noise reduction 1: Support 3D digital noise reduction   dnrstrength <positive integer> Indicate the support strength level of 3D digital noise reduction. * Only available when "capability_image_c<0~(n-1)>_dnr" > 0. * We support this parameter when the version number (httpversion) is equal or greater than 0306d.
  • Page 276 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0302a. is_supportlevel 0, <positive integer> Indicate the support strength level of image stabilizer mode. * Only available when "capability_image_c<0~(n-1)>_is_m ode" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
  • Page 277 VIVOTEK "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected.
  • Page 278 VIVOTEK * Note: For some cameras, this value may be varied depending on mounted lens.   sensortype rawsensor, Indicate sensor type. smartsensor, "rawsensor": Raw sensor thermalsensor, "smartsensor": Smart sensor "thermalsensor": Thermal sensor "-": N/A * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
  • Page 279 VIVOTEK be up to the assigned value (videoin_c<0~(n-1)>_shuttervalue). "-": not support. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and "capability_image_c<0~(n-1)>_expo sure_rangetype" is "onevalue". * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
  • Page 280 VIVOTEK following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden. - (fixed) : UI is fixed to one selection or value.
  • Page 281 VIVOTEK wdrpro:disabled:, here. exposurelevel:hidden:, or others The format is "Affect API name":"Policy":"Description" <x>: nonnegative integer <product dependent> "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it.
  • Page 282 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_irisprioritymod When exposure iris priority mode is e_affect exposurewin.mode.blc:hidd enabled, some features may become en:, malfunction or be forced to a given defog:disabled:, value.
  • Page 283 VIVOTEK "-" means no feature is affected. * Only available when irispriority is listed in "capability_image_c<0~(n-1)>_ exposure_modetype" and "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_qualitypriority When exposure quality priority mode mode_affect exposurewin.mode.blc:hidd...
  • Page 284 VIVOTEK well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected. * Only available when qualitypriority is listed in "capability_image_c<0~(n-1)>_ exposure_modetype" and "capability_image_c<0~(n-1)>_...
  • Page 285 VIVOTEK is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6.
  • Page 286 VIVOTEK   exposure_mode" is 1. exposure_meteringmode auto, Available options for blc, "videoin_c<0~(n-1)>_meteringmode " <product dependent> * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. exposure_hlcmode_suppo <boolean> Indicate whether to support exposure rtwindow window in hlc mode. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode"...
  • Page 287 VIVOTEK "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL.
  • Page 288 VIVOTEK "-": Not supported. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1.         exposure_winnum 0, <Positive Integer> Indicate the number of custom exposure windows. * If no "custom" is listed in "exposure_winmode", this should be * Only available when "capability_image_c<0~(n-1)>_...
  • Page 289 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1.     exposure_minrange "1,32000", Available range for "1,8000", "videoin_c<n>_minexposure" "1,32000" => 1s ~ 1/32000s or others   "1,8000" => 1s ~ 1/8000s   <product dependent> etc. "-" means minimum exposure time is not available.
  • Page 290 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_ exposure_bracketing_mode " is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0310a. privacymask_wintype rectangle, The supported mask window type. "polygon": The window is a 2D polygon, 3Drectangle polygon shape.
  • Page 291 VIVOTEK <product dependent> name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden.
  • Page 292 VIVOTEK "capability_image_c<0~(n-1)>_defog _mode"=1, this may be either 0 or 1. defog_supportlevel 0, <positive integer> The value indicate the support strength level of defog. defog_affect When defog is enabled, some features wdrpro:unchanged:, may become malfunction or be forced or others to a given value. The affected functions are list here.
  • Page 293 VIVOTEK "-" means no feature is affected. * When "defog" = 0, this value must be "-" aespeed 0: Non-support AE speed 1: Support AE speed aespeedsupportlevel <positive integer> The value indicate the support strength level of aespeed. * Only available when "capability_image_c<0~(n-1)>_aesp...
  • Page 294 VIVOTEK bit, and the default value is 0. focuswindomain qvga, px, std, - The domain to set a focus window. "qvga": a 320x240 range to represent the whole image. "px": Locate a window in the image with pixels. "std": A normalized 0~9999 range.
  • Page 295 VIVOTEK quality, while Blend mode provides better image quality (than not using the deinterlace function at all). * Only available when capability_image_c<0~(n-1)>_deinte rlace_support is 1 lens_alignment <boolean> Indicate whether to support lens alignment function. * We support this parameter when the version number (httpversion) is equal or greater than 0309b.
  • Page 296 VIVOTEK or greater than 0310a. Group: capability_peripheral_c<0~(n-1)> n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) devicecontrol <boolean> Indicate whether to support the peripheral device control. * We support this parameter when the version number (httpversion) is equal or greater than 0305c.
  • Page 297 VIVOTEK trigger boot, Indicate the trigger condition: "boot" = System boot. pir, "di"= Digital input. motion, "pir"= PIR detection. seq, "motion" = Video motion detection. recnotify, "seq" = Periodic condition. tampering, "visignal" = Video input signal loss. "recnotify" = Recording notification.
  • Page 298 VIVOTEK vadp 0,<positive integer> Indicate the source id of vadp event notification. <product dependent> Each bit corresponds to one vadp source, and the LSB indicates source id 0. For example, to detect event from any one of source id 0, 1 and 3, set vadp to 11.
  • Page 299 VIVOTEK action_cf_enable <Boolean> Enable or disable sending media to SD card. * Only available when "capability_supportsd" > action_cf_folder string[128] Path to store media. * Only available when "capability_supportsd" > action_cf_media NULL, 0~4,101 Index of the attached media. 101 means “Recording Notify”...
  • Page 300 VIVOTEK action_autotrack_enable <boolean> Enable/disable auto tracking on event triggerd. <product dependent> * Only avaliable when the bit4 of capability_ptzenabled is 1 and the bit7 of capability_ptzenabled is 0 action_audioclip_enable <boolean> Enable/disable the function the play an audio clip when an event is triggered.
  • Page 301 VIVOTEK email_port 0~65535 Port to connect to the server. email_username string[64] Username to log in to the server. email_passwd string[64] Password of the user. email_senderemail string[128] Email address of the sender. email_recipientemail string[640] Email address of the recipient. ns_location string[128] Location to upload or store the media.
  • Page 302 VIVOTEK snapshot_postevent 0~" Indicates the number of post-event capability_media_snapshot_maxpo images. stevent" videoclip_source 0~"capability_nmediastream"-1 Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc. 3 means the fourth stream and etc.
  • Page 303 VIVOTEK maxretentiontime <string> To specify the expired time for automatic clean up, and it only takes effect for video clip generated by recording_i <0~1>. Format is “‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’ , similar with ISO8601 with symbols P Ex. P7D, it means 7 days. P1DT10H, it means 1 days and 10 hours.
  • Page 304 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66.
  • Page 305 State or province name in the certificate information. localityname string[128] The locality name in thecertificate information. organizationname string[64] Organization name in the certificate VIVOTEK Inc. information. unit string[64] Organizational unit name in thecertificate VIVOTEK Inc. information. commonname string[64] Common name in the certificate information.
  • Page 306 VIVOTEK 7.34 Storage management setting Group: disk_i<0~(n-1)> n is the total number of storage devices. (capability.storage.dbenabled > 0) Currently it’s only for local storage (SD, CF card), so n is equal to 1. PARAMETER VALUE SECURITY DESCRIPTION (get/set) cyclic_enabled <boolean>...
  • Page 307 VIVOTEK maxretentiontime_recordin <string> To specify the expired time for automatic clean g_i<0~1>_maxage up, and it only takes effect for video clip generated by recording_i <0~1>. Format is “‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’ , similar with ISO8601 with symbols P Ex. P7D, it means 7 days. P1DT10H, it means 1 days and 10 hours.
  • Page 308 VIVOTEK 7.35 Region of interest Group: roi_c<0~(n-1)> for n channel product and m is the index of video stream which support ePTZ. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home <W,H> ROI left-top corner coordinate.* If the minimal <product dependent>...
  • Page 309 VIVOTEK 7.36 ePTZ setting Group: eptz_c<0~(n-1)> for n channel product. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) osdzoom <boolean> Indicates multiple of zoom in is “on-screen <Not recommended to use display” or not. this> * Reserved for compatibility, and suggest don't use this since [httpversion] >...
  • Page 310 VIVOTEK Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the index of video stream which support ePTZ if capability_eptz > 0; m is the index of stream number if capability_fisheye = 1. (capability.eptz > 0 or capability_fisheye = 1)
  • Page 311 VIVOTEK 7.37 Focus Window setting Group: focuswindow_c<0~(n-1)> for n channel products n denotes the value of "capability_nvideoin". (capability_image_c<0~(n-1)>_focuswindow_nwindow > 0) PARAMETER VALUE SECURITY DESCRIPTION (get/set) win_i0_enable <boolean> Enable or disable the window. win_i0_home <W,H> Left-top corner coordinate of the window.
  • Page 312 VIVOTEK 7.39 VIVOTEK Application Development Platformsetting Group: vadp NAME VALUE SECURITY DESCRIPTION (get/set) version <string> Indicate the VADP version. resource_total_memory 0,<positive integer> Indicate total available memory size for VADP modules. resource_total_storage 0,<positive integer> Indicate total size of the internal storage space for storing VADP modules.
  • Page 313 Indicate the message that will be show on the running status when mouse over. vvtklicensemec string[40] Indicate the module use VIVOTEK license mechanism Group: vadp_schedule_i<0~(n-1)> for n VADP package number n denotes the value of "capability_vadp_npackage". (Only available when "capability_vadp_npackage" > 0 and the version number of "vadp_version" >= "1.3.2.0")
  • Page 314 VIVOTEK 7.40 camera PTZ control Group: camctrl (capability.camctrl.ptztunnel > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enableptztunnel <boolean> Enable PTZ tunnel for camera control. Group: camctrl_c<0~(n-1)> for n channel products (capability.ptzenabled > 0) n denotes the value of "capability_nvideoin" and k denotes the value of "capability_npreset"...
  • Page 315 VIVOTEK 7.41 camera PTZ control (IZ series) Group: camctrl_c<0~(n-1)> for n channel products (capability_camctrl_c0_zoommodule = 1 and capability_camctrl_c0_buildinpt = 0) n denotes the value of "capability_nvideoin" and k denotes the value of "capability_npreset" NAME VALUE SECURITY DESCRIPTION (get/set) ccdtype string[16]...
  • Page 316 VIVOTEK * Only available when bit7 of capability_ptzenabled is 1 preset_i<0~(k-1)>_name string[40] Name of the preset location. preset_i<0~(k-1)>_zoom capability_ptz_c<0~(n-1) Zoom position at each preset location. >_minzoom ~ capability_ptz_c<0~(n-1) >_maxzoom preset_i<0~(k-1)>_focus capability_ptz_c<0~(n-1) Focus position at each preset location. >_minfocus ~ capability_ptz_c<0~(n-1) >_maxfocus...
  • Page 317 VIVOTEK returnhomeinterval 1~999 While idle over this time interval, idle action will be taken. idleaction_enable <boolean> Enable/disable idle action while idle idleaction_type home This field tells what kind of action should be taken while idle. idleaction_interval 1~999 While idle over this time interval, idle action will be taken.
  • Page 318 VIVOTEK preset_i<0~(k-1)>_name string[40] Name of the preset location. preset_i<0~(k-1)>_pan capability_ptz_c<0~(n-1) Pan position at each preset location. >_minpan ~ capability_ptz_c<0~(n-1) >_maxpan preset_i<0~(k-1)>_tilt capability_ptz_c<0~(n-1) Tilt position at each preset location. >_mintilt ~ capability_ptz_c<0~(n-1) >_maxtilt preset_i<0~(k-1)>_zoom capability_ptz_c<0~(n-1) Zoom position at each preset location.
  • Page 319 VIVOTEK axisz capability_ptz_c<0~(n-1) Custom home zoom position. >_minzoom ~ capability_ptz_c<0~(n-1) >_maxzoom axisf capability_ptz_c<0~(n-1) Custom home focus position. >_minfocus ~ capability_ptz_c<0~(n-1) >_maxfocus axisflip <boolean> Custom home flip side. returnhome <boolean> Enable/disable return home while idle. returnhomeinterval 1~999 While idle over this time interval, idle action will be taken.
  • Page 320 VIVOTEK greater than 0307a. tour_i<0~19>_checklist string[512] The indexes of preset positions, separated by “,” tour_i<0~19>_dwelltime string[512] Preset tour: time to wait before moving to the next preset position, separated by “,” Recorded tour: number of seconds to wait before continuing a loop tour.
  • Page 321 VIVOTEK and the uart_i<0~(n-1)>_databit set as 5 as well. uartmode rs485, RS485 or RS232. rs232 customdrvcmd_i<0~9> string[128] PTZ command for custom camera. speedlink_i<0~4>_name string[40] Additional PTZ command name. speedlink_i<0~4>_cmd string[40] Additional PTZ command list. ptzdriver 0~19, The PTZ driver is used by this COM port.
  • Page 322 VIVOTEK the end of a byte. If you want to transfer the stopbit for 150% of the normal time used to transfer one bit, the uart_i<0~(n-1)>_stopbit should be set as 2 and the uart_i<0~(n-1)>_databit set as 5 as well. uartmode rs485 RS485 mode.
  • Page 323 VIVOTEK NAME VALUE SECURITY DESCRIPTION (get/set) name <string> User-defined lens name 7.46 Fisheye info Group: fisheyeinfo (capability.fisheye > 0) NAME VALUE SECURITY DESCRIPTION (get/set) revisedcenteraxis <coordinate> The actual center axis coordinate radius 0, <positive The actual center radius integer> 7.47 Fisheye local dewarp setting  ...
  • Page 324 VIVOTEK 7.48 PIR behavior define Group: pir (capability.npir > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable PIR 7.49 Auto tracking setting Group: autotrack_c<0~(n-1)> (capability_image_c<0~(n-1)>_autotrack_support > 0) n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) objsize_type -1~2 Type of object size.
  • Page 325 VIVOTEK 7.50 Wireless Group: wireless (capability_network_wireless > 0) PARAMETER VALUE SECURITY DESCRIPTION (get/set) ssid string[32] SSID for wireless lan settings. wlmode Infra, Wireless mode. Adhoc Infra: Infrastructure channel 1~11 A list of WLAN channels. 1~13 Countries apply their own regulations to the 10~11 or allowable channels.
  • Page 326 VIVOTEK key4 password [26] WEP key4 for encryption. * Only valid when "wireless_encrypt" is "wep" algorithm AES, TKIP Algorithm * Only valid when "wireless_encrypt" is "wpa" or "wpa2" presharedkey password [64] WPA/WPA2PSK mode pre-shared key. * Only valid when "wireless_encrypt" is "wpa" or "wpa2"...
  • Page 327 VIVOTEK 8. Useful Functions Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
  • Page 328 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
  • Page 329 VIVOTEK \r\n do1=1\r\n Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DESCRIPTION channel 0~(capability_nvideoin -1) The channel number of the video source.
  • Page 330 VIVOTEK Account Management Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the“username” field is necessary. It will use the default value of other fields if not specified.
  • Page 331 VIVOTEK System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n Upgrade Firmware Note: This request requires Administrator privileges.
  • Page 332 VIVOTEK ePTZ Camera Control (capability.eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] –Zoom in, out [&zooming=<value>&zs=<value>] –Zoom without stopping, used for joystick [&x=<value>&y=<value>&w=<value>&h=<value>&resolution=<value>] - Zoom in, out on a specific area...
  • Page 333 VIVOTEK http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=wide&zs=5 zooming is used to indicate the moving direction, and zs is used to indicate the speed. To stop a continuous movement, you have to use the command as below: http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=stop&zs=0 2. [Area zoom]: it means to zoom in on a specific area, here is an example for a directly moving...
  • Page 334 VIVOTEK <integer> The direction of movement, used for joystick control. <integer> 0 ~ 7 Set the speed of movement, “0” means stop. <integer> x-coordinate clicked by user. It will be the x-coordinate of center after movement. <integer> y-coordinate clicked by user.
  • Page 335 VIVOTEK ePTZ Recall (capability.eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than 40 One of the present positions to recall.
  • Page 336 VIVOTEK 8.10 ePTZ Preset Locations(capability.eptz > 0 and capability_fisheye = 0) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value> [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. addpos <Text string less than Add one preset location to the preset list.
  • Page 337 VIVOTEK delv6 Delete IPv6 address from access list. <IP address> Single address: <IP address> Network address: <IP address / network mask> Range address:<start IP address - end IP address> index <value> The start position to add or to delete. 8.12 UART HTTP Tunnel Channel (capability.nuart >...
  • Page 338 VIVOTEK 8.13 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled...
  • Page 339 VIVOTEK 8.14 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
  • Page 340 VIVOTEK 8.16 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each data>[,<hex decimal...
  • Page 341 VIVOTEK 8.17 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
  • Page 342 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
  • Page 343 VIVOTEK label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5 Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
  • Page 344 VIVOTEK 8.18 Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status. Method: GET Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0”...
  • Page 345 VIVOTEK Request 2 will not be accepted during the execution time(15 seconds). 8.19 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v alue>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input theURL below into an RTSP compatible player.
  • Page 346 VIVOTEK minsft <positive How many seconds of cached stream client can accept at least. integer> (Used by forcechk) The value must be a positive integer. (>0) Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal.
  • Page 347 VIVOTEK 8.20 RemoteFocus (capability_image_c<0~(n-1)>_remotefocus=1) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>] [&position=<value>][&steps=<value>][&iris] PARAMETER VALUE DESCRIPTION User's Manual - 347...
  • Page 348 VIVOTEK function zoom, Function type focus, zoom - Move focus motor auto, focus – Move focus motor scan, auto – Perform auto focus scan – Perform focus scan stop, positioning, stop – Stop current operation getstatus positioning – Position the motors getstatus–Information of motors, return value as below:...
  • Page 349 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps. It works only if function=zoom | focus and direction=forward |   backward. <motor_max> is refer to remote_focus_focus_motor_max or remote_focus_zoom_motor_max which replied from "function=getstatus" * This parameter is for additional fine-tune, the value is from 1 to 30.
  • Page 350 VIVOTEK function focus, Function type auto, focus – Move focus motor scan, auto – Perform auto focus stop, scan – Perform focus scan stop – Stop current operation positioning, irisopen, positioning – Position the motors irisenable, resetfocus – reset focus position to default resetfocus, irisopen –...
  • Page 351 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps.   It works only if function=focus and direction=forward | backward. <motor_max> is refer to remote_focus_focus_motor_max which replied from "function=getstatus" * This parameter is for additional fine-tune, the value is from 1 to 30.
  • Page 352 VIVOTEK 8.23 Upload Files Note: This request requires Administrator privileges. Method: POST Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/upload_dst.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> For language file: http://<servername>/cgi-bin/admin/upload_lan.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data>...
  • Page 353 VIVOTEK 8.24 Update Lens Configuration (capability_image_c<0~(n-1)>_lensconfiguration_support > 0) Note: This request requires Administrator privileges. Method: GET Syntax: For list a name of lens currently used: http://<servername>/cgi-bin/admin/update_lens.cgi?get_currentlens For list all names of lens installed in camera: http://<servername>/cgi-bin/admin/update_lens.cgi?list_lens For choose selected lens configuration: http://<servername>/cgi-bin/admin/update_lens.cgi?choose_lens=<value>...
  • Page 354 VIVOTEK upload_lens_profile_input = <file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload the lens profile to camera. 8.25 Media on demand (capability.localstorage.modnum > 0) Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
  • Page 355 VIVOTEK 8.26 Fisheye local dewarp camera control (capability.fisheye > 0 and capability.fisheyelocaldewarp.c0 > 0, only support in 1R mode) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/fdCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&zoom=<value>] – Zoom wide, tele [[&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>]]...
  • Page 356 VIVOTEK zoom wide Zoom larger view with current speed. tele Zoom further with current speed. speedpan -5 ~ 5 Set the pan speed of current command. speedtilt -5 ~ 5 Set the tilt speed of current command. speedzoom -5 ~ 5 Set the zoom speed of current command.
  • Page 357 VIVOTEK 8.27 3D Privacy Mask (capability_image_c<0~(n-1)>_privacymask_wintype = 3Drectangle) n denotes the value of "capability_nvideoin" Note: This request requires admin user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&maskname=<value>&[maskheight=<valu e>&maskwidth=<value>&videosize=<value>&return=<return page>] PARAMETER VALUE DESCRIPTION method Add a 3D privacy mask at current location delete...
  • Page 358 VIVOTEK 8.28 Camera Control (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Viewer privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick [&vx=<value>&vy=<value>&vs=<value>] –...
  • Page 359 VIVOTEK speedpan -5 ~ 5 Set the pan speed. speedtilt -5 ~ 5 Set the tilt speed. speedzoom -5 ~ 5 Set the zoom speed. speedfocus -5 ~ 5 Set the focus speed. speedapp -5 ~ 5 Set the auto pan/patrol speed.
  • Page 360 VIVOTEK * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20. getsetpreset Adds a named preset at current position, and return the preset index. * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20.
  • Page 361 VIVOTEK getratio <decimal> Get the current zoom ratio. getfocus 0, <positive integer> Get the current focus position. getminspeedlv 0, <positive integer> Get the minimum speed level of the PTZ control. Normally, the speed level is ‘0,’ which denotes halting a continuous movement.
  • Page 362 VIVOTEK * We support this parameter when the version number (getversion) is equal or greater than 5.0.0.14 getminfocus 0, <positive integer> Get the lower limit for focus position. getmaxfocus 0, <positive integer> Get the upper limit for focus position. 8.29 Recall (capability_camctrl_c<0~(n-1)>_zoommodule = 1)
  • Page 363 VIVOTEK 8.30 Preset Locations (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos string[30] Add one preset location to the preset list. channel 0~"capability_nvideoin"-1 Channel of the video source. delpos string[30] Delete preset location from preset list.
  • Page 364 VIVOTEK 8.31 SmartSD (capability_localstorage_smartsd > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/smartsd.cgi?function=<value> PARAMETER VALUE DESCRIPTION 364 - User's Manual...
  • Page 365 VIVOTEK function getstatus Function type getstauts : Information of smartSD internal status return value as below: smartsd_lifetime_num: Accumulated amount of data that has been written smartsd_lifetime_den: Card-guaranteed amount of data that can be written smartsd_lifetime_rate: The ratio of smartsd_lifetime_num to smartsd_lifetime_den.
  • Page 366 VIVOTEK 8.32 Connect to AP (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/connect_ap.cgi PARAMETER VALUE DESCRIPTION Apply the wireless settings and connect to AP. 8.33 Get wireless information (capability_network_wireless > 0) Note: This request requires Administrator privileges.
  • Page 367 VIVOTEK 8.34 Get wireless signal strength (capability_network_wireless > Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/getwlsignalstrength.cgi PARAMETER VALUE DESCRIPTION Get wireless signal strength. 8.35 WPS transaction (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/start_wps.cgi...
  • Page 368 VIVOTEK 8.36 Peripheral control (capability_peripheral_c<0~(n-1)>_ devicecontrol > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/admin/peripheral.cgi?channel=<value>&operation=set [&washer_mode=<value>] – Set washer mode [&washer_status=<value>] – Set washer status [&washer_dwelltime=<value>] – Set washer clean time [&heater_status=<value>] – Set heater status Example: http://myserver/cgi-bin/admin/peripheral.cgi?channel=0&operation=set&washer_mode=wiper&...
  • Page 369 VIVOTEK *Only available when capability_peripheral_c<0~(n-1)>_washer_supp ort=1 Disable the functionality of washer control system. *Only available when capability_peripheral_c<0~(n-1)>_washer_supp ort=1 washer_dwelltime 15~999 Apply washer washer control system operation time (including the time when spraying and wiper actions take place). *Only available when capability_peripheral_c<0~(n-1)>_washer_supp...
  • Page 370 VIVOTEK \r\n supportdevice=washer,heater\r\n washer_status=off\r\n PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source. supportdevice Get support peripheral device. washer_supportmode Get the support mode of washer control system, its value is the same with "capability_peripheral_ c<0~(n-1)>_washer_mode". *Only available when capability_peripheral_c<0~(n-1)>_washer_supp...

  • Page 371: Technical Specifications

    VIVOTEK transfer to ‘auto’ after reach the internal condition. *Only available when capability_peripheral_c<0~(n-1)>_heater_suppo rt=1 8.37 Optimized IR control (capability_daynight_c<0~(n-1)>_optimizedir > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/optimizedir.cgi?function=<value>[&channel=<value>]   PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source.
  • Page 372 VIVOTEK http://myserver/cgi-bin/admin/optimizedir.cgi?function=getstatus    Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n "optimizedir_c0_irmode='auto'" "optimizedir_c0_irnum='5'" "optimizedir_c0_irstrength='1,97,100,100,100'" "optimizedir_c0_irstatus='normal'"   Syntax: (for control API) http://<servername>/cgi-bin/admin/optimizedir.cgi?channel=<value>&operation=<value>&irmode=manual    [&strength=<value>] – Set IR strength PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source.   operation set, ...

  • Page 373: Technology License Notice

    VIVOTEK   Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=settoall&irmode=manual&strength=100   Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n "optimizedir_c0_irstrength='100,100,100,100,100'" "optimizedir_c0_irmode='manual'"   Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=set&irmode=auto&strength=50,70,50,50,     Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n ERROR: Parameter "irmode" must be set as "manual"!   Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=set&strength=50,70,50,50,50...

  • Page 374: Electromagnetic Compatibility (Emc)

    VIVOTEK PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source. support_irmode List all adjustment mode that IR supports irmode Get the current IR control mode.   irnum Get the number of IR that camera supports.   Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=get&irmode  ...
  • Page 375 VIVOTEK Technology License Notice AMR-NB Standard THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY: TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT.
  • Page 376 取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
