Page 1

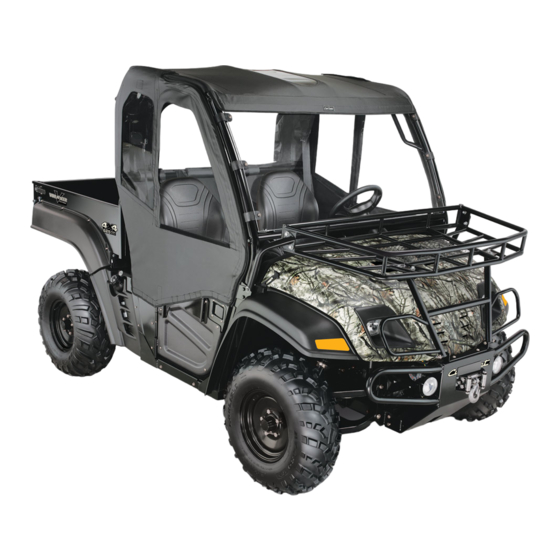

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-06325A...
Visit us on the web at www.cubcadet.com See How-to Maintenance and Parts Installation Videos at www.cubcadet.com/tutorials ◊ Locate your nearest Cub Cadet Dealer at (877) 282-8684 ◊ Write to Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019...
Important Safe Operation Practices WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
Page 4
Inspect area around vehicle before moving, especially in If situations occur which are not covered in this manual, reverse. Back up slowly. Always look down and behind use care and good judgement. Contact your local service before and while backing to avoid a back-over accident. center or call toll free 1-877-282-8684 for the name of your Keep bystanders out of area.
Page 5
When practical, remove gas-powered equipment Never secure any parts other than Cub Cadet from the truck or trailer and refuel it on the ground. approved accessories on the main frame or attach If this is not possible, then refuel such equipment on...
Page 6
Never over fill fuel tank. Fill tank to no more than ½ Prior to disposal, determine the proper method to dispose inch below bottom of filler neck to allow space for of waste from your local Environmental Protection Agency. fuel expansion. Recycling centers are established to properly dispose of materials in an environmentally safe fashion.
Page 7
Safety Symbols This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR’S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate WARNING—...
Controls and Features Figure 3-1 4x4 Switch (4X4 Only) Accelerator Pedal Ignition Switch Shift Lever Brake Pedal Cup Holders (if equipped) Differential Lock Lever Seat Belts Parking Brake Lever Fuel Tank Warning Light Cluster Choke Knob (air-cooled gas units only) 12 Volt Power Outlet Read this operator’s manual, safety symbols, and operating instructions on the vehicle before operating.
Page 9
Accelerator Pedal Ignition Switch The accelerator pedal is located on the right side of the floor WARNING: Never leave a running machine beneath the dash panel. Depressing the accelerator pedal will unattended. Always set parking brake, stop engine move the vehicle in the direction selected on the gearshift. As and remove key to prevent unintended starting.
Page 10
4x4 Switch (4x4 Only) Seat Belts The 4x4 switch is located on the right side of the dash panel. The seat belts are located on either side of the driver and Push in top/bottom of switch to activate or deactivate 4x4 passenger seats.
Operation Filling Fuel Tank Stopping Engine Stop vehicle on a level surface and apply parking brake. To stop utility vehicle, release accelerator pedal and depress brake pedal until vehicle comes to a complete Turn the ignition key to the STOP position and remove the stop.
Page 12
Electric Lift (Optional) Release brake pedal and apply pressure to the accelerator pedal. Park the vehicle safely and turn key to the RUN position. Release accelerator and apply brake pedal evenly and Raise cargo box by pressing and holding top of electric lift firmly to slow down or stop.
Page 13
Do not modify the hitch in any way. In the event of an accident, have the OPS carefully Transporting Vehicle inspected and, if necessary, replaced by your Cub Cadet dealer. Do not attempt to repair the OPS. IMPORTANT: Never tow the vehicle. Transmission damage will occur if vehicle is towed.
Maintenance & Adjustments Engine Access drain plug through slot on underside of machine and remove plug. See Fig. 5-1. Air Filter The engine air filter should be changed every 50 hours. Change more frequently if operated in extremely dusty conditions. The air filter is located on top of the engine.
Page 15
If damage is noted, contact your Cub Cadet dealer. If an accident has occurred which may have damaged the OPS, have the OPS thoroughly inspected by your Cub Cadet dealer. Jumper Cables WARNING:...
Page 16
See Fig. 5-4. If excessive wear appears, have ball joints or tie rod ends replaced by your local Cub Cadet dealer. Rear Knuckles Lubricate two grease fittings on each axle with 2 or 3 shots of grease every 50 hours or after each use if consistently running unit in water deeper than axle.
Service Fuses Headlight Bulbs Unlatch and lift hood forward to get access to under the Raise hood to get access to the headlight assembly. dash panel. Turn the bulb/socket assembly approximately a quarter turn counterclockwise to align its tabs with the notches of Remove fuse holder cover.
Page 18
Torque the mounting bolts to 22 to 26 ft. lbs. Replace wheel as described in Wheel section. Drive Belt IMPORTANT: Several components must be removed in order to change the vehicle’s belts. See your Cub Cadet Dealer to have your belts replaced. 6— S ection ervice...
Maintenance Chart Maintenance Schedule Before Each First 10 Every 20 Every 50 Every 100 Every 500 Service Hours Hours/2 mo. Hours Hrs. or Yearly Hrs. or 2 Yrs. Dates Check Transfer Case Oil Change Transfer Case Oil* Tighten Wheel Bolts Change Air Filter^ Inspect OPS and Seat Belts Inspect Front and Rear Shocks...
Accessories NOTE: For parts or accessories, contact your local Cub Cadet dealer. To locate the dealer nearest you call 877-282-8684 or log onto www.cubcadet.com. Description Description Horn Gadget/Grab Bar Acrylic Windshield AM/FM CD Radio 14” Aluminum Rims & Off-Road Tires (Set of 4) 12”...
Troubleshooting Problem Cause(s) Engine will not start 1. Battery has low voltage. 2. Loose or corroded battery connections. 3. Fuse is blown. 4. Spark plug wire is loose or disconnected. 5. Faulty spark plug or coil. 6. No Fuel or improper fuel. 7.
Page 23
Problem Cause(s) Engine overheats 1. Air cleaner element missing or plugged. 2. Carburetor air intake tube plugged. 3. Engine oil low. 4. Engine operated too long at slow engine speed. Engine knocks 1. Low engine speed. 2. Stale or low octane fuel. 3.
Page 24
3. Sulfated or worn-out battery. 4. Fluid level low. Difficult to shift 1. Gears not lined up. Blip throttle and let it return to idle. If still hard to shift, contact your nearest Cub Cadet dealer. 10 — t ection roubleShooting...
Page 26
FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS MTD Consumer Group Inc and the United States Environmental Protection Agency (EPA) are pleased to explain the emission (evaporative and/or exhaust) control system (ECS) warranty on your outdoor 2008 and later small off-road spark-ignited engine and equipment (outdoor equipment engine). New outdoor equipment engines must be designed, built and equipped to meet the U.S.
Page 27
WARRANTED PARTS: The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if MTD Consumer Group Inc demonstrates that the outdoor equipment engine has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper mainte- nance was the direct cause of the need for repair or replacement of the part.
MANUFACTURER’S LIMITED WARRANTY FOR UTILITY VEHICLES The limited warranty set forth below is given by Cub Cadet LLC with This limited warranty does not provide coverage in the following respect to new merchandise purchased and used in the United States,...
