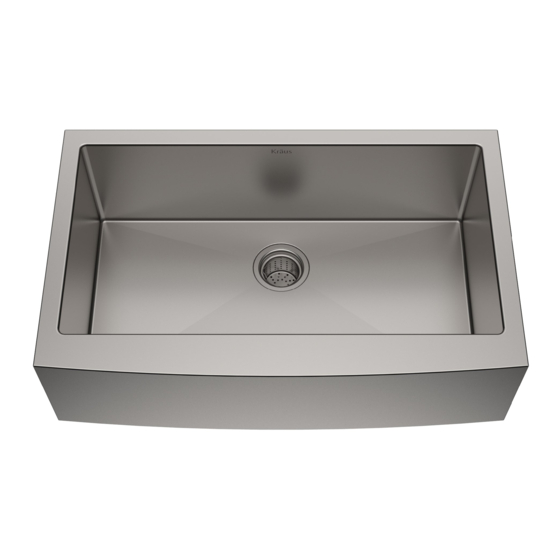

Kraus KHF200-33 Installation Manual
Stainless steel farmhouse kitchen sinks
Hide thumbs
Also See for KHF200-33:
- Installation manual (40 pages) ,
- Installation manual (12 pages) ,
- Installation manual (17 pages)
Related Manuals for Kraus KHF200-33
Summary of Contents for Kraus KHF200-33
- Page 1 INSTALLATION MANUAL Stainless Steel Farmhouse Kitchen Sinks KHF200-30, KHF200-33, KHF200-36 KHF203-33, KHF203-36, KHF204-33 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. October 26, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Tools You Will Need
Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. - Page 4 Parts List KHF200-30 Cut-Out Template · · Bottom Grid KBG-200-30 · Basket Strainer BST-1 KHF200-33 Cut-Out Template · · Bottom Grid KBG-200-33 · Basket Strainer BST-1 KHF200-36 · Cut-Out Template Bottom Grid KBG-200-36 · · Basket Strainer BST-1 KHF203-33 ·...
- Page 5 32 7/8" (835mm) 29 3/4" (756mm) Model #: KHF200-30 Model #: KHF200-33 Sink Dimensions: 29 3/4” x 20 3/4” x 10” Sink Dimensions: 32 7/8” x 20 3/4” x 10” Min Cabinet Size: 30” Min Cabinet Size: 33” 3 1/2"...
- Page 6 Dimensions: 3 1/2" 3 1/2" (90mm) (90mm) 13" 11 5/8" 19" (483mm) 17 3/8" (442mm) (330mm) (295mm) 32 7/8" 35 7/8" (835mm) (911mm) Model #: KHF203-33 Model #: KHF203-36 Sink Dimensions: 32 7/8” x 20 3/4” x 10” Sink Dimensions: 35 7/8” x 20 3/4” x 10” Min Cabinet Size: 33”...
- Page 7 Step 1. Measure & Build Supports · Measure the actual height of apron. Build supports on inside of cabinet based on sink measurements. · Installer Tip: Support Options · 1 1/4" Angle Irons (2) 2" x 4' · · 3/4" Plywood SUPPORTS...
- Page 8 Step 2. Cut Cabinet Front · Measure height of apron front. Add 1/16" to the dimension when you mark base cabinet front cutout. Use jigsaw to cut. Step 3. Install Sink · Place sink in opening. The weight of sink should be sustained by the built supports. ·...
- Page 9 Step 4. Determine Reveal Type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flushed Reveal) KRAUS Recommended Installation Type 3/8” Positive Reveal 3/8” Positive Flushed/Zero Reveal 1/8” Negative Centerline 1/8“...
- Page 10 Step 5. Cut Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the Check the alignment of the sink to the cutout in the countertop. Place countertop cutout hole over sink and press firmly. Installer Tip: Use acetone or denatured alcohol to remove any excess sealant.
- Page 11 Step 6. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. · Run water into sink and check for leaks. · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
- Page 12 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 13 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
- Page 15 INSTALLATION GUIDE Kitchen Strainer ST-1 / ST-2 / ST-3 / BST-1 / BST-2 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. November 5, 2020...
- Page 16 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 17: Prior To Installation
Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. - Page 18 Diagram and Parts List ST-1 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut ST-2 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E.
- Page 19 Diagram and Parts List BST-1 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E. Foam Gasket F. Rubber Gasket G. Main Body H. Drain Gasket I. Drain Nut BST-2 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E.
- Page 20 Diagram and Parts List ST-3 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut...
- Page 21 Dimensions Ø 4 1/2" Ø 4 1/2" Ø 4 1/2" (115mm) (115mm) (114mm) 3 3/4" 3 3/4" 4 1/2" (94mm) (94mm) (114mm) 1 1/2" - 1 1/2" - 1 1/2" - 11 1/2" Ø 4 3/4" 11 1/2" Ø 4 3/4" 4 5/8"...
- Page 22 Step 1. Disassemble strainer...
- Page 23 Step 2. Insert metal strainer into drain hole with foam gasket attached. Install rubber gasket and main body underneath the sink Strainer Cover Screw Metal Strainer Foam Gasket Rubber Gasket Main Body Drain Gasket Drain Nut...
- Page 24 Step 3. Using the screw, tighten the metal strainer and main body into place Screw Step 4. Insert strainer cover to seal water Strainer Cover...
-
Page 25: Replacement Parts
Replacement Parts ST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 A. Strainer Cover PGM* KPU00010-PGM B. Screw 1 1/4" KPU00003 B. Screw 1 1/4" PGM* KPU00003-PGM C. Metal Strainer KPU00011 C. Metal Strainer PGM* KPU00011-PGM D. Foam Gasket KPU00005 E. - Page 26 Replacement Parts ST-2 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 B. Screw 1 5/8" KPU00013 C. Metal Strainer KPU00011 KPU00005 D. Foam Gasket KPU00006 E. Rubber Gasket KPU00012 F. Main Body KPU00008 G. Drain Gasket KPU00009 H. Drain Nut...
- Page 27 Replacement Parts BST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00001 B. Basket KPU00002 C. Screw 1 1/4" KPU00003 KPU00004 D. Metal Strainer KPU00005 E. Foam Gasket KPU00006 F. Rubber Gasket KPU00007 G. Main Body KPU00008 H. Drain Gasket KPU00009 Drain Nut BST-2...
- Page 28 Replacement Parts ST-3 Replacement Parts List Finish Part # A. Strainer Cover KP22191 B. Screw KP22198 C. Metal Strainer KP22192 KP22193 D. Foam Gasket KP22194 E. Rubber Gasket KP22195 F. Main Body KP22196 G. Drain Gasket KP22197 H. Drain Nut...
- Page 29 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 30 12 Harbor Park Drive Port Washington, NY 11050 Toll-Free : 800-775-0703 Customerservice@kraususa.com If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL , please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 31 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
